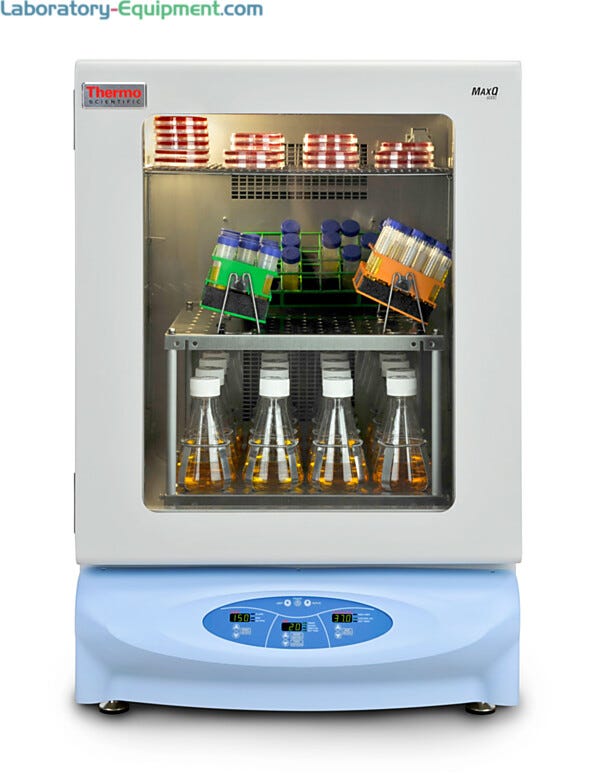

Thermo Scientific’s MaxQ™ 6000 Orbital Shakers offer a large interior volume and precise incubation of samples | 5322-22 displayed
Shakers,Cell Culture Equipment
Product Group:
5322-PP-05
5322-PP-05 71674

MaxQ™ 6000 Incubated/Refrigerated Stackable Shakers by Thermo Scientific

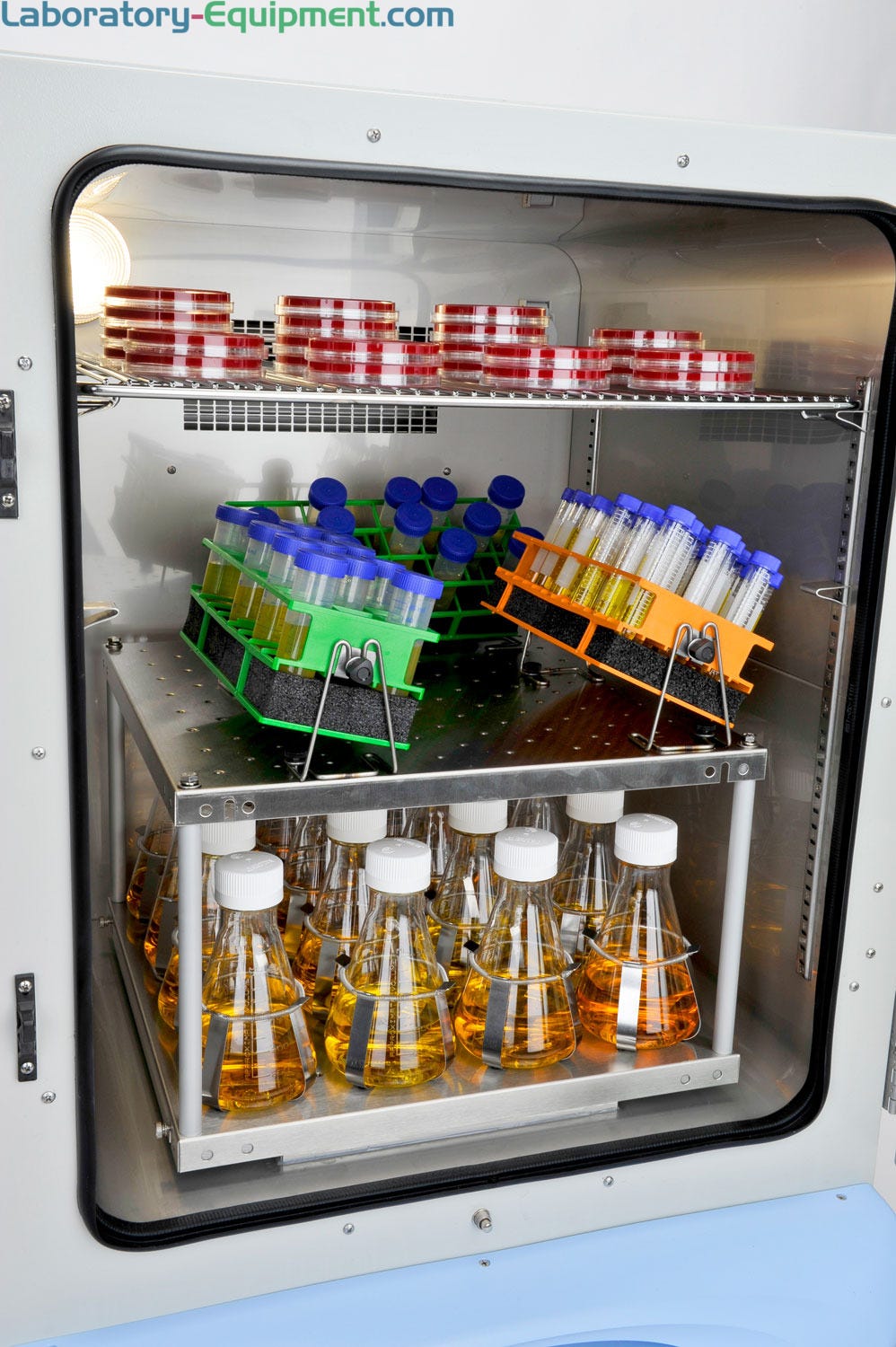

  • MaxQ 6000 Orbital Shakers available in incubated or incubated/refrigerated models include two adjustable shelves for increased storage capacity; requires universal (without clamps) or dedicated platforms (pre-installed clamps)
  • Large viewing window and internal light for sample visibility minimizes need for frequent door openings
  • Platform: 18" x 18" stainless steel; stackable with adapter set (sold separately)
  • Speed Range: 15 to 500 rpm, ±1 rpm
  • Temperature Range: −5°F to +140°F (Incubated/Refrigerated models); 50°F to 140°F (Incubated models)
Read more
CE Mark Logo ULus Logo
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Temperature Range

Sort Order:
Platform Size

Sort Order:
Shaking Speed

Sort Order:
Temperature Control

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part #Price Ships in
120 V Incubated Ambient +10 to 80°C 18" x 18" 15-500 rpm Yes MaxQ SHKE6000 5322-22 59994 $11,652 10-20 Days2
120 V Incubated/Refrigerated Ambient -15 to 80°C 18" x 18" 15-500 rpm Yes MaxQ SHKE6000-7 5322-23 59996 $13,225 10-20 Days3
240 V Incubated Ambient +10 to 80°C 18" x 18" 15-500 rpm Yes MaxQ SHKE6000-1CE 5322-22-220 59995 $11,808 10-20 Days4
240 V Incubated/Refrigerated Ambient -15 to 80°C 18" x 18" 15-500 rpm Yes MaxQ SHKE6000-8CE 5322-23-220 59997 $13,225 10-20 Days5
Voltage
Type
Temperature Range
Platform Size
Shaking Speed
Temperature Control
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • MaxQ 6000 Orbital Shakers available in incubated or incubated/refrigerated models include two adjustable shelves for increased storage capacity; requires universal (without clamps) or dedicated platforms (pre-installed clamps)
  • Large viewing window and internal light for sample visibility minimizes need for frequent door openings
  • Platform: 18" x 18" stainless steel; stackable with adapter set (sold separately)
  • Speed Range: 15 to 500 rpm, ±1 rpm
  • Temperature Range: −5°F to +140°F (Incubated/Refrigerated models); 50°F to 140°F (Incubated models)
  • Applications: bacterial suspensions, hybridizations, solubility studies, diagnostic test, extraction procedures, washing procedures, general mixing, protein expression, staining and destaining, and plasmid purification
  • Capacity:
  • 25 250 ml flask capacity with a dedicated platform
  • 16 250 ml flask capacity with a universal platform
  • 2 x 6L Flasks
  • Specifications:
  • Temperature Resolution: ±0.1°C
  • Orbit: 19 mm
  • Load bearing: 35 lbs.
  • Motor: Solid-state DC brushless
  • Timer Range: Continuous (displays time counts up) or timed operation from 0.1 minute to 999 hours (displays time counts down)
  • Interior material: corrosion-resistant stainless steel
  • Exterior material: durable powder-coated, cold-rolled steel
  • Platform: stainless steel
  • Interface: RS 232 enables remote monitoring of speed, time and temperature
  • Features:
  • Stackable floor models increase flexibility, versatility and save lab space
  • Versatile models combine orbital shaking with general purpose incubation
  • Electrical outlet inside chamber for convenient connection to shakers, stirrers or rotators
  • Accepts up to 6L flasks
  • Variable speed control
  • Door: left or right hinged for convenient placement; can be configured by user
  • Safety interlock feature stops shaking motion when the door is open
  • Soft start feature eliminates sudden starts and stops
  • Precisely monitors and controls chamber temperature over complete range with ±0.1°C accuracy at 37°C with PID temperature controller
  • Overtemperature safety feature (with independent thermostat) controls heat if main temperature controller fails
  • Parameters retained during power failure; unit automatically restarts when power is restored
  • Visual/audible alerts user to temperature deviation and turns off heat if temperature deviates ±1°C of setpoint or if unit operates ±10% of set speed
  • Three individual LED displays enable simultaneous viewing of speed, operating time and temperature; minimize errors in establishing running conditions
  • Stops platform motion upon detection of excess vibration due to unbalanced load
  • User-adjustable speed calibration with a digital handheld tachometer (for required verification and standardized protocols)
  • Accessories:
  • Adapter set for stacking two platforms #3522-3
  • Stacking Kit #SHK6000-10 for MaxQ 6000 Orbital Shakers

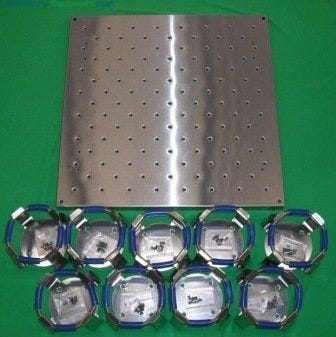

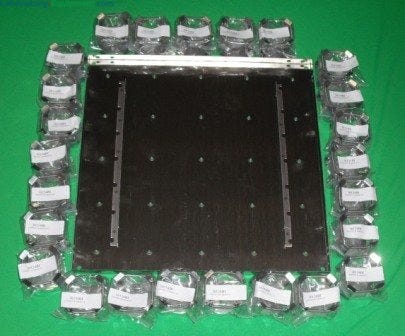

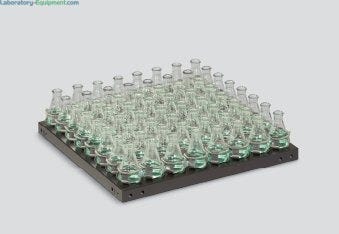

  • Universal and dedicated platforms
  • Clamps
  • Tubes, racks (full and half size), beakers and Erlenmeyer flasks
Show more

Show more
Features & Benefits

Features and Benefits

Stackable

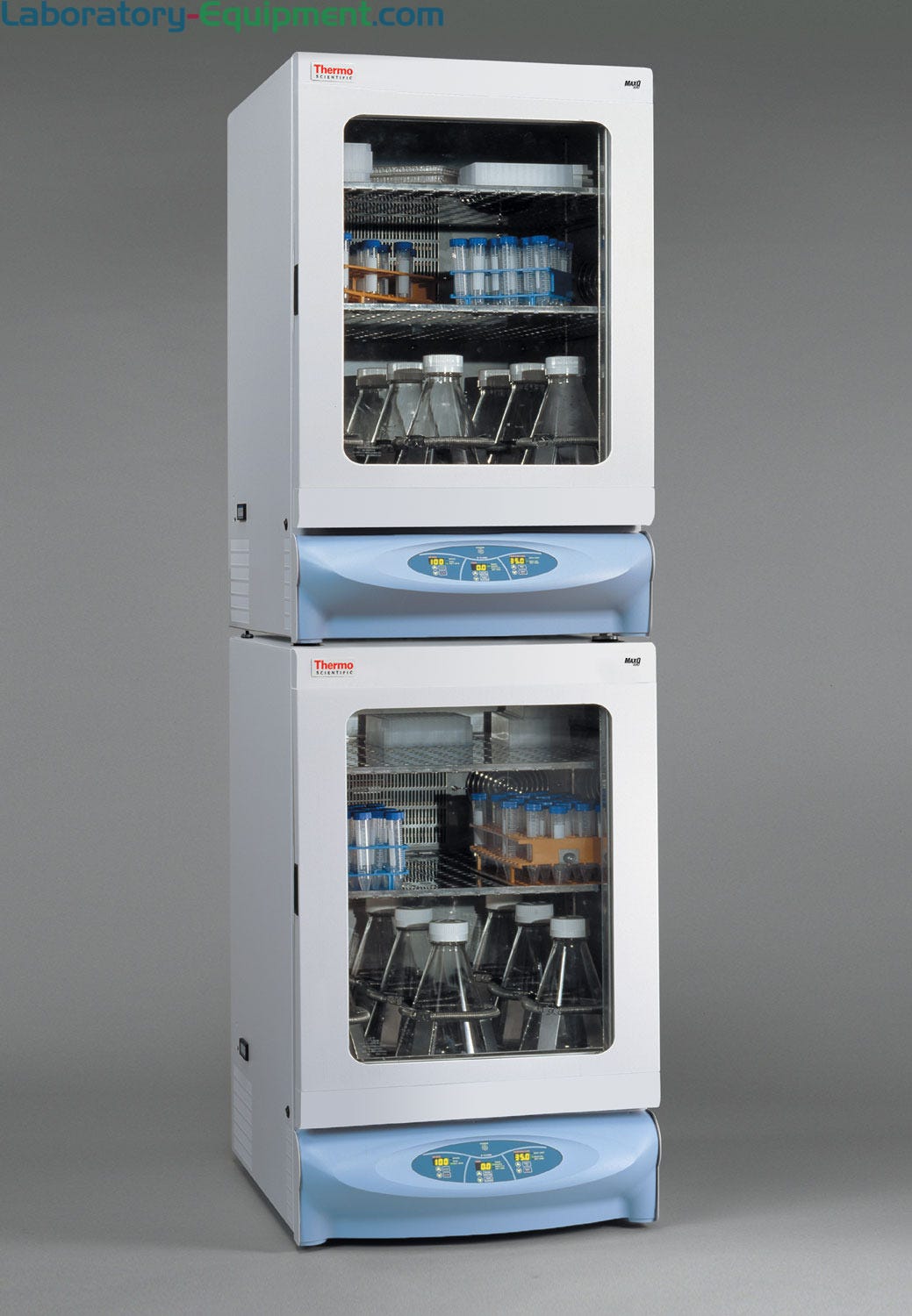

Space-saving MaxQ 6000 Shakers can be stacked to save lab space and the optional adapter set tiers two 18" x 18" platforms to double the shaking capacity

MaxQ 6000 Stacking Kit

Stacking Kit #SHK6000-10 enables vertical stacking of MaxQ 6000 Shakers for increased flexibility and usability ideal for small high-throughput labs

Accessories

MaxQ 6000 models accommodate a variety of flasks and tubes as well as required universal and dedicated platforms and clamps; adapter set for stacking two platforms also available
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.

  • 30 x 25 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 30 x 50 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 15 x 125 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 10 x 250 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • Utility Tray platform for MaxQ Orbital Shakers

  • 25 x 250 ml Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 9 x 1 L Erlenmeyer Flask Platform for MaxQ Orbital Shakers

  • 25 x 250 ml Beaker Platform for MaxQ Orbital Shakers

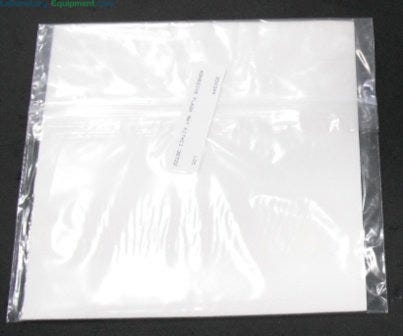

  • Adhesive Flask Mat for MaxQ Shakers Platform
