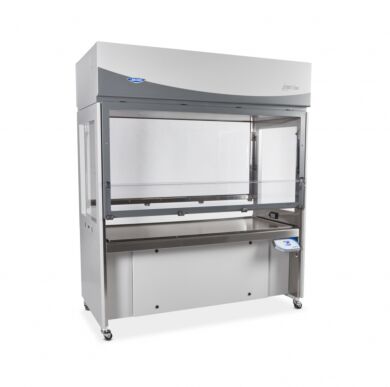

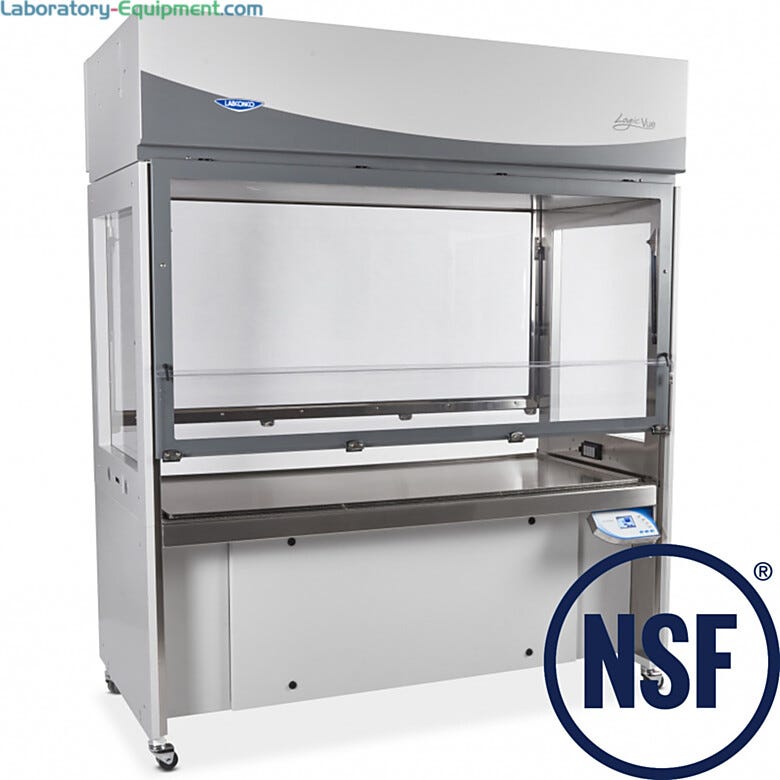

Logic Vue Class II, Type A2, Biosafety Cabinets by Labconco
Biological Safety Cabinets
Product Group:
3642-PP-06
3642-PP-06 79619

Logic Vue Class II Biosafety Cabinets by Labconco

  • Logic Vue Class II Biosafety Cabinets designed to maximize protection and containment for large instruments
  • Feature dual full-open sash openings, HEPA filters, safety interlock, and stainless steel interior
  • Intuitive MyLogic Operating System shows clear status information on LCD display ( 8 languages)
  • Protection Type: Product and Personnel
  • Conformance: ADA, CAN/CSA C22.2,ETL, NSF 49, UL

• Manufactured by: Labconco

• Biosafety Class: Class II A2

Read more
ISO 5 Icon
Manufactured By: Labconco
Warranty: 1 year parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Width

Sort Order:
Base Stand

Sort Order:
Sash Opening

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
115 V 48" Integral 8" Logic Vue 3300400 3642-89 79622 $25,147 20-24 Days 2
115 V 72" Integral 8" Logic Vue 3300600 3642-88 79621 $31,452 20-24 Days 3
Voltage
Width
Base Stand
Sash Opening
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Logic Vue Class II Biosafety Cabinets designed to maximize protection and containment for large instruments
  • Feature dual full-open sash openings, HEPA filters, safety interlock, and stainless steel interior
  • Intuitive MyLogic Operating System shows clear status information on LCD display ( 8 languages)
  • Protection Type: Product and Personnel
  • Conformance: ADA, CAN/CSA C22.2,ETL, NSF 49, UL
  • Specifications:
  • -Intrinsically safe, single-pass negative pressure design
  • -Includes both supply and exhaust HEPA filters for total particle control
  • -Fully-opening front/rear sashes and side windows constructed of durable polycarbonate
  • -8.0" front lower sash opening with unrestricted access to full working area
  • -Unidirectional ISO Class 5/Grade A air or better
  • -Constant Airflow Profile™ auto-adjusting blowers contain biohazards while maintaining aseptic conditions within the enclosure
  • -Spacious working area
  • -MyLogic™ OS displayed on a full-color LCD screen with adjustable angle and touchpad controls
  • -Smart-Start™ package automates blower and light functions for start-up and shut-down
  • -Energy-efficient electronically communicated motors (ECM)
  • -Electronic security lock
  • -Robust multi-piece work surface accommodates equipment up to 250.0 lbs. (113.4kg) per every 2 feet (60.1 cm)
  • -Stainless steel interior offers durability and corrosion-resistance; easy to wipe down and compatible with most cleaning agents
  • -Chemically-resistant epoxy powder-coated steel exterior
  • -SpillStopper work surface tray
  • -Ergonomic deep knee well
  • -Adjustable work surface height of 31.5-37.5" (80.0-95.3 cm) in 1" increments (2.5 cm)
  • -Remote monitoring via standard USB and dry contact relays
  • -LED lighting illuminates work surface for maximum visibility of 133 footcandles (1432 lux)
  • -Safety Interlock port for automated equipment
  • -16 cable/cord pass-through ports standard
  • -2 service fixture provisions per sidewall
  • -2 large pass-through provisions per sidewall
  • -Ergotron® computer/media arm attachment point
  • -Four transport casters and four seismic leveling feet
  • -Ships fully assembled with minimal installation required
  • Standards conformance & regulations:
  • -Meets or exceeds NSF/ANSI Standard 49 for personnel and product protection
  • -UL Standard 61010-1
  • -CAN/CSA 22.2 No. 61010-1
  • -ADA-compliant operation
Show more

• Manufactured by: Labconco

• Biosafety Class: Class II A2

Show more
Features & Benefits

Features and Benefits

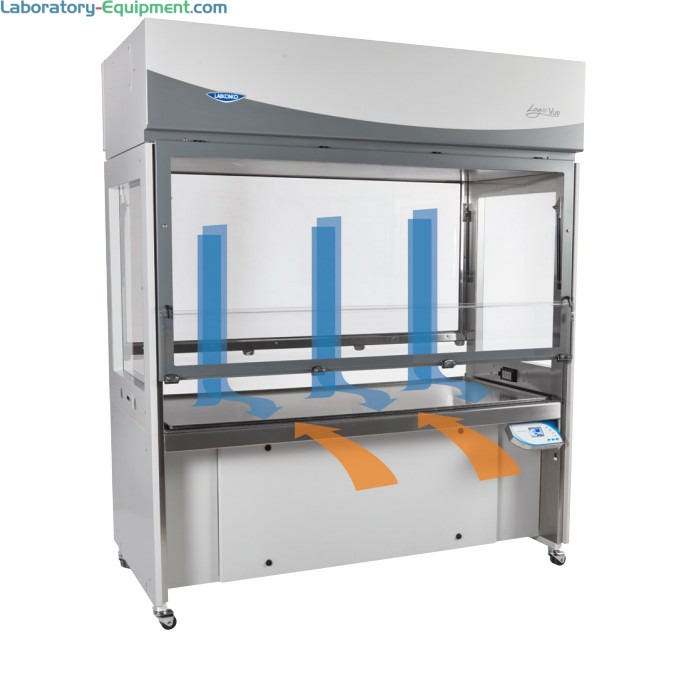

Logic Vue Airflow Diagram

The Logic Vue Class II Enclosure provides personnel and product protection. Meets NSF/ANSI Standard 49 with Laminar ISO 5 or better air.

Convenience for Instrumentation

Excellent visibility from all sides of enclosure. Dual full-open sashes for easy access. Large 42" interior height provides ample space for tall instruments.
