Portable ISO 7 HEPA/ULPA ScanAir Pro Particle Counter 1510-58 77851 $3,624 15-20 Days 2
Ships Free Free shipping in contiguous USA
Portable ISO 7 ScanAir 1510-57 77850 Request Quote 60-70 Days 3
ISO 7 1510-69 82550 $4,228 15-20 Days 4
Ships Free Free shipping in contiguous USA
Design
Certified ISO Gradeâ„¢ Design
Filter
Model
Included
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • ScanAir and ScanAir Pro contamination detection systems for ISO-14611-1 compliance testing
  • Remote start/stop button for hands-free operation of particle counting
  • Integrates with Solair particle counter (included with ScanAir Pro) for contamination testing
  • Includes: Manual on CD, USB cable, AC adapter, purge filter, headphone jack and carry case
  • •  Testing: filter leak, HEPA Filters and PTFE Media Filters, cleanroom classification and more

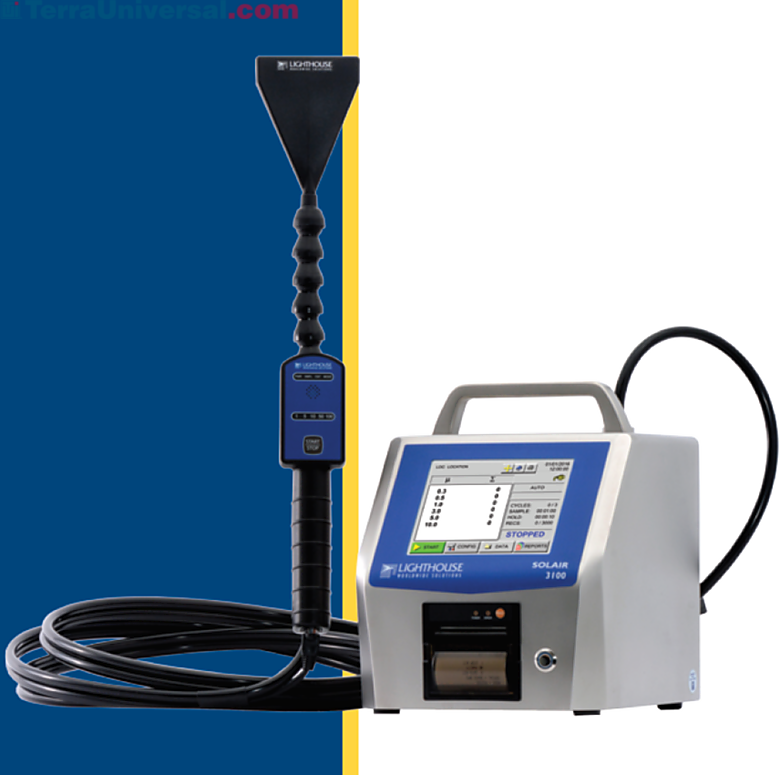

  • ScanAir features: Adjustable scan head, facilitates ISO 14644-1 compliance testing, remote start/stop button, remote power and alarm LED, 3-meter 10ft. cable
  • ScanAir Pro features: Includes Solair Particle Counter and a dual-port diluter, HEPA/ULPA filter scanning system, tests and scans PTFE fiberglass and other filter media, touchscreen user interface, stainless steel enclosure
  • Remote features on all models: start/stop, power and alarm LEDs, audible and visual alarm
  • Flow rate: 1 CFM
  • Communication mode: Solair Particle Counter
  • Probe cable/tubing length: 3 meters (10 foot)
  • Optional: Printed operating manual, LMS Express Software
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage: 14°F to 122°F (-10°C to 50°C) / Up to 98% non-condensing

• Dew Point Temperature Range: [xxx]

• Unit of Measure: of 1

Features & Benefits

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.
