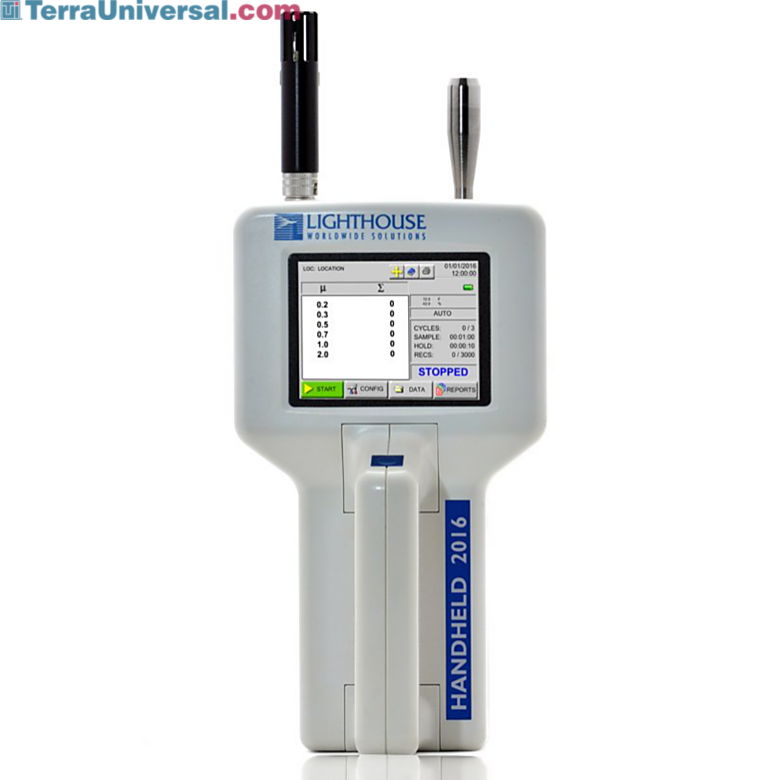

Lightweight 6-channel airborne particle counter with a sensitivity range from 0.2- 2.0 μm; ideal for spot-checking critical environments and cleanrooms
Product Group:
1505-PP-07
1505-PP-07 77852

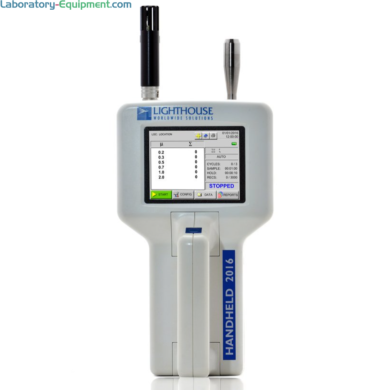

Lighthouse Handheld Airborne Particle Counters by LWS

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 6-ch models display cumulative and particle count data, and temperature/relative humidity data
  • Minimum sensitivity range: 0.2 to 0.5 μm; mass concentration mode model available (3016 IAQ)
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Holds 3,000 records of particle data and 50 sampling/report recipes
  • Count modes: Automatic, manual, beep, concentration, cumulative/differential
Read more
UL Classified Logo ISO 7 Icon Ships Free
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Certified ISO Gradeâ„¢ Design

Sort Order:
Detection Channels

Sort Order:
Detection Range

Sort Order:
Counting Efficiency

Sort Order:

 Terra Part # Price Ships in
ISO 7 6 Channels 0.2 - 2.0 μm 50% @ 0.2 µm, 100% > 0.3 µm 1510-59 77853 $5,174 5-10 Days 2
Ships Free Free shipping in contiguous USA
ISO 7 6 Channels 0.3 - 10 µm 50% @ 0.3 µm, 100% > 0.45 µm 1510-62 77856 $4,254 5-10 Days 3
Ships Free Free shipping in contiguous USA
ISO 7 6 Channels 0.3 - 25 µm 50% @ 0.3 µm, 100% > 0.45 µm 1510-60 77854 $4,254 5-10 Days 4
Ships Free Free shipping in contiguous USA
ISO 7 6 Channels 0.5- 25.0 μm 50% @ 0.5 µm, 100% > 0.75 µm 1510-61 77855 $4,139 5-10 Days 5
Ships Free Free shipping in contiguous USA
Certified ISO Gradeâ„¢ Design
Detection Channels
Detection Range
Counting Efficiency
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 6-ch models display cumulative and particle count data, and temperature/relative humidity data
  • Minimum sensitivity range: 0.2 to 0.5 μm; mass concentration mode model available (3016 IAQ)
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Holds 3,000 records of particle data and 50 sampling/report recipes
  • Count modes: Automatic, manual, beep, concentration, cumulative/differential
  • Includes: removable battery, direct mount isokinetic sample probe,  purge filter, temperature/relative humidity probe, power supply; power chord; LMS Express software, international support, Operating manual on CD
  • Handheld 2016: 0.2 - 2 μm
  • Handheld 3016: 0.3 - 25 μm
  • Handheld 5016: 0.5 - 25 μm
  • Handheld 3016-IAQ: 0.3 - 10.0 μm
  • Bright 3.5" TFT color touchscreen display Lightweight and ergonomic models  feature an easily configurable interface with Zoom capability
  • Air Particle Counter Features: simultaneous viewing of six particle sizes, user-friendly interface, removable / rechargeable Li-Ion battery, removable probes, internal audible alarm, 50-record Configurable Recipe Database, 3,000 record data storage, alphanumeric location labels, Open Architecture Connectivity with OPC Server
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage:14°F to 122°F (-10°C to 50°C) / Up to 98%non-condensing
  • Meets ISO 21501-4 calibration using NIST traceable PSL spheres
  • Compliance: ISO 21501-4
  • Concentration limits: 8,000,000 particles /ft3 @ 10% coincidence loss
  • Laser Source: Extreme Life Laser Diode with > 20 years MTTF
  • Unit-to-Unit Accuracy and Repeatability
  • Test Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1 or EU GMP Annex 1
  • Supporting software (sold separately): LMS Express, LMS Express RT, LMS Pharma, LMS Pro
  • Options: Carry Case, isokinetic sample probe with 6ft tubing, Li-Ion batteries, external battery charger with AC and car adapter, thermal printer and printer cable, printed operating manual
Show more

Show more

  • Lighthouse Handheld Airborne Particle Counters by LWS Lighthouse Handheld Airborne Particle Counters by LWS
  • Video of Lighthouse Handheld Particle Counters by LWS Video of Lighthouse Handheld Particle Counters by LWS
  • Operating Instruction Video of Handheld Particle Counters by LWS Video Tutorial of Handheld Particle Counters by LWS
Lighthouse Handheld Airborne Particle Counters by LWS
6-channel Handheld 2016, 3016, 5016 and 3016-IAQ (Mass Concentration) models from 0.2 to 25 µm ideal for spot-checking critical environments and cleanrooms Lighthouse Handheld Airborne Particle Counters by LWS 6-channel models with a minimum sensitivity reading from 0.2 to 0.5 µm

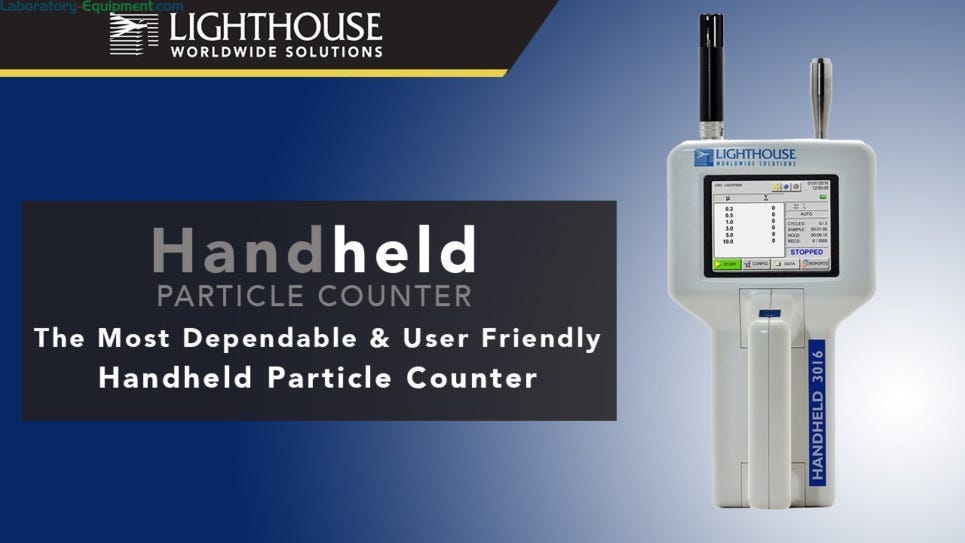

Video of Lighthouse Handheld Particle Counters by LWS
Highlights design, function and product benefits of Handheld 2016 Particle Counter model Video of Lighthouse Handheld Particle Counters by LWS Details user-friendly TFT color touchscreen display, menu and function as well intuitive interface
Operating Instruction Video of Handheld Particle Counters by LWS
Demonstration of how to operate LWS handheld particle counters Video Tutorial of Handheld Particle Counters by LWS Details function navigation and settings of the TFT color touchscreen
Features & Benefits

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

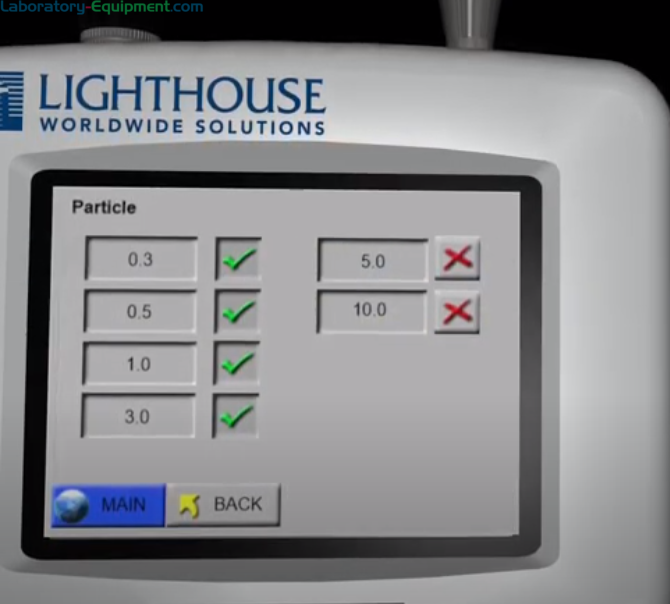

Intuitive User Interface

Easy-to-use TFT color touchscreen interface enables convenient setting of parameters

Rechargeable Battery

Enables easy removal of rechargeable battery; additional battery and charger for maximum uptime sold separately

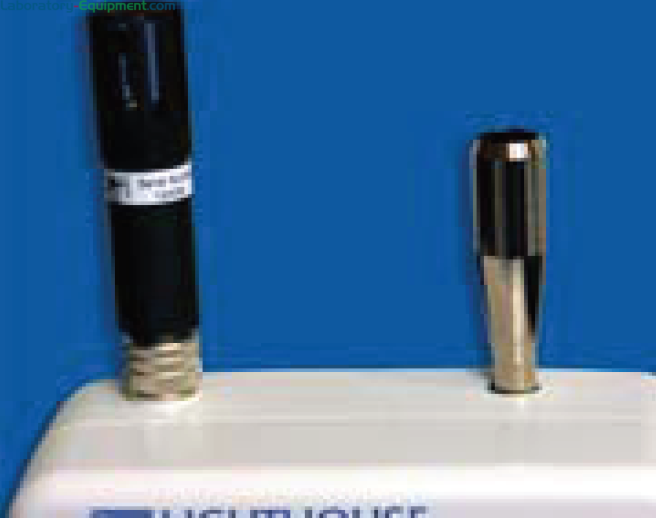

Removable Probes

Temp / RH and isokinetic probes can be removed for easy cleaning
