Lightweight 6-channel airborne particle counter with a sensitivity range from 0.3 - 25.0 μm ideal for spot-checking critical environments and cleanrooms

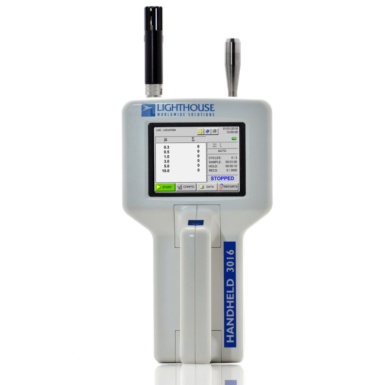

Particle Counter; 3016 Handheld Airborne, Lighthouse

  • Available Certified ISO Grade Designs: ISO 7, ISO 8

• Detection Channels: 6 Channels

• Detection Range: 0.3 - 25 µm

• Counting Efficiency: 50% @ 0.3 µm, 100% > 0.45 µm

• Unit of Measure: EA

Read more
UL Classified Logo ISO 7 Icon Ships Free
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1510-60
Terra Part # 1510-60
$4,254
Usually ships in 5-10 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 1510-60
77854
Particle Counter; 3016 Handheld Airborne, Lighthouse
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 6-ch model displays cumulative and particle count data, and temperature/relative humidity data
  • Flow Rate: 0.1 CFM (2.83 LPM)
  • Holds 3,000 records of particle data and 50 sampling/report recipes
  • Standard channels: 0.3, 0.5, 1.0, 3.0, 5.0, 10.0 μm
  • Includes: removable battery, direct mount isokinetic sample probe, purge filter, temperature/relative humidity probe, power supply; power chord; international support, Operating manual on CD
  • Bright 3.5" TFT color touchscreen display Lightweight and ergonomic models  feature an easily configurable interface with Zoom capability
  • Air Particle Counter Features: simultaneous viewing of six particle sizes, user-friendly interface, removable / rechargeable Li-Ion battery, removable probes, internal audible alarm, 50-record Configurable Recipe Database, 3,000 record data storage, alphanumeric location labels, Open Architecture Connectivity with OPC Server
  • Operating: 50°F to 104°F (10°C to 40°C) / 20% to 95%non-condensing
  • Storage:14°F to 122°F (-10°C to 50°C) / Up to 98%non-condensing
  • Meets ISO 21501-4 calibration using NIST traceable PSL spheres
  • Compliance: ISO 21501-4
  • Concentration limits: 8,000,000 particles /ft3 @ 10% coincidence loss
  • Laser Source: Extreme Life Laser Diode with > 20 years MTTF
  • Unit-to-Unit Accuracy and Repeatability
  • Test Wizard for Cleanroom Pass/Fail Reports: FS-209E, ISO-14644-1 or EU GMP Annex 1
  • Supporting software (sold separately): LMS Express, LMS Express RT, LMS Pharma, LMS Pro
  • Options: Carry Case, isokinetic sample probe with 6ft tubing, Li-I
Show more

• Detection Channels: 6 Channels

• Detection Range: 0.3 - 25 µm

• Counting Efficiency: 50% @ 0.3 µm, 100% > 0.45 µm

• Unit of Measure: EA

• Marks & Listings: UL

• Electrical Specifications: 100/240 V, 1.25 A, 50/60 Hz

• Weight, Product: 2.2 lb

• Dimensions, Product: 5" W x 2.5" D x 8.75" H

Show more
Other products you may find relevant
  1. Ideal for use in labs, hospital rooms and in spaces requiring UV disinfection | 2100-41 displayed
    TORCH Portable UV Disinfection, ClorDiSys
    $31,250
    Usually Ships in 20 - 24 days
Buy Accessories
  1. Provides 247 real time cleanroom monitoring of parameters and centrally locates data; use with Lighthouse particle counters and viable air samplers
    Particle Counter; Express Real-Time Monitoring LMS Software, Lighthouse Ships Free Free shipping in contiguous USA
    $3,014
    Increase Down Increase Up

  • Video of Lighthouse Handheld Particle Counters by LWS Video of Lighthouse Handheld Particle Counters by LWS
  • Operating Instruction Video of Handheld Particle Counters by LWS Video Tutorial of Handheld Particle Counters by LWS
Video of Lighthouse Handheld Particle Counters by LWS
Highlights design, function and product benefits of Handheld 2016 Particle Counter model Video of Lighthouse Handheld Particle Counters by LWS Details user-friendly TFT color touchscreen display, menu and function as well intuitive interface
Operating Instruction Video of Handheld Particle Counters by LWS
Demonstration of how to operate LWS handheld particle counters Video Tutorial of Handheld Particle Counters by LWS Details function navigation and settings of the TFT color touchscreen

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Intuitive User Interface

Easy-to-use TFT color touchscreen interface enables convenient setting of parameters

Rechargeable Battery

Enables easy removal of rechargeable battery; additional battery and charger for maximum uptime sold separately

Removable Probes

Temp / RH and isokinetic probes can be removed for easy cleaning
