6-channel model integrates into SOP processes, automates workflow and eliminates errors; ideal in cleanroom environment particle monitoring | 1510-51 displayed
Product Group:
1505-PP-04
1505-PP-04 77840

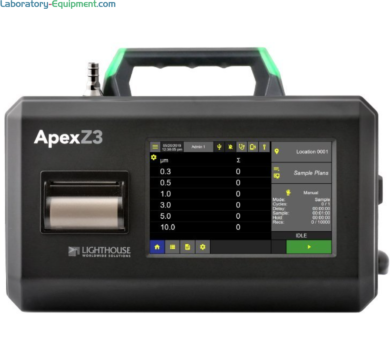

Lighthouse ApexZ Portable Airborne Particle Counters by LWS

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Use in ISO Class 2 or Grade A ultra-clean areas and in ISO Class 3 cleanroom environments
  • Laser diode mode monitoring system with self-diagnostics and a sealed VHP compatible enclosure
  • Includes two removable and rechargeable Li-Ion batteries
  • Functions as a wireless or real-time particle sensor
  • Integrates easily with your current SOP processes and built-in cleanroom certification reports
Read more
CE Mark Logo ISO 7 Icon Ships Free
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Certified ISO Grade™ Design

Sort Order:
Detection Channels

Sort Order:
Detection Range

Sort Order:
Counting Efficiency

Sort Order:
Flow Rate

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
ISO 7 6 Channels 0.3 - 10 µm 50% @ 0.3μm; 100% for particles >1.5X first channel particle size 1 CFM ApexZ3 1510-51 77841 $11,191 5-10 Days 2
Ships Free Free shipping in contiguous USA
ISO 7 6 Channels 0.5 - 10 μm 50% @ 0.5 μm; 100% for particles > 1.5 X first channel particle size 100 LPM ApexZ50 1510-52 77842 $12,730 5-10 Days 3
Ships Free Free shipping in contiguous USA
Certified ISO Grade™ Design
Detection Channels
Detection Range
Counting Efficiency
Flow Rate
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • Use in ISO Class 2 or Grade A ultra-clean areas and in ISO Class 3 cleanroom environments
  • Laser diode mode monitoring system with self-diagnostics and a sealed VHP compatible enclosure
  • Includes two removable and rechargeable Li-Ion batteries
  • Functions as a wireless or real-time particle sensor
  • Integrates easily with your current SOP processes and built-in cleanroom certification reports
  • Includes: USB flash drive with lanyard, ISO probe 1 CFM, ISP clamp, zero count filter, 24 VDC 5.0 amp power adapter and power cord, 10 feet of Beveline XX tubing 13/8" ID x 1/2" OD, 1 li-Ion smart battery included (2 battery slot capacity), 2x rolls of printer paper, Operators Manual on USB flash drive, Calibration Certificate
  • Options: USB Barcode Scanner, Temperature & humidity probe, 1 CFM isokinetic sample probe, high pressure diffuser (ported or vented), li-Ion batteries, Beveline XX tubing, external battery charger w/AC power cord, printed operators manual, carry case
  • Features: Extreme Life Laser Diode laser source, designed for ISO 21501-4 Compliance, 7"(8.89 cm), 1200 x 800 IPS color touch screen, user configurable warnings and alarms, RGB light pipe for status and alarms integrated in handle, automates workflow and eliminates sample errors, material compatible with chemical cleaners, simplifies daily workflow
  • 21 CFR Part 11 Compliant assure traceability and data security, 10 customizable user access levels
  • Self-Diagnostics: Laser Power/Current/Supply, Flow out-of-range, No flow, PA Background/Supply/Health
  • Battery: 2x Li-Ion battery slot capacity, removable and rechargeable
  • Data Storage: 10,000 Sample Records, 2500 Locations, 250 Groups, 500 Presets, 500 Sample Plans, 500 Certifications, 100 Reports, 250 Users
  • Enclosure: Chemically Resistant Polycarbonate blend, conductive lining, VHP compatible
  • Zero Count Level: < 1 count / 5 minutes (meets specifications of JIS B 9921 and reporting requirements of ISO 21501-4 Annex C)
  • Count Modes: Sample, Concentration, Beep, Quick Certification
  • Communication: Ethernet, USB standard, Wi-Fi (802.11 b/g/n)
  • Supporting Software: LMS Express, LMS Express RT, LMS Pharma, LMS Professional, LMS XChange
  • Environmental Sensors: Temperature/Relative Humidity probe: 0 to 150°F (-17.8 to 65.6°C) ±1.8°F (0.5°C), 0-100% ± 2% RH
  • Speakers: 2x adjustable up to 70 dB to indicate status and alerts
  • Printer: Embedded panel-mount printer, also available without printer
  • Reports: FED 209E, ISO 14644-1:1999, ISO 14644-1:2015, & EU GMP regulatory pass/fail reports on screen or printer
  • Sample Inlet: 3 3/8" Inlet nozzle (ApexZ3) /8 inch Inlet nozzle (ApexZ50
  • Sample Output: Internally filtered to HEPA standards (>99.97% @ 0.3 μm); with rotatable exhaust fitting for directed flow
  • Vacuum Source: Internal blower, automatic flow control
  • Power: External power supply: 24 VDC, 5 A max draw
  • Temperature Humidity: 35°F to 104°F (2°C to 40°C), 20% to 95% relative humidity, non-condensing
  • Languages:: English, Spanish, Portuguese, German, French, Italian, Russian, Chinese, Korean, Japanese, Turkish, Thai
Show more

Show more

  • Lighthouse ApexZ Series Portable Particle Counters by LWS Lighthouse ApexZ Series Portable Particle Counters by LWS
  • Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
  • Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
  • GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
  • Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS
  • Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS
  • Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
  • Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
  • Grid View of ApexZ Portable Airborne Particle Counters by LWS Grid View of ApexZ Portable Airborne Particle Counters by LWS
  • Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS
  • Setting up Main Data View on ApexZ Particle Counters by LWS Setting up Main Data View on ApexZ Particle Counters by LWS
  • Exporting Data to USB Key - ApexZ Particle Counters by LWS Exporting Data to USB Key - ApexZ Particle Counters by LWS
  • Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS
  • WiFi Connection - Lighthouse ApexZ Particle Counters by LWS WiFi Connection - Lighthouse ApexZ Particle Counters by LWS
  • Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS
Lighthouse ApexZ Series Portable Particle Counters by LWS
Product overview video of Lighthouse ApexZ Series Portable Particle Counters by LWS Lighthouse ApexZ Series Portable Particle Counters by LWS Showcases general product features and benefits
Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
Video highlights the design and build of ApexZ models with an emphasis on the HEPA filter exhaust port, easy wipe down, battery life and integrated alarm Physical Features of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Lighthouse ApexZ Portable Particle Counters – Physical Features
Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
Video lists connectivity, safety, WiFi, and database management features Technologically Advanced System of Lighthouse ApexZ Portable Airborne Particle Counters by LWS ApexZ Particle counter technologically advanced features: IFI enabled, active directory, ad groups, self-diagnosis API connectivity and CIF file sharing
GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS
Video shows how to activate GMP workflow feature on ApexZ Particle Counters GMP Workflow Activation of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Details various features such as the SOP driven workflow, audit trail of ApexZ models for data integrity in cleanroom monitoring
Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS
How to connect ApexZ to LMS Express Software and common internet file sharing enabling users to maintain data integrity and using a paperless system Paths to Paperless Data - Lighthouse ApexZ Portable Airborne Particle Counters by LWS Video on how to create paperless data management with ApexZ Portable Airborne Particle Counters by LWS
Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS
Quick tutorial on adding new users to ApexZ Particle Counters; Shows step-by-step instructions using touchscreen display and keyboard Adding Users to Lighthouse ApexZ Portable Airborne Particle Counters by LWS Shows step-by-step instructions using touchscreen display and keyboard
Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
Step-by-step video tutorial on how to load instrument configuration on Lighthouse ApexZ Portable Particle Counters Load Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Shows how to use settinsg on 7” touchscreen display
Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS
Shows step-by-step instructions on 7” touchscreen display on how to export using USB configuration Backup Instrument Configuration - ApexZ Portable Airborne Particle Counters by LWS Quick video tutorial on how to backup instrument configuration on Lighthouse ApexZ Particle Counters
Grid View of ApexZ Portable Airborne Particle Counters by LWS
Video tutorial on the benefits of using the grid view feature of Lighthouse ApexZ Portable Airborne Particle Counters by LWS Grid View of ApexZ Portable Airborne Particle Counters by LWS Shows how to access the grid view feature on the 7” touchscreen display of ApexZ models
Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS
Video tutorial on how to use recipe settings when moving ApexZ Particle Counters to another environmental or cleanroom location Using Room, Recipes & Locations on Lighthouse ApexZ Particle Counters by LWS Shows how to efficient set recipes with step-by-step instruction
Setting up Main Data View on ApexZ Particle Counters by LWS
Video tutorial on how to customize main data view on ApexZ3 and ApexZ50 models Setting up Main Data View on ApexZ Particle Counters by LWS Step-by-step instruction using the 7” touchscreen display
Exporting Data to USB Key - ApexZ Particle Counters by LWS
Video tutorial on exporting data using a USB key and how to filter data and export on ApexZ3 model Exporting Data to USB Key - ApexZ Particle Counters by LWS Shows how to use filters column and which icons to use during export
Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS
Overview of ApexZ3 and ApexZ50 features and design elements; Shows how to navigate interface when configuring settings, data filtering, room recipes and more Home Screen Orientation of Lighthouse ApexZ Particle Counters by LWS Shows how to navigate interface when configuring settings, data filtering, room recipes and more
WiFi Connection - Lighthouse ApexZ Particle Counters by LWS
Video tutorial on how to connect Lighthouse ApexZ Particle Counters by LWS to WiFi WiFi Connection - Lighthouse ApexZ Particle Counters by LWS Step-by-step instruction on how to configure WiFi connection
Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS
Video tutorial on how to generate custom reports using ApexZ3 model Generating Custom Reports - Lighthouse ApexZ Particle Counters by LWS Shows how to navigate ApexZ Series interface and 7” touchscreen
