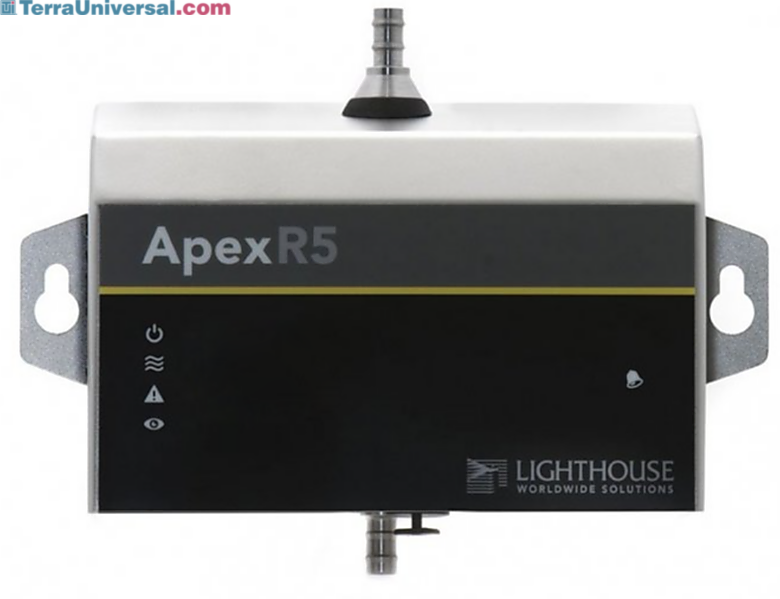

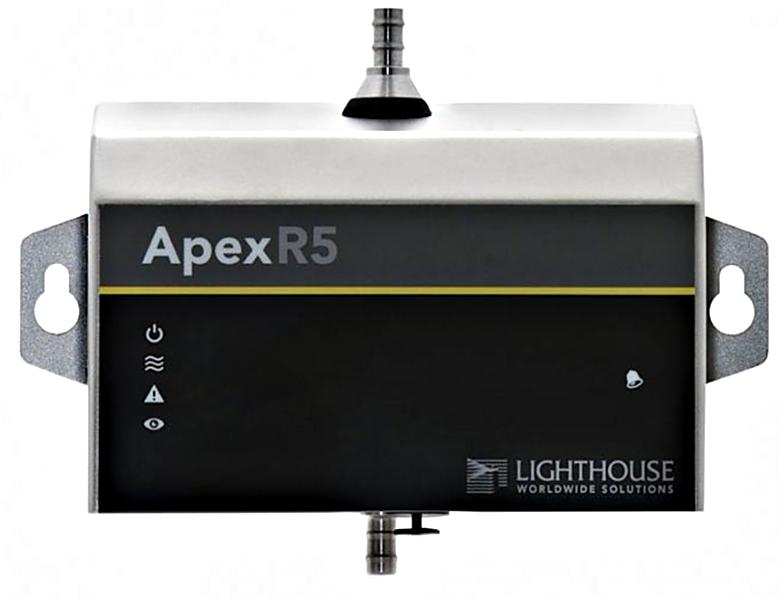

2-channel real time monitoring system with 0.5 and 5.0 μm channel sizes and a 1 CFM flow rate with risk mitigation feature ideal for GMP regulated industries | 1510-47 displayed

Lighthouse ApexRemote Particle Counters by LWS

Available Certified ISO Grade Designs: ISO 7, ISO 8
2-channel laser diode models with 3,000 storage in 0.2, 0.3 and 0.5 um minimum detection sizes
Remote access via webserver and concentration limits suitable for ISO 1-8 cleanrooms
Enclosure compatible with industry standard decontamination processes and ISO 21501-4 compliance
Real-time monitoring system used in GMP regulated industries and VHP room sterilization
Transfers particle count data with RS-485 (using MODBUS RTU or ASCII)

Warranty: Two-Year Manufacturer Warranty

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Certified ISO Grade™ Design All ISO 7 Sort Order: Descending Ascending	Detection Channels All 2 Channels Sort Order: Descending Ascending	Detection Range All 0.2 - 2.0 μm 0.3 - 5.0 μm 0.5 - 10 μm Sort Order: Descending Ascending	Counting Efficiency All 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size Sort Order: Descending Ascending	Flow Rate All 0.1 CFM 1 CFM Sort Order: Descending Ascending	Manufacturer SKU All ApexR03 ApexR05 ApexR3 ApexR02 ApexR5 Sort Order: Descending Ascending	Terra Part #	Price	Ships in
ISO 7	2 Channels	0.2 - 2.0 μm	50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size	0.1 CFM	ApexR02	1510-48A 85648	$4,110	5-10 Days	2	Ships Free Free shipping in contiguous USA
ISO 7	2 Channels	0.3 - 5.0 μm	50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size	0.1 CFM	ApexR03	1510-49A 85649	$3,091	5-10 Days	3	Ships Free Free shipping in contiguous USA
ISO 7	2 Channels	0.3 - 5.0 μm	50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size	1 CFM	ApexR3	1510-46A 85645	$3,784	5-10 Days	4	Ships Free Free shipping in contiguous USA
ISO 7	2 Channels	0.5 - 10 μm	50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size	0.1 CFM	ApexR05	1510-50A 85650	$2,968	5-10 Days	5	Ships Free Free shipping in contiguous USA
ISO 7	2 Channels	0.5 - 10 μm		1 CFM	ApexR5	1510-47A 85646	$3,169	5-10 Days	6	Ships Free Free shipping in contiguous USA

Certified ISO Grade™ Design

Detection Channels

Detection Range

Counting Efficiency

Flow Rate

Manufacturer SKU

* *

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

Available Certified ISO Grade Designs: ISO 7, ISO 8
2-channel laser diode models with 3,000 storage in 0.2, 0.3 and 0.5 um minimum detection sizes
Remote access via webserver and concentration limits suitable for ISO 1-8 cleanrooms
Enclosure compatible with industry standard decontamination processes and ISO 21501-4 compliance
Real-time monitoring system used in GMP regulated industries and VHP room sterilization
Transfers particle count data with RS-485 (using MODBUS RTU or ASCII)

Applications: GMP regulated industries, VHP room sterilization, bio-decontamination, pharmaceutical production, manufacturing vaccines and other drugs

Flow Rate for Apex3 and Apex5: 1 CFM (28.3 LPM), 1/4" inlet and outlet fitting

Flow Rate for ApexR02, ApexR03 and ApexR05: 0.1 CFM (2.83 LPM), 1/8" inlet and outlet fitting

ApexR3: 0.3, 0.5 μm channel sizes

ApexR5: 0.5, 5.0 μm channel sizes

ApexR02: 0.2, 0.3 μm channel sizes

ApexR03: 0.3, 0.5 μm channel sizes

ApexR05: 0.5, 5.0 μm channel sizes

Self-Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health

Provides risk mitigation and environmental compatibility

Versatile mounting option when used with an external vacuum source ideal in small environments

Feature of all models: Ethernet or Serial communication, 3,000 data storage, validation mode, alarm light, 304 stainless steel enclosure, OLED display, additional channel sizes available

Modbus Protocol: TCP or RTU or ASCII

External Vacuum Requirements;: Nominal 1.0 CFM 18" (45.72 cm) of Hg

Light Source: Laser Diode

Calibration: Designed for ISO 21501-4 Compliance

Zero Count Level: <1count/5 minutes per ISO 21501-4

Counting Efficiency: 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size

Concentration Limits 1.0 CFM: 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms

Concentration Limits 0.1 CFM: 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms

Software: LMS Express, LMS Express RT, LMS Pharma

Smart Bracket: Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall
