Select Product
Voltage

Type

Material

Controls

Maximum Temperature

Capacity

Convection Type

Model

Manufacturer SKU

Terra Part # Price Ships in
240 V Large Capacity Stainless Steel Digital 260°C 14 cu. ft. Forced Air Large Capacity SMO14-2 3700-85 34068 $5,076 15-25 Days 2
240 V Large Capacity Stainless Steel Digital 260°C 27.5 cu. ft. Forced Air Large Capacity SMO28-2 3700-86 34069 $7,139 18-24 Days 3
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

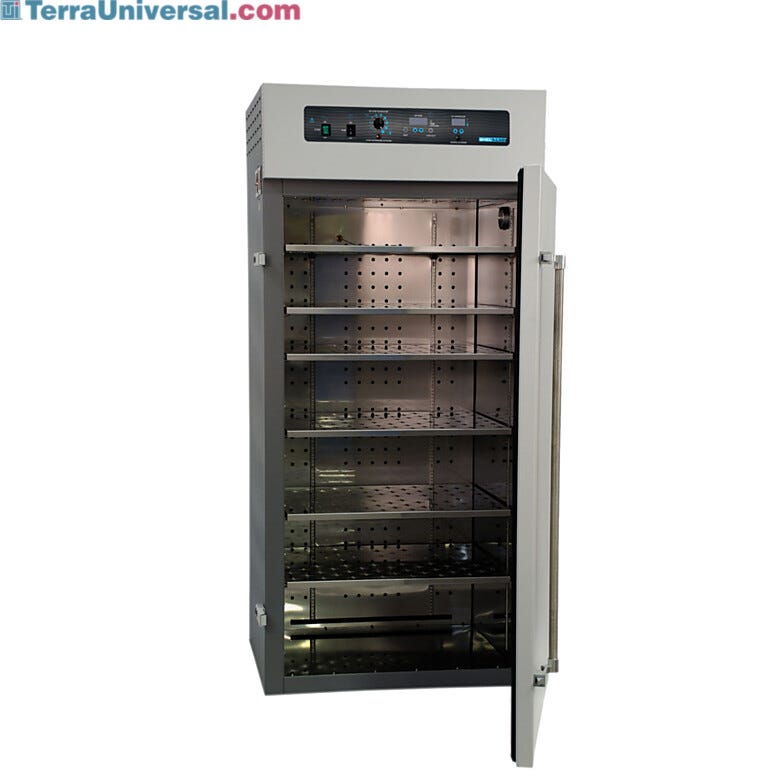

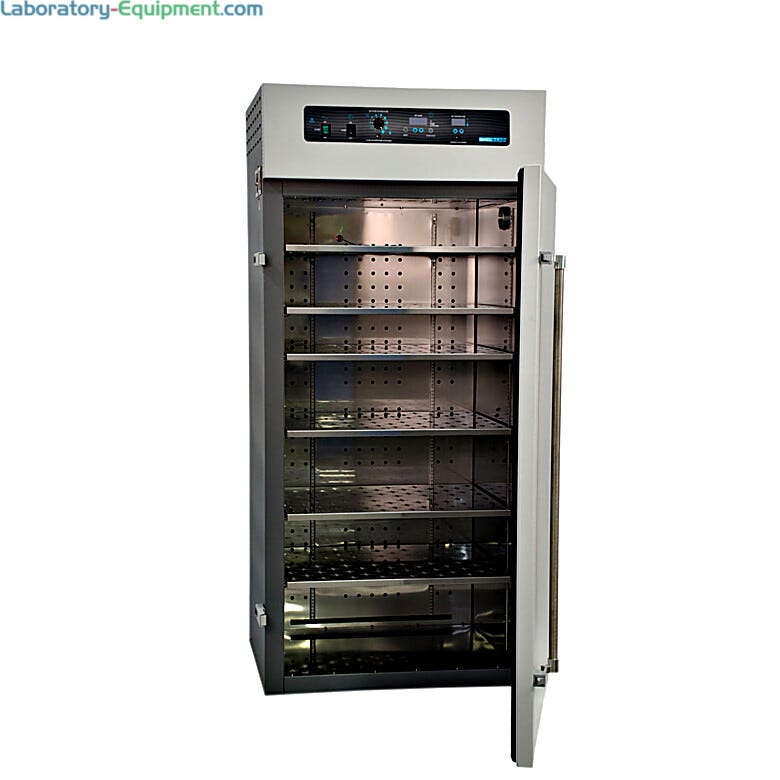

  • Shel Lab Large Capacity Forced Air Ovens are available in 13.7 and 27.5 cubic feet capacity sizes
  • Versatile multi-purpose ovens perform economical drying, curing, baking, and sterilizing of mid to high-volume samples
  • Models feature a microprocessor controller for precise environmental control and maintain stable temperatures for optimal results
  • Unique turbo blower system creates a true one-pass circulation pattern that provides both exceptional temperature uniformity (± 1.8°C @ 100°C) and rapid heat recovery, without temperature overshoot.
  • Safety over temperature protection operates independent from the microprocessor and controls the heating function if the main temperature set point is exceeded
  • Other standard features include a P.I.D. Temperature control and an electronic digital timer, with large, easy-to-read LED display that indicates both temperature and time parameters
  • P.I.D. temperature controls for stable heating to 220°C
  • Unique turbo blower system creates true one-pass circulation pattern for optimal uniformity and fast recovery time
  • Performs economical drying, curing, baking, and sterilizing of high-volume samples; ideal for drying glassware
  • Material: Stainless steel chamber interior and shelves; powder coated paint exterior finish
  • Electronic digital timer features large, easy-to-read LED display
  • Adjustable air intake and exhaust vents allow fresh intake air or closed recirculation
  • Safety features include independent overtemperature protection
  • Features high temperature silicone door seal, wrap around insulation, digital timer, no exposed heating elements

  • Large Capacity Forced Air Multi-Purpose Oven Forced Air Multi-Purpose Oven
  • Forced Air Multi-Purpose Oven; 14 Cu. Ft., Digital Temperature Control Large Capacity Forced-Air-Multi-Purpose Oven
  • Forced Air Oven; 28 Cu. Ft., Digital Temperature Control Forced Air Oven; 28 Cu. Ft., Digital Temperature Control
Features & Benefits

Features & Benefits

Learn More: Forced Air Ovens

Specifications for Large Capacity Forced-Air Multi-Purpose Ovens

  • Temperature Recovery:  8 minutes at 150°C(SMO14-2);  10 minutes at 150°C(SMO28-2)
  • Temperature Uniformity: ±3°C @ 110°C (SMO14-2);  +/- 3.5°C at 150°C (SMO28-2)
  • Temperature Range: Ambient +15ºC to 260ºC
  • Electronic Timer Range:1 minute to 99 hours/59 minutes
  • Control Sensitivity: ± 0.05°C
  • Electrical: 220/240VAC, 50/60 Hz
  • Control/displays: Microprocessor/digital LED
Applications and Industry use for Large Capacity Forced-Air Ovens by Shel Lab
  • Drying glassware, textiles, paper and pulp, non-flammable crystalline chemicals, solid materials and tissue
  • Industry use in biochemical research, drug metabolism research, moisture content analysis, pre-heating containers, moisture elimination, chemical precipitation and digestion of proteins and starch

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
