Environmental Test Chambers
1410-PP-05
1410-PP-05 71884
KBWF Growth Chambers by BINDER Worldwide
Read more
Manufactured By: Binder
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Product Details
Environmental Test Chambers
-

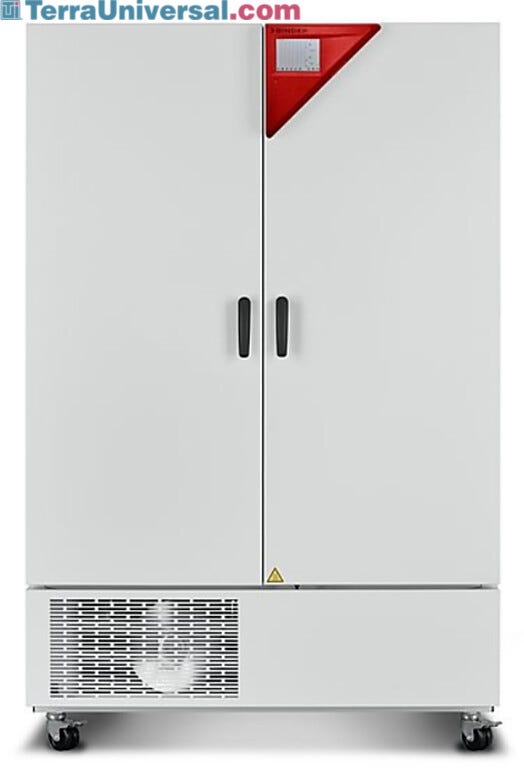

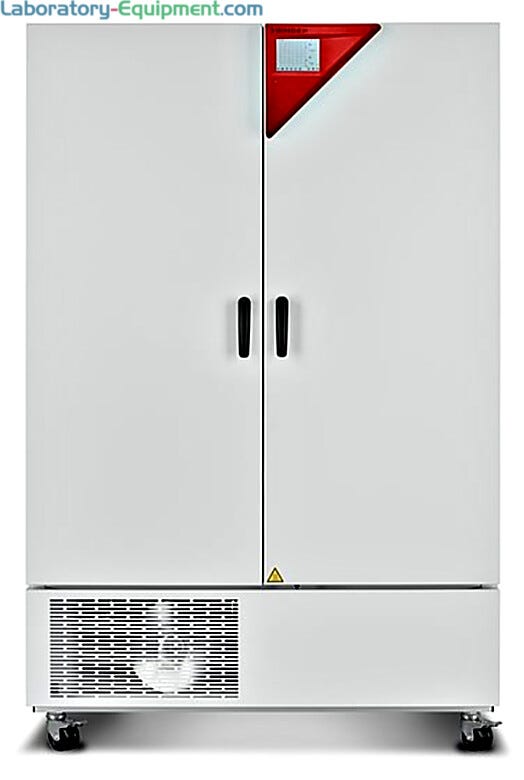

BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber
-
KBWF Patented Lighting System

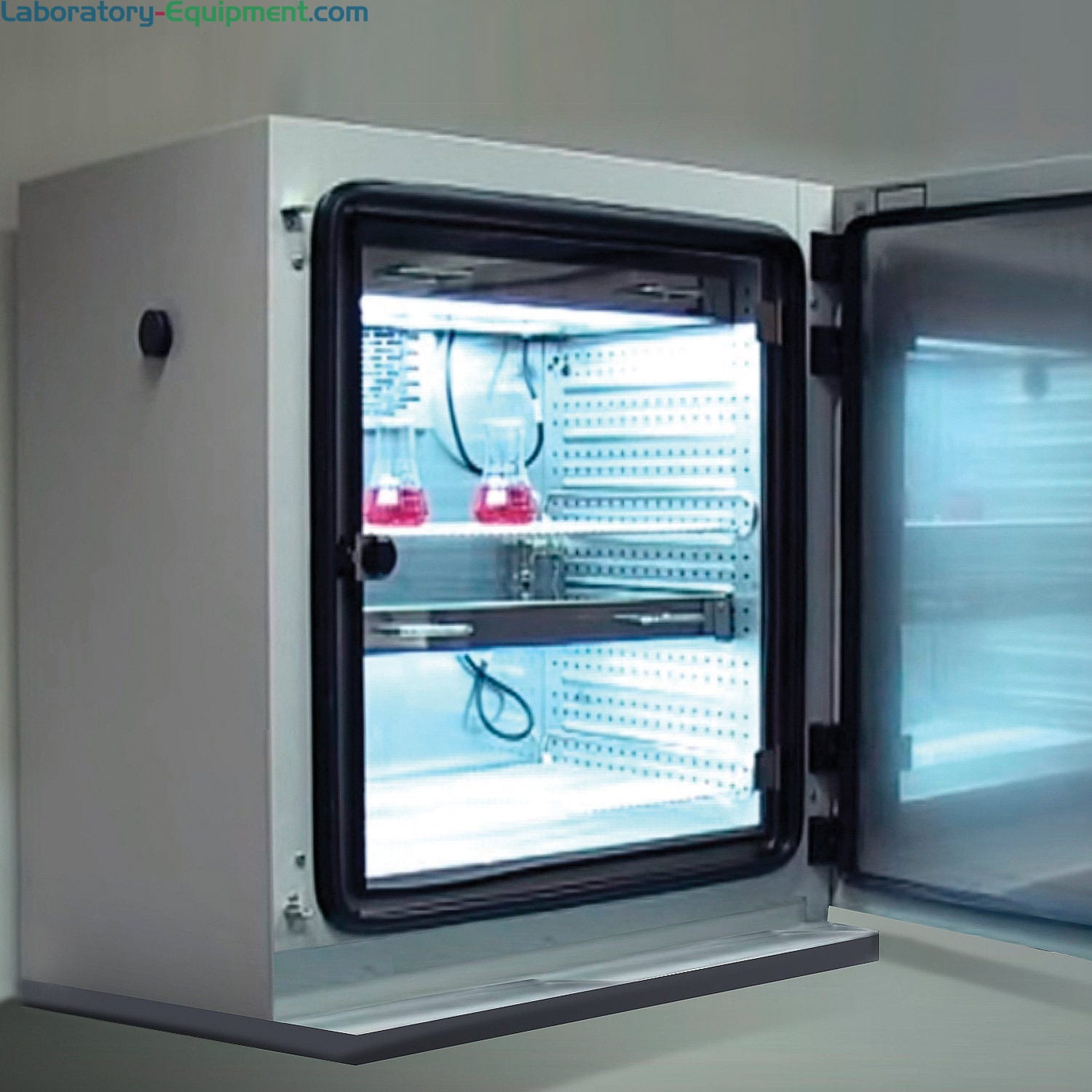

Stainless steel inner chamber with rack accommodates a variety of glassware and sample capacities
BINDER KBWF 240 Growth Chambers with Stainless Steel Inner Chamber
Stainless steel inner chamber with rack accommodates a variety of glassware and sample capacities.
The lighting system of KBWF test chambers provides homogeneous natural light simulation that creates an ideal environment for plant/organism growth
KBWF Patented Lighting System
The patented lighting system of KBWF test chambers provides homogeneous natural light simulation that creates an ideal environment for plant and organism growth.
Features & Benefits
Features and Benefits
Learn More: KBWF Specifications
Print
Copy Copied
KBWF Series Plant Growth Chambers Technical Specifications
BINDER Growth Chambers Options and Accessories
- Arabidopsis illumination cassette
- Calibration certificates
- Class 3.3 independent temperature safety device
- Data Logger Kit
- Data Logger Software
- Door lock
- FLUORA® illumination
- Interface converter, USB / RS422
- Interior electrical sockets
- Pt 100 temperature sensor
- Stainless steel racks
- Stainless steel shelf, perforated or reinforced
| Model | KBWF 240 | KBWF 720 |
|---|---|---|
| Electrical | 200-240v, 50Hz | 200-240v, 50Hz |
| Net weight of the unit (kg) | 430 lbs. (195kg) | 825 lbs. (374kg) |
| External Dimensions W" x D" x H" (mm) | 36.4 x 31.5 x 57.7 in. (925 x 800 x 1465 mm) | 49.2 x 35 x 75.8 in. (1250 x 890 x 1925 mm) |
| Internal Dimensions W" x D" x H" (mm) | 25.6 x 19.1 x 30.9 in. (650 x 485 x 785mm) | 38.3 x 22.7 x 49.2 in. (973 x 576 x 1250mm) |
| Internal Volume (L) | 8.72 cu. ft. (247 L) | 24.7 cu. ft. (700 L) |
| Unit doors | 1 | 2 |
| Number of stainless steel racks (std./max.) | 2/7 | 3/12 |
| Number of illumination cassettes (std./max.) | 2/2 | 3/3 |
| Temperature range without illumination cassettes [°C] | 32-158 °F (0-70 °C) | 32-158 °F (0-70 °C) |
| Temperature range with 100% illumination [°C] | 50-140 °F (10-60 °C) | 50-140 °F (10-60 °C) |
| Temperature variation without illumination cassettes [± K] | 0.5 | 0.5 |
| Temperature variation with 100% illumination [± K] | 0.5 | 1 |
| Temperature fluctuation without illumination cassettes [± K] | 0.1 | 0.1 |
| Temperature fluctuation with 100% illumination [± K] | 0.2 | 0.1 |
| Humidity range without illumination [% RH] | 10-80 | 10-80 |
| Humidity range with illumination cassettes, with illumination [% RH] | 10-75 | 10-75 |
| Illumination per cassette Daylight tubes [lx] | 9000 | 13000 |
| Illumination per cassette Fluora® growth lamps [lx] | 7500 | 10500 |
| Illumination per cassette Arabidopsis lamps [lx] | 11000 | 14000 |
| Computer Interface | Ethernet | Ethernet |

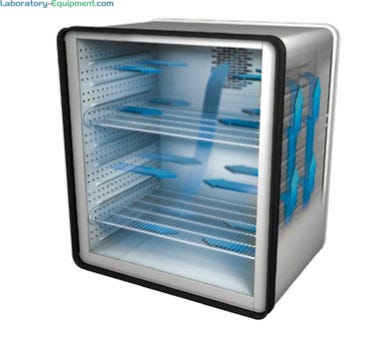

Homogeneous Temperature Distribution
APT.lineâ„¢ preheating chamber technology with dual-side air flow ensures long-term temperature uniformity even with a full load
KBWF Growth Chamber Humidity Control
Patented long-life humidification system and capacitive humidity sensor ensure on target humidity values.
KBWF Growth Chamber Intuitive Touchscreen Controller
KBWF Growth Chambers feature state-of-the-art controller technology with time-segment, real-time programming and internal data recording.
