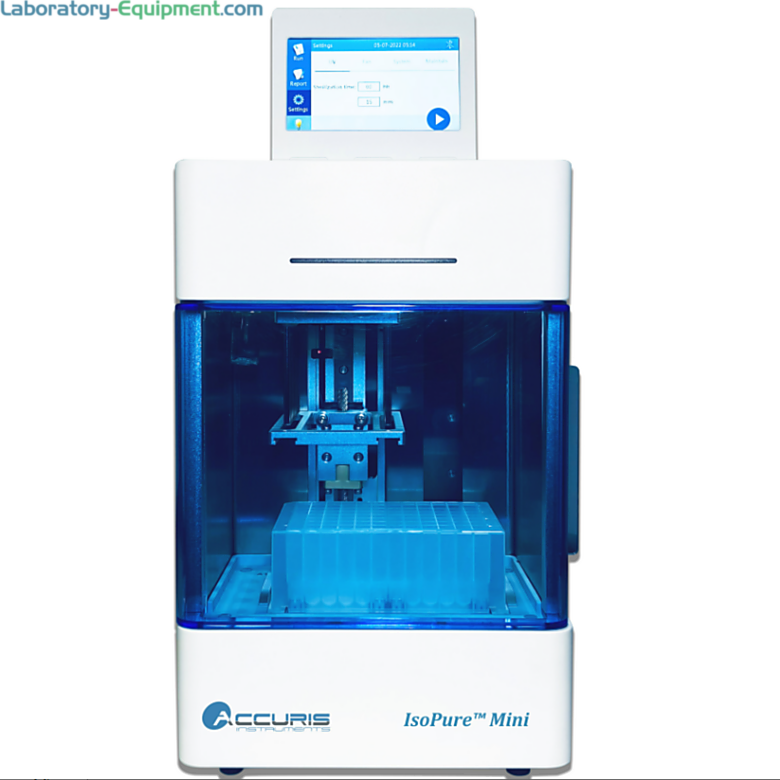

Compact ISOPure 96 Automated System with a 16-sample capacity for sample volumes from 50µl to 1000µl features a 4.3” color touch screen
Liquid Handlers & Robotics,Microplate Equipment,Homogenizers & Sonicators

ISOPure Mini, Automated Purification System, 115V, AP1016

  • Compact 8" x 10" ISOPure Mini Automated System 115V compatible with popular magnetic bead kits
  • Processes up to 16 samples in deep-well plates for sample volumes from 50μL - 1000μL
  • Features: 4.3" color touchscreen, QR scanning system (loads protocol), heating strips, includes mouse, handheld scanner and flash drive
  • Improves efficiency and reproducibility in isolating DNA, RNA and other target molecules from biological samples
  • Completes purification process in 10 to 60 minutes (depends on type of reagent used and protocol complexity)

• Capacity: 16 Samples

• Model: ISOPure Mini

• Manufacturer SKU: AP1016

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: AP1016
Manufactured By: Benchmark
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
7906-62
Terra Part # 7906-62
$9,403
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 7906-62
80667
ISOPure Mini, Automated Purification System, 115V, AP1016
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Compact 8" x 10" ISOPure Mini Automated System 115V compatible with popular magnetic bead kits
  • Processes up to 16 samples in deep-well plates for sample volumes from 50μL - 1000μL
  • Features: 4.3" color touchscreen, QR scanning system (loads protocol), heating strips, includes mouse, handheld scanner and flash drive
  • Improves efficiency and reproducibility in isolating DNA, RNA and other target molecules from biological samples
  • Completes purification process in 10 to 60 minutes (depends on type of reagent used and protocol complexity)
  • Communication ports: USB for mouse, file storage & transfer
  • Programming control: Bluetooth-enabled android device (not included)
  • Cooling fan inside chamber maintains ambient temperature
  • Lysis and elution temperature range: Ambient +5°C to 120°C
  • Magnetic bead recovery rate: >95%
  • Mixing speed: Variable 10 levels
  • Program Memory: 100 programs
  • Color touchscreen displays parameters and operating status
  • Internal lighting: LED
  • Contamination control: UV lamp (3W, 253.7nm UVC wavelength) in inner chamber eliminates DNA and RNA contamination
  • Protocol optimization on specific magnetic bead-based kits and applications available (contact us for details)
  • Available consumables: 96 deep-well plates, aluminum rack, 6-well sample strip, 8-place tip comb
Show more

• Capacity: 16 Samples

• Model: ISOPure Mini

• Manufacturer SKU: AP1016

• Unit of Measure: EA

• Electrical Specifications: 115 V

• Weight, Product: 15.4 lb

• Dimensions, Product: 7.9" W x 10.2" D x 11.8" H

Show more
Other products you may find relevant

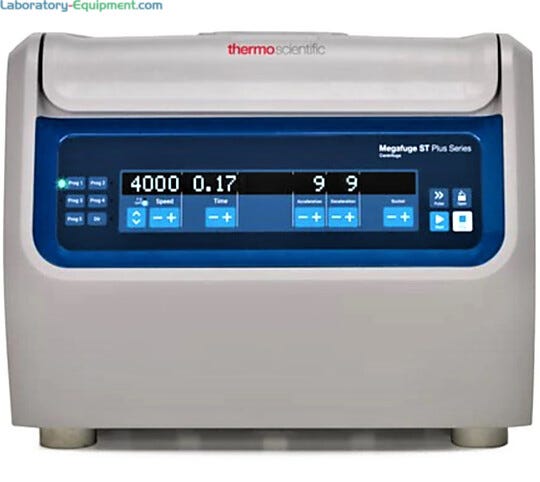

  1. 1.6L Megafuge ST1 Plus Centrifuge by Thermo Scientific in general use and IVD Certified models have a max 15,200rpm, a 6-program memory and optional rotors | 6707-98 displayed
    Group of 2 products
    Megafuge ST1 and ST1R Plus Centrifuges by Thermo Fisher Scientific From
    As low as $6,035
    Some ship in 10 - 14 days
  2. Is designed to rapidly homogenize, emulsify, suspend, and disrupt biological samples | 2825-04 displayed
    Group of 2 products
    D1000 Handheld Homogenizers by Benchmark Scientific From
    As low as $1,132
    Some ship in 5 - 7 days
Buy Accessories
  1. Compatible with ISOPure 96 and ISOPure Mini Automated Systems by Accuris | 7906-64 displayed
    96 deep well plates for IsoPure 96, pack of 50, AP1096-DWP Ships Free Free shipping in contiguous USA
    $227
    Increase Down Increase Up

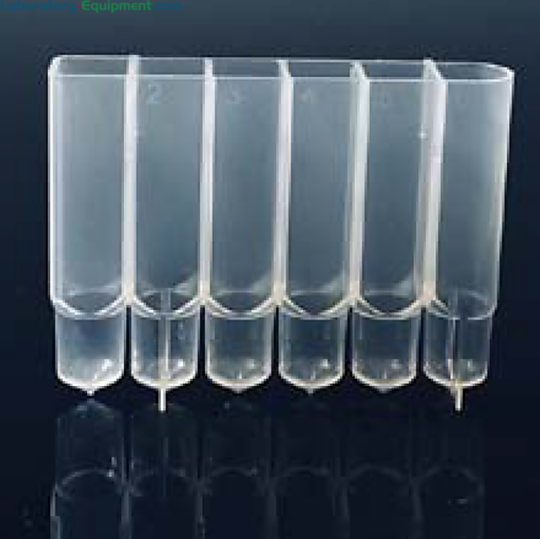

  2. 6-Well Sample Strip #AP1016-6W compatible with ISOPure Mini Automated System by Accuris | 7906-67 displayed
    6-well sample strips for ISOPure Mini Automated System, Accuris, pack of 100 Ships Free Free shipping in contiguous USA
    $109
    Increase Down Increase Up

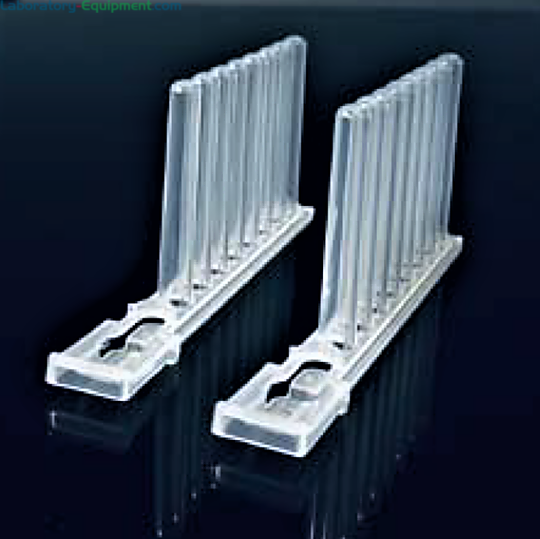

  3. 8-Place Magnetic Tip Comb #P1016-MC compatible with ISOPure Mini Automated System by Accuris | 7906-68 displayed
    8-Place Magnetic Tip Combs for ISOPure Mini Automated System, Accuris, AP1016-MC Ships Free Free shipping in contiguous USA
    $59
    Increase Down Increase Up

Liquid Handlers & Robotics

  • IsoPure Mini Automated System Video by Accuris IsoPure Mini Automated System by Accuris
IsoPure Mini Automated System Video by Accuris
IsoPure Mini Video by Accuris shows operation of unit | 7906-62 displayed IsoPure Mini Automated System by Accuris Product overview video of IsoPure Mini Automated System by Accuris for automated bead-based purification of RNA, DNA and protein isolations

Features and Benefits

Processes up to 16 samples

ISOPure Mini with a 16-sample capacity is compatible with 96 deep-well plates

UV Lamp for Sterilization

ISOPure 16 features an ultraviolet lamp inside the chamber for effective elimination of DNA and RNA contaminants

Sample Temperature Control

Heating strips with precise temperature setting between ambient +5°C to 120°C improves results in Lysis and elution steps

Convenient Protocol Transfer

Included handheld scanner with the ISOPure Mini enables convenient and fast protocol transfer from a compatible Android device

Touch Screen Control

Convenient touch screen control for easy programming and protocol management

Android Compatible

Easily create protocols using the Android App or PC software included with the ISOPure Mini
Products similar to this one

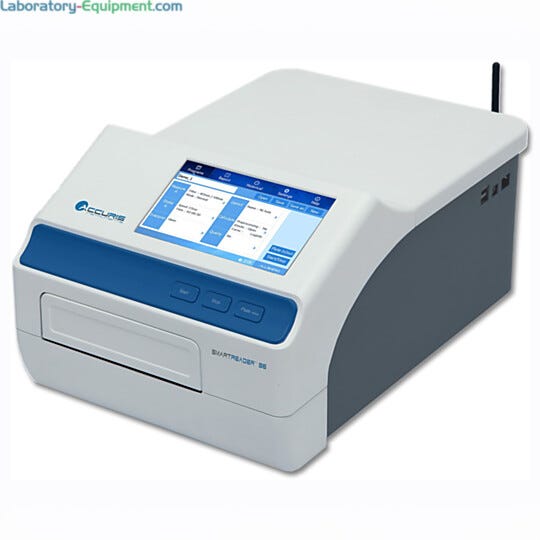

  1. SmartReader 96 with a 7” touchscreen interface displays plate layout, measurement results and graphical layouts: easy-to-use and ideal for COVID-19 research | 2824-16-220 displayed
    Group of 2 products
    SmartReader 96 Microplate Absorbance Readers by Accuris From
    As low as $5,721
    Some ship in 5 - 7 days

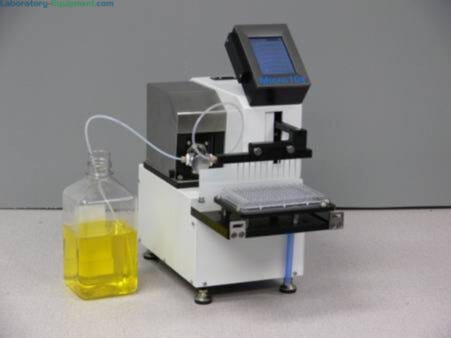

  2. Accurately dispenses liquids in volumes down to low microliter range | 3030-10 displayed
