ISOPure 96 and ISOPure Mini Automated Systems compatible with popular magnetic bead kits
Sample volume: 50μL - 1000μL
Improves efficiency and reproducibility in isolating DNA, RNA and other target molecules from biological samples
Provides automatic mixing, magnetic bead transfer, washing and elution steps
Completes purification process in 10 to 60 minutes (depends on type of reagent used and protocol complexity)

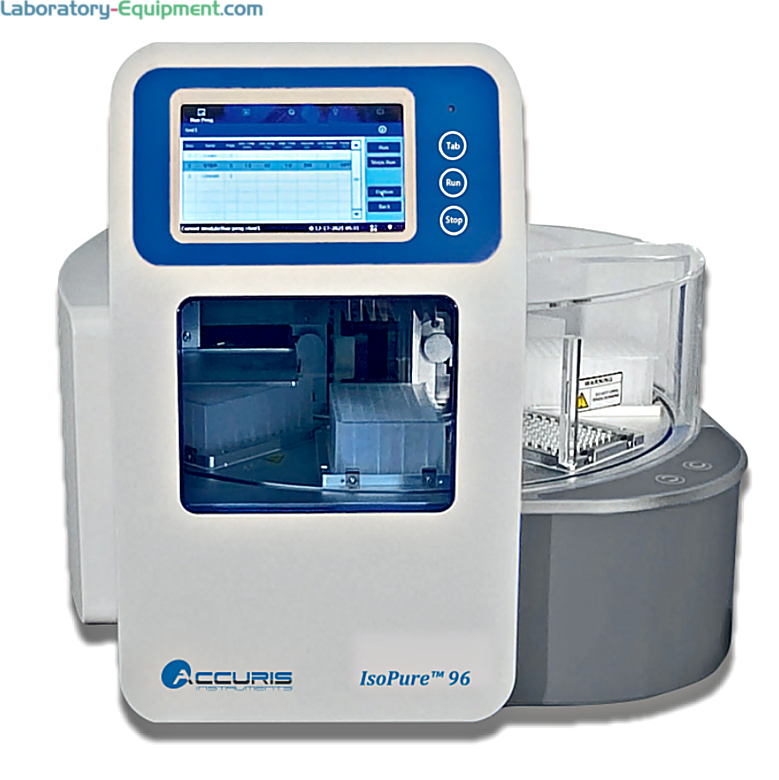

ISOPure 96 features: 8-position carousel with two heating blocks, 8 plate positions, includes mouse and flash drive, programming control via PC or 7” color touchscreen

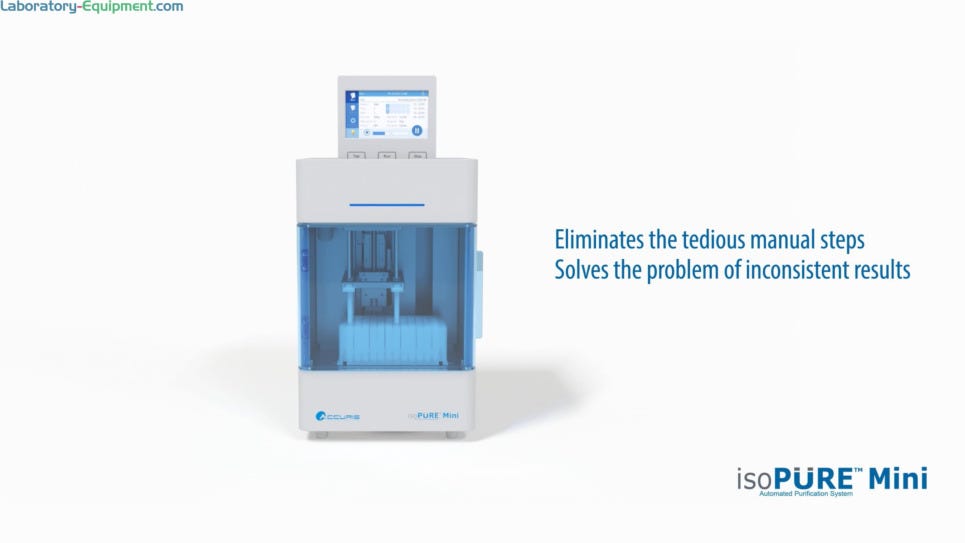

ISOPure Mini Features: programming via included Android app or PC software, QR code scanning system with included handheld scanner, includes mouse and flash drive, 4.3” color touchscreen
Lysis and elution temperature range: Ambient +5°C to 120°C
Magnetic bead recovery rate: >95%
Mixing speed: Variable 10 levels
Program Memory: 100 programs
Color touchscreen displays parameters and program status
Internal lighting: LED
Contamination control: UV lamp (3W, 253.7nm UVC wavelength) in inner chamber eliminates DNA and RNA contamination
Protocol optimization on specific magnetic bead-based kits and applications available (contact us for details)
Available consumables: 96 deep-well plates, aluminum rack, 6-well sample strip, 8-place tip comb, tip comb

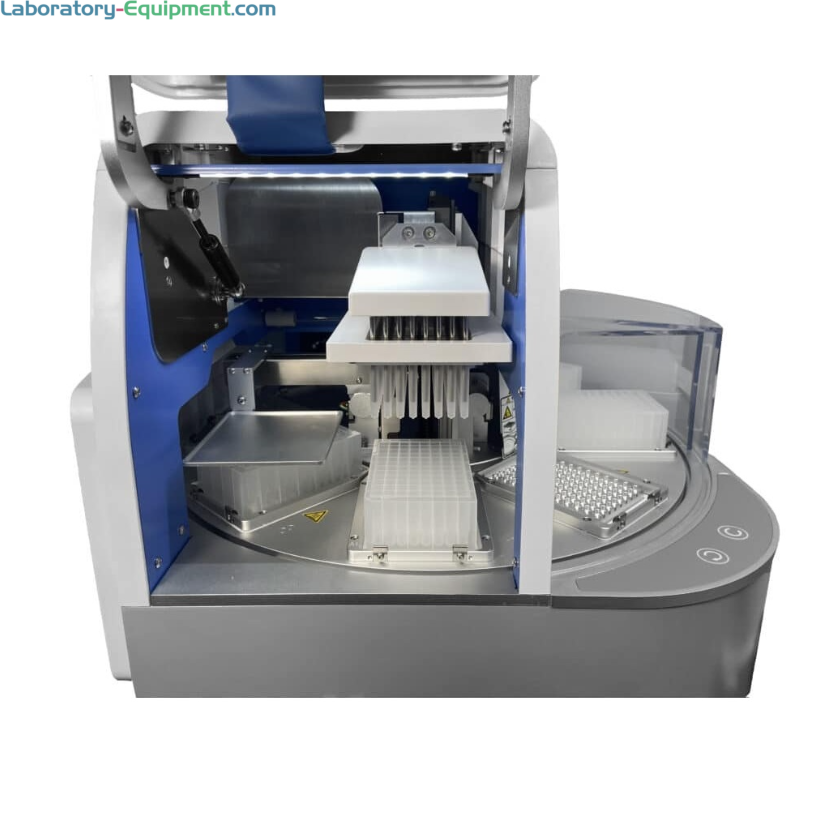

ISOPure 96 model features two heating blocks on the 8-plate carousel and a precise temperature range of + 5°C to 120°C ideal in Lysis and elution steps

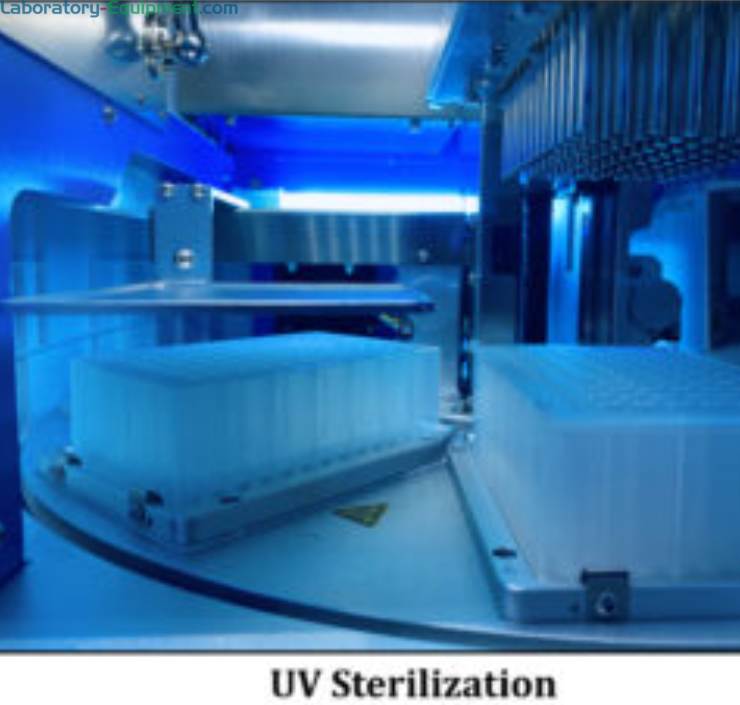

UV Sterilization
ISOPure 96 features a UV lamp inside the chamber to effectively eliminate DNA and RNA contaminants; ideal for PCR assays

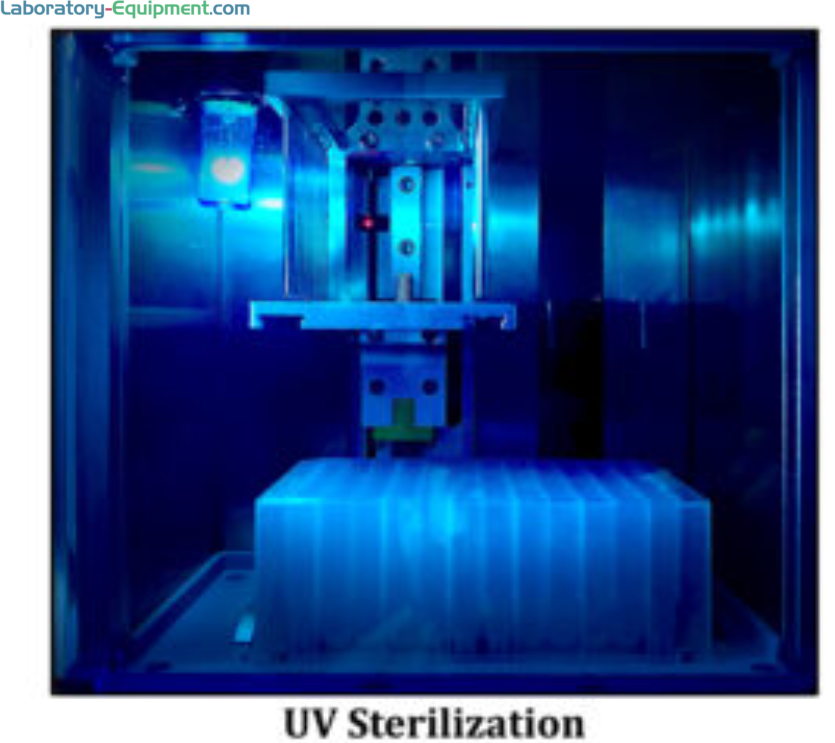

UV Lamp for Sterilization
ISOPure 16 features an ultraviolet lamp inside the chamber for effective elimination of DNA and RNA contaminants

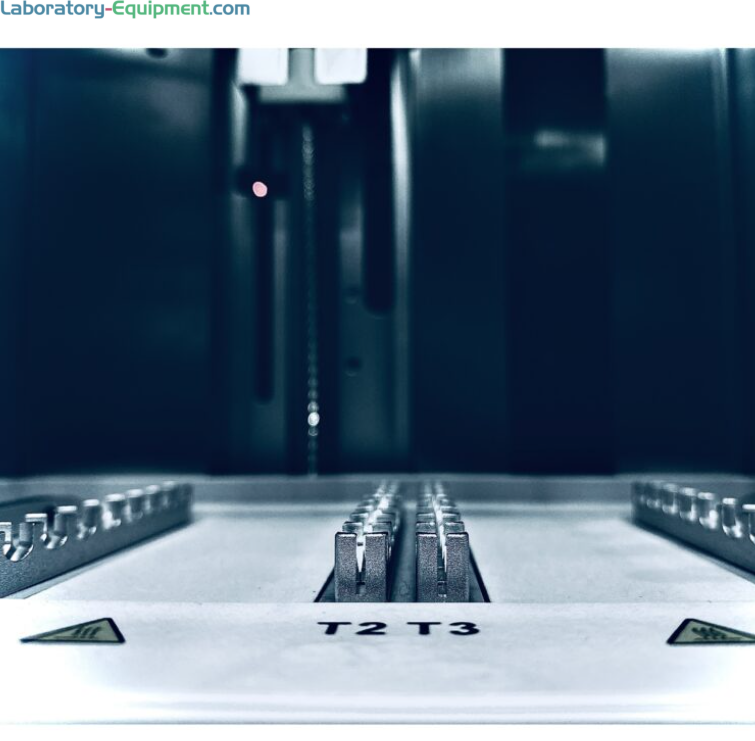

Sample Temperature Control
Heating strips with precise temperature setting between ambient +5°C to 120°C improves results in Lysis and elution steps

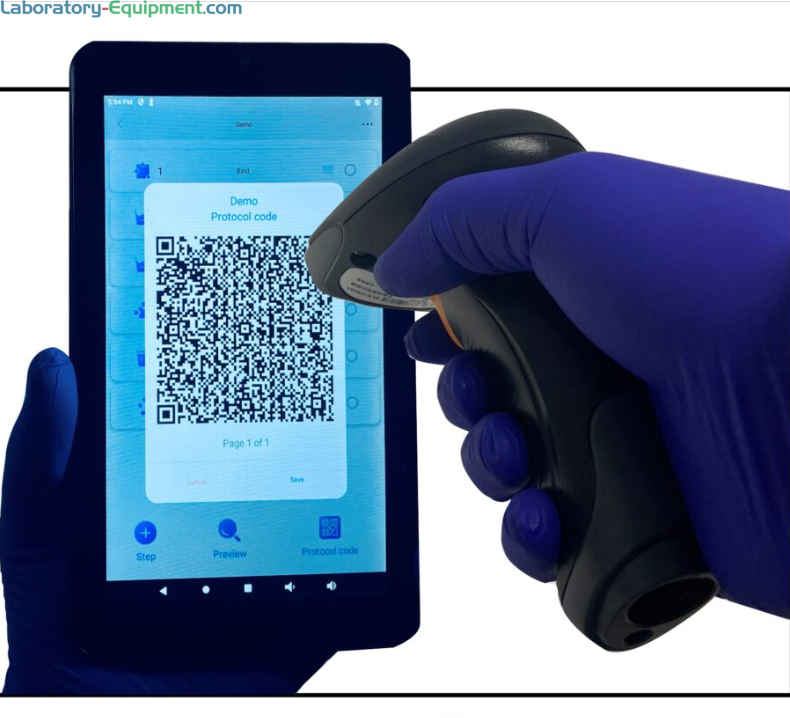

Convenient Protocol Transfer
Included handheld scanner with the ISOPure Mini enables convenient and fast protocol transfer from a compatible Android device

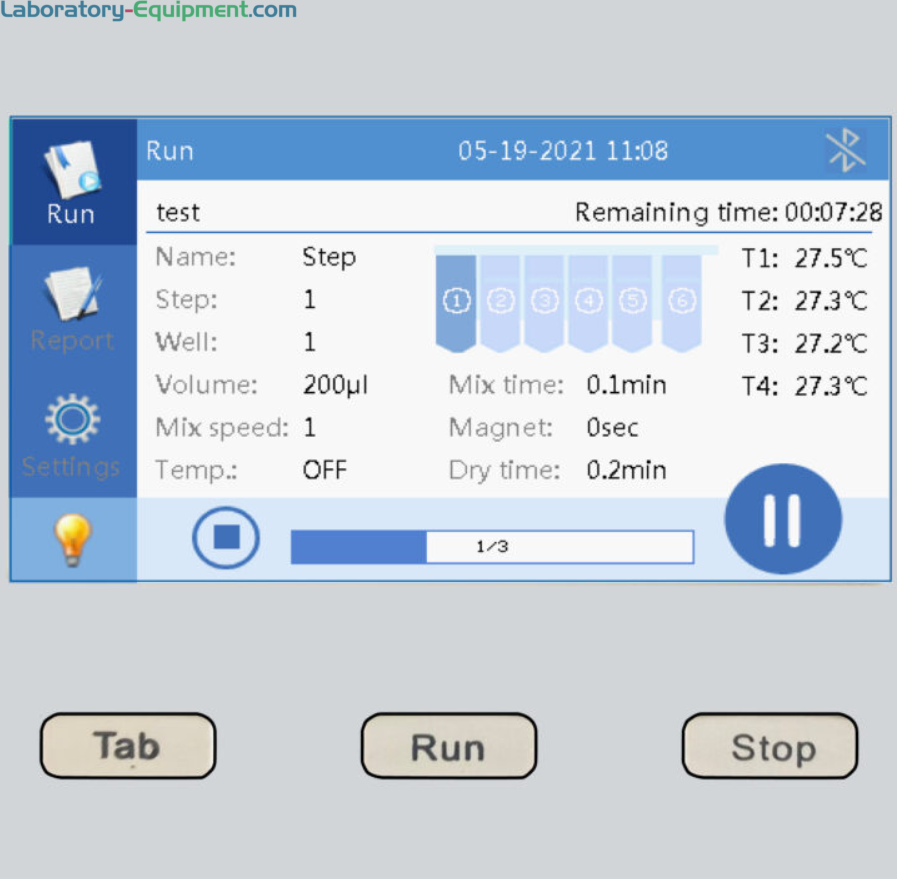

Touch Screen Control
Convenient touch screen control for easy programming and protocol management

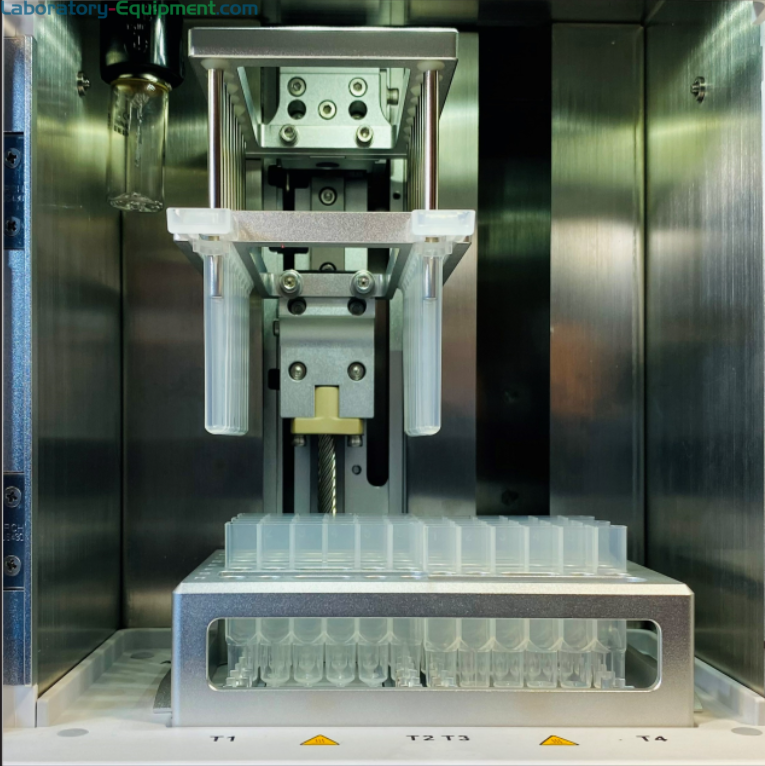

Processes up to 16 samples
ISOPure Mini with a 16-sample capacity is compatible with 96 deep-well plates
