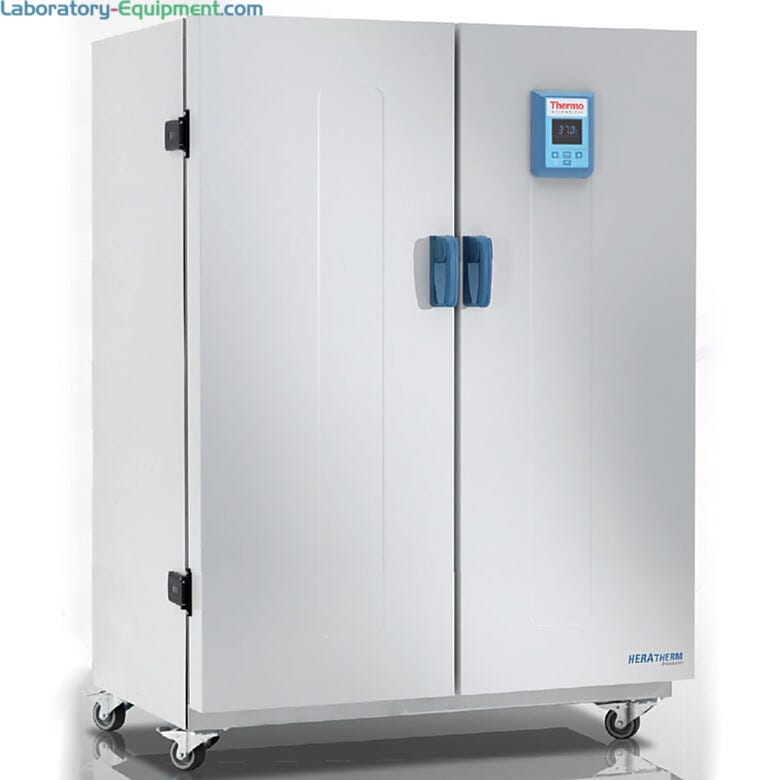

Gravity convection 750L General Protocol Microbiological Incubator by Thermo Fisher Scientific with a temperature range from +5 °C to+75 °C | 5324-02 displayed
Incubators

Incubator; General Protocol, 26.4 cu. ft., Heratherm, Thermo Fisher, 120/240 V

  • Gravity convection minimizes drying out of samples
  • Flexible shelving system and lockable casters
  • Microprocessor control, vacuum fluorescent display
  • Intuitive user interface for setting temperature
  • Features rounded corners, access port and RS232 interface with internal glass door

• Temperature Range: Ambient +5°C to 75°C

• Type: General Protocol

• Material: Stainless Steel

• Manufactured by: Thermo Fisher

• Model: Heratherm

• Capacity: 26.4 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51029333

• Exterior Material: Powder Coated Steel

• Maximum Temperature: 75°C

• Capacity Range: >20 cubic feet

• Unit of Measure: EA

Read more
Manufacturer SKU: 51029333
Manufactured By: Thermo Fisher
Warranty: 2 years parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
5324-02
Terra Part # 5324-02
$7,664
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5324-02
64642
Incubator; General Protocol, 26.4 cu. ft., Heratherm, Thermo Fisher, 120/240 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Gravity convection minimizes drying out of samples
  • Flexible shelving system and lockable casters
  • Microprocessor control, vacuum fluorescent display
  • Intuitive user interface for setting temperature
  • Features rounded corners, access port and RS232 interface with internal glass door
  • APPLICATIONS: Bacterial research, microbiology, coliform determination, histology, paraffin embedding, egg incubation, heated storage, yeast growth, fish and insect hatching
Show more

• Temperature Range: Ambient +5°C to 75°C

• Type: General Protocol

• Material: Stainless Steel

• Manufactured by: Thermo Fisher

• Model: Heratherm

• Capacity: 26.4 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51029333

• Exterior Material: Powder Coated Steel

• Maximum Temperature: 75°C

• Capacity Range: >20 cubic feet

• Unit of Measure: EA

• Marks & Listings: cCSAus

• Electrical Specifications: 120/240 V

• Weight, Product: 443 lb

• Dimensions, Product: 49.6" W x 30.3" D x 60.8" H

• Weight, Shipping: 480 lb

• Dimensions, Shipping: 55" W x 35" D x 65" H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems | 2700-99 displayed
    Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H
    $4,335
    Usually Ships in 3 - 5 days
  2. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    Group of 4 products
    Nitrogen Membrane Gas Generators From
    As low as $6,502
    Some ship in 1 - 3 days
  3. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  4. Designed for thoroughly mixing a variety of containers at a constant 38 rpm | 2829-03 displayed
    Group of 3 products
    TubeRoller Tilting Rollers for Tubes and Bottles by Benchmark Scientific From
    As low as $914
    Some ship in 5 - 7 days
  5. BenchWaver 3-D Rocker by Benchmark Scientific includes a 13.5" x 13" flat mat platform; optional stacking platforms available | 2808-04 displayed
    Group of 2 products
    BenchWaver™ 3D Rockers by Benchmark Scientific From
    As low as $1,317
    Some ship in 5 - 7 days
  6. BlotBoy 3D Rocker by Benchmark Scientific with a 12" x 12" platform ideal for blot washes and gel staining/de-staining | 2810-01 displayed
    Group of 4 products
    BlotBoy™ and Mini-BlotBoy™ 3D Platform Rockers by Benchmark Scientific From
    As low as $413
    Some ship in 5 - 7 days
  7. Ideal for mixing blood and centrifuge tubes | 2829-11 displayed
    Group of 4 products
    BioMixer™ and Mini BioMixer™ Nutating Rockers by Benchmark Scientific From
    As low as $402
    Some ship in 5 - 7 days
Buy Accessories
  1. Additional access port on center of left side of unit | 1711-45 displayed
    Access port left, small Ships Free Free shipping in contiguous USA In stock
    $378
    Increase Down Increase Up
  2. Additional access port on center of left side of unit | 1711-45 displayed
    Access port left, large Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up
  3. Additional access port on center of left side of unit | 1711-45 displayed
    Access port right, small Ships Free Free shipping in contiguous USA In stock
    $380
    Increase Down Increase Up
  4. Additional access port on center of left side of unit | 1711-45 displayed
    Access port right, large Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up
  5. Shelf; Perforated, Stainless Steel, for Large Capacity Heratherm Incubator IMH750-S, IGS750
    Shelf; Perforated, Stainless Steel, for Large Capacity Heratherm Incubator IMH750-S, IGS750 Ships Free Free shipping in contiguous USA In stock
    $461
    Increase Down Increase Up
  6. Filters fresh air into incubator | 1798-52 displayed
    Particle Filter; for Heratherm Advanced. Protocol Incubators, Fresh Air, Intake Connection Ships Free Free shipping in contiguous USA In stock
    $197
    Increase Down Increase Up
  7. Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures | 1799-59 displayed
    Sample sensor for Heratherm Advanced Protocol Security Microbiological Incubators Ships Free Free shipping in contiguous USA In stock
    $281
    Increase Down Increase Up
  8. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up
  9. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up

Incubators

  • Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
  • Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
  • Heratherm Large Capacity General Protocol Microbiological Incubators Heratherm Large Capacity Microbiological Incubators
  • Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators
Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit | 1798-48 displayed Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. 3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit.
Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility | 1798-37 displayed Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility.
Heratherm Large Capacity General Protocol Microbiological Incubators
Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific in volume capacities of 13.3 and 27.3 cu. ft. | 5324-PP-01 displayed Heratherm Large Capacity Microbiological Incubators General Protocol and Advanced Protocol Security models feature rounded corners, microprocessor control, overtemperature alarm and a stainless steel interior
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators Thermo Scientific Heratherm Microbiological Incubator shown in a short demonstration video

Features and Benefits

Learn More: General & Advanced Models
Print Copy Copied

Compare Features and Specifications of General and Advanced Protocol Security Heratherm Microbiological Incubators

General Protocol
  • For Microbiological applications from ambient +5 to 75 °C
  • Gravity convection heating gently warms samples without over drying
  • Flexible shelving system accommodates samples of all sizes
  • Lockable casters for easy set-up and moving of instrument
Advanced Protocol
  • For applications from ambient +5 to 105 °C
  • Dual convection for even temperature distribution and temperature uniformity
  • Lockable door and RS232 port, audible open door alarm and Audible under or over temperature alarm and advanced timer
  • Independently verified 140 °C decontamination system
  General Protocol Advanced Protocol
Part Number 51029321 51029333 51029323
51029324		 51029335
51029336
Chamber Volume 14.3 cu ft. (405L) 26.4 cu ft. (747L) 13.5 cu ft. (381L) 24.8.cu ft. (381L)
Model IGS400 IGS750 IMH400-S
IMH400-S SS		 IMH750-S
IMH750-S SS
Convection Gravity Convection Gravity Convection Mechanical Convection Mechanical Convection
External Dimensions 30.6"W x 30.3"D x 60.8"H
(778 x 770 x 1545 mm)		 49.7"W x 30.3"D x 60.8"H
(1261 x 770 x 1545 mm)		 30.6"W x 30.3"D x 60.8"H
(778 x 770 x 1545 mm)		 49.7"W x 30.3"D x 60.8"H
(1261 x 770 x 1545 mm)
Internal Dimensions 21.4"W x 22.4"D x 51.5"H
(544 x 569 x 1307 mm)		 39.5"W x 22.4"D x 51.5"H
(1004 x 569 x 1307 mm)		 21.4"W x 20.6"D x 52.6"H
(544 x 524 x 1335 mm)		 39.5"W x 20.6"D x 52.6"H
(1004 x 524 x 1335 mm)
Footprint 6 sq. ft. (0.56m2) 9.8 sq. ft.(0.91m2) 6 sq. ft. (0.56m2) 9.8 sq. ft.(0.91m2)
Rated power 1080 Watts 1500 Watts 1380 Watts 1560 Watts
Max Current 9.0 amps 12.5 amps 11.5 amps 13 amps
Energy Consumption
at 37°C		 55 Watts 80 Watts 94 Watts 161 Watts
Temperature Range Ambient +5 to 75 °C Ambient +5 to 75 °C Ambient +5 to 105 °C Ambient +5 to 105 °C
Spatial Temperature Deviation ± 0.4°C at 37°C (uniformity) ± 0.4°C at 37°C (uniformity) ± 0.2°C at 37°C (uniformity) ± 0.2°C at 37°C (uniformity)
Number of Shelves 2 included (39 max)
Max Shelf Load 66 lbs. (30kg)
Electrical
(plug standard)		 120V, 50/60hz (NEMA 5-15)
Warranty Two-Year Manufacturer Warranty
Applications for Heratherm Large Capacity Microbiological Incubators
Clinical and Medical labs: microbiological diagnostic testing
Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
Food: screening for bacteria contaminants
Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins

Large Capacity Heratherm Microbiological Incubator Small, Left Access Port

Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.

Heratherm Large Capacity Microbiological Incubator Top Access Port

Top Access Port for Heratherm Large Capacity Microbiological Incubators.

Rounded Inner Chamber Corners

Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning

Adjustable Shelving System

Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.

Fluorescent Vacuum Display

Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer

Internal Duplex Outlet

Internal socket connects electrical devices such as stirrers and shakers.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • SS Perforated Shelves for Heratherm Microbiological Incubators

    SS Perforated Shelves for Heratherm Microbiological Incubators

    2.3 cu. ft. Heratherm Advanced Protocol Security Microbiological Incubators accommodate a maximum of 13 shelves with a 55 lb. shelf load; additional shelf sizes available.

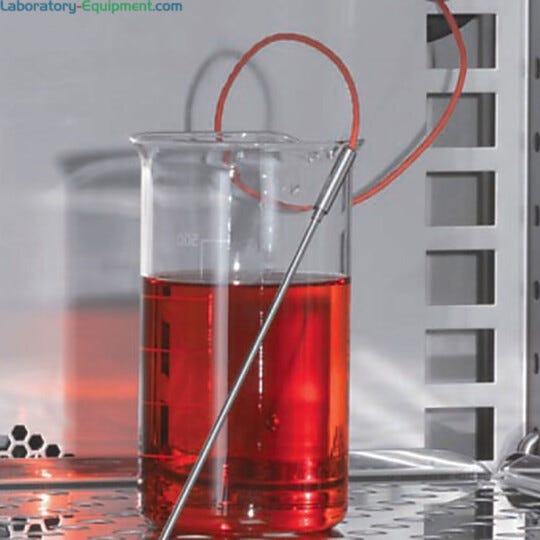

  • Particle filter for External Sample Sensor

    Particle filter for External Sample Sensor

    Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures; compatible with all Heratherm Advanced Protocol Microbiological Incubators.
  • Fresh Air Particle Filter for Heratherm Microbiological Incubators

    Fresh Air Particle Filter for Heratherm Microbiological Incubators

    Fresh Air Particle Filter reduces contaminants and maintenance by filtering fresh air into Heratherm Advanced Protocol Security Microbiological Incubator prior to heating.
Products similar to this one
  1. HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth
    Group of 4 products
    HERAcell® 150i & 240i CO2 Incubators by Thermo Fisher Scientific From
    As low as $9,231
    Some ship in 5 - 7 days
  2. Large Capacity Reach-In CO2 Incubator by Thermo Fisher Scientific with directed horizontal laminar airflow; 29.0 cu. ft. model also in 230V | 3615-38 displayed
    Group of 2 products
    Large Capacity Reach-In CO2 Incubators by Thermo Fisher Scientific From
    As low as $17,314
    Some ship in 10 - 20 days
  3. Benchmark Scientific’s Incu-Shaker™ 10L offers digital temperature control with variable shaking speed (shown with optional flask clamps) | 2823-PP-12 displayed
    Group of 6 products
    Incu-Shaker™ Shaking Incubators by Benchmark Scientific From
    As low as $3,059
    Some ship in 5 - 7 days
Other products you may find relevant
  1. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems | 2700-99 displayed
    Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H
    $4,335
    Usually Ships in 3 - 5 days
  2. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    Group of 4 products
    Nitrogen Membrane Gas Generators From
    As low as $6,502
    Some ship in 1 - 3 days
  3. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  4. Designed for thoroughly mixing a variety of containers at a constant 38 rpm | 2829-03 displayed
    Group of 3 products
    TubeRoller Tilting Rollers for Tubes and Bottles by Benchmark Scientific From
    As low as $914
    Some ship in 5 - 7 days
  5. BenchWaver 3-D Rocker by Benchmark Scientific includes a 13.5" x 13" flat mat platform; optional stacking platforms available | 2808-04 displayed
    Group of 2 products
    BenchWaver™ 3D Rockers by Benchmark Scientific From
    As low as $1,317
    Some ship in 5 - 7 days
  6. BlotBoy 3D Rocker by Benchmark Scientific with a 12" x 12" platform ideal for blot washes and gel staining/de-staining | 2810-01 displayed
    Group of 4 products
    BlotBoy™ and Mini-BlotBoy™ 3D Platform Rockers by Benchmark Scientific From
    As low as $413
    Some ship in 5 - 7 days
  7. Ideal for mixing blood and centrifuge tubes | 2829-11 displayed
    Group of 4 products
    BioMixer™ and Mini BioMixer™ Nutating Rockers by Benchmark Scientific From
    As low as $402
    Some ship in 5 - 7 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
