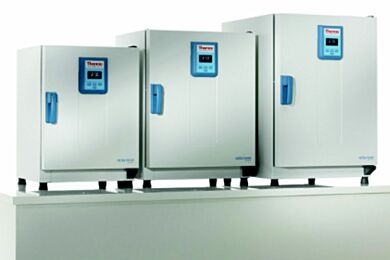

Heratherm General Protocol Microbiological Incubators by Thermo Fisher Scientific with gravity convection in 75L, 117L and 194L capacities | 1799-PP-01 displayed
Incubators

Incubator; General Protocol, 2.6 cu. ft., Heratherm, Thermo Fisher, 120 V

  • Gravity Convection capacity model provides gentle air flow
  • Microprocessor control, vacuum fluorescent display
  • Used in pharmaceutical, medical, food and research lab applications
  • Intuitive user interface for setting temperature
  • Small footprint

• Temperature Range: Ambient +5°C to 75°C

• Type: General Protocol

• Material: Stainless Steel

• Manufactured by: Thermo Fisher

• Model: Heratherm

• Capacity: 2.6 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51028063

• Exterior Material: Powder Coated Steel

• Maximum Temperature: 75°C

• Capacity Range: <6 cubic feet

• Unit of Measure: EA

Read more
Stocked Ships Free
Manufacturer SKU: 51028063
Manufactured By: Thermo Fisher
Warranty: 2 years parts and labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
1799-89
Terra Part # 1799-89
$2,115
Usually ships in 5-7 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 1799-89
54365
Incubator; General Protocol, 2.6 cu. ft., Heratherm, Thermo Fisher, 120 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Gravity Convection capacity model provides gentle air flow
  • Microprocessor control, vacuum fluorescent display
  • Used in pharmaceutical, medical, food and research lab applications
  • Intuitive user interface for setting temperature
  • Small footprint
  • Spatial Temperature Deviation at 37 °C (uniformity): ± 0.6 °C
  • Temperature Deviation Over Time (stability): ± 0.2 °C
  • Footprint: 3.2sqft (0.3 m2)
  • Max Shelf Load: 55 lbs. (20 kg)
  • Energy Consumption at 37 °C: 21 Watts
  • Unit includes 2 shelves, accomodates maximum of 13 shelves
Show more

• Temperature Range: Ambient +5°C to 75°C

• Type: General Protocol

• Material: Stainless Steel

• Manufactured by: Thermo Fisher

• Model: Heratherm

• Capacity: 2.6 cu. ft.

• Convection Type: Gravity

• Manufacturer SKU: 51028063

• Exterior Material: Powder Coated Steel

• Maximum Temperature: 75°C

• Capacity Range: <6 cubic feet

• Unit of Measure: EA

• Electrical Specifications: 120 V, 2.5 A, 300 W, 50/60 Hz

• Weight, Product: 88 lb

• Dimensions, Product: 20.9" W x 22.2" D x 28.3" H

• Weight, Shipping: 120 lb

• Dimensions, Shipping: 31" W x 25" D x 40" H

• Package Type: Crate

Show more
Other products you may find relevant
  1. Design Saves Floor Space and Meets Demands of Keg Based Nitro Cold Brew Dispensing Systems | 2700-99 displayed
    Portable Nitrogen Generator; Self-Contained With Compressor and Tank, 7.18" W x 16.08" D x 23.98" H
    $4,335
    Usually Ships in 3 - 5 days
  2. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    Group of 4 products
    Nitrogen Membrane Gas Generators From
    As low as $6,502
    Some ship in 1 - 3 days
  3. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  4. Designed for thoroughly mixing a variety of containers at a constant 38 rpm | 2829-03 displayed
    Group of 3 products
    TubeRoller Tilting Rollers for Tubes and Bottles by Benchmark Scientific From
    As low as $914
    Some ship in 5 - 7 days
  5. BenchWaver 3-D Rocker by Benchmark Scientific includes a 13.5" x 13" flat mat platform; optional stacking platforms available | 2808-04 displayed
    Group of 2 products
    BenchWaver™ 3D Rockers by Benchmark Scientific From
    As low as $1,317
    Some ship in 5 - 7 days
  6. BlotBoy 3D Rocker by Benchmark Scientific with a 12" x 12" platform ideal for blot washes and gel staining/de-staining | 2810-01 displayed
    Group of 4 products
    BlotBoy™ and Mini-BlotBoy™ 3D Platform Rockers by Benchmark Scientific From
    As low as $413
    Some ship in 5 - 7 days
  7. Ideal for mixing blood and centrifuge tubes | 2829-11 displayed
    Group of 4 products
    BioMixer™ and Mini BioMixer™ Nutating Rockers by Benchmark Scientific From
    As low as $402
    Some ship in 5 - 7 days
Buy Accessories
  1. Additional access port on center of left side of unit | 1711-45 displayed
    Access port left, small Ships Free Free shipping in contiguous USA In stock
    $378
    Increase Down Increase Up
  2. Additional access port on center of left side of unit | 1711-45 displayed
    Access port left, large Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up
  3. Additional access port on center of left side of unit | 1711-45 displayed
    Access port right, small Ships Free Free shipping in contiguous USA In stock
    $380
    Increase Down Increase Up
  4. Additional access port on center of left side of unit | 1711-45 displayed
    Access port right, large Ships Free Free shipping in contiguous USA In stock
    $544
    Increase Down Increase Up
  5. Casters provide mobility for short distances | 1711-40 displayed
    Support stand with casters for Heratherm 2.15 & 2.2 cu.ft. models Ships Free Free shipping in contiguous USA In stock
    $490
    Increase Down Increase Up
  6. Stacking kit for Heratherm 2.15 & 2.2 cu.ft. models
    Stacking kit for Heratherm 2.15 & 2.2 cu.ft. models Ships Free Free shipping in contiguous USA In stock
    $173
    Increase Down Increase Up
  7. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up
  8. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up

Incubators

  • Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
  • Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
  • Heratherm Large Capacity General Protocol Microbiological Incubators Heratherm Large Capacity Microbiological Incubators
  • Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators
Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit | 1798-48 displayed Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft. 3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit.
Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility | 1798-37 displayed Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft. 2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility.
Heratherm Large Capacity General Protocol Microbiological Incubators
Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific in volume capacities of 13.3 and 27.3 cu. ft. | 5324-PP-01 displayed Heratherm Large Capacity Microbiological Incubators General Protocol and Advanced Protocol Security models feature rounded corners, microprocessor control, overtemperature alarm and a stainless steel interior
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific Thermo Scientific Microbiological Incubators Thermo Scientific Heratherm Microbiological Incubator shown in a short demonstration video

Features and Benefits

Learn More: Incubator Specifications
Print Copy Copied

Industry Applications for Heratherm General Protocol Microbiological Incubators

  • Clinical and Medical labs: microbiological diagnostic testing
  • Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
  • Food: screening for bacteria contaminants
  • Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins
Model 51028063 51028064 51028065
Chamber Volume 2.6 cu. ft. (75L) 4.0 cu. ft. (117L) 6.85 cu. ft. (195L)
External Dimensions 22.2"W x 20.9"D x 28.3"H
(565 x 530 x 720 mm)		 25.2"W x 32.3"D x 22.2"H
(640 x 820 x 565 mm)		 25.2"W x 36.2"D x 29.1"H
(640 x 920 x 738 mm)
Internal Dimensions 16.3"W x 13.9"D x 20"H
(414 x 354 x 508 mm)		 18.3"W x 23.9"D x 16.3"H
(464 x 608 x 414 mm)		 18.3"W x 27.9"D x 23.2"H
(464 x 708 x 589 mm)
Footprint 3.2 sq. ft. (0.3m2) 3.9 sq. ft.(0.9m2) 5.1 sq. ft. (0.47m2)
Number of Shelves 2 included (13 max) 2 included (16 max) 2 included (19 max)
Max Shelf Load 55 lbs. (25kg) 55 lbs. (25kg) 65lbs. (30kg)
Rated power 300 Watts 540 Watts 720 Watts
Max Current 2.5 amps 4.5 amps 6 amps
Energy Consumption
at 37°C		 21 Watts 26 Watts 31 Watts
Temperature Range Ambient +5° to 75°C
Convection Technology Gravity Convection
Spatial Temperature Deviation ± 0.6°C at 37°C (uniformity)
Electrical (plug standard) 100 - 240 50/60hz (NEMA 5-15)
Temperature Deviation Over Time (Stability) ± 0.2°C
Interface RS232
Certifications/Compliance cCSAus, CE
Warranty Two-Year Manufacturer Warranty
Standard Features Rounded corners, microprocessor control, automatic Overtemperature alarm, access port, stackable, stainless steel interior, RS232 interface, internal glass door, easy calibration routine

Large Capacity Heratherm Microbiological Incubator Small, Left Access Port

Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.

Heratherm Large Capacity Microbiological Incubator Top Access Port

Top Access Port for Heratherm Large Capacity Microbiological Incubators.

Rounded Inner Chamber Corners

Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning

Adjustable Shelving System

Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.

Fluorescent Vacuum Display

Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer

Internal Duplex Outlet

Internal socket connects electrical devices such as stirrers and shakers.
