3900-27
Terra Part # 3900-27
$5,787
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Terra Part # 3900-27
57234
$5,787
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Product Details

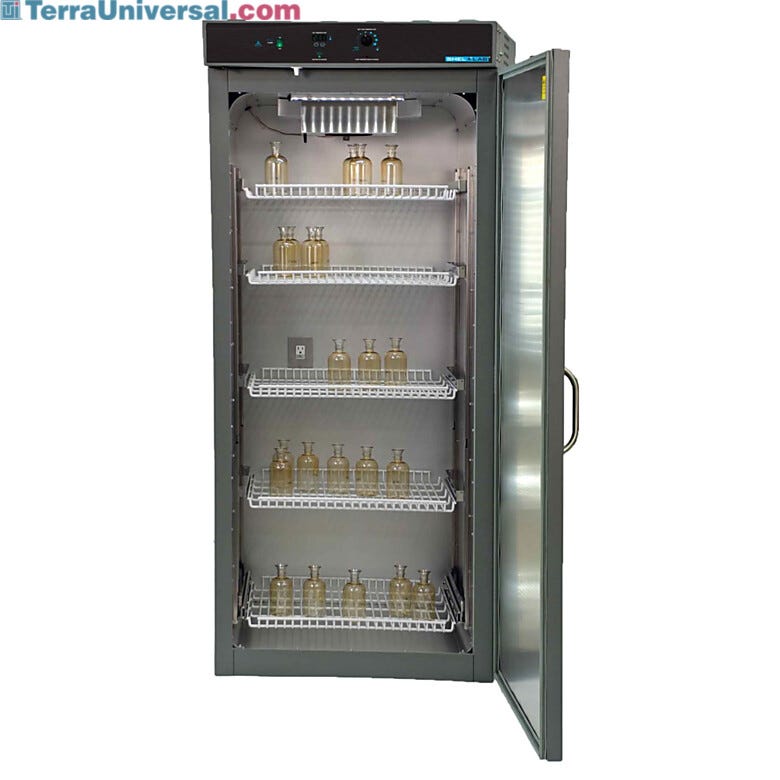

  • Mechanical convection unit meets APHA specifications for Biochemical Oxygen Demand (BOD)
  • Reduces room air conditioning loads by 75%
  • Saves energy by 78% with thermoelectric cooling technology
  • Includes 5 adjustable shelves
  • Shelf Load: 75 lbs. (34.0194 kg)
  • Temperature Increments: 1°C
  • Temperature Uniformity +/- 0.5ºC at 20ºC

Temperature Range: Ambient +15°C to 40°C

Type: BOD

Material: Epoxy-Coated Steel

Manufactured by: Shel Lab

Model: SRI20P

Capacity: 19.3 cu. ft.

Convection Type: Mechanical

Manufacturer SKU: SRI20P

Interior Material: Aluminum

Exterior Material: Powder Coated Steel

Maximum Temperature: 40°C

Capacity Range: 13 to 20 cubic feet

Unit of Measure: EA

Electrical Specifications: 120 V, 60 Hz

Weight, Product: 246 lb

Dimensions, Product: 30" W x 31.5" D x 69.5" H

Weight, Shipping: 405 lb

Dimensions, Shipping: 35" W x 36" D x 72" H

Package Type: Crate

Incubators

  • BODThermoelectric Peltier Cooled Incubator sr16p BOD Thermoelectric Peltier Cooled Incubator
  • BODThermoelectric Peltier Cooled Incubator sr120p BODThermoelectric Peltier Cooled Incubator sr120p
  • BOD Thermoelectric Peltier Cooled Incubator Biochemical Oxygen Demand (B.O.D.) Incubators

Features and Benefits

Learn More: B.O.D. Incubator Features

Energy-Efficient B.O.D. Thermoelectric Cooled Incubators for Wastewater Testing

Designed with a Peltier cooling technology and an innovative microprocessor, B.O.D. Thermoelectric Cooled Incubators by Shel Lab use up to 71% less energy because eliminate the need for a refrigeration compressor. Units provide excellent temperature uniformity throughout the incubator chamber ensuring that samples are under stable temperature conditions regardless of where they are in the inner chamber. These B.O.D. incubators help water treatment plants meet American Public Health Association requirements during wastewater testing procedures.

Note: Model SRI20P received a testimonial from the Clean Water Services (a water resources management utility in Tualatin River Watershed) for the unit's "amazing temperature uniformity" and energy efficiency.
Model SRI3P SRI6P SRI20P
Capacity 3 cu. ft. (85 L) 6.5  cu. ft. (185 L) 19.3 cu. ft. (546 L)
B.O.D. Bottle Capacity 84 120 300
Internal Dims (WxDxH) 19.0 x 16.2 x 26.2 in.
(483 x 411 x 665 mm)
25.5 x 24 x 18.5 in.
(647 x 609 x 469 mm)
25.5 x 24 x 54.5 in.
(647 x 609 x 1384 mm)
External Dims (WxDxH) 23.5 x 21.0 x 33.7 in.
(597 x 534 x 856 mm)
30 x 31.5 x 33.5 in.
(762 x 801 x 851 mm)
30 x 31.5 x 69.5 in.
(762 x 801 x 1766 mm)
Electrical 115 volts, 60Hz 115 volts, 60Hz 115 volts, 60Hz
Number of Shelves 2, adjustable 2, adjustable 5, adjustable
Shelf Capacity 35 lbs. 75 lbs. 75 lbs.
Temperature Range 15°C to 30°C 15°C to 40°C 15°C to 40°C
Max. Energy Consumption 360 watts 480 watts 660 watts
Circulation Technology Forced-Air Circulation
Electrical Outlets 1
Temperature Increments 1°C
Material Interior: Aluminum
Exterior: Painted Cold Roll Steel
Shelves: Painted Mild Steel
Warranty 2-year limited warranty
