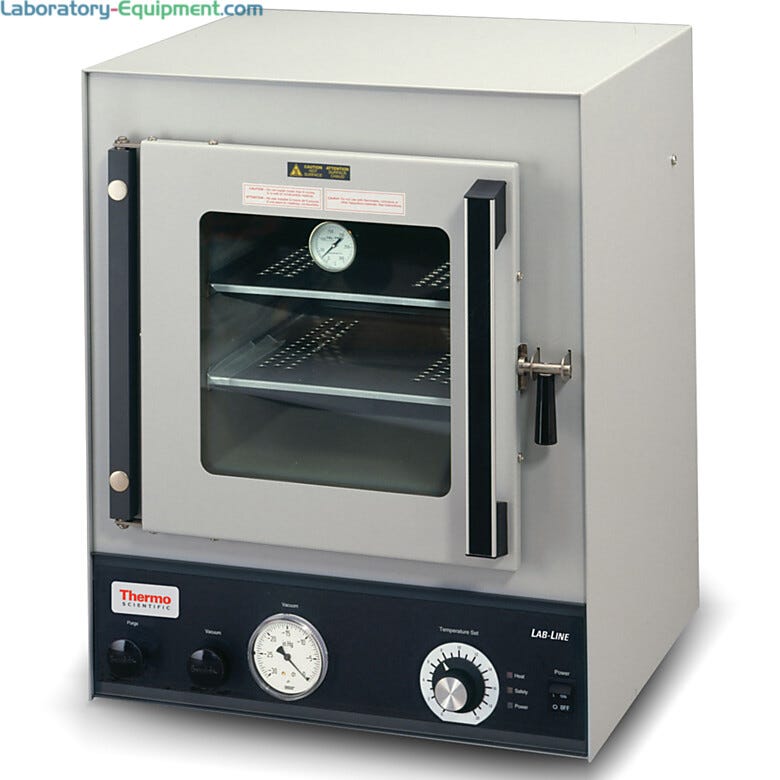

Hi-Temp vacuum oven provides uniform heating and cooling and eliminates the hazards associated with open-wire heaters | 3700-39 displayed
Ovens

High-Temp Vacuum Ovens by Thermo Fisher Scientific

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.
  • Thermo Fisher Scientific Hi-Temp Vacuum Ovens are available in two capacity sizes
  • Satisfy many lab applications dealing with low-volume high-temperature vacuum heating applications and storage
  • Models have a maximum temperature of up to 280°C
  • Built-in safety features and overtemperature protection
  • Radiant warm-wall heaters located outside of the oven chamber maximize working space
Read more
Manufactured By: Thermo Fisher
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3700-PP-06
Terra Part # 3700-PP-06
Request Quote
Usually ships in 20-22 business days

Want it faster ? Read about FasTrak

Ask about our free freight promotion!
Terra Part # 3700-PP-06
71507
Request Quote
Usually ships in 20-22 business days

Want it faster ? Read about FasTrak

Ask about our free freight promotion!
Save For Later
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Details & Specs
Manuals & Resources
Related Products
Product Details
  • Thermo Fisher Scientific Hi-Temp Vacuum Ovens are available in two capacity sizes
  • Satisfy many lab applications dealing with low-volume high-temperature vacuum heating applications and storage
  • Models have a maximum temperature of up to 280°C
  • Built-in safety features and overtemperature protection
  • Radiant warm-wall heaters located outside of the oven chamber maximize working space
  • Provide uniform heating and cooling and eliminate the hazards associated with open-wire heaters
  • Available in 0.65 and 1.5 cu. ft. capacities
  • Temperature range: Ambient +10°C / 50°C to 280°C
  • Radiant warm-wall heating located outside of unit prevents hazards of open wire heaters and maximize chamber space
  • Applications: desiccation, vacuum embedding, plating, process control and inert atmosphere
  • Includes two adjustable chrome-plated shelves
Show more

Show more
Other products you may find relevant
  1. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  2. Ilmvac MP Series Standard Duty Membrane Vacuum Pumps are dry and oil-free for minimized maintenance | 7906-29 displayed
    Group of 18 products
    Diaphragm Vacuum pumps From
    As low as $368
    Some ship in 0 - 2 days
  3. Welch 1397 Duoseal vacuum pump, belt-driven, oil-seal | 7906-21 displayed
    Group of 5 products
    Belt-Driven DuoSeal Vacuum Pumps From
    As low as $2,595
    Some ship in 5 - 7 days

  • Oven, Vacuum; 120 VAC, 0.65 CF Oven, Vacuum; 120 VAC, 0.65 CF
Oven, Vacuum; 120 VAC, 0.65 CF
3625A 120V 0.65 cu. ft. model provides uniform heating and cooling and eliminates the hazards associated with open-wire heaters. | 3700-39 displayed Oven, Vacuum; 120 VAC, 0.65 CF

Features & Benefits

Learn More: Hi-Temp Vacuum Ovens
Print Copy Copied

Small 0.65 cu. ft. models 3625A and 3625A-1

  • Dual-electronic control system with dial thermometer (no display)
  • Temperature range: Ambient +10° to 280°C
  • Controls and indicators located on the front panel: power switch and three indicators, purge gas and vacuum control valves, a 0-to-30-inch vacuum gauge and a temperature control
Large 1.5 cu. ft. models 3628A and 3628A-1
  • Single set point controller
  • Temperature Range: 50° to 280°C
  • Seven-day programmable timer cycles oven on or off up to eight times per day with automatic temperature/ vacuum control in real time steps
  • Dual displays provide constant day/ time and temperature/pressure updates every 5 seconds
Specifications for Hi-Temp Vacuum Ovens
  • Cabinet Material: Powder-coated heavy-gauge steel
  • Display: LED (2)
  • Temperature Uniformity:±0.1°C at 100°C 25 ft.Hg
  • Material: corrosion-resistant stainless-steel tubing optimizes chamber cleanliness and long-term performance, powder-coated heavy-gauge steel exterior, stainless steel chamber material, glass window and two adjustable chrome-plated shelves improve heat conduction
  • Shelves: Units include two chrome-plated
  • Pump connection: 6.4 mm / 0.25in
  • Air / inert gas connection: 6.4 mm / 0.25in
  • Vacuum operation to 20 mbar can be obtained using a single stage mechanical pump with a free air capacity of 35 liters per minute
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
Products similar to this one
  1. Shellab Large Capacity Model Oven comes with optional SS exterior for cleanroom applications | 3900-80 displayed
    Group of 6 products
    Vacuum Ovens by Shel Lab From
    As low as $2,114
    Some ship in 18 - 24 days
  2. Designed for applications requiring extremely precise and uniform temperature control, these ovens from Thermo Fisher are energy efficient
    Group of 5 products
    Vacuum Ovens by Thermo Fisher Scientific From
    As low as $4,454
    Some ship in 20 - 22 days

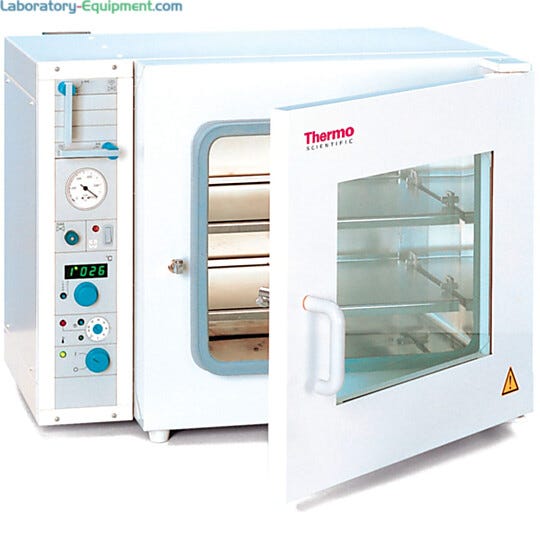

  3. Vacutherm™ vacuum heating and drying oven reduces drying time for temperature sensitive materials; provides inert heating environment | 1709-11 displayed
    Group of 5 products
    Vacutherm™ Vacuum Heating and Drying Ovens From
    As low as $7,809
    Some ship in 15 - 51 days

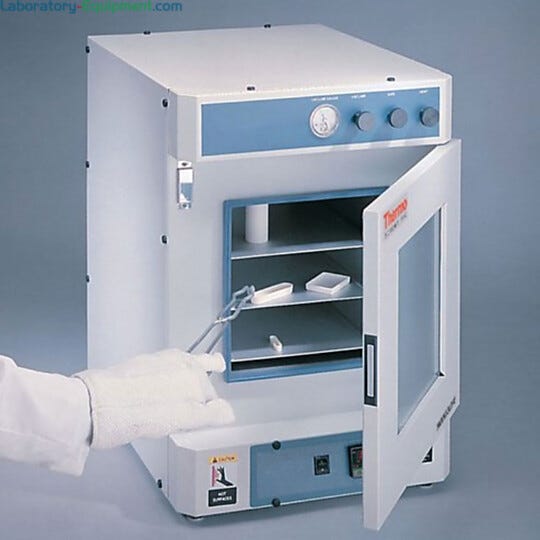

  4. The Lindberg Blue vacuum oven provides an inert atmosphere for use in heating, drying, curing and outgassing sensitive or reactive samples | 3703-49 displayed
