• Standard outlet pressure: 12 bars (174 psi); 16 bar (232 psi) optional
Maintenance-free gas drying system (two-column PSA drying system with a continuous operation of 24 hours a day)
Applications: Carrier gas for GC and GS-MS, GC-FID / GC-NPD / GC-FPD / THA, ICP-MS collision gas, refilling metal hydride tanks used with fuel cells, CVD application for diamond production
Connects up to 20 units in parallel with the use of an external control box (sold separately)
High pressure GLS electronically controlled (patented)
H2 Purity better than 99.99999%
Electrolytic cell: Long life Multilayer PEM technology
RS 232/485 and USB communication; optional LAN
On-Board CPU guarantees full safety by constantly controlling operation parameters, automatically checks for internal leaks
Drying System: PSA (Pressure Swing Adsorption) ensures maximum grade of hydrogen purity
Intuitive LCD touchscreen interface
Software functions: ready-on board parallel mode, automatic tank refill and fill hydride canister function
Water:
Quality Required: Deionized, ASTM II, <0.1µS
Supply pressure: Min 0.1 bar (1.45 psi), Max 0.5 bar (7.25 psi) Supply flow rate: Min 0.2 l/min, Max 1.5 l/min
Internal tank capacity: 3 L
Electrical: Type of connection IEC 320-C1
Connections:
Hydrogen outlet: 1/8" compression fitting
Water: Quick release push-in fitting
Operating/storage conditions:
Working Temperature: 5-40°C (41-104°F)
Storage Temperature: 1-50°C (34-122°F)
Humidity (max, non-condensing): 70%
Noise: < 35dB(A)
IP rating: IP20
Pollution degree rating: 2 (with no aromatic compounds)

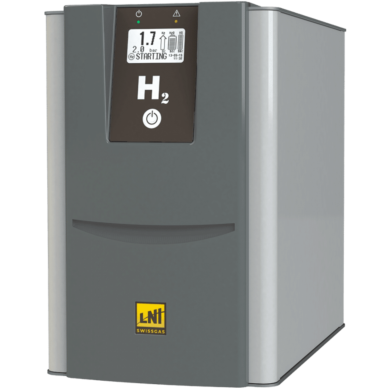

PEM hydrogen Gas Generators with a multilayer PEM cell include an internal tank and choice of static dryer, desiccant column of PSA and PSA/TSA drying systemsCompare PEM Hydrogen Generators by LNI Swissgas
