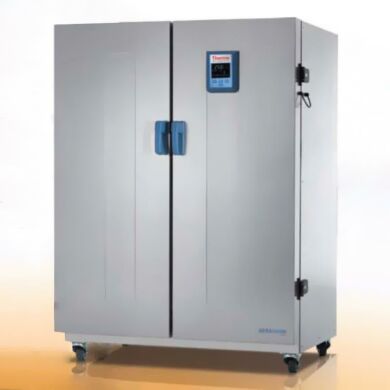

Thermo Fisher Scientific Large Capacity Ovens in 400L and 750L capacity sizes in gravity and mechanical convection models | 3614-81 displayed
Ovens
Product Group:
3614-PP-01
3614-PP-01 71505

Heratherm Large Capacity Ovens by Thermo Fisher Scientific

  • Heratherm Large Capacity Ovens meet stringent demands of pharmaceutical and clinical laboratories
  • General and Advanced Protocol models from 14.8 to 27.3 cubic feet capacities will store an abundance of samples while providing users with the application specific airflow required.
  • Advanced Protocol models are available in your choice of stainless steel or powder-coated steel
Read more
CSA C US Certification
Manufactured By: Thermo Fisher
Warranty: 1 year parts, 90 days labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Material

Sort Order:
Controls

Sort Order:
Maximum Temperature

Sort Order:
Capacity

Sort Order:
Convection Type

Sort Order:
Model

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
208/240 V, US Plug Advanced Protocol Stainless Steel Digital 300°C 14 cu. ft. Mechanical Heratherm 51029330 3614-72 54380 $9,816 15-21 Days 2
208/240 V, US Plug Advanced Protocol Stainless Steel Digital 300°C 25.8 cu. ft. Mechanical Heratherm 51029344 3614-74 54381 $10,506 15-21 Days 3
208/240 V, US Plug Advanced Protocol Coated Steel 300°C 14 cu. ft. Mechanical Heratherm 51029329 3614-64 54377 $7,745 10-20 Days 4
208/240 V, US Plug Advanced Protocol Coated Steel 300°C 25.8 cu. ft. Mechanical Heratherm 51029343 3614-66 54378 $9,663 15-21 Days 5
408 V General Protocol Coated Steel 300°C 27.3 cu. ft. Gravity Heratherm 51029342 3614-22 64827 $8,052 10-20 Days 6
408 V Advanced Protocol Coated Steel 300°C 25.8 cu. ft. Mechanical Heratherm 51029348 3614-23 64828 $10,276 10-20 Days 7
Voltage
Type
Material
Controls
Maximum Temperature
Capacity
Convection Type
Model
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Heratherm Large Capacity Ovens meet stringent demands of pharmaceutical and clinical laboratories
  • General and Advanced Protocol models from 14.8 to 27.3 cubic feet capacities will store an abundance of samples while providing users with the application specific airflow required.
  • Advanced Protocol models are available in your choice of stainless steel or powder-coated steel
  • General and Advanced Protocol models in 400L and 750L capacities
  • 750-P models provide high temperature, fastest heat-up and recovery time
  • Standard features: easy to use digital interface, high degree of temperature uniformity, low energy consumption, rounded interior corners, easy calibration, manual fresh air damper and RS232 interface
Show more

Show more

  • Heratherm General Protocol Gravity or Convection Oven in 3 sizes Heratherm General Protocol Ovens
Heratherm General Protocol Gravity or Convection Oven in 3 sizes
Heratherm General Protocol Ovens are available in gravity and mechanical convection models in three different sizes | 3700-87 displayed Heratherm General Protocol Ovens The Gravity Convection Economy Ovens saves energy while the double wall construction maintains uniform temperatures. Units deliver gentle heating and drying of lightweight samples such as powders, lightweight films and granular material.
Features & Benefits

Features & Benefits

Learn More: General and Advanced Models
Print Copy Copied

Features and Benefits of Heratherm Large Capacity General and Advanced Protocol Ovens

General Protocol Models:
  • Gravity convection heating gently warms samples without over drying
  • Temperature Range: 50-250°C (122-482°F) (14.8 cu. ft. model) and 50-300°C (122-572°F) 27.3 cu. ft. models
  • Material: corrosion resistant galvanized steel chambers with rounded corners
  • Automatic over-temperature alarm system
  • Built-in timer
  • Large vacuum fluorescent display
  • Microprocessor-controlled touch button
  • Doors: 180° opening
  • Flexible shelving system for samples of all sizes
  • Available in 400V model with a 300°C (572°F) max. temperature
  • Lockable casters for easy set-up and moving of instrument
Advanced Protocol Models
  • Mechanical convection for rapid heat-up and drying and ensures optimal temperature distribution
  • Temperature Range: 50-250°C (122-482°F) (14.0 cu. ft. model) and 50-300°C (122-572°F) 25.8 cu. ft. models
  • Material: choice of epoxy coated steel or all stainless steel exterior (ideal in pharmaceutical and clinical labs)
  • Adjustable fan speed for applications such as drying of powder (mechanical convection models only)
  • High speed for fast drying and heating, quick recovery and optimal temperature uniformity and stability
  • Programmable controller for predefined temperature ramps: electronic damper position and adjustable 2-speed fan for maximum usability
  • Automatic program repetition
  • Access ports for sensors and data monitoring
  • 10 program storage capacity with 10 discrete steps
Models OGS400 OGS750 OGS750-P
External Dimensions 30.6"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm) 		49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm) 		49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
Internal Dimensions 21.4"W x 23.2"D x 51.5"H
543.56 x 589.28 x 1308.1 mm) 		39.5"W x 23.2"D x 51.5"H
(1003.3 x 589.28 x 1308.1 mm) 		39.5"W x 23.2"D x 51.5"H
(1003.3 x 589.28 x 1308.1 mm)
Weight 300 lbs. (136 kg) 401 lbs. (182 kg) 401 lbs. (182 kg)
Exterior Finish Powder Coated Steel Powder Coated Steel Powder Coated Steel
Capacity 14.8 cu. ft. (419L) 27.3 cu. ft. (774L) 27.3 cu. ft. (774L)
Temp. Range 50-250°C
122-482°F 		50-250°C
122-482°F 		50-300°C
122-572°F
Temperature Uniformity ±0.5°C (±32.9°F) ±0.5°C (±32.9°F) ±0.5°C (±32.9°F)
Convection Technology Gravity Gravity Gravity
Shelves 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max
Warranty 2 years 2 years 2 years
Models OMH400 OMH400-SS OMH750 OMH750-SS OMH750-P
External Dimensions 30.6"W x 30.3"D x 60.8"H
(777.24 x 769.62 x 1544.3 2mm) 		30.6"W x 30.3"D x 60.8"H
(777.24 x 769.62 x 1544.3 2mm) 		49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm) 		49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm) 		49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
Internal Dimensions 21.5"W x 21.4"D x 52.6"H
(546 x 543.56 x 1336.04 mm) 		21.5"W x 21.4"D x 52.6"H
(546 x 543.56 x 1336.04 mm) 		39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm) 		39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm) 		39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm)
Weight 298 lbs. (135 kg) 298 lbs. (135 kg) 408 lbs. (185 kg) 408 lbs. (185 kg) 408 lbs. (185 kg)
Exterior Finish Powder Coated Steel Stainless Steel Powder Coated Steel Stainless Steel Powder Coated Steel
Capacity 14.0 cu. ft. (396L) 14.0 cu. ft. (396L) 25.8 cu. ft. (731L) 25.8 cu. ft. (731L) 25.8 cu. ft. (731L)
Temp Range 50-250°C
122-482°F 		50-250°C
122-482°F 		50-250°C
122-482°F 		50-250°C
122-482°F 		50-300°C
122-572°F
Temperature Uniformity ±2.1°C (±35.78°F) ±2.1°C (±35.78°F) ±3.1°C (±37.58°F) ±3.1°C (±37.58°F) ±3.1°C (±37.58°F)
Convection Technology Mechanical Mechanical Mechanical Mechanical Mechanical
Shelves 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max
Warranty 2 years 2 years 2 years 2 years 2 years
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • universal adjustable base stands
    Learn More

    Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Adjusting universal stand

    Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Mesh Shelf

    Additional Wire Mesh Shelf

    Stainless steel shelf for Heratherm large capacity ovens. Load weight is 400lbs; purchase individually.
  • Support Stands with Casters

    Support Stands with Casters

    Optional casters for Heratherm Oven provides mobility to an otherwise large oven
  • Stacking Kits for Heratherm Ovens

    Stacking Kits for Heratherm Ovens

    Available stacking kits for Thermo Fisher Heratherm Ovens to reduce space consumption.
  • Fresh Air Particle Filter

    Fresh Air Filter

    Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm Ovens
  • Additional Shelving for Gravity and Mechanical Convection Ovens

    Shelving for Gravity and Mechanical Convection Ovens

    Heratherm Protocol Ovens available with optional shelf accessories in wire, perforated or reinforced steel shelves
