3614-22
Terra Part # 3614-22
$8,052
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3614-22
64827

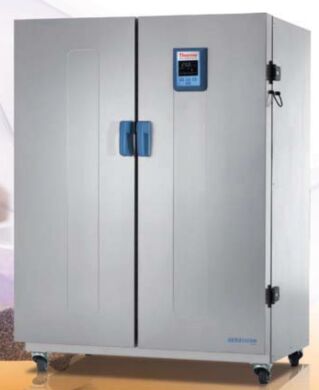

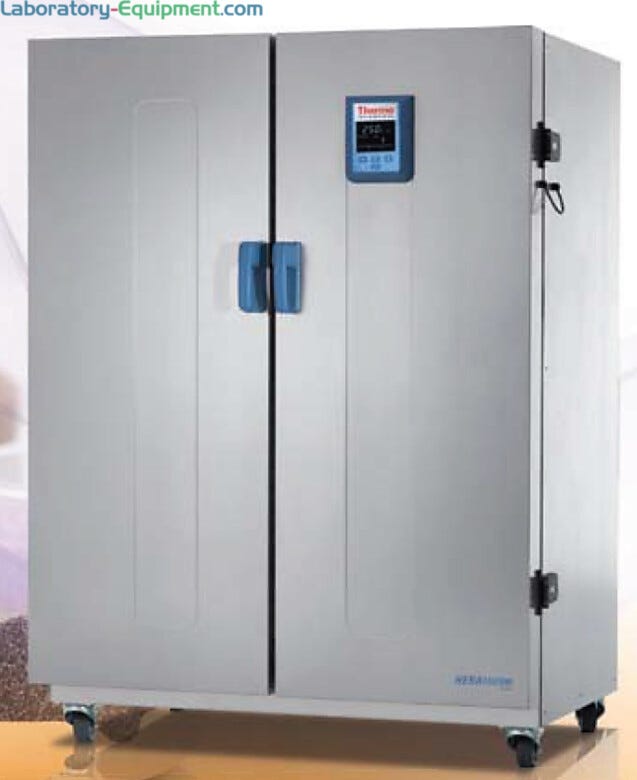

Oven; 27.3 cu. ft.,Heratherm Large Capacity General Protocol, Gravity Convection, 3-Phase, Thermo Fisher Scientific, 51029342, 400V
Product Details
  • Maximum Temperature: 300°C
  • 3-phase Gravity convection oven gently warms samples; includes 2 shelves
  • Exterior Finish: Powder coated steel
  • Temperature Range: 50 - 300°C
  • Two-Year Manufacturer Warranty
  • Internal Dimensions (w x d x h): 39.5 x 23.2 x 51.5 in.(1003.3 x 589.28 x 1308.1 mm)
  • Temperature Uniformity: ±0.5°C
  • Shelves: 2 supplied / 39 max
  • Automatic over-temperature alarm system
  • Low energy consumption
  • Built-in timer with ON/OFF functions
  • Material: corrosion resistant galvanized steel chambers with rounded corners
  • Large vacuum fluorescent display
  • Microprocessor-controlled touch button
  • Doors: 180°C opening
  • Flexible shelving system accommodates samples of all sizes
  • Lockable casters for easy set-up and moving of instrument
  • Standard features: easy to use digital interface, high degree of temperature uniformity, rounded interior corners, easy calibration, manual fresh air damper and RS232 interface

Type: General Protocol

Maximum Temperature: 300°C

Material: Coated Steel

Capacity: 27.3 cu. ft.

Convection Type: Gravity

Model: Heratherm

Manufacturer SKU: 51029342

Capacity Range: >15 cubic feet

Temperature Range: [xxx]

Temperature Uniformity: [xxx]

Chamber Material: [xxx]

Maximum Shelf Load: [xxx]

Unit of Measure: EA

Electrical Specifications: Battery, 50/60 Hz

Weight, Product: 401 Lbs

Dimensions, Product: 49.7"W x 30.3"D x 60.8"H

Weight, Shipping: 450 lb

Package Type: Vendor

Buy Accessories

  • Heratherm General Protocol Gravity or Convection Oven in 3 sizes Heratherm General Protocol Ovens

Features and Benefits

Learn More: General and Advanced Models

Features and Benefits of Heratherm Large Capacity General and Advanced Protocol Ovens

General Protocol Models:
  • Gravity convection heating gently warms samples without over drying
  • Temperature Range: 50-250°C (122-482°F) (14.8 cu. ft. model) and 50-300°C (122-572°F) 27.3 cu. ft. models
  • Material: corrosion resistant galvanized steel chambers with rounded corners
  • Automatic over-temperature alarm system
  • Built-in timer
  • Large vacuum fluorescent display
  • Microprocessor-controlled touch button
  • Doors: 180° opening
  • Flexible shelving system for samples of all sizes
  • Available in 400V model with a 300°C (572°F) max. temperature
  • Lockable casters for easy set-up and moving of instrument
Advanced Protocol Models
  • Mechanical convection for rapid heat-up and drying and ensures optimal temperature distribution
  • Temperature Range: 50-250°C (122-482°F) (14.0 cu. ft. model) and 50-300°C (122-572°F) 25.8 cu. ft. models
  • Material: choice of epoxy coated steel or all stainless steel exterior (ideal in pharmaceutical and clinical labs)
  • Adjustable fan speed for applications such as drying of powder (mechanical convection models only)
  • High speed for fast drying and heating, quick recovery and optimal temperature uniformity and stability
  • Programmable controller for predefined temperature ramps: electronic damper position and adjustable 2-speed fan for maximum usability
  • Automatic program repetition
  • Access ports for sensors and data monitoring
  • 10 program storage capacity with 10 discrete steps
Models OGS400 OGS750 OGS750-P
External Dimensions 30.6"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
Internal Dimensions 21.4"W x 23.2"D x 51.5"H
543.56 x 589.28 x 1308.1 mm)
39.5"W x 23.2"D x 51.5"H
(1003.3 x 589.28 x 1308.1 mm)
39.5"W x 23.2"D x 51.5"H
(1003.3 x 589.28 x 1308.1 mm)
Weight 300 lbs. (136 kg) 401 lbs. (182 kg) 401 lbs. (182 kg)
Exterior Finish Powder Coated Steel Powder Coated Steel Powder Coated Steel
Capacity 14.8 cu. ft. (419L) 27.3 cu. ft. (774L) 27.3 cu. ft. (774L)
Temp. Range 50-250°C
122-482°F
50-250°C
122-482°F
50-300°C
122-572°F
Temperature Uniformity ±0.5°C (±32.9°F) ±0.5°C (±32.9°F) ±0.5°C (±32.9°F)
Convection Technology Gravity Gravity Gravity
Shelves 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max
Warranty 2 years 2 years 2 years
Models OMH400 OMH400-SS OMH750 OMH750-SS OMH750-P
External Dimensions 30.6"W x 30.3"D x 60.8"H
(777.24 x 769.62 x 1544.3 2mm)
30.6"W x 30.3"D x 60.8"H
(777.24 x 769.62 x 1544.3 2mm)
49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
49.7"W x 30.3"D x 60.8"H
(1262.38 x 769.62 x 1544.32 mm)
Internal Dimensions 21.5"W x 21.4"D x 52.6"H
(546 x 543.56 x 1336.04 mm)
21.5"W x 21.4"D x 52.6"H
(546 x 543.56 x 1336.04 mm)
39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm)
39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm)
39.5"W x 21.5"D x 52.5"H
(1003.3 x 546.1 x 1333.5 mm)
Weight 298 lbs. (135 kg) 298 lbs. (135 kg) 408 lbs. (185 kg) 408 lbs. (185 kg) 408 lbs. (185 kg)
Exterior Finish Powder Coated Steel Stainless Steel Powder Coated Steel Stainless Steel Powder Coated Steel
Capacity 14.0 cu. ft. (396L) 14.0 cu. ft. (396L) 25.8 cu. ft. (731L) 25.8 cu. ft. (731L) 25.8 cu. ft. (731L)
Temp Range 50-250°C
122-482°F
50-250°C
122-482°F
50-250°C
122-482°F
50-250°C
122-482°F
50-300°C
122-572°F
Temperature Uniformity ±2.1°C (±35.78°F) ±2.1°C (±35.78°F) ±3.1°C (±37.58°F) ±3.1°C (±37.58°F) ±3.1°C (±37.58°F)
Convection Technology Mechanical Mechanical Mechanical Mechanical Mechanical
Shelves 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max 2 supplied / 39 max
Warranty 2 years 2 years 2 years 2 years 2 years
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Universal Base Stands Offer Excellent Versatility

    Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application.
  • Universal Stand Adjusts to Fit a Wide Range of Equipment

    Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers.
  • Additional Wire Mesh Shelf

    Stainless steel shelf for Heratherm large capacity ovens. Load weight is 400lbs; purchase individually.
  • Support Stands with Casters

    Optional casters for Heratherm Oven provides mobility to an otherwise large oven
  • Stacking Kits for Heratherm Ovens

    Available stacking kits for Thermo Fisher Heratherm Ovens to reduce space consumption.
  • Fresh Air Filter

    Fresh air particle filter for connection to the fresh air vent (intake) for all Heratherm Ovens
  • Shelving for Gravity and Mechanical Convection Ovens

    Heratherm Protocol Ovens available with optional shelf accessories in wire, perforated or reinforced steel shelves
