- Heratherm Advanced Protocol Security Microbiological Incubators provide additional sample protection ideal for use in pharmaceutical and clinical labs
- First microbiological incubators with a 140°C push button decontamination routine certified by an accredited microbiological institute
- Features a lockable door, dual convection, audible alarm, stainless steel chamber and choice of stainless steel (AISI 304) or powder-coated steel exterior
- Temperature range (°C) Ambient +5 °C to 105 °C
- Includes: two removable shelves and lockable casters; additional shelves sold separately
Incubators
1798-PP-02
1798-PP-02 71949

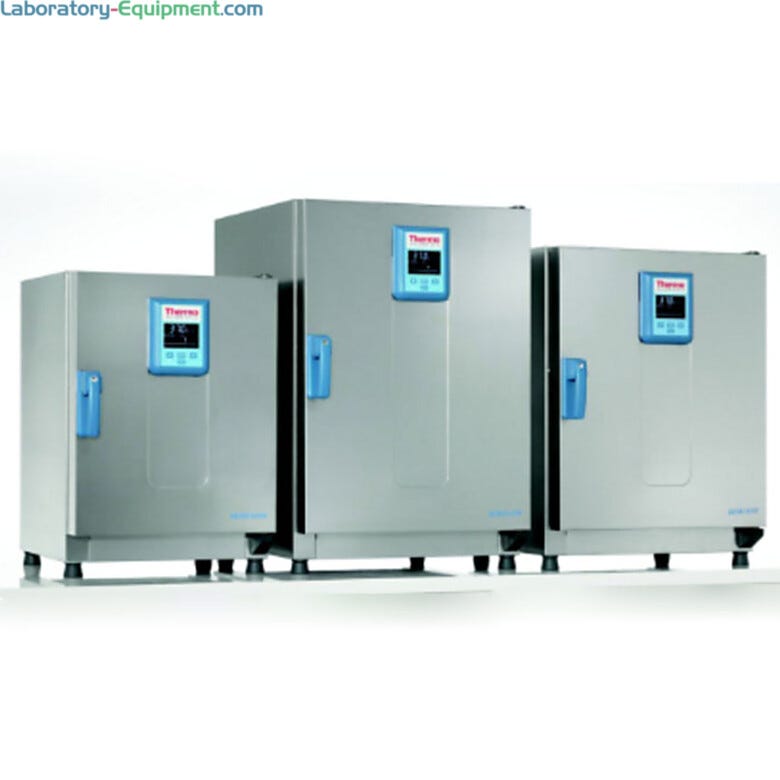

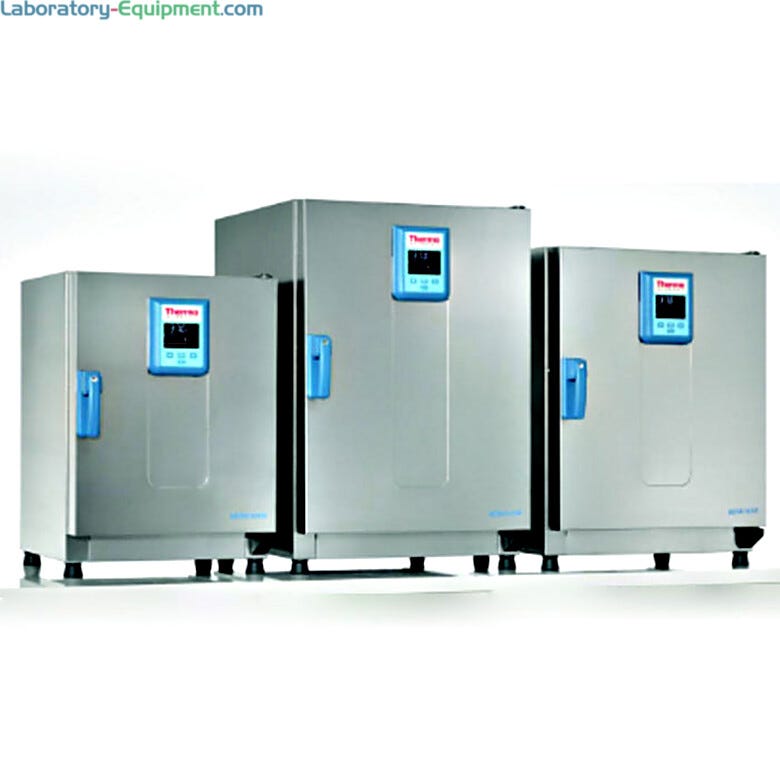

Heratherm Advanced Protocol Security Microbiological Incubators by Thermo Fisher Scientific
Read more
Manufactured By: Thermo Fisher
Warranty: Two-Year Manufacturer Warranty
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Product Details
Incubators
-
Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
-
Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
-
Heratherm Large Capacity Microbiological Incubators
-
Thermo Scientific Microbiological Incubators
3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit | 1798-48 displayed
Heratherm Advanced Protocol Microbiological Incubator - 6.7 cu. ft.
3.6.7 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific with SS chamber available with optional stacking kit.
2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility | 1798-37 displayed
Heratherm Advanced Protocol Microbiological Incubator - 2.3 cu. ft.
2.3 cu. ft. Heratherm Advanced Protocol Microbiological Incubators by Thermo Fisher Scientific features dual convection for application flexibility.
Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific in volume capacities of 13.3 and 27.3 cu. ft. | 5324-PP-01 displayed
Heratherm Large Capacity Microbiological Incubators
General Protocol and Advanced Protocol Security models feature rounded corners, microprocessor control, overtemperature alarm and a stainless steel interior
Features demonstrated in short video of the Microbiological Incubator from Thermo Scientific
Thermo Scientific Microbiological Incubators
Thermo Scientific Heratherm Microbiological Incubator shown in a short demonstration video
Features & Benefits
Features and Benefits
Learn More: Advanced Security Features
Print
Copy Copied
Dual Convection Technology of Heratherm Advanced Protocol Security Incubators
Dual Convection Technology combines the function of gravity convection and mechanical convection systems to create a high-performing, efficient and widely adaptable incubation platform. The featured adjustable fan speed allows users to specify operating parameters to optimize their individual experiments. When the fan is switched off, the evaporation occurring in the incubator is at its lowest. When the fan is set to 100%, the temperature stability and uniformity is optimized.
Applications for Heratherm Advanced Protocol Security Microbiological Incubators
Gravity Convection
Gravity convection introduces heated air into the bottom of the incubator and gravity causes the warmer air to rise and be distributed throughout the incubator. With less air being displaced, there is no need for a fan because gravity provides the force needed to distribute the warm air that gently heats samples. This convection mode prevents samples from drying out during incubations. Gravity convection technology is ideal for incubation of bacterial and eukaryotic cell cultures, but is limited by the degree to which air can be heated and the time it takes for an incubator to recover after the door is opened.
Mechanical Convection
Mechanical convection utilizes a fan that delivers heated air throughout the incubator creating a uniform temperature distribution throughout the unit. This method provides optimal temperature uniformity and stability due to the rapid distribution of air, which is ideal for bacterial cultures. In addition, mechanical convection is capable of quickly warming samples that have been transferred directly from the refrigerator to the incubator. Many laboratories choose mechanical convection incubators during sample drying to prevent the evaporation of growth media.
- Clinical and Medical labs: microbiological diagnostic testing
- Pharmaceutical: quality control testing, safety and testing efficacy of manufactured products
- Food: screening for bacterial contamination
- Research and biotech labs: bacterial growth, gene expression studies, production of recombinant proteins
| Part Number | 51028069 51028264 | 51028070 51028535 | 51028111 51028327 |
|---|---|---|---|
| Model | IMH60-S IMH60-S SS | IMH100-S IMH100-S SS | IMH180-S IMH18-S SS |
| External Dimensions | 22.2"W x 20.9"D x 28.3"H (565 x 530 x 720 mm) | 25.2"W x 32.3"D x 22.2"H (640 x 820 x 565 mm) | 25.2"W x 36.2"D x 29.1"H (640 x 920 x 738 mm) |
| Internal Dimensions | 14.5"W x 13.9"D x 20"H (368 x 354 x 508 mm) | 18.3"W x 23.9"D x 14.5"H (464 x 608 x 368 mm) | 18.3"W x 27.9"D x 21.4"H (464 x 708 x 543 mm) |
| Energy Consumption at 37°C | 23 Watts | 30 Watts | 36 Watts |
| Footprint | 3.2 sq. ft. (0.3m2) | 3.9 sq. ft.(0.9m2) | 5.1 sq. ft. (0.47m2) |
| Chamber Volume | 2.3 cu. ft. (66L) | 3.67 cu. ft. (104L) | 6.3 cu. ft. (178L) |
| Number of Shelves | 2 included (13 max) | 2 included (16 max) | 2 included (19 max) |
| Max Shelf Load | 55 lbs. (25kg) | 55 lbs. (25kg) | 65lbs. (30kg) |
| Rated power | 1390 Watts | ||
| Max Current | 11.6 amps | ||
| Temperature Range | Ambient 5 °C to 105 °C | ||
| Convection Technology | Dual Convection | ||
| Spatial Temperature Deviation | ± 0.6°C at 37°C (uniformity) | ||
| Electrical (plug standard) | 100 - 240 50/60hz (NEMA 5-15) | ||
| Temperature Deviation Over Time (Stability) | ± 0.1°C | ||
| Certified Decontamination Cycle | Yes | ||
| Material |
| ||
| Interface | RS232 | ||
| Certifications/Compliance | cCSAus, CE | ||
| Warranty | Two-Year Manufacturer Warranty | ||
Large Capacity Heratherm Microbiological Incubator Small, Left Access Port
Small Access Left Port (0.94” diameter) compatible with Heratherm Large Capacity Microbiological Incubators by Thermo Fisher Scientific: 1711-46 Large Access Left port with 2.28” diameter also available.
Heratherm Large Capacity Microbiological Incubator Top Access Port
Top Access Port for Heratherm Large Capacity Microbiological Incubators.
Rounded Inner Chamber Corners
Heratherm Microbiological Incubators by Thermo Fisher Scientific feature a corrosion-resistant stainless steel inner chamber with rounded corners for easy cleaning
Adjustable Shelving System
Thermo Fisher Scientific designed Heratherm Microbiological Incubators with an adjustable shelving system for optimum storage capacity; additional stainless steel perforated shelves are sold separately.
Fluorescent Vacuum Display
Heratherm Series Microbiological Incubators by Thermo Fisher Scientific feature a vacuum fluorescent display that shows temperature setting and timer
Internal Duplex Outlet
Internal socket connects electrical devices such as stirrers and shakers.
Catalog of CE-Marked Products
Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
-
Universal Base Stands Offer Excellent Versatility
Universal base stands support and stabilize various equipment sizes. Adjustable telescoping members allow for a precise fit. Choose between stainless and powder-coated steel to fit your desired application. -
Universal Stand Adjusts to Fit a Wide Range of Equipment
Terra's Universal stands easily adjust to fit a wide range of equipment. Multi-purpose stand frames are suitable for many types of cleanroom equipment, including refrigerators, freezers, incubators, ovens, and vacuum chambers. -
SS Perforated Shelves for Heratherm Microbiological Incubators
2.3 cu. ft. Heratherm Advanced Protocol Security Microbiological Incubators accommodate a maximum of 13 shelves with a 55 lb. shelf load; additional shelf sizes available. -
Particle filter for External Sample Sensor
Particle Filter for External Sample Sensor ensures compliance by providing independent verification of sample temperatures; compatible with all Heratherm Advanced Protocol Microbiological Incubators. -
Fresh Air Particle Filter for Heratherm Microbiological Incubators
Fresh Air Particle Filter reduces contaminants and maintenance by filtering fresh air into Heratherm Advanced Protocol Security Microbiological Incubator prior to heating.
