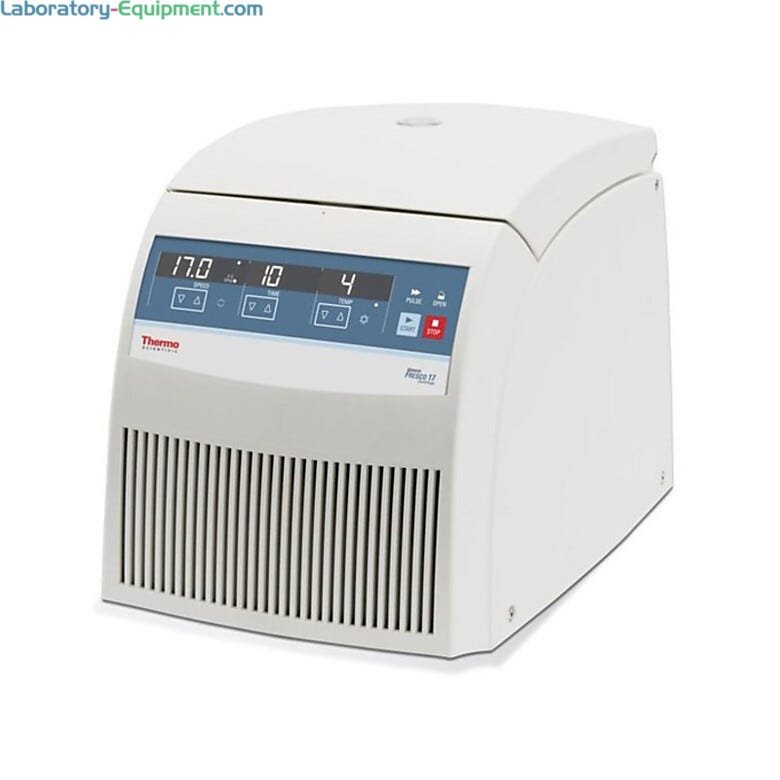

Refrigerated Heraeus Fresco 17 microcentrifuge from Thermo Fisher spins samples at 13,300 rpm | 1108-09 displayed
Lab Centrifuges
Product Group:
1108-PP-05
1108-PP-05 73119

Heraeus Fresco Microcentrifuges by Thermo Fisher Scientific

Read more
CSA C US Certification CE Mark Logo Ships Free
Manufactured By: Thermo Fisher
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Learn More: Pico and Fresco Models
Select Product
Voltage

Sort Order:
Configuration

Sort Order:
Controls

Sort Order:
Capacity

Sort Order:
Maximum Speed

Sort Order:
Temperature Control

Sort Order:
Model

Sort Order:
Rotor Type

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
120 V Benchtop Digital 24 x 1.5/2 mL 13300 rpm Refrigerated Fresco 17 Fixed 75002421 1108-09 55874 $6,756 10-20 Days 2
Ships Free Free shipping in contiguous USA
120 V Benchtop Digital 24 x 1.5/2 mL 14800 rpm Refrigerated Fresco 21 Fixed 75002426 1108-11 55879 $7,378 10-20 Days 3
Ships Free Free shipping in contiguous USA
120 V Benchtop Digital Multi tube 14800 rpm Refrigerated Fresco 21 Fixed 75002478 1108-13 55885 $7,745 10-20 Days 4
Ships Free Free shipping in contiguous USA
Voltage
Configuration
Controls
Capacity
Maximum Speed
Temperature Control
Model
Rotor Type
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Maximum speed RCF: Centrifuge 1,180 x g; Wash 190 x g
  • Maximum capacity: 24 tubes
  • Tube Dimensions: 12 x 75 mm or 10 x 75 mm
  • Cycle settings: 1 to 9
  • Four-stage process display: wash, centrifuge decant, agitate
  • Easy sample balancing with color-coded tubes
  • Process Time Per Cycle:  60 seconds (Automatic centrifugation time: 35 seconds)
  • Automatic timer: 1 to 99 seconds in 1-second increments
  • Manual timer: 1 to 999 seconds in 1-second increments
  • Material: stainless steel rotor body
  • Set decanting speed for optimal corpuscle dryness
  • Optional overflow method during centrifugation step improves corpuscle washing
  • Ambient temperature: +2° to +35°C
  • Noise level: <53dbA
  • Features: removable catch basin, rotor and rotating bowl, top-mounted saline distribution reduces cross-contamination, easy-to change pump tubing
  • Safety Features: Door interlock, Dual over-speed detector, Saline level sensor
  • Applications: ABO compatibility, antibody screening, Antiglobulin tests, Rh testing and Cross matching
  • Certifications: UL listed, CSA certified, CE marked, FDA Class 2, IVD compliant
  • Standards: CAN/CSA-C22.2 No. 61010-1-04, UL Std. No. 61010-1, CAN/CSA-C22.2 No. 61010-2-020-09- Part 2-020, IEC 61010-2-020, IEC 61010-2-101
  • Compatible rotors: 75000020 24-place rotor assembly with distributor; 75000021 12-place rotor assembly with distributor
  • Processes samples faster; all models accelerate up to 21,000 xg in just 12 seconds
  • Fresco temperature range: -9° to 40°C, ±1°C (15.8°F to 104°F, ±33.8°F)
  • Fresco 21 models designed for high-end research applications; reduce spin times by up to 20%
  • Timing: 1 to 99 minutes, in 1 min. increments plus HOLD
  • Refrigerated models offer cooling in just nine (9) minutes
  • Strong transparent PPSU lids are more chemical-resistant than polycarbonate and metallic lids
  • Compliance: IEC 61010-1, IEC 61010-2, IEC 61010-020
  • All models include standard rotor
Show more

Show more

Lab Centrifuges

  • Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges
  • Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge
  • Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge
Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges
Heraeus Pico 21 and Fresco 17 Microcentrifuges meet complex micro-volume protocol for ventilated or refrigerated centrifugation | 1108-PP-02 displayed Thermo Scientific Hereaus Pico 21 Ventilated and Fresco 17 Refrigerated Microcentrifuges Heraeus Pico and Fresco Microcentrifuges speed up micro-volume sample preparation processes; ideal for routine lab work or high-end research applications
Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge

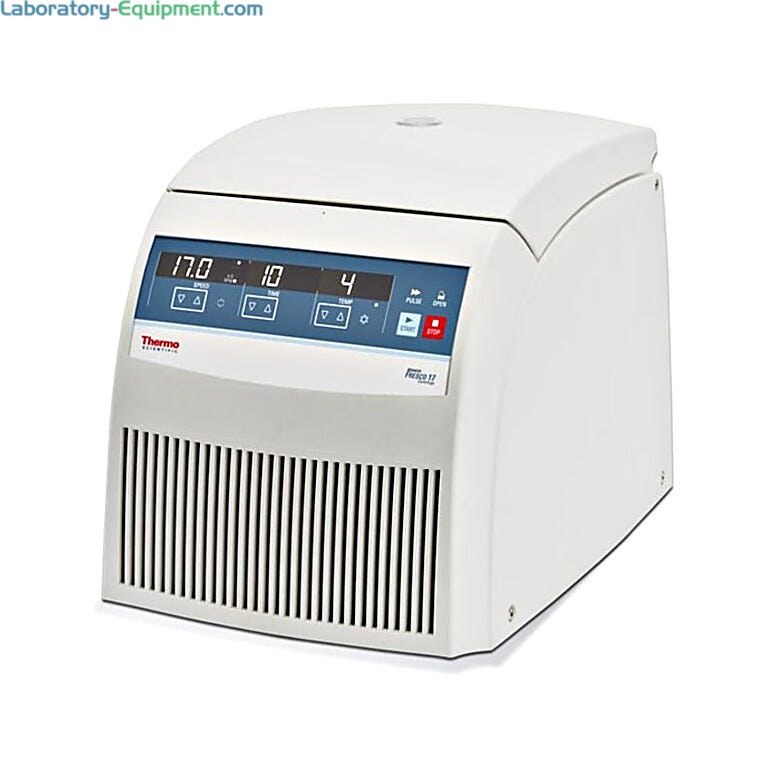

Refrigerated Heraeus Fresco 17 microcentrifuge from Thermo Fisher spins samples at 13,300 rpm | 1108-09 displayed Thermo Scientific Hereaus Fresco 17 Refrigerated Microcentrifuge Refrigerated Heraeus Fresco 17 microcentrifuge from Thermo Fisher spins samples at 13,300 rpm. Control operations using the microprocessor control pad.
Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge
Ventilated Heraeus Pico 21 microcentrifuge from Thermo Fisher spins samples at 14,800 rpm | 1108-03 displayed Thermo Scientific Hereaus Pico 21 Ventilated Microcentrifuge Ventilated Heraeus Pico 21 microcentrifuge from Thermo Fisher spins samples at 14,800 rpm. Control operations using the microprocessor control pad.
Features & Benefits

Features & Benefits

Learn More: Pico and Fresco Models
Print Copy Copied

Heraeus Pico and Fresco Microcentrifuges from Fisher Scientific

Model Pico 17 and 21 (Ventilated) Fresco 17 and 21 (Refrigerated)
Dimensions (W x L x H) 9.6 x 13.8 x 8.9 in.
(244 x 351 x 226.5 mm)		 11.6 x 17.5 x 12.9 in.
(295 x 444.5 x 328 mm)
Imbalance Recognition — Electronic in ventilated centrifuges
Noise Level <56 dBA <50 dBA
Temperature Range — -9° to +40°C, ±1°C
Net Weight 24.2 lbs. (11 kg) 61.7 lbs. (28 kg)
Capacity 24 x 1.5/2.0 mL
Timer 1 to 99 min., 1 min. increments plus HOLD
Structure/Housing Sheet metal with attached plastic housing and steel chamber
Rotor Chamber Plastic
Up to 48 ml of spilled liquid is retained in the chamber and cannot enter the instrument
Drive Induction drive without carbon brushes
Keys and Display Easy-to-clean keypad and display surface
Control Microprocessor-controlled
Internal Memory Saves most recent data
Functions RCF-selection, temperature control, pretemp
Door Lock Automatic door closing and locking starting from an initial hold position

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Catalog of CE-Marked Products

Terra offers over 1,700 CE-marked products configured for international voltage requirements
Available Accessories
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • Thermo Scientific Heraeus Fixed-Angle 45 Degree Centrifuge Rotor

    Thermo Scientific Heraeus Fixed-Angle 45 Degree Centrifuge Rotor

    Heraeus 36 x 0.5 mL fixed-angle 45° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges.
  • Thermo Scientific Heraeus PCR Strips Fixed-Angle 60 Degree Centrifuge Rotor

    Thermo Scientific Heraeus PCR Strips Fixed-Angle 60 Degree Centrifuge Rotor

    Heraeus 8 x 8 PCR strips (0.2 ml tubes) fixed-angle 60° centrifuge rotor from Thermo Fisher easily screws into the Fresco 17/21 and Pico 17/21 microcentrifuges.
  • Thermo Scientific Heraeus ClickSeal Transparent Biocontainment Lid

    Thermo Scientific Heraeus ClickSeal Transparent Biocontainment Lid

    Heraeus ClickSeal Transparent Biocontainment Lid for Pico and Fresco Microcentrifuges from Thermo Fisher. One click secures it in place for safe sample containment.
