3615-50
Terra Part # 3615-50
$10,714
Usually ships in 10-20 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3615-50
60042

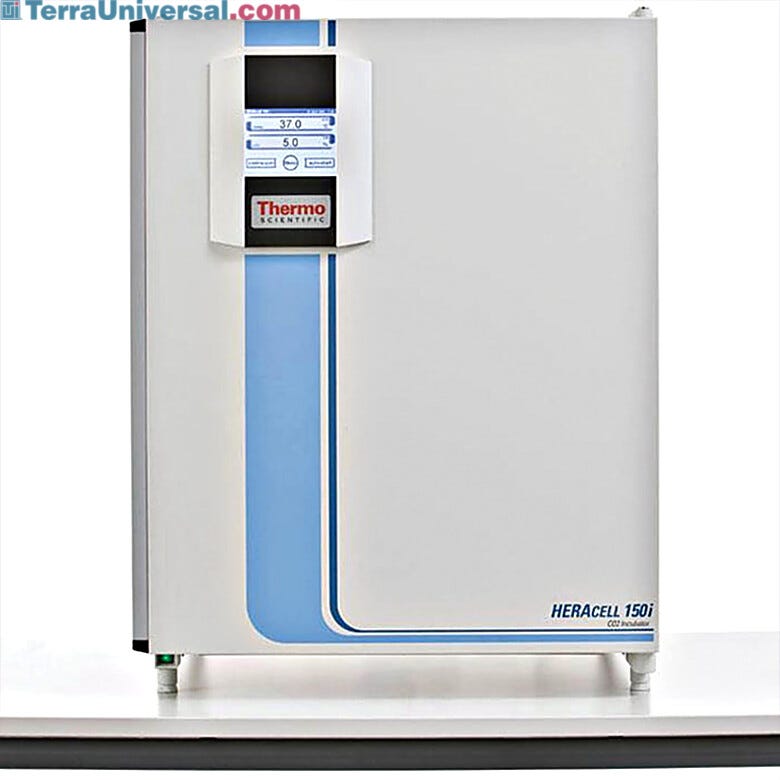

Heracell 150i CO2 Incubator, 5.3 cu. ft., IR Sensor, Electropolished Stainless Steel Chamber, Thermo Fisher Scientific, 51026406, 120V
Product Details
  • ContraCon 90°C moist heat decontamination for effective cleaning and operation
  • Smooth inner casing with rounded corners
  • Integral humidity water reservoir for high rH with up to five times the recovery times
  • ICAN touchscreen for easy setting and clear visibility of parameters
  • 1.6 in (42 mm) access port
  • Constant humidity*** %rH: 95 ± 3
  • CO2 Measure and control range Vol.  – %: 0 … 20
  • O2 Measure and control range Vol.  – %: 1..21/5..90

Temperature Range: Ambient +3°C to 55°C

Type: CO2

Material: Stainless Steel

Manufactured by: Thermo Fisher

Model: Heracell

Capacity: 5.3 cu. ft.

Convection Type: Air Jacket

Sensor Type: Infrared (IR)

Manufacturer SKU: 51026406

Interior Material: Electropolished Stainless Steel

Exterior Material: Powder Coated Steel

Maximum Temperature: 55°C

Capacity Range: <6 cubic feet

Unit of Measure: EA

Electrical Specifications: 120 V, 50/60 Hz

Weight, Product: 154 lb

Dimensions, Product: 21" W x 19" D x 24" H

Weight, Shipping: 184 lb

Dimensions, Shipping: 27" W x 25" D x 30" H

Package Type: Vendor

Buy Accessories
  1. Small 12"H powder-coated steel desiccator stand; optional casters simplify positioning and cleaning
    $584
    Increase Down Increase Up
  2. Small 12"H stainless steel desiccator stand; optional casters simplify positioning and cleaning
    $913
    Increase Down Increase Up

Incubators

  • Thermo Fisher Scientific Heracell Incubator Thermo Fisher Scientific Heracell Incubator
  • Heracell Dual Chamber Copper Incubator Heracell Dual Chamber Copper Incubator
  • CO2 Incubation expert demonstrates and explains the benefits of the Thermo Scientific Incubator CO2 Incubation Expert on Heracell Incubators
Thermo Fisher Scientific Heracell Incubator
Heracell Dual Chamber Copper Incubator
CO2 Incubation expert demonstrates and explains the benefits of the Thermo Scientific Incubator

Features and Benefits

Learn More: Benefits of Copper and SS Chambers

Features of HERAcell 150i and 240i CO2 Direct Heat Incubators with Copper and Stainless Steel Chambers

Designed to provide optimal growth conditions to enhance cell growth, the HERAcell 150i and 240i CO2 Incubators have a range of features for accurate, uniform and reliable culturing conditions. Units are available with thermal conductivity or infrared sensors, located inside the chamber, for precise environmental measurements. The fan-assisted convection provides samples with a uniform temperature, CO2 and humidity within the incubator. Because constant humidity is paramount for cell protection and optimal growth, the patented floor heating system directly transfers heat to the humidity reservoir for optimal humidity and allows for rapid recovery of moisture levels after doors are opened. The water level sensor alarms when later levels are low and the iCAN touchscreen clearly displays performance trends of your culturing process and monitors the progress of the ContraCon decontamination routine. Designed with a pan-less system to reduce handling, recovery rates are up to five times faster than standard tray humidified incubators.

The ContraCon 90°C moist heat decontamination cycle eliminates variability in disinfection. It eliminates disassembly of sensors, hardware and other components. This feature is effective against:
  • Bacillus subtilis
  • Bacillus stearothermophilus (USP 23)
  • Enterococcus faecalis
  • Escherichia coli
  • Pseudomonas aeruginosa
  • Staphylococcus epidermidis
  • Corynebacterium xerosis
  • Aspergillums niger
These easy-to-clean incubators have rounded corners for quicker and more effective cleaning and disinfection. Models are available in stainless steel or copper interior chambers.
Benefits of Copper Inner Chamber in HERAcell 150i and 240i CO2 Incubators
Copper has a natural antimicrobial feature that delivers non-stop bactericidal and fungicidal protection to samples on contact. As the choice of many cell culture professionals, copper maximizes productivity and minimizes contamination especially in shared-use environments.

The tarnishing effects on copper increase with age thus increasing the antimicrobial efficiency. Because copper ions are not airborne, they do not effect or interfere with the integrity of cultures.

Since copper is easy to clean, maintenance is minimal and eliminates the need to use toxic chemical cleaners or UV light.
Model HERAcell 1501 HERAcell 240i
Exterior Dimensions
W x D x H
25.1 x 30.8 x 24.1 in.
(638 x 782 x 612 mm)
30.7 x 32.8 x 36.8 in.
(780 x 833 x 935 mm)
Interior Dimensions
W x D x H
18.5 x 20.9 x 23.9 in.
(470 x 531 x 607 mm)
23.9 x 23.0 x 26.4 in.
(607 x 584 x 671)
Internal Volume 150L (5.3 cu. ft.) 240 (8.4 cu. ft.)
Weight 154 lbs. (70 kg) 178 lbs. (81 kg)
Shelves Dimensions W x D 16.7 x 18.3 in.
(423 x 465 mm)
22.0 x 19.7
(560 x 500 mm)
No. of Shelves
Standard/Maximum
3 Standard
10 Maximum
3 Standard
12 Maximum
Max. Load per Shelf 22 lbs. (10 kg)
Total Load per Shelf 66 lbs. (30 kg)
Shelves Half Width W x D 10.2 x 19.7 in.
(260 x 500 mm)
No. of Shelves
Standard/Maximum
6 Standard
16 Maximum
Max. Load per Shelf 11 lbs. (5 kg)
Total Load per Shelf 66 lbs. (11 kg)
Interior Chamber Solid Copper/Stainless Steel
Shelves and Fan Impeller Solid Copper/Stainless Steel
ContraCon decontamination routine verified by accredited laboratories
Decontamination phase, on all surfaces °C/hrs. 90/9
Period (ambient temperature 20°C) 25 hours
Efficiency spectrum bacteria, fungi, spores (USP 23), mycoplasma
Temperature Air Jacket Temperature Control
Temperature Control Range °C TA* +3 … 55
Temperature deviation, time**/spatial** ± 0.1/± 0.5 K
Ambient temperature range °C +18 … 33
Constant humidity*** %rH 95 ± 3
Fill amount/water quality Max. 3
distilled/autoclaved and demineralized
Max 4.5
distilled/autoclaved and demineralized
Measure and control range Vol. – % 0 … 20
Control accuracy Vol. – % ± 0.1
Inlet pressure bar 0.8 … max. 1
Gas purity % 99.5, medical quality min.
Measure and control range Vol. – % 1..21/5..90
Control accuracy Vol. – % ±0.2
Inlet pressure bar 0.8…max. 1
Gas purity % 99.5; medical quality min.
Rated voltage V 1/N/PE AC; 230 (120)
Rated output kW 0.58 (0.62) 0.64 (0.65)
Rated frequency Hz 50/60
Heat emission to environment at 37°C
kWh/h
0.06 0.07
With ContraCon, kWh/h 0.11 0.25
*Ambient Temperature
**Determined according to DIN 12880 for the standard configuration. Refer to calibration instructions for details.
***Relative humidity inside incubator may increase during incubation of open culture vessels
