Select Product
Voltage

Type

Material

Capacity

Temperature Range

Convection Type

Sensor Type

Model

Manufacturer SKU

Terra Part # Price Ships in
120 V CO2 Epoxy-Coated Steel 5.3 cu. ft. Ambient +3°C to 55°C Air Jacket Thermocoupler (TC) Heracell 51026283 3615-42 57067 $11,043 5-7 Days 2
In stock
120 V CO2 Stainless Steel 5.3 cu. ft. Ambient +3°C to 55°C Air Jacket Infrared (IR) Heracell 51026534 3615-44 57069 $12,609 5-7 Days 3
In stock
120 V CO2 Stainless Steel 5.3 cu. ft. Ambient +3°C to 55°C Air Jacket Infrared (IR) Heracell 51026406 3615-50 60042 $10,714 10-20 Days 4
120 V CO2 Stainless Steel 5.3 cu. ft. Ambient +3°C to 55°C Air Jacket Thermocoupler (TC) Heracell 51026282 3615-49 60041 $9,231 10-20 Days 5
Voltage
Type
Material
Capacity
Temperature Range
Convection Type
Sensor Type
Model
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details

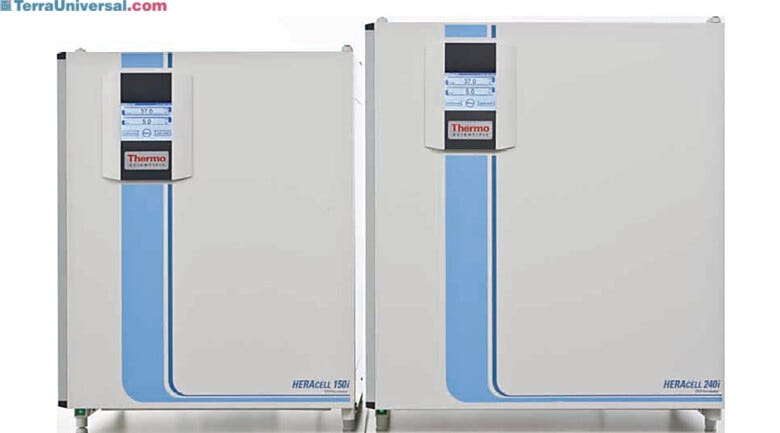

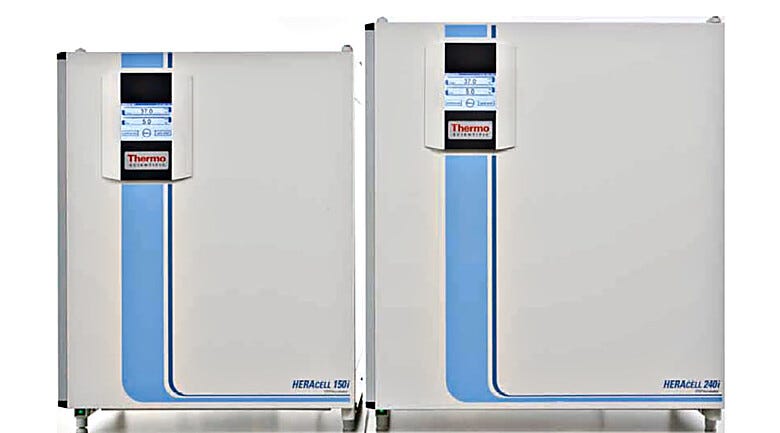

  • HERAcell 150i & 240i CO2 Incubators provide the ideal in vitro environment to optimize cell growth
  • Stackable units deliver excellent parameter recovery rates to enhance cell growth
  • Choose from thermal conductivity or infrared sensor technology
  • Available in stainless steel or copper inner chamber
  • Features ContraCon 90°C moist heat decontamination for effective cleaning and operation
  • Thermo conductivity (TC) sensor features accurate gas sensor technology
  • Infrared (IR) sensor features split-beam technology for precise CO2 control during temperature and humidity fluctuations
  • Direct heat provide even temperature distribution for optimum culturing conditions
  • iCAN touchscreen for easy setting, clear visibility of parameters and convenient unit performance evaluation
  • Select models with 100% solid copper inner chamber provides antimicrobial protection on contact; ideal for shared-use environments
  • Smooth inner casing with rounded corners for easy cleaning and disinfection
  • Integral humidity water reservoir for high rH with up to five times the recovery times compared to conventional water pans

Incubators

  • Thermo Fisher Scientific Heracell Incubator Thermo Fisher Scientific Heracell Incubator
  • Heracell Dual Chamber Copper Incubator Heracell Dual Chamber Copper Incubator
  • CO2 Incubation expert demonstrates and explains the benefits of the Thermo Scientific Incubator CO2 Incubation Expert on Heracell Incubators
CO2 Incubation expert demonstrates and explains the benefits of the Thermo Scientific Incubator
Features & Benefits

Features and Benefits

Learn More: Benefits of Copper and SS Chambers

Features of HERAcell 150i and 240i CO2 Direct Heat Incubators with Copper and Stainless Steel Chambers

Designed to provide optimal growth conditions to enhance cell growth, the HERAcell 150i and 240i CO2 Incubators have a range of features for accurate, uniform and reliable culturing conditions. Units are available with thermal conductivity or infrared sensors, located inside the chamber, for precise environmental measurements. The fan-assisted convection provides samples with a uniform temperature, CO2 and humidity within the incubator. Because constant humidity is paramount for cell protection and optimal growth, the patented floor heating system directly transfers heat to the humidity reservoir for optimal humidity and allows for rapid recovery of moisture levels after doors are opened. The water level sensor alarms when later levels are low and the iCAN touchscreen clearly displays performance trends of your culturing process and monitors the progress of the ContraCon decontamination routine. Designed with a pan-less system to reduce handling, recovery rates are up to five times faster than standard tray humidified incubators.

The ContraCon 90°C moist heat decontamination cycle eliminates variability in disinfection. It eliminates disassembly of sensors, hardware and other components. This feature is effective against:
  • Bacillus subtilis
  • Bacillus stearothermophilus (USP 23)
  • Enterococcus faecalis
  • Escherichia coli
  • Pseudomonas aeruginosa
  • Staphylococcus epidermidis
  • Corynebacterium xerosis
  • Aspergillums niger
These easy-to-clean incubators have rounded corners for quicker and more effective cleaning and disinfection. Models are available in stainless steel or copper interior chambers.
Benefits of Copper Inner Chamber in HERAcell 150i and 240i CO2 Incubators
Copper has a natural antimicrobial feature that delivers non-stop bactericidal and fungicidal protection to samples on contact. As the choice of many cell culture professionals, copper maximizes productivity and minimizes contamination especially in shared-use environments.

The tarnishing effects on copper increase with age thus increasing the antimicrobial efficiency. Because copper ions are not airborne, they do not effect or interfere with the integrity of cultures.

Since copper is easy to clean, maintenance is minimal and eliminates the need to use toxic chemical cleaners or UV light.
Model HERAcell 1501 HERAcell 240i
Exterior Dimensions
W x D x H
25.1 x 30.8 x 24.1 in.
(638 x 782 x 612 mm)
30.7 x 32.8 x 36.8 in.
(780 x 833 x 935 mm)
Interior Dimensions
W x D x H
18.5 x 20.9 x 23.9 in.
(470 x 531 x 607 mm)
23.9 x 23.0 x 26.4 in.
(607 x 584 x 671)
Internal Volume 150L (5.3 cu. ft.) 240 (8.4 cu. ft.)
Weight 154 lbs. (70 kg) 178 lbs. (81 kg)
Shelves Dimensions W x D 16.7 x 18.3 in.
(423 x 465 mm)
22.0 x 19.7
(560 x 500 mm)
No. of Shelves
Standard/Maximum
3 Standard
10 Maximum
3 Standard
12 Maximum
Max. Load per Shelf 22 lbs. (10 kg)
Total Load per Shelf 66 lbs. (30 kg)
Shelves Half Width W x D 10.2 x 19.7 in.
(260 x 500 mm)
No. of Shelves
Standard/Maximum
6 Standard
16 Maximum
Max. Load per Shelf 11 lbs. (5 kg)
Total Load per Shelf 66 lbs. (11 kg)
Interior Chamber Solid Copper/Stainless Steel
Shelves and Fan Impeller Solid Copper/Stainless Steel
ContraCon decontamination routine verified by accredited laboratories
Decontamination phase, on all surfaces °C/hrs. 90/9
Period (ambient temperature 20°C) 25 hours
Efficiency spectrum bacteria, fungi, spores (USP 23), mycoplasma
Temperature Air Jacket Temperature Control
Temperature Control Range °C TA* +3 … 55
Temperature deviation, time**/spatial** ± 0.1/± 0.5 K
Ambient temperature range °C +18 … 33
Constant humidity*** %rH 95 ± 3
Fill amount/water quality Max. 3
distilled/autoclaved and demineralized
Max 4.5
distilled/autoclaved and demineralized
Measure and control range Vol. – % 0 … 20
Control accuracy Vol. – % ± 0.1
Inlet pressure bar 0.8 … max. 1
Gas purity % 99.5, medical quality min.
Measure and control range Vol. – % 1..21/5..90
Control accuracy Vol. – % ±0.2
Inlet pressure bar 0.8…max. 1
Gas purity % 99.5; medical quality min.
Rated voltage V 1/N/PE AC; 230 (120)
Rated output kW 0.58 (0.62) 0.64 (0.65)
Rated frequency Hz 50/60
Heat emission to environment at 37°C
kWh/h
0.06 0.07
With ContraCon, kWh/h 0.11 0.25
*Ambient Temperature
**Determined according to DIN 12880 for the standard configuration. Refer to calibration instructions for details.
***Relative humidity inside incubator may increase during incubation of open culture vessels

Thermo Fisher Copper Interior Incubator

Select models of Heracell 150i and 240i CO2 Incubators feature durable and easy-to-clean 100% pure copper interior chamber for anti-microbial protection ideal for cell culturing.

Latching Inner Glass Door

Inner glass door can be hinged left or right and the reliable door latch ensures door closure to protect samples

iCAN Touchscreen

iCAN Touchscreen delivers information quickly and easily allowing operators to easily set up and review parameters and performance trends.

Stackable CO2 Incubators

Heracell 150i and 240i CO2 incubators by Thermo Fisher Scientific are stackable units that maximize space in small labs.
