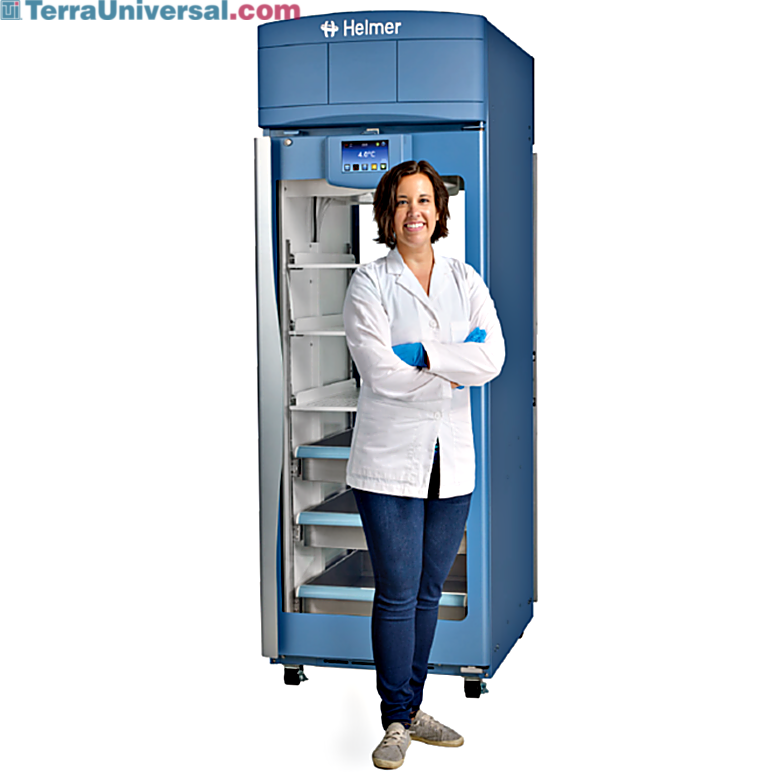

iPR226-GX i.Series Pass Thru Pharma Refrigerator with 3 shelves, 3 drawers and OptiCool meets CDC vaccine storage guidelines and USP 797 cleanroom requirements | 1621-38 displayed
Refrigerators (4°C)
Product Group:
1621-PP-05
1621-PP-05 81220

GX i.Series Pass Thru Pharmacy Refrigerators by Helmer Scientific

  • GX i.Series Upright Medical-Grade Pass-Thru Pharmacy Refrigerators with OptiCool system, i.C3 user interface and a 7” touchscreen display
  • Supports CDC vaccine storage guidelines and helps meet USP 797 cleanroom guidelines
  • Features multiple event log records, compliance data management, password protection, automatic high/low alarm testing and 20 hr. rechargeable battery backup
  • Energy-efficient and quiet model features a variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants
  • Includes: swivel casters, ventilated shelves and drawers
Read more
Energy Star
Manufactured By: Helmer Scientific
Warranty: Manufacturer Warranty: 7-years compressor / 2-years parts / 1-year labor
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Refrigerator Temperature Range

Sort Order:
Model

Sort Order:

 Terra Part #Price Ships in
+2º to +10ºC iPR226-GX / 26.4 cu. ft. 1621-38 81221 $10,813 10-16 Days2
+2º to +10ºC iPR458-GX / 58.5 cu. ft 1621-39 81222 $14,614 10-16 Days3
Refrigerator Temperature Range
Model
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

* *
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
*includes online discount applied to web quotes/orders only Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • GX i.Series Upright Medical-Grade Pass-Thru Pharmacy Refrigerators with OptiCool system, i.C3 user interface and a 7” touchscreen display
  • Supports CDC vaccine storage guidelines and helps meet USP 797 cleanroom guidelines
  • Features multiple event log records, compliance data management, password protection, automatic high/low alarm testing and 20 hr. rechargeable battery backup
  • Energy-efficient and quiet model features a variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants
  • •  Includes: swivel casters, ventilated shelves and drawers
  • i.C3 User Interface Features:
  • Provides constant temperature monitoring and multiple information logs
  • Door-mounted 7” color touchscreen display
  • System Status Console at home screen for status monitoring
  • Information and Event Center for recording performance history (event acknowledgment, status, min/max temperature and 7 and 1-day interactive graph views)
  • Data Transfer Center exports temperature, event, and access data via USB
  • Pass-Thru Features:
  • For use in cleanroom compounding pharmacy with heavy ambient product loads
  • Position i.Series unit between anteroom and cleanroom for enhanced pharmacy workflows
  • Provides secure storage of vaccines, medication, chemotherapy and pharmaceuticals in cleanroom environments
  • Helps meet USP 797 cleanroom guidelines
  • Factory setpoint of 5°C for pharmacy applications
  • Medical-grade fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives
  • High-Performance GX i.Series Features: ºC or ºF temperature display, monitor/logging, compliance data management (PDF and CSV files via USB port), password protection, key lock, interactive temperature graphing, alarm probes, alarms (standard, condenser temperature, probe failure, low battery), display/reset of min/max temperature, rechargeable battery backup (20 hrs.), connectivity (Ethernet/API, two USB ports)
  • Refrigeration:
  • VCC compressor-based, forced-air hydrocarbon
  • Compressor: Hermetic, variable speed (VCC). Rated speed range: 2000-3500 rpm
  • Condenser Type: Air-cooled fin and tube, sealed
  • Cap tube expansion device
  • Evaporator Type: Direct expansion forced-air fin and tube
  • Supports sustainability with U.S. EPA, SNAP, and EU F-Gas compliant natural refrigerants and foaming agents
  • Automatic defrost method
  • Refrigerant: R290, Propane, EU F-Gas and EPA SNAP compliant
  • Additional Features:
  • 50% energy-efficient
  • Dual pane glass doors with ADA compliant handles
  • Optimized temperature control
  • No defrost cycle required to maintain constant temperature
  • Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings
  • Material: Glass doors, bacteria-resistant powder coated interior and exterior, RTD stainless steel control sensor
  • Easy-to-clean recessed floors contains spills and helps maintain product integrity
  • Drawer design: mid-stop catch for proper closure maximizes airflow, maintains temperature uniformity and protects glass doors from slide-throughs
  • Power-plug: NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft (2.4-3.0m)
  • Access port
  • Specifications:
  • Temperature Range: +2º to +10ºC
  • Setpoint: 5ºC
  • Uniformity: +/-1.0°C
  • Ambient Operating Temperature: +15°C to +32°C | +59°F to +90°F
  • Options and accessories: Contact a Terra Product Specialist for Details
Show more

Show more

  • Comparison chart for GX i.Series Pass-Thru Pharma Refrigerators by Helmer Scientific Comparison chart for GX i.Series Pass-Thru Pharma Refrigerators by Helmer Scientific, 5°C setpoint
  • Video of GX Solutions by Helmer Scientific Video of GX Solutions by Helmer Scientific
  • GX Horizon and GX i.Series Comparison Chart by Helmer Scientific GX Horizon and GX i.Series Comparison Chart by Helmer Scientific
  • GX i.Series storage solution i.C3® Video Series: Access Control by Helmer Scientific i.C3® Video Series: Access Control
  • i.C3® Video Series: Interactive Temperature Graph on GX i.Series cold storage models by Helmer Scientific i.C3® Video Series: Interactive Temperature Graph
Comparison chart for GX i.Series Pass-Thru Pharma Refrigerators by Helmer Scientific
Compare capacity, dose storage and included shelves and drawers for GX i.Series Pass-Thru Pharmacy Refrigerators by Helmer Scientific | 1621-PP-05 displayed Comparison chart for GX i.Series Pass-Thru Pharma Refrigerators by Helmer Scientific, 5°C setpoint
Features & Benefits

Features and Benefits

Cleanroom Placement

GX Pass-Thru Medical Grade Refrigerators, when placed between anteroom and cleanroom, provide optimum refrigeration performance and help meet USP 797 cleanroom requirements

Advanced i.C3 User Interface

Medical-grade GX i.Series models with the i.C3 user interface provides constant temperature monitoring, multiple information logs, security settings and data management

Ventilated Shelves and Drawers

GX Solutions Pass-Thru Pharmacy Refrigerators with hinged glass doors include casters, ventilated shelves and mid-stop drawers for secure and convenient storage

Meets Vaccine Regulations

GX Pharmacy Refrigerators help meet CDC vaccine storage regulations and USP 797 cleanroom requirements (pass-thru models) in the storage of medications and pharmaceuticals
