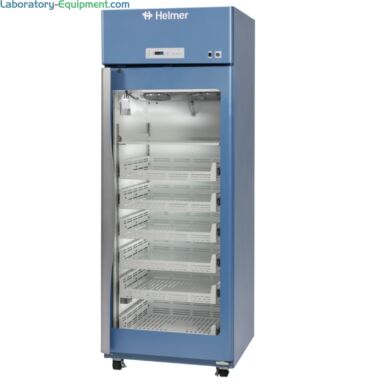

GX Horizon 1-Door Pharmacy Refrigerators with OptiCool and digital microprocessor include 1 ventilated shelf and 6 drawers; in 20.2 and 25.5 cu. ft. models | 6707-26A displayed

Refrigerators (4°C)

GX Horizon Medical-Grade Upright Pharmacy Refrigerators by Helmer Scientific

GX Horizon Series Medical-Grade Upright Pharmacy Refrigerators with glass doors for storage of vaccines and chemotherapy
NSF/ANSI 456 vaccine storage standard certified and supports CDC guidelines for vaccine storage
ENERGY STAR certified models feature OptiCool system, digital microprocessor controller, LED Display, ADA compliant handles and sustainable refrigerants
Factory pre-set to 5°C for pharmacy applications
Includes: swivel casters, adjustable ventilated shelves and ventilated pull-out drawers

Manufactured By: Helmer Scientific

Warranty: Manufacturer Warranty: 5-years compressor / 2-years parts / 1-year labor

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Select Product

Door Swing All Double-Swing Right Hinge Sort Order: Descending Ascending	Refrigerator Temperature Range All +2ºC to +10°C +2°C to +10°C Sort Order: Descending Ascending	Model All HPR113-GX / 13.3 cu. f.t. HPR120-GX / 20.2 cu. ft. HPR125-GX / 25.2 cu. ft. HPR125-GX / 44.9 cu. ft. HPR256-GX / 56.0 cu. ft. Sort Order: Descending Ascending	Terra Part #	Price	Ships in
Double-Swing	+2ºC to +10°C	HPR125-GX / 44.9 cu. ft.	6707-15A 75938	$7,508	10-16 Days	2
Double-Swing	+2ºC to +10°C	HPR256-GX / 56.0 cu. ft.	6707-16A 75940	$7,754	10-16 Days	3
Right Hinge	+2°C to +10°C	HPR113-GX / 13.3 cu. f.t.	6707-40A 75958	$4,219	10-16 Days	4
Right Hinge	+2°C to +10°C	HPR120-GX / 20.2 cu. ft.	6707-25A 75942	$5,334	10-16 Days	5
Right Hinge	+2°C to +10°C	HPR125-GX / 25.2 cu. ft.	6707-26A 75943	$5,445	10-16 Days	6

Door Swing

Refrigerator Temperature Range

Model

* *

Some ship in:

Usually Ships in:

CHOOSE ACCESSORIES & BUY OR QUOTE

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

Qty

Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.

See Product Details

Back to product group

Select a product line for product summary

HPR245-GX Horizon Medical-GradeUpright Pharmacy Refrigerator, Helmer Scientific, 44.9 cu. ft., 2 Dual Pane Glass Doors, 120/240 V, 5116245-1

External Dimensions 59" W x 78.3" D x 31.7" H

$7,508

Ships in 10-16 Days

HPR256-GX Horizon Medical-Grade Upright Pharmacy Refrigerator, Helmer Scientific, 56 cu. ft., 2 Dual Pane Glass Doors, 120/240 V, 5116256-1

External Dimensions 59" W x 78.3" D x 37.7" H

$7,754

Ships in 10-16 Days

HPR113-GX Horizon Medical-Grade Upright Pharmacy Refrigerator, Helmer Scientific,13.3 cu. ft., 1 Dual Pane Glass Door, 120/240 V, 5116113-1

External Dimensions 24.1" W x 70.5" D x 30.8" H

$4,219

Ships in 10-16 Days

HPR120-GX Horizon Medical-Grade Upright Pharmacy Refrigerator, Helmer Scientific, 20.2 cu. ft., 1 Dual Pane Glass Door, 120/240 V, 5116120-1

External Dimensions 29" W x 78.3" D x 31.7" H

$5,334

Ships in 10-16 Days

HPR125-GX Horizon Medical-Grade Upright Pharmacy Refrigerator, Helmer Scientific, 25.2 cu. ft., 1 Dual Pane Glass Door, 120/240 V, 5116125-1

External Dimensions 29" W x 78.3" D x 37.7" H

$5,445

Ships in 10-16 Days

5 products meet your criteria.

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Product Details

Features & Benefits

Products similar to this one

Buy Accessories

Manuals & Resources

Product Details

GX Horizon Series Medical-Grade Upright Pharmacy Refrigerators with glass doors for storage of vaccines and chemotherapy
NSF/ANSI 456 vaccine storage standard certified and supports CDC guidelines for vaccine storage
ENERGY STAR certified models feature OptiCool system, digital microprocessor controller, LED Display, ADA compliant handles and sustainable refrigerants
Factory pre-set to 5°C for pharmacy applications
• Includes: swivel casters, adjustable ventilated shelves and ventilated pull-out drawers

Horizon Control: digital microprocessor with built-in alarms; optional integrated electromagnetic access control for secure access to refrigerator via Access Control Keypad

OptiCool features: variable capacity compressor (VCC) and natural hydrocarbon (HC) refrigerants optimize temperature performance, quiet operation and energy-efficiency

Professional medical-grade upright fridge features: temperature management protects patient samples and ensures efficacy of medication, low noise level and energy-efficiency helps reduce cost and sustains energy initiatives

High-Performance GX Horizon Features: ºC or ºF temperature display, key lock, manual alarm test, one stainless steel alarm probe in product simulation bottle, 2-hour battery backup (9V, non-rechargeable, lithium), dry contact alarm connection, digital calibration, min/max temperatures (display and reset), standard alarm (high/low temperature, door open and power failure)

Refrigeration:

VCC compressor-based, forced-air hydrocarbon

Compressor: Hermetic, variable speed (VCC). Rated speed range: 1300-4000 rpm

Condenser Type: Air-cooled fin and tube, sealed

Evaporator Type: Direct expansion forced-air fin and tube

Supports sustainability with U.S. EPA and SNAP compliant natural refrigerants and foaming agents

Refrigerant: R600a, Propane, EU F-Gas and EPA SNAP compliant

Automatic defrost method

Cap tube expansion device

Additional Features:

Forced air circulation maintains chamber temperature uniformity and quick recovery after door openings

50-65% more energy efficient than traditional medical-grade models

Dual pane glass doors with ADA compliant handles

Optimized temperature control

No defrost cycle required to maintain constant temperature

Material: Glass doors, bacteria-resistant powder coated (interior, exterior, shelves and drawers), RTD stainless steel control sensor

Drawer design: mid-stop catch for proper closure maximizes airflow, maintains temperature uniformity and protects glass doors from slide-throughs

Adjustable shelf

Easy-to-clean recessed floors contains spills and helps maintain product integrity

Power-plug: NEMA 5-15 hospital-grade | 115V 60Hz, 8 to 10 ft. (2.4-3.0m)

Access port

Specifications:

Temperature Range: +2º to +10ºC

Setpoint: 5ºC

Uniformity: +/-1.0°C

Ambient Operating Temperature: +15°C to +32°C | +59°F to +90°F

Options and accessories: Contact a Terra Product Specialist for Details

Features & Benefits

Features and Benefits

Microprocessor Temperature Control

GX Horizon cold-storage solutions feature a microprocessor temperature control with a built-in alarm, an LED display and a touchpad entry

OptiCool Technology

GX i.Series and Horizon Refrigerators with OptiCool deliver a quiet and energy-efficient unit with optimal temperature control

Meets Vaccine Regulations

GX Pharmacy Refrigerators help meet CDC vaccine storage regulations and USP 797 cleanroom requirements (pass-thru models) in the storage of medications and pharmaceuticals


	i.Series	Horizon
Microprocessor Temperature Controller	Yes	Yes
Alarms: Hi and Low Temperature, Door Open and Power Failure	Yes	Yes
Alarms: Compressor Temperature and Low Battery	Yes	No
Full-color Touchscreen	Yes	No
#F5F5F5 Interactive Temperature Graph	Yes	No
Event Log with Detail Screen & Event Acknowledgement	Yes	No
Automatic Alarm Testing	Yes	No
Password Protected Settings	Yes	No
Event Log and Detail Screen	Yes	No
Min/Max Display & Reset	Yes	Yes
Download - Temperature Graphs and Event Report	Yes	No
Ethernet capability	Yes	No
Optional Access Control	Onscreen (with downloadable Access Log)	Keypad lock


	i.Series	Horizon
Microprocessor Temperature Controller	Yes	Yes
Alarms: Hi and Low Temperature, Door Open and Power Failure	Yes	Yes
Alarms: Compressor Temperature and Low Battery	Yes	No
Full-color Touchscreen	Yes	No
#F5F5F5 Interactive Temperature Graph	Yes	No
Event Log with Detail Screen & Event Acknowledgement	Yes	No
Automatic Alarm Testing	Yes	No
Password Protected Settings	Yes	No
Event Log and Detail Screen	Yes	No
Min/Max Display & Reset	Yes	Yes
Download - Temperature Graphs and Event Report	Yes	No
Ethernet capability	Yes	No
Optional Access Control	Onscreen (with downloadable Access Log)	Keypad lock
