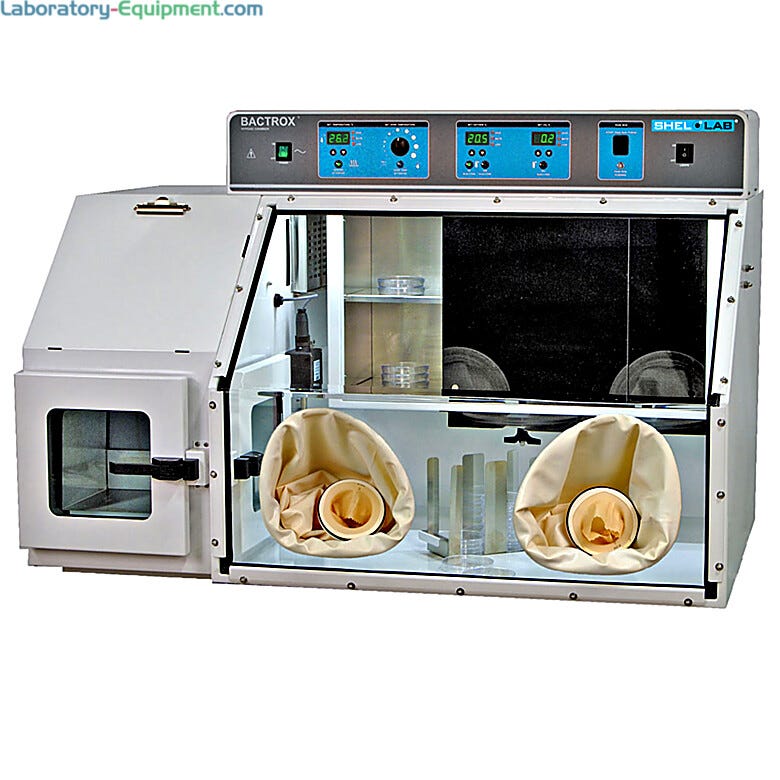

Shel Lab’s Bactrox Hypoxia Chamber offers an easy-to-use, controlled environment for working with cell cultures | 3900-87 displayed

Glovebox; Hypoxia, Bactrox, 49" W x 32" D x 33.5" H, 2 Glove Ports, 120 V

Gloveless design: patented cuffs seal around operator's arms for bare-hand specimen processing
Ergonomic arm ports expand range-of-motion, reduce operator fatigue
Control panels displays operating conditions, saves pre-programmed sequences
Automatic pressure control maintains positive pressure at 3" W.C.
Includes: vacuum pump, AMG regulator, sleeve assembly, 7 petri racks, installation and training workshop

• Chamber Width: 33"

• Chamber Depth: 28.9"

• Incubator Volume: 1.8 ft³

• Chamber Volume: 12.5 ft³

• Chamber Height: 25"

• Maximum Working Height: 25"

• Exterior Material: Finished Steel

• Chamber Dimensions: 33"W x 28.9"D x 25"H

• Control Type: Hypoxia

• Interior Material: Stainless Steel

• Window Material: Acrylic

• Number of Glove Ports: 2

• Unit of Measure: EA

Manufacturer SKU: Bactrox

Manufactured By: Shel Labs

Warranty: 2 Year Warranty

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 3900-87

$29,464

Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part #

Glovebox; Hypoxia, Bactrox, 49" W x 32" D x 33.5" H, 2 Glove Ports, 120 V

View Shopping Cart View Quote Cart

Details & Specs

Features and Benefits

Bactrox Hypoxia Chamber

Print Copy Copied

Bactrox Hypoxia Chamber

Precise oxygen and carbon dioxide control from a range of 1% to 20% and in increments of 1/10th of a percent
300 plate capacity with a working chamber volume of 13.7 (388 L)
Advanced Atmospheric PID Controller: Highly Accurate Zirconium Dioxide Oxygen Sensor, CO2 Control & Logging, O2 Control & Logging, Uses Ambient Air Pump Instead of O2 Tank, Uses Standard Nitrogen & CO2 Tanks
Independent Incubator (5°C above ambient to 70°C) has a 300 plate capacity, temperature control and logging and it incubates your samples and experiments
Ultra-Fast Extra Large Pass Box: completes cycle time in 60 seconds with a 90 plate capacity
Vacuum-Less Sleeve Entry for easy chamber access that eliminates need for foot pedal
Vibrant LED Exam Lights: Stainless Steel Construction Independent gas and condensation control; CE Certification on 230V models
Features: RSS232 data collection; Condensation control; easy chamber access via sleeves; PC calibration of oxygen sensor; independent gas controls; standard microscope adapter accessories
Applications: Stem Cell Research, Mammalian Cancer Research, Clinical Microbiology, and Research Microbiology
One-Year Manufacturer Limited Time Warranty

The Bactrox Hypoxia Chamber is a complete workstation that provides oxygen and carbon dioxide control for the optimum growth of cells and bacteria. Unlike a tri-gas incubator, these units perform microaerophilic bacteriology and hypoxic tissue or cell culture processes in desired oxygen conditions throughout all culturing processes.

Specifications

Exterior Dimensions (W x D x H): 48.7 x 31.3 x 32.5 in. (1237 x 795.1 x 825.5 mm)
Working Chamber Interior Dimensions (W x D x H): 33 x 28.5 x 25 in. (838.5 x 724 x 635 mm)
Incubator Interior Dimensions (W x D x H): 27.5 x 8 x 13.5 in. (698.5 x 203.2 x 343 mm)
Airlock Interior Dimensions (W x D x H): 9 x 10.75 x 8.5 in. (229 x 273.10 x 216 mm)
Material: Stainless Steel
Electrical Requirements: 110V-120V/220V-240V 50/60Hz, 1100W, 9.17A
Nominal Voltage: 50/60Hz (V) 110-120/220-240
Maximum Energy Consumption (W): 1100/1440
Capacity of Independent Incubator: 300 Plates
Capacity of Passbox: 90 Plates
Airlock Volume: 0.5 cu. ft. (14L)
Working Chamber Volume: 13.7 cu. ft. (388 L)
Incubator Volume: 1.7 cu. ft. (48 L)
Communications: RS232
Temperature Range: Amb + 5°C to 70°C
Temperature Uniformity: (±) 0.5°C
Petri Plate Racks: Includes 7

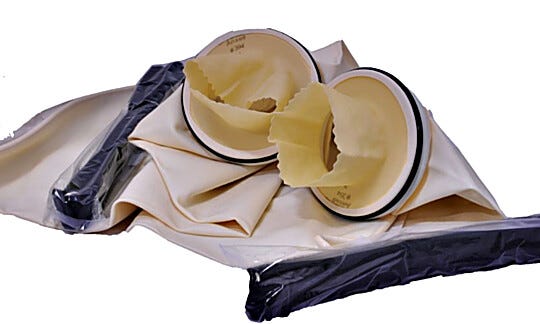

Sleeve Assembly Cuffs for BACTRON and BACTROX Ergonomic Arm Port

For use with BACTRON (EZ, 300, 600, 900) and BACTROX Chambers For ergonomic armports Includes sleeves, cuffs and O-rings

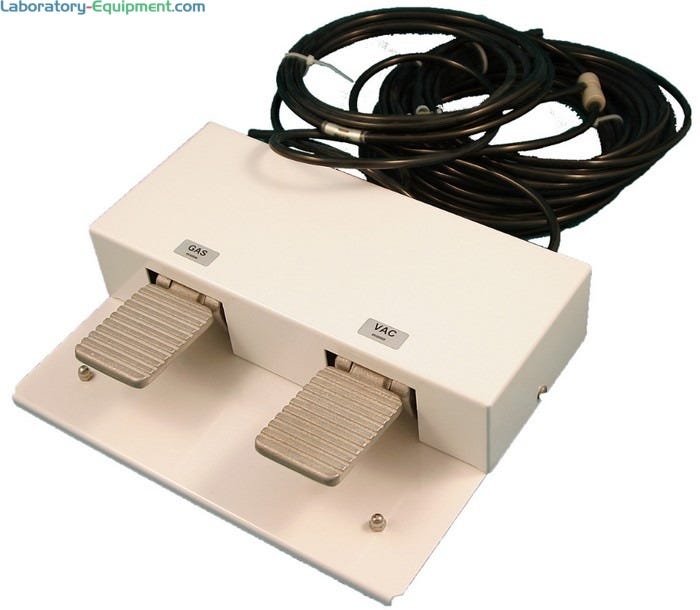

BACTRON or BACTROX Anaerobic Chambers Foot Pedal Valve

Use foot pedal valve assembly to evacuate sleeves of BACTRON and BACTROX Anaerobic Chambers prior to accessing chamber.

Bactron Anaerobic Mixed Gas Regulator

Anaerobic Mixed Gas (AMG) Regulator for Shelf Labs BACTRON and BACTROX glove boxes includes barbed adapter fitting and 10 ft. flexible tubing; delivers precise and constant outlet pressure ideal for most lab applications.

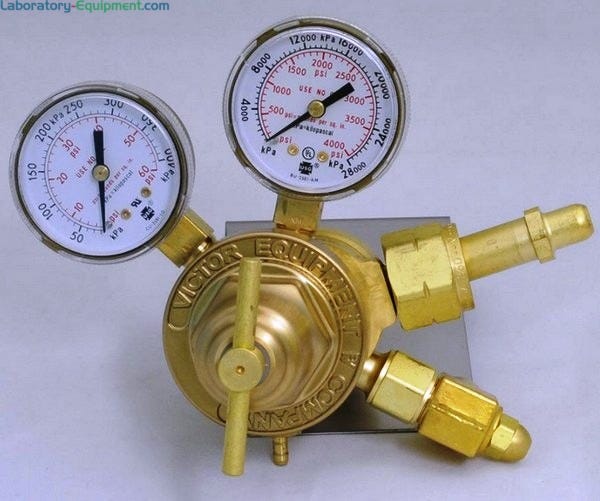

Bactron VTS 250 Series Hydrogen Regulator

VTS 250 Series regulator for medium duty gas services with BACTRON and BACTROX glove boxes; delivery range for Hydrogen: 4-80 PSIG

Bactron Nitrogen Regulator Assembly

Delivers precise and constant outlet pressure that is ideal for most laboratory applications. Delivery gauge range is 2-40 PSIG. Includes barbed adapter fitting and 10 feet of flexible tubing.

BACTRON or BACTROX Exterior LED Light Fixture

This BACTRON or BACTROX fixture is used on the top of the the chamber to increase workspace light. It has three independantly adjustable LED light bars.

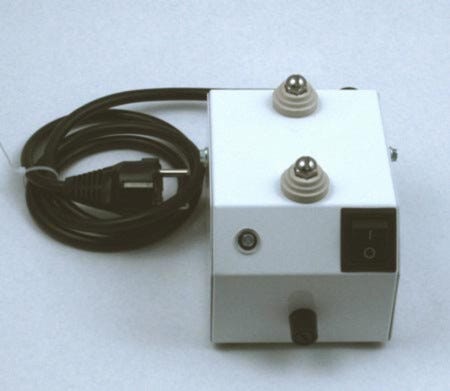

Bacloop Metal Inuculation Loop Sterilizer

For use inside or outside BACTRON and BACTROX Chambers, this resistance-based heater is suited to many microbilogy applications and compatible with standard nichrome loops. Adjustable electrode posts can be used with other wire length loops.

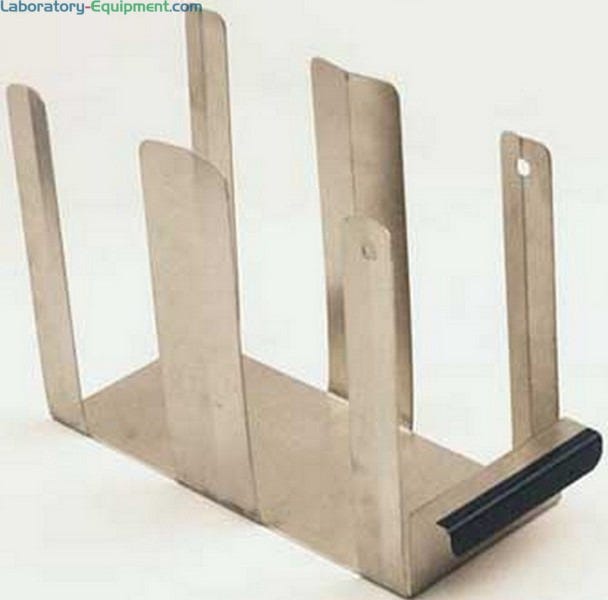

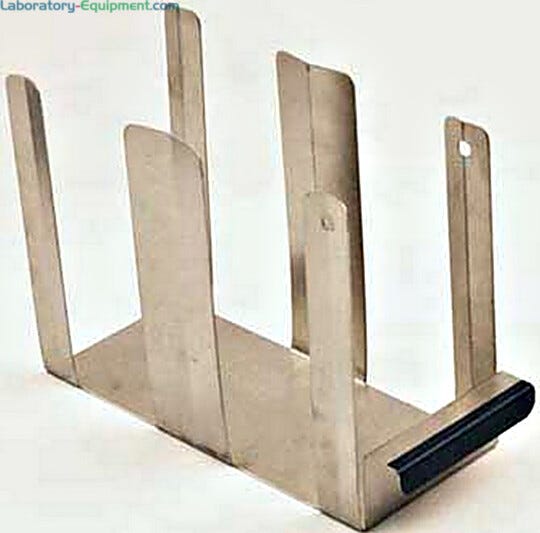

Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers

Stainless Steel Petri Dish Rack for BACTRON or BACTROX anaerobic chambers holds 26 Petri Plates.

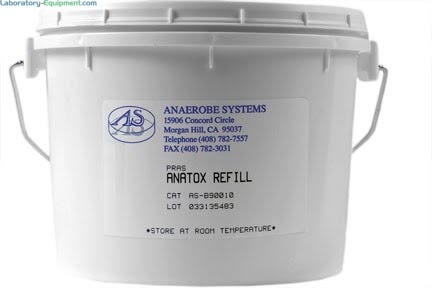

Anatox Activated Charcoal, 2 lbs.

Anatox Activated Charcoal absorbs odors within BACTRON and BACTROX Chambers

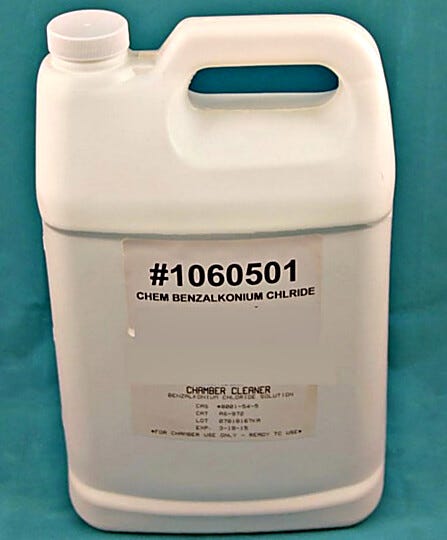

Benzalkonium Chloride Chamber Cleaner

Use with BACTRON and BACTROX Chambers

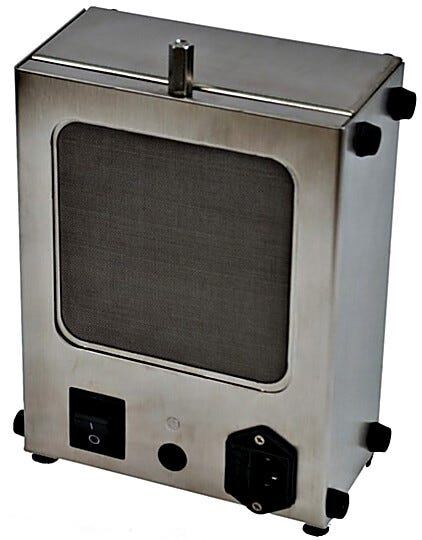

Anatox Fan for Bactron and Bactrox Anaerobic Glove Boxes

The Anatox fan removes volatile fatty acids and sulfur compounds to extend the life of BACTRON palladium catalyst.

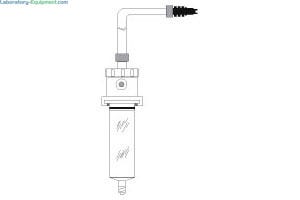

Barrel Adapter Assembly; Size 1cc

BactronEZ and Bactrox Microscope Adapter

Compatible with: Leica S6 Spotting Stereo Microscope For use with BactronEZ and Bactrox models
