Product Details

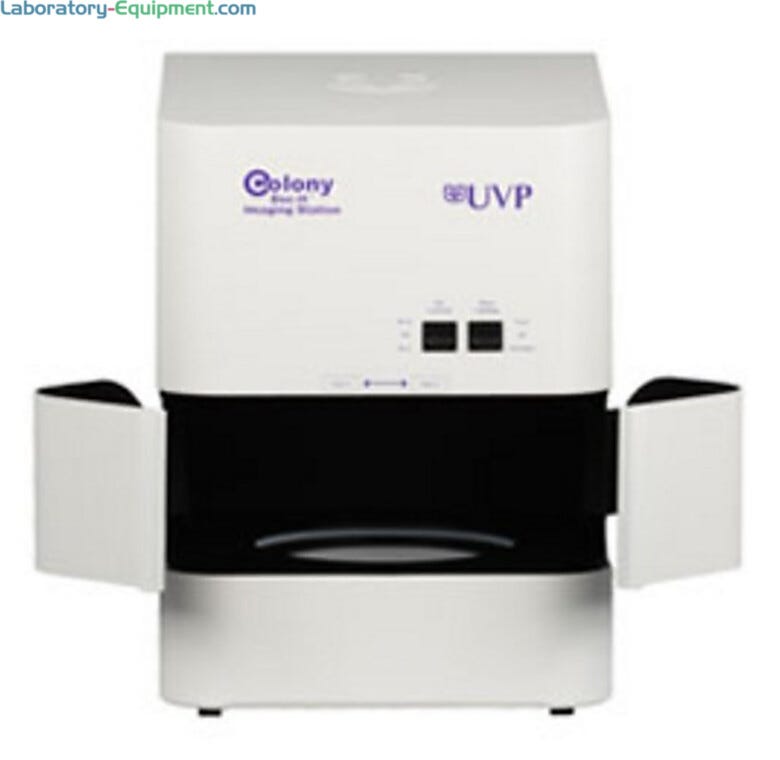

  • Imaging station visualizes white light and fluorescent colonies; USB interface
  • DigiCam 130 camera and an image resolution of 17.9 Megapixels
  • Accommodates 33-150mm plates and filters
  • Applications: microbiology, hygiene studies, antibiotic testing, QC and fluid contamination
  • Plate alcove accommodates pour, spread and spiral plates and filters with sizes from 33mm to 150mm
  • Camera: DigiCam 130 camera
  • Imaging Resolution: 17.9 Megapixels
  • Interface: USB
  • Filters allowed: 2-positions
  • Lighting: Epi white, Transillumination white, Epi blue, and Darkfield
  • Software Requirements: UVP’s software requires Microsoft Windows 8, Windows 7 or Vista (32-bit or 64-bit).
  • Wide range of emission filters available
  • Plate alcove accommodates pour, spread and spiral plates and filters with sizes from 33mm to 150mm
  • Captures colony sizes as small as 0.08mm
  • Generates fast automatic and accurate colony counting with detailed statistics
  • Defines parameters including eight color differentiation, split or merge, filter by group or size
  • Detachable doors create a darkroom environment when imaging colonies with GFP fluorescence

• Type: Colony Counting

• Compatible Stains: Green Fluorescent Stains

• Feature Pack: Feature Pack 6

• Camera Included: Yes

• Printer Included: No

• Manufacturer SKU: 97-0539-01

• Unit of Measure: EA

• Electrical Specifications: 115 V, 1 Ph, 60 Hz

• Weight, Product: 20 lb

• Dimensions, Product: 23" W x 23" D x 22" H

• Weight, Shipping: 27 lb

• Dimensions, Shipping: 23" W x 23" D x 22" H

• Package Type: Box

Features and Benefits

Learn More: ColonyDoc-It Imager

Digital Thermal Printer for ColonyDoc-It Imaging System

  • Compatible with BioDoc-It2 and GelMax Imager
  • 256 gray scale resolution
  • High resolution, archive-quality thermal film prints
  • Compact printer is excellent for limited laboratory bench space
  • Process low-cost prints in seconds
  • Interface: USB 2.0
  • Print Capacity: 254 prints set at (1280 X 960) page size
  • Print Speed: 1.9 sec
  • Picture Size: 3" X 4" (75 X 100 mm)
  • Power Supply: 100-240V AC 50/60 Hz
  • Dimensions (WxDxH): 6.07 X 9.45 X 3.33" (154 X 240 X 84.5 mm)
  • Weight: 5.72 lbs. (2.6 kg)
  • Application: Gel Documentation
  • Options: Standard or high gloss paper
Camera DigiCam 130
Imaging Resolution 17.9 Megapixels
Interface USB
Lighting Epi white, Transillumination white, Epi blue, and Darkfield
Filters allowed 2-positions
Software Requirements Microsoft Windows 8, Windows 7 or Vista (32-bit or 64-bit).
Included Software
  • Loads onto computer for image capture analysis
  • Controls camera
  • Allows automatic and manual colony counting
  • User-defined counting parameters and color differentiation, splitting or merging colonies, identifying filters by group or size
  • User-created template for configured camera setting and analysis function
  • Generates statistics
  • Displays critical information (colony area, perimeter, average diameter and circularity)
  • Data exports into Excel
Dimensions
  • Product: 13W x 12.5D x 17.5H in. (343 x 318 x 445mm)
  • Shipping:22.5W x 12.25D x 19.75H in. (572 x 311.2 x 501.2 mm)
  • Weight
  • Product: 20 lbs. (9.07 kg)
  • Shipping: 27 lbs. (12.25 kg)
  • Electrical 115 volts, 60Hz
