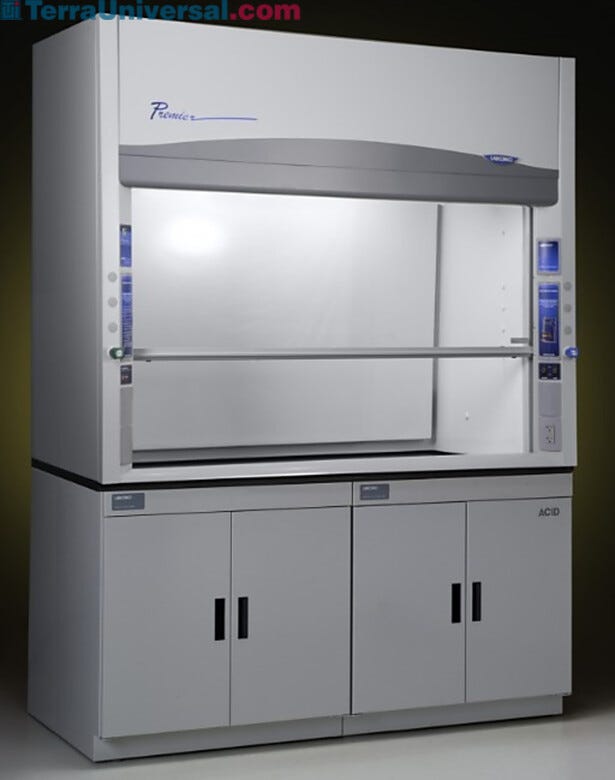

Shown: 6' Protector Premier Ductless Fume' Hood with optional service fixtures | 3649-33 displayed

Fume Hood; Protector Premier, 72" W x 31.7" D x 66" H, Labconco, 115 V

  • Eco-Foil™ Air Foil saves energy by 7-10% with an aerodynamic air curve
  • Clean-Sweep™ airflow openings promotes non-turbulent air streams
  • Removable front and side panels, and front service access panels
  • Effectively contains toxic, noxious and other harmful materials
  • One-piece fiberglass liner corrosion, fire resistant and easy to clean

• Built-In Blower: Yes

• Depth: 31.7"

• Hood Design: Benchtop

• Duplex Outlet: Optional

• Frame Material: Powder-Coated Steel

• Height: 66"

• Manufactured by: Labconco

• Manufacturer SKU: 100600040

• Max Opening: 28"H

• Model: Protector Premier

• Sash Design: Manual/Sliding

• Sash Height: 28"

• Service Fixtures: Optional

• Type: Ducted

• Width: 72"

• Work Area Dimensions: 62.25"W x 24"D

• Unit of Measure: EA

Read more
Manufacturer SKU: 100600040+CRATESKL
Manufactured By: Labconco
Warranty: 1 Year
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3649-28
Terra Part # 3649-28
$11,469
Usually ships in 25-29 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3649-28
55866
Fume Hood; Protector Premier, 72" W x 31.7" D x 66" H, Labconco, 115 V
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Eco-Foil™ Air Foil saves energy by 7-10% with an aerodynamic air curve
  • Clean-Sweep™ airflow openings promotes non-turbulent air streams
  • Removable front and side panels, and front service access panels
  • Effectively contains toxic, noxious and other harmful materials
  • One-piece fiberglass liner corrosion, fire resistant and easy to clean
  • Total Exhaust CFM and Static Pressure Sash Opening:
  • 100% (28") Open: 1180CFM/ 0.41" s.p.
  • 62.5% (18") Open 735 CFM 0.16" s.p.
  • Pre-set baffle(s) with flame spread less than 25 per ASTM E-84
  • Energy efficient low velocity/high performance hood meets SEFA-1 compliance
  • ADA-compliant light and blower stitches
Show more

• Built-In Blower: Yes

• Depth: 31.7"

• Hood Design: Benchtop

• Duplex Outlet: Optional

• Frame Material: Powder-Coated Steel

• Height: 66"

• Manufactured by: Labconco

• Manufacturer SKU: 100600040

• Max Opening: 28"H

• Model: Protector Premier

• Sash Design: Manual/Sliding

• Sash Height: 28"

• Service Fixtures: Optional

• Type: Ducted

• Width: 72"

• Work Area Dimensions: 62.25"W x 24"D

• Unit of Measure: EA

• Dimensions, Product: 72" W x 31.7" D x 66" H

• Dimensions, Shipping: 80" W x 44" D x 71" H

• Electrical Specifications: 115 V, 10 A, 1,150 W, 50/60 Hz

• Marks & Listings: UL, ANSI Z905, ASHRAE 110, NFPA 45, SEFA 29

• Package Type: Palletized

• Weight, Shipping: 495 lb

Show more
