- ED Series Classic.Line gravity convection ovens designed for quick and efficient drying and sterilization tasks up to 300 °C
- Inner chamber provides homogeneous temperature control
- Provides consistent test conditions regardless of sample size
- Effective thermal insulation reduces operating cost
- Wide temperature range suitable for use in science, medical, research and quality assurance heating applications
Ovens
1410-PP-03
1410-PP-03 71494
ED Heating and Drying Chambers Classic.Line by BINDER Worldwide
Read more
Manufactured By: Binder
Warranty: 1 year parts, 90 days labor
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Product Details
-
BINDER Classic Line ED 720 Heating and Drying Chamber
-
BINDER Classic Line ED 23 Heating and Drying Chamber
-
BINDER Classic Line ED 400 Heating and Drying Chamber

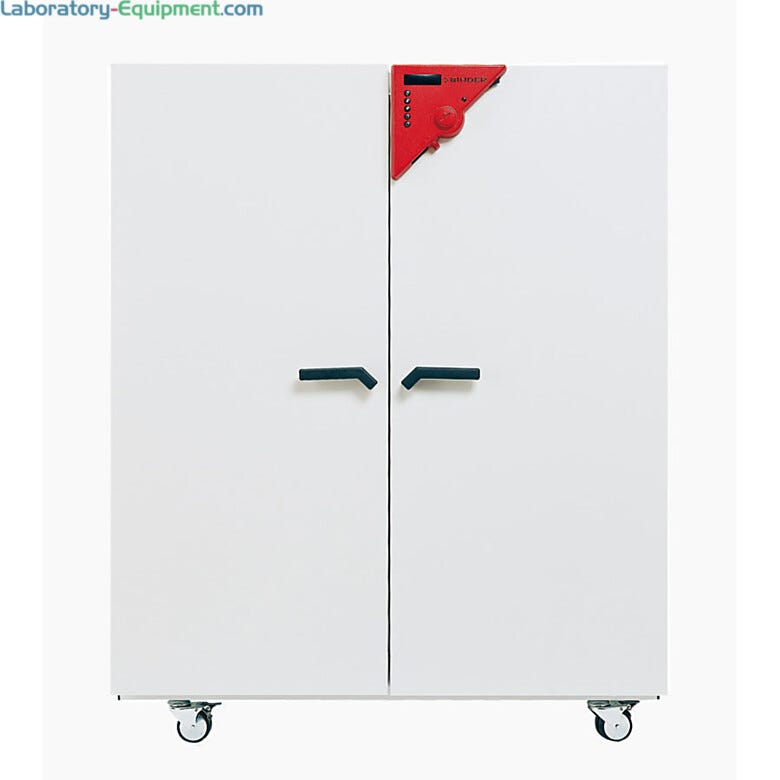

The BINDER Class.Line Heating and Drying Chamber provides uniform drying conditions and a maximum temperature of 300 °C | 1410-03 displayed
BINDER Classic Line ED 720 Heating and Drying Chamber
Popular ED 720 model with double oven doors features a generous inner chamber for high throughput labs; includes 2 chrome-plated shelves and accepts up to 16.
BINDER Class.Line Oven includes one manual door and 2 chrome-plated racks | 1410-01 displayed
BINDER Classic Line ED 23 Heating and Drying Chamber
Compact ED 23 model with single door easily fits in tight lab spaces; includes 2 chrome-plated shelves and accepts a maximum of 4 shelves.
ED 400 model with double doors includes 2 chrome-plated shelves and accepts a maximum of 10 shelves | 1410-02 displayed
BINDER Classic Line ED 400 Heating and Drying Chamber
ED 400 BINDER Heating and Drying Chamber consists of a 2 door chamber with ramp function, time delayed OFF and adjustable exhaust air flap. Along with preheating technology for optimal temperature uniformity and faster recovery.
Features & Benefits
Features and Benefits
Learn More: ED Series Drying Chambers
Print
Copy Copied

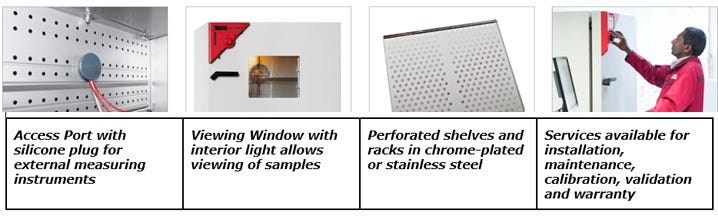

ED Series Drying and Heating Chambers Options and Accessories
The ED Series drying and heating chambers feature a wide range of options to satisfy numerous applications. Contact a sales engineer for pricing on the complete listing of options.
- Access port with silicone plug
- Alarm function for overheating
- Analog output 4-20 mA
- Calibration certificate, expanded
- Calibration certificate, temperature
- Class 3.1 independent temperature safety device
- Data Logger Kit
- Data Logger Software
- Door Gasket
- Door Lock
- Instrument Tray
- Interface Converter
- Interface Converter, USB/RS422
- Measurement of Air Exchange Rate
- pH- Neutral Detergent
- Pt 100 Temperature Sensor
- Rack (Stainless Steel or Chrome-Plated)
- RS 422 Interface
- RS 422 Interface, Cable (15 in.)
- RS 422 Interface, Cable (50 in.)
- Software
- Viewing Window and Interior Lighting
| Model | ED 23 | ED 400 | ED 720 |
|---|---|---|---|
| Electrical | 120V 60Hz | 208V 60Hz | 208V 60Hz |
| Net weight of the unit (empty) | 60 lbs. (27.2 kg) | 276 lbs. (125.2 kg) | 384 lbs. (174.2 kg) |
| Overall Dimensions | 17.17 x 20.5 x 19.5 in. (435 x 521 x 495 mm) | 48.7 x 30.14 x 40.4 in. (1237 x 766 x 1026 mm) | 48.7 x 34.1 x 60.3 in. (1237 x 866 x 1532 mm) |
| Internal Dimensions | 8.75 x 11.82 x 13 in. (222 x 300 x 330 mm) | 39.4 x 20.5 x 31.5 in. (1000 x 520 x 800 mm) | 39.4 x 24.4 x 47.3 in. (1000 x 621 x 1201 mm) |
| Interior volume [cu. ft.] | 0.7 cu. ft. (19.82 L) | 14.1. (400 L) | 25.4. (719.3 L) |
| Temperature range 5 °C above ambient temperature to [°C] | 300 | 300 | 300 |
| Temperature variation at 150 °C [± K] | 2.8 | 3 | 3.6 |
| Temperature fluctuation at 150 °C [± K] | 0.5 | 0.5 | 0.5 |
| Heating-up time to 150 °C [min] | 28 | 71 | 84 |
| Recovery time after 30 seconds door open at 150 °C [min] | 28 | 31 | 34 |
| Air change (approx.) at 150 °C [x/h] | 13 | 10 | 9 |
| Permitted load | 55 lbs. (25 kg) | 198 lbs. (89.8 kg) | 265 lbs. (120 kg) |
| Load per rack | 26 lbs. (11.8 kg) | 77 lbs. (34.9 kg) | 99 lbs. (44.9 kg) |
| Energy consumption at 150 °C [Wh/h] | 148 | 672 | 750 |
| Unit doors | 1 | 2 | 2 |
| Number of shelves (std./max.) | 2/4 | 2/10 | 2/16 |
Uniform Heating and Temperature Distribution
Select BINDER Heating and Drying Chambers feature forced air convection for efficient drying and sterilization tasks
ED Series Temperature Range
Wide temperature range from 5 °C above ambient temperature to 300 °C suitable for many heating and drying applications.
ED 720 Drying Hrating Chamber Chrome Racks
The temperature uniformity is a result of the Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm.
