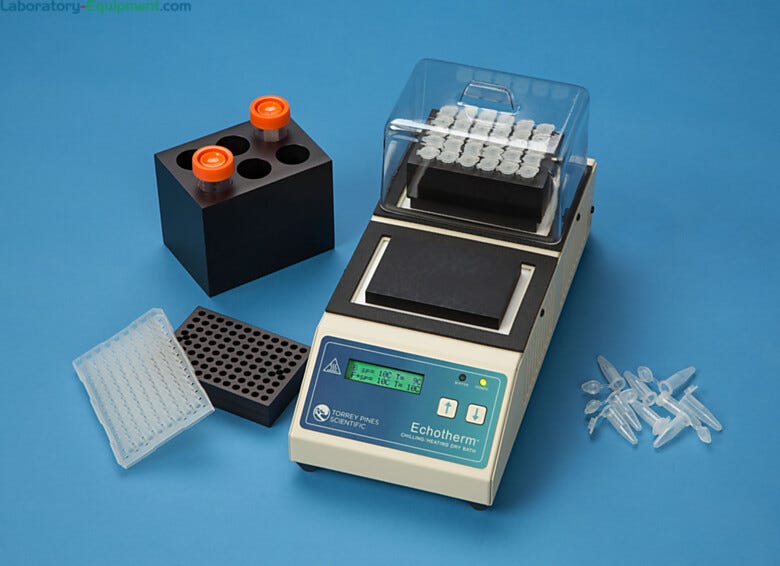

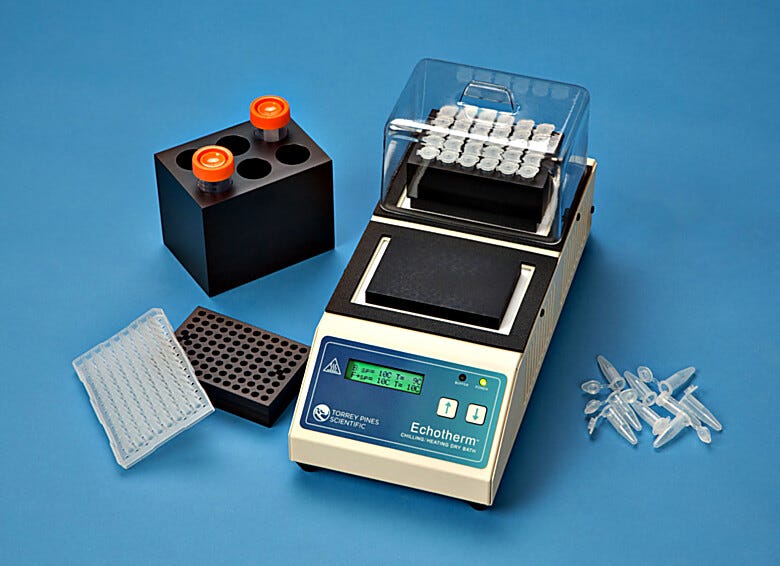

Two-Position Electronic Chilling/Heating Dry Baths feature fully independent temperature control plates (blocks and covers sold separately) | 5005-04 displayed
Dry Baths
Product Group:
5005-PP-05
5005-PP-05 72163

ECHOtherm Model IC22 Two-Position Electronic Chilling/Heating Dry Baths by Torrey Pines Scientific

Read more
Stocked Ships Free
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Voltage

Sort Order:
Type

Sort Order:
Controls

Sort Order:
Maximum Temperature

Sort Order:
Minimum Temperature

Sort Order:
Block Positions

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
120 V Multi-Block Digital 100°C -10°C 2 IC22 5005-04 45725 $1,793 5-7 Days 2
Ships Free Free shipping in contiguous USA In stock
120 V Multi-Block Digital 100°C -20°C 2 IC22XT 5005-05 45727 $2,007 5-7 Days 3
Ships Free Free shipping in contiguous USA In stock
240 V Multi-Block Digital 100°C -10°C 2 IC22-2 5005-04-220 45726 $1,577 5-7 Days 4
Ships Free Free shipping in contiguous USA In stock
240 V Multi-Block Digital 100°C -20°C 2 IC22-2XT 5005-05-220 45728 $1,835 5-7 Days 5
Ships Free Free shipping in contiguous USA In stock
Voltage
Type
Controls
Maximum Temperature
Minimum Temperature
Block Positions
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Products similar to this one
Buy Accessories
Product Details
Product Details
  • Each station has its own Peltier-type heating/chilling plate, allowing two sets of samples to be maintained at different temperatures simultaneously
  • Unloaded temperature ranges from -10°C to 100°C (-20°C to 100°C on the XT model)
  • Each station has a dedicated timer and data-logger
  • Compact size saves space on a crowded lab bench
  • Two internal fans remove heat buildup within the unit
  • Digital display shows set-point temperature and measured temperature of both plates
  • Buffer light on the front panel (next to Power light) indicates when the unit is collecting data points
  • Remote access to data via the RS232 I/O port
  • Optional aluminum blocks are black anodized for better heat transfer and protection from spills, with the bottoms of the blocks machined to “nest” onto the plate to prevent movement
  • Applications: enzyme reactions and deactivations; substitute for an ice bucket; temporary storage of DNA or other biological materials at the workstation; sample incubation or freezing
