- Available ISO Ratings: ISO 8
- Oil-free, diaphragm pumps for rough and medium-high vacuum; ideal for research and science applications
- An economically and ecologically superior alternative to water-operated vacuum pumps
- Also used as regeneration pumps in combination pumping systems
- ILMVAC diaphragm pumps are quiet and compact with low vibration
- Chemically resistant diaphragm pump models MPC are used with aggressive solvents and acid vapors
7906-PP-02
7906-PP-02 71625
Diaphragm Vacuum pumps
Read more
Manufactured By: Welch Vacuum
Print
Want a quote quickly ?
Submit a QuickQuote request
Product Details
Features & Benefits
Features & Benefits
Learn More: Oil-Free (Dry) Pumps
Print
Copy Copied
More Information

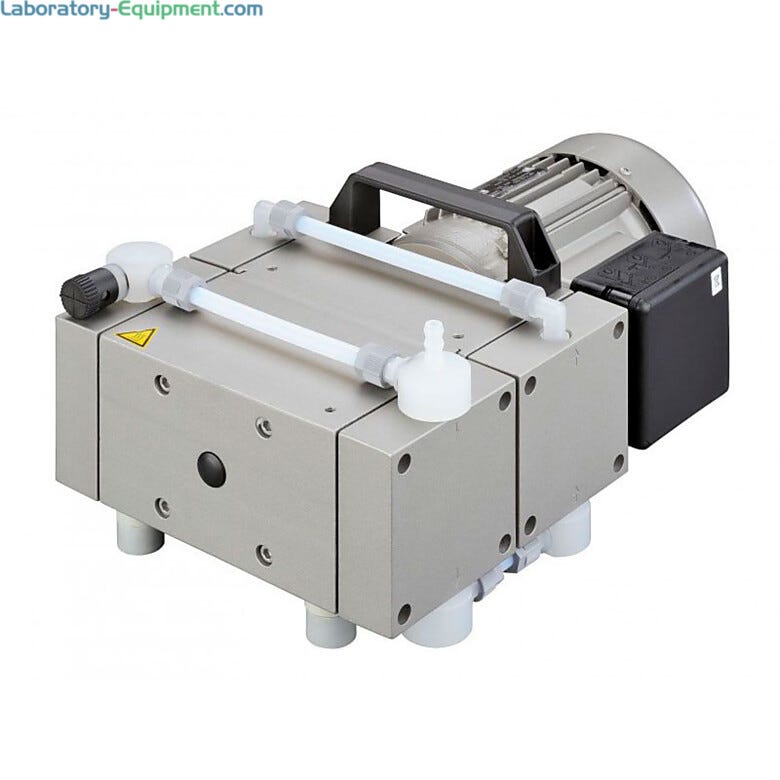

High-Flow Diaphragm Oil-Free (Dry) Vacuum Pump (Ilmvac MP Series)
- Two-stage pumps for quicker and more efficient vacuum pump-down
- ON/OFF Switch and internal protective thermal switch for the motor
- Vibration isolating feet
- High-flow units operate at 125 LPM and 222 LPM; draw to 8mbar pressure (29.85" Hg vacuum)
- Suitable for applications using dry, moist or ethanol vapors: Vacuum Ovens, Glove Boxes and Vacuum Chambers
Standard Duty Dry Vacuum Pump
- Continuous oil-free pumping
- Non-Corrosive
- Vacuum to 9Torr (29.6” Hg)
- As the piston wobbles, Teflon seal expands to increase efficiency and lesson wobble motion
Chemical Duty Dry Vacuum Pump
- Features Advanced Vapor Management (AVM) for adjustable vacuum control
- Model 2034B-01 has a flow rate of 25 LPM and an ultimate pressure of 9 torr (12 mbar or 29.6" Hg vacuum)
- Ideal for rapid drying and evaporation in small vacuum ovens, benchtop rotovaps and chemical duty filtration
Mini Vacuum Pump for Laboratories
- Used for filtration, drying and degassing
- Standard and chemically resistant models
- Low vibration and noise with twin head design
- Plug and play wide-range power adaptor
- Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
Compact Diaphragm Pump
- Ultimate vacuum is <45 mbar
- Standard duty pumps (MP) for pumping air, and chemically resistant models (MPR) for solvent applications
- Great for aspirating liquids
- 115/230V wide-range motor
Diaphragm Pumps
- Available in standard and chemically resistant versions
- Compact, practical solution for vacuum range 1000 to 1 mbar
| Model | MP901Z | MP1801Z |
|---|---|---|
| Numbers of heads/stages | 4/2 | 8/2 |
| Free Air Displacement CFM (l/min.) @ 60H | z4.42 (125) | 7.84 (222) |
| Free Air Displacementm3/h (l/min.) @ 50Hz | 6.8 (113) | 12 (201) |
| Ultimate Pressure, Torr (mbar) | 8 (6) | 8(6) |
| Maximum Vacuum, in.Hg | 29.7 | 29.7 |
| Motor Power, watts (HP) | 370 (0.5) | 370/440 (0.5/0.6) |
| Model | 2562B-01 |
|---|---|
| Free Air Displacement CFM (l/min.) @ 60Hz | 2.3 (65) |
| Free Air Displacement m3/h (l/min.) @ 50Hz | 3.4 (57) |
| Ultimate Pressure, Torr (mbar) | 9 (12) |
| Maximum Vacuum, in.Hg | 29.6 |
| Motor Horsepower, watts | 1/3 (250) |
| Intake/Exhaust thread NPT | 1/4 |
| Model | 2034B-01 |
|---|---|
| Free Air Displacement CFM (l/min.) @ 60Hz | 0.9(25) |
| Free Air Displacement m3/h (l/min.) @ 50Hz | 1.25(21) |
| Ultimate Pressure, Torr (mbar) | 9 (12) |
| Maximum Vacuum, in.Hg | 29.6 |
| Adjustable Vac./Gas Ballast | Yes |
| Motor Power, watts (HP) | 1/5 (150) |
| Intake/Exhaust thread NPT | 1/4 |
| Model | MP 060 E | MPR 060 E | MP 104E | MPC 104E |
|---|---|---|---|---|
| Final Vacuum, mbar | <60 | <60 | <45 | <45 |
| Flow Rate, l/min | 10 | 10 | 15-16 | 15-16 |
| Head Material | Aluminum | PPS | Aluminum | PTFE Compound |
| Diaphragm Material | PTFE | PTFE | PTFE | PTFE |
| Valve Material | PEEK | PEEK | PEEK | PEEK |
| Connections | 6-8 mm | 6-8 mm | 8mm | 8mm |
| Noise Level, dBA | <42 | <42 | <45 | <45 |
| Model | MP101Z | MP301Zp | MP201T | MP601Tp |
|---|---|---|---|---|
| Ultimate Pressure, mbar | <8 | <8 | <2 | <2 |
| Pumping Speed 50/60 Hz | 16.7/18.3 L/min | 38.3/41.7 L/min | 33.4/36.7 L/min | 75.0/81.7 L/min |
| Motor Power | 60W | 180W | 90W | 370W |
| Model | MPC101Z | MPC301Zp | MPC201T | MPC601Tp |
|---|---|---|---|---|
| Ultimate Pressure, mbar | <8 | <8 | <2 | <2 |
| Pumping Speed 50/60 Hz | 16.7/18.3 L/min | 38.3/41.7 L/min | 33.4/36.7 L/min | 75.0/81.7 L/min |
| Motor Power | 60W | 180W | 90W | 370W |
