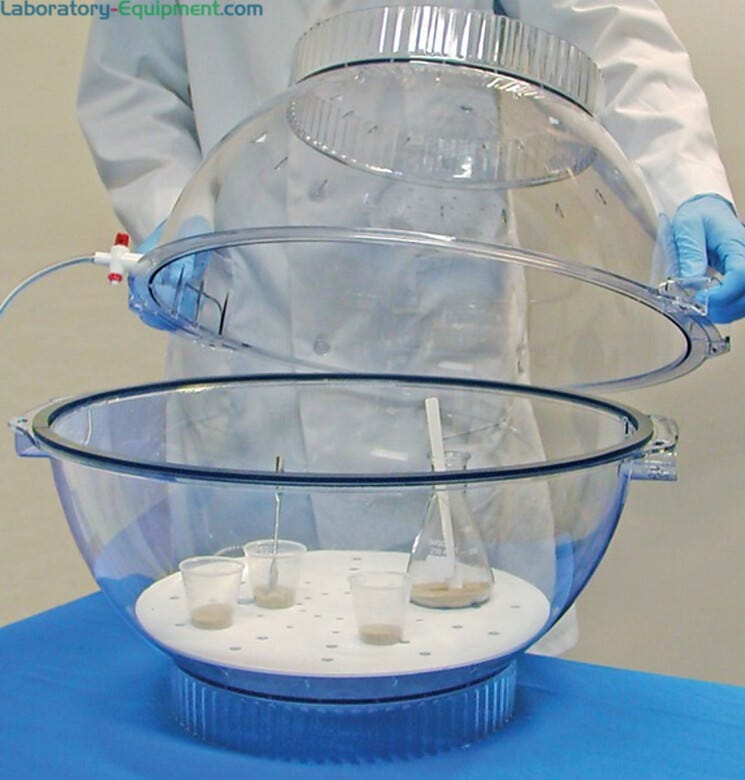

High-volume storage unit hold a full vacuum for 24 hours at room temperature (accessories not included) | 3308-11 displayed

Desiccator; Polycarbonate, 22" W x 22" D x 18" H, Secador Techni-Dome 360

  • Available Certified ISO Grade™ Designs: ISO 8
  • Two round polypropylene shelves included

• Material: Polycarbonate

• Number of Chambers: 1

• Model: Techni-Dome

• Design: Benchtop

• Humidity Control: Vacuum

• Door Design: ValuLine

• Certified ISO Grade™ Design: ISO 8

• Unit of Measure: EA

Read more
ISO 8 Icon<br/> Ships Free
Manufacturer SKU: 42029-0000
Manufactured By: Bel-Art
Warranty: 1 year
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3308-11
Terra Part # 3308-11
$532*
*See discounts and promos in cart Web-exclusive discount applies only to quotes/orders placed directly on our website; not valid for phone, email, or other ordering methods.
Usually ships in 15-25 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3308-11
44168
Desiccator; Polycarbonate, 22" W x 22" D x 18" H, Secador Techni-Dome 360
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • Available Certified ISO Grade™ Designs: ISO 8
  • Two round polypropylene shelves included
  • Volume: 4,000 Cubic Inches (65 L)
  • Full Vacuum: 29" Hg (737 mm)
  • Tubing ¼" (6.4mm)
  • Single stopcock accepts 1/4" (6.4mm) I.D. tubing for vacuum connection
  • Desiccant available (order separately) P/N 3308-12
  • Detachable polypropylene shelves 14.5’’ and 9" diameter (36.5 cm and 22.5 cm)
  • Transparent polycarbonate construction protects sensitive items from thermal chemical attack provides dust free desiccation, storage and degassing
  • Stores oversized items in a dry and moisture free environment
  • Smooth and simple to clean interior surfaces
  • Also Available with two gas ports
  • Molded rings to top and bottom provide the dome with stability
  • Safety locator pins prevent the halves from displacing when one side is lifted to access contents inside
  • Two detachable polypropylene shelves
  • Molded in handles provide portability
  • Great for cooling, drying and degassing moister sensitive items
  • Top and bottom handles can be bolted by nylon bolt to avoid displacement
  • Provides convenient locations for locks or tamper-evident seals
Show more

• Material: Polycarbonate

• Number of Chambers: 1

• Model: Techni-Dome

• Design: Benchtop

• Humidity Control: Vacuum

• Door Design: ValuLine

• Certified ISO Grade™ Design: ISO 8

• Unit of Measure: EA

• Electrical Specifications: None

• Weight, Product: 12 lb

• Dimensions, Product: 22" W x 22" D x 18" H

• Weight, Shipping: 15.4 lb

• Dimensions, Shipping: 28" W x 28" D x 24" H

• Package Type: Box

Show more
Other products you may find relevant
  1. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
  2. Sure-Grip EX safety can storage cabinets protect workers, reduce fire risks, and improve productivity by storing hazardous liquids in high performance | 2820-00A displayed
    Group of 10 products
    Sure-Grip® Flammable Liquid EX Safety Can Storage Cabinets from Justrite From
    As low as $1,120
    Some ship in 3 - 5 days
  3. Undercounter Flammable safety cabinets by Justrite includes dual vents with flame arresters located in the back | 1619-95 displayed
    Group of 8 products
    Sure-Grip® EX Undercounter Flammable Safety Cabinets by Justrite From
    As low as $1,136
    Some ship in 8 - 12 days
  4. Yellow Slimline safety cabinets by Justrite are fire resistant double wall, air insulated and welded steel construction | 1619-90 displayed
    Group of 3 products
    Yellow Slimline Safety Cabinets by Justrite From
    As low as $1,228
    Some ship in 8 - 12 days
  5. Sure-Grip EX deep SlimLine safety cabinets provides OSHA-, NFPA-compliant protection and containment of flammable materials | 1618-21 displayed
    Group of 10 products
    Sure-Grip® EX Deep Slimline Safety Cabinets by Justrite From
    As low as $2,097
    Some ship in 8 - 12 days
  6. Corrosive Storage by Justrite features two manual stainless steel doors with 3-point stainless steel bullet latching system | 2820-09A displayed
    Group of 4 products
    Corrosive Storage Cabinets by Justrite From
    As low as $1,433
    Some ship in 8 - 12 days
  7. PureFlow Laminar Transport Cart system provides an uninterrupted vertical laminar flow of HEPA-filtered air in the storage area | 1529-68 displayed
    Group of 3 products
    PureFlow™ Laminar Flow Transport Carts From
    As low as $16,270
    Some ship in 1 - 3 days
  8. Choose among 3 different sizes of portable nitrogen generator designs to meet your N2 requirements. Suitable for both industrial and commercial applications.
    Group of 4 products
    Nitrogen Membrane Gas Generators From
    As low as $6,502
    Some ship in 1 - 3 days
  9. Measures temperature from -40 to +212F | 3710-04A displayed
    Temperature/Relative Humidity Meter; Digital, Probe Sensor, Vaisala, Battery
    $1,929
    Usually Ships in 12 - 22 days
  10. Use Desiccant Reusable canister for easy placement into small spaces | 1538-16 displayed
    Desiccant Canister, Reusable, Desi-Can
    $25
    Usually Ships in 15 - 25 days
Page 1 of 3
Buy Accessories
  1. Qualification Documentation (IQ/OQ) for Terra Universal System
    Qualification Documentation (IQ/OQ) for Terra Universal System
    Request Quote
    Increase Down Increase Up
  2. FasTrak 24-7 Expediting Service
    FasTrak 24-7 Expediting Service
    Request Quote
    Increase Down Increase Up
  3. White Glove Freight Service
    White Glove Freight Service
    Request Quote
    Increase Down Increase Up
  4. Equipment Testing
    Equipment Testing
    Request Quote
    Increase Down Increase Up

  • Maximum Drying Power in a Nitrogen Desiccator Cabinet
  • Acrylic Vacuum Chamber with Gauge and Metering Valves Chamber; Vacuum, Acrylic, 25"W x 10"D x 12.5"H
  • Welch Rotary Vane Vacuum Pump Welch Rotary Vane Vacuum Pump
  • Aluminum Vacuum Chambers Aluminum Vacuum Chambers
Maximum Drying Power in a Nitrogen Desiccator Cabinet In this video we experiment and demonstrates the rapid drying power of the Terra's desiccator cabinet and nitrogen generator.

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

ISO 7 Smart® Desiccator Cabinet on Automatic Height Adjustable Workstation

Automatic height adjusting workstations allow users to quickly alternate between comfortable sitting and standing positions while performing different tasks with heavy equipment on the workspace, such as this Smart® Desiccator Cabinet connected to a Nitrogen Generator.
Products similar to this one
  1. Vacuum Space-Saver desiccator drying chambers from Bel-Art feature white, chemical-resistant polyurethane base | 1539-55 displayed
    Group of 6 products
    Vacuum Desiccators by Bel-Art From
    As low as $97
    Some ship in 17 - 23 days

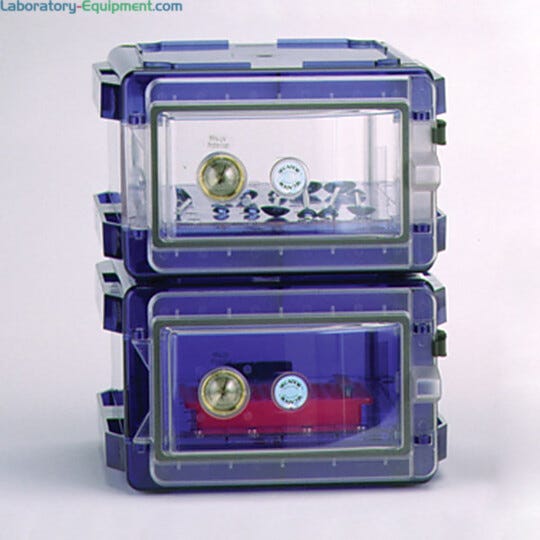

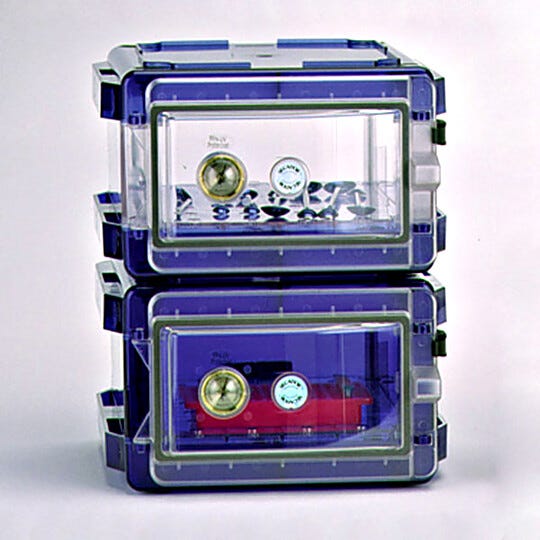

  2. Portable and stackable Secador 1.0 plastic desiccators from Bel-Art feature a door-mounted hygrometer and side handles for easy lifting | 1538-09 displayed
