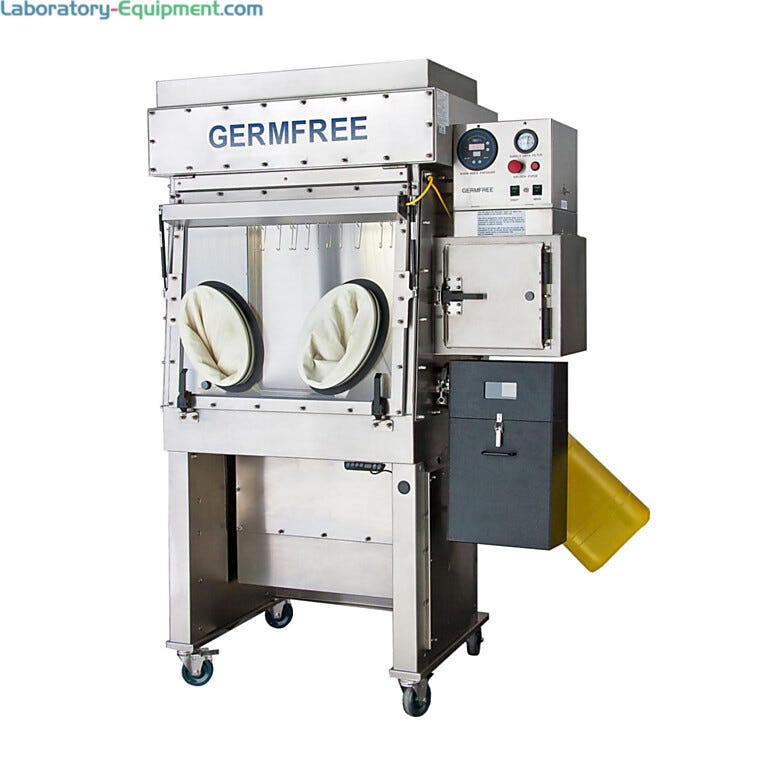

Germfree’s LFGI Compounding Aseptic Containment Isolator meets USP 797 and USP 800 requirements; shown with optional sharps and waste containers | 5607-15 displayed
Product Group:
5607-PP-02
5607-PP-02 72214

Compounding Aseptic Containment Isolators by Germfree

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Germfree LFGI provides both operator and product protection when compounding
  • Validated to CETA CAG-002-2006 and maintains ISO 5 particle counts inside the work chamber under dynamic operating conditions
  • Both supply and exhaust air passes through HEPA filters to capture contaminants for full containment (99.99% efficient at 0.3 microns)
  • Exhaust port can be connected to external exhaust system for ducting to the outside (requires exhaust transition)
    Sealed, HEPA-purged airlock features a timed cycle and slide-out tray to put transferred materials within easy reach of the glove port
  • 4 waste removal tube and 2.5 sharps disposal tube with stoppers for sealing off the chamber
Read more
ISO 5 Icon
Manufactured By: Germfree
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Application

Sort Order:
Window Material

Sort Order:
Material

Sort Order:
Certified ISO Grade™ Design

Sort Order:
Chamber Width

Sort Order:
Chamber Depth

Sort Order:
Chamber Height

Sort Order:
Number of Glove Ports

Sort Order:

 Terra Part # Price Ships in
Sterile Drug Compounding (USP 797) Acrylic 304 Stainless Steel ISO 5 35" 25" 29" 2 5607-15 57443 Request Quote 45-51 Days 2
Sterile Drug Compounding (USP 797) Acrylic 304 Stainless Steel ISO 5 47" 25" 29" 3 5607-16 57444 Request Quote 45-51 Days 3
Sterile Drug Compounding (USP 797) Acrylic 304 Stainless Steel ISO 5 71" 25" 29" 4 5607-17 57445 Request Quote 45-51 Days 4
Application
Window Material
Material
Certified ISO Grade™ Design
Chamber Width
Chamber Depth
Chamber Height
Number of Glove Ports
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • Germfree LFGI provides both operator and product protection when compounding
  • Validated to CETA CAG-002-2006 and maintains ISO 5 particle counts inside the work chamber under dynamic operating conditions
  • Both supply and exhaust air passes through HEPA filters to capture contaminants for full containment (99.99% efficient at 0.3 microns)
  • Exhaust port can be connected to external exhaust system for ducting to the outside (requires exhaust transition)
    •  Sealed, HEPA-purged airlock features a timed cycle and slide-out tray to put transferred materials within easy reach of the glove port
  • 4 waste removal tube and 2.5 sharps disposal tube with stoppers for sealing off the chamber
  • Waste removal tubes and antechamber can be installed on either side of unit
  • Hydraulic height-adjustment allows operators to sit or stand at a comfortable height when working within the glovebox for extended periods
  • Digital pressure gauge with low-pressure alarm to alert operators to unsafe conditions
  • Large, oval glove ports with two-piece sleeve/glove systems that allows operators to change gloves without breaching containment
  • Angled acrylic window minimizes glare; entire front panel lifts open for thorough cleaning and decontamination (requires key to unlock handles)
  • Sealed electrical outlet in main work chamber, externally mounted fluorescent light and 10’ main power cord
  • Locking casters included for mobility (sized to fit through most standard doorways)
  • Options include sealed hazardous waste containers, additional airlocks, Grx Rapid Exchange Glove System, electronic data ports (sealed) and cleaning tools
  • Product categorized by the Export Administration Regulations (EAR) under Export Control Classification Number (ECCN) 2B352: Biological Processing Equipment.  Export of this product outside of the United States may require a license to be obtained by the exporter, unless the client holds an active license exemption.  Any fees associated with obtaining an export license will be borne by the customer.
Show more

Show more

  • Germfree LFGI Training Video Germfree Laminar Flow Glovebox Isolator Training Video
  • A guide on the principles of your Germfree LFGI LFGI Principles of Operation by Germfree
  • A guide on how to install your Germfree LFGI How to Install the Germfree LFGI Unit
  • Video demonstration on how to operate your Germfree LFGI Operating the Germfree LFGI
  • Step by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unit Cleaning the LFGI Positive Pressue Unit
  • Step by step process on how to properly clean a Germfree Negative Pressure LFGI unit Cleaning the LFGI Negative Pressue Unit by Germfree
  • GermFree Laminar Flow Glovebox Isolators (LFGIs) Shown in Three Widths GermFree Laminar Flow Glovebox Isolator
Germfree LFGI Training Video
Training video on LFGI design and operation | 5607-15 displayed Germfree Laminar Flow Glovebox Isolator Training Video A training video on GermFree’s LFGI Glove Box design and operation
A guide on the principles of your Germfree LFGI
A guide on the principles of your Germfree LFGI LFGI Principles of Operation by Germfree A guide on how to operate your LFGI unit with a step by step processes
A guide on how to install your Germfree LFGI
A guide on how to install your Germfree LFGI How to Install the Germfree LFGI Unit A guide on how to install your LFGI unit along with certification guides
Video demonstration on how to operate your Germfree LFGI
Video demonstration on how to operate your Germfree LFGI Operating the Germfree LFGI Video demonstration on how to operate your LFGI with proper care
Step by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unit
Step by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unit Cleaning the LFGI Positive Pressue Unit Step by step process on how to properly clean a Germfree Positive Pressure Germfree LFGI unit with various cleaning methods and materials
Step by step process on how to properly clean a Germfree Negative Pressure LFGI unit
Step by step process on how to properly clean a Germfree Negative Pressure LFGI unit Cleaning the LFGI Negative Pressue Unit by Germfree Step by step process on how to properly clean a Germfree Negative Pressure LFGI unit with various cleaning methods and materials
GermFree Laminar Flow Glovebox Isolators (LFGIs) Shown in Three Widths

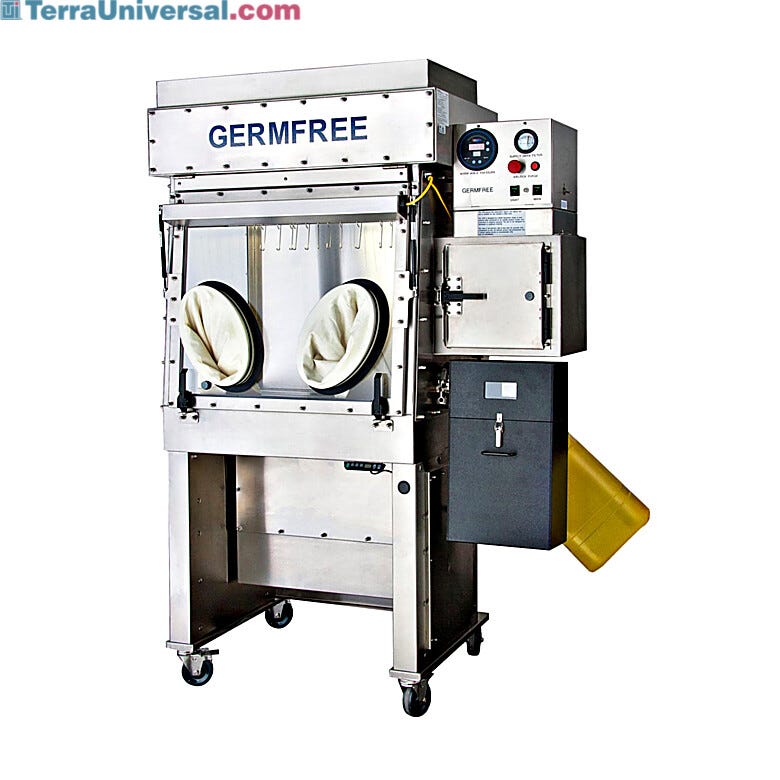

Germfree Glovebox Isolators meets USP 797 and USP 800 requirements; shown with optional sharps container | 5607-15 displayed GermFree Laminar Flow Glovebox Isolator This dual CACI and CAI unit operates under strong negative and positive pressure, providing the highest level of protection from microbiological particulates, dust, powders & aerosols to meet USP 797 and 800. Three available exhaust options are factory-set or modified by a certifier.
Features & Benefits

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

Germfree LFGI Compounding Aseptic Containment Isolator (CAI and CACI)

Germfree’s Compounding Aseptic Containment Isolator is configurable for positive or negative pressure to meet either USP 797 sterile or USP 800 hazardous material compounding requirements (shown with optional hazardous sharps and waste containers).
