1017-61
Terra Part # 1017-61
Request Quote

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 1017-61
81995
CleanTech EVO Wall Automated Handwashing Station by Meritech, CT-EVO-W
Product Details
  • Available Certified ISO Grade Designs: ISO 6, ISO 7, ISO 8
  • CleanTech EVO Wall-Mount Automated Handwashing Station removes more than 99.9% of dangerous pathogens in 12 seconds
  • Automatic 12-second handwashing
  • Activates wash and rinse cycle via infra-red photo-optical sensors
  • 40 cylinder nozzles (20 per cylinder) for thorough cleaning of hands up to forearms
  • •  Included: solution cartridge, hygiene solution (12,000 events), water supply hoses and slip drain P-Trap
  • Compliance monitor automatically counts number of hand wash cycles
  • CIP friendly with NEMA 4X electronics enclosure
  • Smart display features a countdown times and cycle tracking for improved compliance
  • Zero-water-waste design supports sustainability initiatives
  • Ideal for use in high-traffic areas of industrial production and commercial environments
  • Deep cylinders accommodate hands up to forearms
  • Full-color touchscreen display shows wash cycle countdown timer, employee tips and training videos
  • Password protected administrative dashboard enables water temperature adjustment and other operational features
  • Hygiene event data breakdown by time and day; resettable counter for enhanced tracking
  • High-throughput: up to 4 employees per minute
  • Specifications:
  • Water Consumption: 0.7 gallons (2.65 L) per 12-second hand wash cycle
  • Drain: 1 1/4" or 1 1/2" Slip Drain P-Trap included
  • Electrical: 6’ power cord included, 100-250 VAC NEMA 5-15p; International plugs available
  • Plumbing:
  • Water supply hoses included
  • 1/2" MNPT H&C - ASSE 1070
  • Termostatic Mixing Valve
  • 35-100 PSI / 4 GPM minimum
  • 3/8" ID supply line minimum
  • Solutions:
  • Required: 2,000 mL UltraPure Hand Hygiene Solution (2,000 handwashing cycles)
  • Optional: 2,000 mL SelfClean system cleaning solution

• Type: Hand Washer

• Manufacturer SKU: CT-EVO-W

• Model: CleanTech EVO

• Certified ISO Grade Design: ISO 6

• Unit of Measure: EA

• Dimensions, Product: 18.5" W x 21.25" D x 33.75" H

Buy Accessories

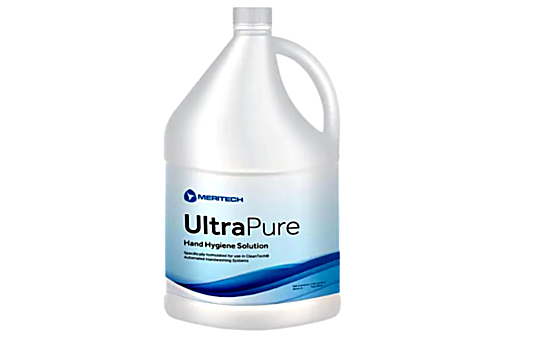

  1. UPX-12K Ultrapure Hand Hygiene Solution by Meritech with a 2,000 handwashing event capacity compatible with CleanTech Automated Handwashing Stations  |  1017-62 displayed
    Request Quote
    Increase Down Increase Up

Features and Benefits

Deep Cylinders

Provides thorough cleaning of hands up to forearms ensuring effective removal of dirt and pathogens

Refillable Solution Cartridge

Easy-to-install UPx solution cartridge with a capacity of up to 2,000 hand washes are more compact and cartridges can be refilled and reused with UPX-12K UltraPure Hand Hygiene Solution

Touchscreen Display

Enables users to easily access training videos, compliance data, and display screen tracks handwashing cycle events

Removes 99.9% of Pathogens

Efficient cylinder nozzles (20 per cylinder) rotate around hands and forearms 23 times for efficient and thorough removable of up to 99.9% of pathogens in just 12 seconds

UPX-12K Ultrapure Hand Hygiene Solution by Meritech
