2807-02
Terra Part # 2807-02
Request Quote
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Terra Part # 2807-02
65005
Request Quote
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA

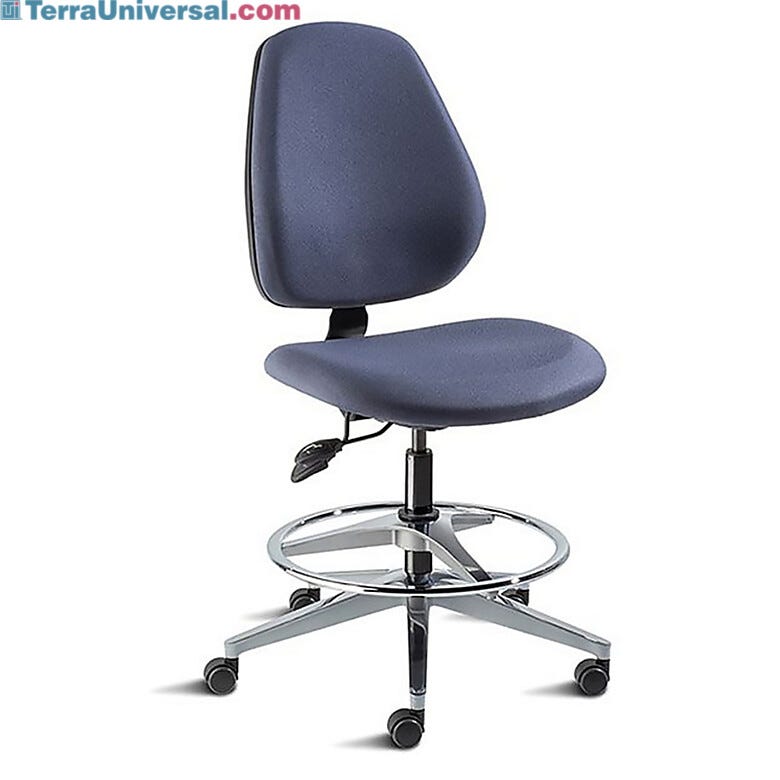

Product Details
  • Available Certified ISO Grade Designs: ISO 3, ISO 4, ISO 5, ISO 6, ISO 7, ISO 8
  • Use: cleanroom, static control/ESD, industrial, laboratory, healthcare
  • Advantage: versatility
  • Tech Series comes standard without arms to allow tucking under work surfaces
  • ISO 3 to ISO 8 Performance Packages available for ultra-critical environments, including ESD-control versions
  • 13-year warranty
  • Pick and choose the specific features you need for your application
  • Standard Low Base: Glass-reinforced composite, 25.4" leg spread
  • Standard Medium/High Base: Polished aluminum, 28.7" leg spread
  • Standard Casters: Dual-wheel polyurethane (2.25" glides optional)
  • Standard Upholstery: Grade 2 Cloth or Vinyl (other grades available)
  • Standard Controls: Seat Height, Backrest Height, Backrest Tilt
  • Optional Seat Depth: 16.4" (adjustable with E3 Control Package)
  • Optional Controls: Seat Tilt, Seat Depth, Synchro-Tilt with Tension Adjustment, Control Lockout
  • Optional Heavy Duty tubular steel base with fixed height footring
  • Optional Armrests: Urethane pads on polished aluminum uprights; adjustable height, width, and depth
  • Low typically fits desk-height applications (32" or shorter height; range of 17" to 21")
  • Medium typically fits standard lab benches (32" to 34" height; range of 20" to 27")
  • High typically fits standing benches (36" to 40" and up; range of 24" to 33.5")
  • 22" oval adjustable-height foot ring included with Medium and High chairs (not available for Low)

Application: Cleanroom

Base Type: Cast Aluminum

Type: Chair

Available Certified ISO Grade Designs: ISO 3, ISO 4, ISO 5, ISO 6, ISO 7, ISO 8

Seat Material: Vinyl

Casters: Included

Manufactured by: BioFit

Series: MVMT Tech

Certified ISO Grade Design: ISO 3

Unit of Measure: EA

Weight, Product: 51 Lbs

Dimensions, Product: 20.5" W x 18.9" D x 19.5" H

Weight, Shipping: 55 Lbs

Dimensions, Shipping: 28"W x 27"D x 24"H

Package Type: Box

  • Elite (EE) Series ISO 8 Cleanroom Chairs by Biofit Elite (EE) Series ISO 8 Cleanroom Chairs by Biofit
  • BioFit ArmorSeat Black Chair Tubular Leg Base With CRC Dual Wheel Casters And Fixed Foot Ring Chair, ArmorSeat, Tubular Base, 17"- 22", Black, BioFit
  • BioFit Bimos Trend Black Chair Polished Aluminum Base With Dual Wheel Casters Chair; Bimos Trend
  • Dauphin Blue Cleanroom Chair With Fluid Motion Controls And Fixed Height Foot Ring Cleanroom-Compliant Chairs
  • Assorted BioFit Ergonomic Upholstered Nytek Nylon Chairs Complete Line of Lab Seating!

Features and Benefits

Learn More: Biofit MVMT Tech Chairs

MVMT Tech Chairs by BioFit Engineered Products

MVMT Tech C5 Base Models
Low Chair Height (L) Medium Chair Height (M) High Chair Height (H)
For desks or benches that are 32” or shorter.
Provides an adjustable height range of 17” - 21”
For desks or benches that are 32” to 34” high.
Provides an adjustable height range of 20” - 27”
For desks or benches that are 36” to 40” and up.
Provides an adjustable height range of 24” - 33.5”

Low Seat Height
Tall Backrest

Low Seat Height
Tall Backrest
BioFit MVMT Tech Chair Five Leg Base With Armrest And Fixed Foot Ring
Low Seat Height
Tall Backrest

Low Seat Height
Medium Backrest

Low Seat Height
Medium Backrest
BioFit MVMT Tech Chair Five Leg Base With Armrest And Fixed Foot Ring
Low Seat Height
Medium Backrest
Specifications
  • Seat Width 18" (Polyurethane 17-3⁄4")
  • Seat Depth 17-3⁄4" (Polyurethane 17")
  • Backrest Height 19-3⁄4"
  • Backrest Width 17"
  • Base Polished aluminum, 27" leg spread (26" caster to caster)
  • Casters Dual-wheel polyurethane casters (2" glide optional)
Low Chair Height (L) Medium Chair Height (M) High Chair Height (H)
For desks or benches that are 32” or shorter.
Provides an adjustable height range of 17.5” - 21.5”
For desks or benches that are 32” to 34” high.
Provides an adjustable height range of 20.5” - 27.5”
For desks or benches that are 36” to 40” and up.
Provides an adjustable height range of 24.5” - 31.5”

Low Seat Height
Tall Backrest

Low Seat Height
Tall Backrest

Low Seat Height
Tall Backrest

Low Seat Height
Medium Backrest

Low Seat Height
Medium Backrest
BioFit MVMT Tech Chair Tubular Leg Base With Armrest And Fixed Foot Ring
Low Seat Height
Medium Backrest
MVMT™ Tech C5: Standard Features and Options
Low Chairs Medium & High Chairs
Standard Features:
  • Glass-reinforced composite base (25.4” leg spread)
  • 2” dual wheel resistance casters (polyurethane)
  • Upholstered, ergonomic seat; 20.5” wide by 18” deep
  • Medium-height upholstered backrest; 17.5” wide by 15” high (height adjustable up to 3”)
Standard Features:
  • Large aluminum base with polished top (28.7” leg spread)
  • 22” diameter oval foot ring (adjustable)
  • 2” dual wheel resistance casters (polyurethane)
  • Upholstered, ergonomic seat; 20.5” wide by 18” deep
  • Medium-height upholstered backrest; 17.5” wide by 15” high (height adjustable up to 3”)
Options:
  • Heavy Duty tubular steel base with 23” leg spread and 21” diameter footring, fixed 8” above the floor
  • Urethane armrests (adjustable 3.5” vertically, 2” front to back, and 1” left to right)
  • Tall backrest (Adds 4.5” to backrest height)
  • Rearward-mounted seat; 16.4” seat depth
  • E2 and E3 Control Upgrades (E3 not available on Heavy Duty bases)
  • Upholstery upgrades (Grades 3 through 7 available)
  • Special upholstery for Fire Code compliance (C133)
  • Static-control casters
  • 2.25” glides (replaces casters)
  • Large aluminum base with polished top (28.7” leg spread)
  • Aluminum base with polished top (25.6” leg spread)
  • Foot ring not available on Low chairs
Options:
  • Heavy Duty tubular steel base with 23” leg spread and 21” diameter footring, fixed 12” above the floor for Tall Chairs and 8” above the floor for Medium Chairs
  • Urethane armrests (adjustable 3.5” vertically, 2” front to back, and 1” left to right)
  • Tall backrest (Adds 4.5” to backrest height)
  • E2 and E3 Control Upgrades (E3 not available on Heavy Duty bases)
  • Do not include foot ring
  • Upholstery upgrades (Grades 3 through 7)
  • Special upholstery for Fire Code compliance (C133)
  • Static-control casters
  • 2.25” glides (replaces casters)
Ergonomic Control Options
Option Code Included Controls
E1
  • Seat Height (Pneumatic)
  • Backrest Angle (Forward/Backward)
  • Fixed Seat Tilt (3.5° rearward)
E2
  • Seat Height (Pneumatic)
  • Backrest Angle (Forward/Backward)
  • Seat Tilt Adjustment
E3
  • Seat Height (Pneumatic)
  • Backrest Angle (Forward/Backward)
  • Synchronous Tilting Mechanism
  • Tilt Tension Adjustment
  • Seat Depth (Slider)
  • Control Lockout (for precision work)
Performance Packages
Work Environment Package Type Manufacturing Code
Non-critical work areas Powder-coated metal parts 06
Technical workspaces Chrome-plated metal parts T
Frequent cleaning and sterilization "Wipe Down" Workspace Package WD
Cleanrooms (ISO-classified spaces) ISO Class 8 Cleanroom Compatible 8
ISO Class 7 Cleanroom Compatible 7
ISO Class 6 Cleanroom Compatible 6
ISO Class 5 Cleanroom Compatible 5
ISO Class 3 Cleanroom Compatible 3
Static-sensitive areas ESD (Static Control) Packaged* K
*Static-Control may be added to any Cleanroom-Compatible package or the "Wipe Down" Workspace package

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Grade™ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

BioFit® 13-Year Warranty

Nearly all BioFit® furniture products are warrantied against mechanical or structural failure due to defective material or workmanship for 13 years of normal, multishift use. Pneumatic cylinders are covered for the functional lifetime of the chair or stool. Intensive Plus chairs are warrantied for 5 years.
