Summary

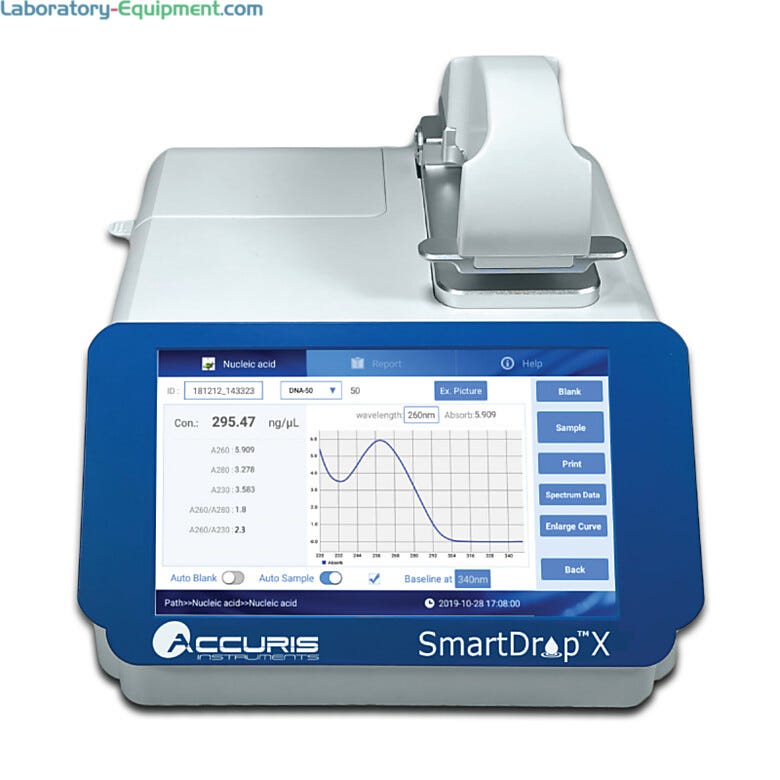

  • SmartDrop X Nano Spectrophotometer for full-spectrum absorbance from 200 to 800nm
  • Quick calculation and display of 260/280 and 260/230 ratios
  • Features Xenon flash lamp and CCD detector
  • Path lengths: 0.2mm, 1.0mm
  • •  Includes: 7" color touchscreen, built-in printer and cuvette port
  • Displays DNA and RNA protein concentrations and purity in seconds
  • 7" full color touchscreen display with menu-drive icons for easy navigation
  • Cuvette port with two optical glass cuvettes for OD600 readings
  • Integrated printer for convenient printing of resulting data
  • SmartDrop onboard memory saves data for exporting via USB drive as an Excel file
  • Convenient design requires no external computer
  • Quartz pedestal for placement of small sample droplets
  • Arm of liquid column drops to stretch sample droplets
  • USB Port for data export
  • Specifications:
  • Sample size: 0.5μl - 2.0μl
  • Light source: Xenon Flash Lamp
  • Wavelength: 200 - 800nm (1nm steps)
  • Detection time: < 6 seconds
  • Detector: 2048 Element Linear Silicon CCD Array
  • Absorbance range: 0.04 - 90 A (10mm equivalent)
  • Absorbance precision: 0.003 A
  • Lower limit of detection: dsDNA: 2ng/μl; BSA: 0.1mg/ml
  • Upper limit of detection: dsDNA: 4,500ng/μl; BSA: 135mg/ml
  • Cuvette OD600 detection
  • Absorbance range: 0.0 - 4.0 A
  • Absorbance stability: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,3) ≤ 0.5%, [3,4) ≤ 2%
  • Absorbance repeatibility: [0,2) ≤ 0.005 A, [2,3) ≤ 1%, [3,4) ≤ 2%
  • Optional Accessories:
  • NS1020-HS-100: High Sensitivity DNA Quantitation Kit, 100 assays
  • NS1020-BR-100: Broad Range dsDNA Quantitation Kit, 100 assays
  • NS1000-C: Additional Standard-Size Cuvettes, pack of 2
  • NS1020-T: 0.5mL Fluorescence Detection Tubes, pack of 250
  • NS1000-PA: Extra Paper Roll for SmartDrop internal printer, pack of 3

Specifications

Manufacturer SKU: NS1010

Unit of Measure: EA

Electrical Specifications: 24 V, 2 A

Weight, Product: 6.2 lb

Dimensions, Product: 8.2"W x 11.0"D x 7.3"H

Weight, Shipping: 20.5 lb

Dimensions, Shipping: 20"W x 20"D x 13"H

Features and Benefits

Integrated Printer

SmartDrop Nano Spectrophotometers feature a built-in printer for convenient and quick results documentation

Cuvette Port for OD600 Readings

All SmartDrop models feature a cuvette port and two optical glass cuvettes for OD600 readings

Small Sample Requirements

SmartDrop models utilize small sample volumes of DNA, RNA, and protein concentrations that eliminate the need for dilutions for more accurate results

Liquid Column Sample

Featured quartz pedestal stretches the microvolume sample, when the arm is lowered, to the specified length needed for spectral analysis displaying results in seconds

SmartDrop Nano Spectrophotometers for Microvolume Analysis of DNA, RNA and Protein by Accuris
