Summary

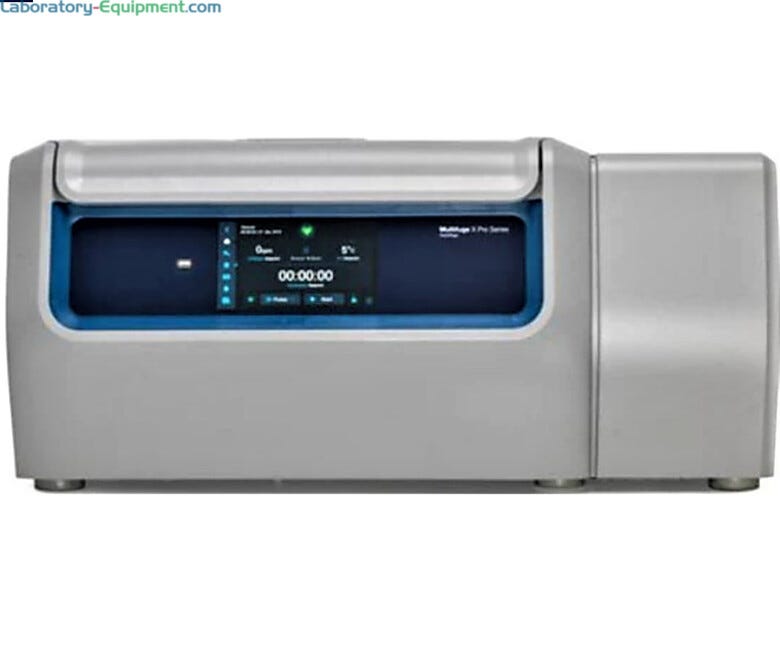

  • FDA-listed IVD Multifuge X4R Pro Refrigerated Benchtop Centrifuge with 100-program memory
  • Temperature range: -10°C to +40°C
  • Easy rotor change without tools and optional Certified ClickSeal™ biocontainment lids for operator safety
  • Processes up to 196 blood tubes and 96 15mL conical tubes
  • Swinging and fixed-angle rotors sold separately
  • Refrigerated model features: CFC-free refrigeration, <64 dB(A) Rotor F15-8x50c; 14500 RPM
  • Auto-Lock™ III Rotor System: allows convenient push-button installation and removal of rotors for easy application switches
  • Full color touch screen LCD display provides easy access to menus and programs
  • Double temperature management shows air and sample temperature during run
  • Applications: clinical, chemistry, pathology, clinical and molecular microbiology, clinical immunology, pediatrics
  • Push-button operation ideal for routine applications
  • Capacity with TX-1000 rotor: 196 x 5/7 mL Blood Tubes, 148 x 9/10 mL Blood Tubes, 96 x 15 mL Conical Tubes, 40 x 50 mL Conical Tubes, 6 Microplates, 4 x 1000 mL BioBottles
  • Swinging bucket rotors specifications:
  • Maximum capacity: 4 x 1000 mL with TX-1000 rotor
  • Maximum speed: 6000 rpm with BIOShield 1000A rotor
  • Maximum RCF: 7164 x g with BIOShield 720 rotor
  • Fixed-angle rotors specifications:
  • Maximum capacity: 6 x 250 mL with F14-6x250LE rotor
  • Maximum Speed 15200 rpm with F21-48x2, Microliter 48x2 or Microliter 30x2
  • Maximum RCF: 25830 x g with Microliter 30x2
  • Multifuge X4R Pro benchtop centrifuge features: ergonomic design, microprocessor control, direct/brushless induction low profile motor, 9 acceleration/10 deceleration rates, LCD display, intuitive controls simplify operation, 100 programs, up to 9 hr. 59 minutes run time, continuous and customizable pulse, count-down timer, G-force increments in 1 x g, 1rpm increments, time setting (hour/min and continuous mode), bucket selection based on last four digits of product number, error message code, external logging, RS232 port, open and secure access mode
  • Motorized lid latch for one-finger downward motion (closing and locking of lid)
  • Noise level: <64 dB(A) Rotor F15-8x50c; 14500 RPM
  • Easy-to-clean and access rotor chamber
  • System certified by CAMR™ in Porton Down, UK.
  • 40% energy savings on standard protocols:  blood separation or conical tubes processing
  • SMARTSpin™ Technology: maximizes acceleration, braking and residual load imbalance (for rotor and bucket option
  • ClickSeal™ Bucket Sealing System: Biocontainment solution eliminates screw caps and complicated clips, glove-friendly operation
  • Certifications/Compliance: EN/UL/IEC 61010-1EN/UL/IEC 61010-2EN/UL/IEC 61326-1EN/UL/IEC 61326-2FCC part 15
  • Standards: ISO 14971, ISO 13485, ISO 9001
  • Material: PC-ABS painted with 2k PUR-based lacquer, metal housing, cold rolled steel with powder paint and rubber feet
  • Stainless steel centrifuge bowl
  • Includes printed English user manual, USB stick with 28 languages of user manual, corrosion resistance oil (70009824), power cord, declaration of conformity
  • List of optional rotors for Multifuge X4 Series:
  • TX-1000 Swinging Bucket Rotor #75003017
  • TX-750 Swinging Bucket Rotor #75003180
  • BIOShield 1000A Swinging Bucket Rotor #75003182
  • TX-400 Swinging Bucket Rotor #75003181
  • BIOShield 720 Swinging Bucket Rotor #75003183
  • TX-200 Swinging Bucket Rotor #75003658
  • HIGHPlate 6000 Swinging Bucket Rotor #75003606
  • Fiberlite H3-LV Swinging Bucket Rotor #75003665
  • M-20 Swinging Bucket Rotor #75003624
  • H-Flex 1 Swinging Bucket Rotor #75003300
  • H-Flex HS4 Swinging Bucket Rotor #75003330
  • Fiberlite F15-6x100y Fixed Angle Rotor #75003698
  • Fiberlite F10-6x100 LEX Fixed Angle Rotor #75003340
  • CLINIConic Fixed Angle Rotor #75003623
  • 8 x 50 Individually Sealed Fixed Angle Rotor #75003694
  • HIGHConic II Aluminum Fixed Angle Rotor #75003620
  • MicroClick 18x5 Aluminum Fixed Angle Rotor #75005765
  • Fiberlite F21-48x2 Fixed Angle Rotor #75003664
  • Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 48 x 2 Aluminium Fixed Angle Rotor #75003602
  • MicroClick 30 x 2 Aluminum Fixed Angle Rotor #75005719
  • Microliter 30 x 2 Aluminum Fixed Angle Rotor #75003652

Specifications

Temperature Control: Refrigerated

Maximum Speed: 15200 rpm

Manufactured by: Thermo Fisher

Model: Multifuge X4R Pro-MD

Configuration: Benchtop

Manufacturer SKU: 75009516

Type: Centrifuge

Capacity: Multi tube

Unit of Measure: EA

Marks & Listings: UL, EN,IEC,IVD

Electrical Specifications: 120 V, 50/60 Hz

Weight, Product: 265 lb

Dimensions, Product: 29.4" W x 27.2" D x 14.3" H

Features and Benefits

Touchscreen Interface

Multifuge Pro centrifuges feature an LCD display and touchscreen user interface for easy menu access, quick spins and convenient programming

Autolock Rotor Exchange

Convenient push-button rotor exchange in as little as 3-seconds for trouble-free installation and removal without tools; easy-to-clean design minimizes risk of contamination

Convenient Biocontainment

ClickSeal Biocontainment lids minimize contamination and are ergonomically designed for one-handed open/close operation with gloves

Comprehensive Rotor Portfolio

Thermo Scientific clinical centrifuges are compatible with a variety of rotors from 120mL-4L that accommodate 1.5-50mL sample tubes, microplates and 10mL standard syringes
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • TX-1000 Swinging Bucket Rotor body; 4 x 100ml

    Spins up to 40x50ml conical tubes, 196 blood tubes or 24 microplates (adapters sold separately); compatible with Thermo Scientific centrifuges
  • Rotor, Fixed Angle; 100mm, Microliter 30x2 Sealed Aluminum, 45, Rmax

  • Microliter 48 x 2mL Sealed Aluminum Fixed Angle Rotor by Thermo Fisher Scientific

    Compatible with Thermo Fisher Scientific Sorvall, Megafuge and Multifuge Series Centrifuges
