2-channel real time monitoring system with 0.5 and 5.0 μm channel sizes and a 1 CFM flow rate with risk mitigation feature ideal for GMP regulated industries | 1510-47 displayed
Product Group:
1505-PP-03
1505-PP-03 77824

Lighthouse ApexRemote Particle Counters by LWS

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 2-channel laser diode models with 3,000 storage in 0.2, 0.3 and 0.5 um minimum detection sizes
  • Remote access via webserver and concentration limits suitable for ISO 1-8 cleanrooms
  • Enclosure compatible with industry standard decontamination processes and ISO 21501-4 compliance
  • Real-time monitoring system used in GMP regulated industries and VHP room sterilization
  • Transfers particle count data with RS-485 (using MODBUS RTU or ASCII)
Read more
CE Mark Logo ISO 7 Icon Ships Free
Warranty: Two-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Certified ISO Gradeâ„¢ Design Detection Channels Detection Range Counting Efficiency Flow Rate Manufacturer SKU Price Usually Ships in Stocked
ISO 7 2 Channels 0.2 - 2.0 μm 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size 0.1 CFM ApexR02 $3,727 5-10 Days
ISO 7 2 Channels 0.3 - 5.0 μm 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size 0.1 CFM ApexR03 $2,754 5-10 Days
ISO 7 2 Channels 0.3 - 5.0 μm 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size 1 CFM ApexR3 $3,416 5-10 Days
ISO 7 2 Channels 0.5 - 10 μm 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size 0.1 CFM ApexR05 $2,636 5-10 Days
ISO 7 2 Channels 0.5 - 10 μm 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size 1 CFM ApexR5 $2,783 5-10 Days

Summary

  • Available Certified ISO Grade Designs: ISO 7, ISO 8
  • 2-channel laser diode models with 3,000 storage in 0.2, 0.3 and 0.5 um minimum detection sizes
  • Remote access via webserver and concentration limits suitable for ISO 1-8 cleanrooms
  • Enclosure compatible with industry standard decontamination processes and ISO 21501-4 compliance
  • Real-time monitoring system used in GMP regulated industries and VHP room sterilization
  • Transfers particle count data with RS-485 (using MODBUS RTU or ASCII)
  • Applications: GMP regulated industries, VHP room sterilization, bio-decontamination, pharmaceutical production, manufacturing vaccines and other drugs
  • Flow Rate for Apex3 and Apex5: 1 CFM (28.3 LPM), 1/4" inlet and outlet fitting
  • Flow Rate for ApexR02, ApexR03 and ApexR05: 0.1 CFM (2.83 LPM), 1/8" inlet and outlet fitting
  • ApexR3: 0.3, 0.5  Î¼m channel sizes
  • ApexR5: 0.5, 5.0 μm channel sizes
  • ApexR02: 0.2, 0.3 μm channel sizes
  • ApexR03: 0.3, 0.5 μm channel sizes
  • ApexR05:  0.5, 5.0 μm channel sizes
  • Self-Diagnostics: Laser power supply, laser current, laser power, photo detector power supply, background voltage, photo detector health
  • Provides risk mitigation and environmental compatibility
  • Versatile mounting option when used with an external vacuum source ideal in small environments
  • Feature of all models: Ethernet or Serial communication, 3,000 data storage, validation mode, alarm light, 304 stainless steel enclosure, OLED display, additional channel sizes available
  • Modbus Protocol: TCP or RTU or ASCII
  • External Vacuum Requirements;: Nominal 1.0 CFM 18" (45.72 cm) of Hg
  • Light Source: Laser Diode
  • Calibration: Designed for ISO 21501-4 Compliance
  • Zero Count Level: <1count/5 minutes per ISO 21501-4
  • Counting Efficiency: 50% @ minimum channel size, 100% for particles >1.5 X - 2X channel particle size
  • Concentration Limits 1.0 CFM: 1,000,000 particles/ft3@10% (34,300,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms
  • Concentration Limits 0.1 CFM: 4,000,000 particles/ft3@10% (137,200,000/m3) coincidence loss suitable for ISO classes 1-8 cleanrooms
  • Software: LMS Express, LMS Express RT, LMS Pharma
  • Smart Bracket: Wall Mount Flush, Wall Mount Through Base, Wall Mount Through Wall

  • Lighthouse ApexRemote Series Product Overview Video by LWS Lighthouse ApexRemote Series Product Overview Video by LWS
  • Lighthouse ApexRemote Series Connection to a Mobile Device by LWS Lighthouse ApexRemote Series Mobile Device Connection by LWS

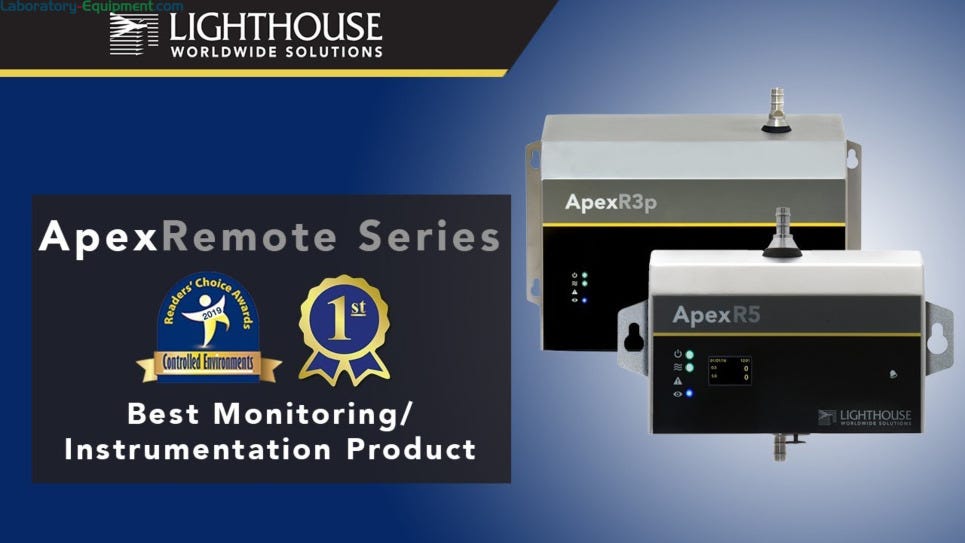

Lighthouse ApexRemote Series Product Overview Video by LWS
Operating instructions, product features and benefits of ApexRemote Series Real Time Monitoring Systems Lighthouse ApexRemote Series Product Overview Video by LWS Highlights how the environmental monitoring system helps maintain a clean environment important in GMP regulated industries

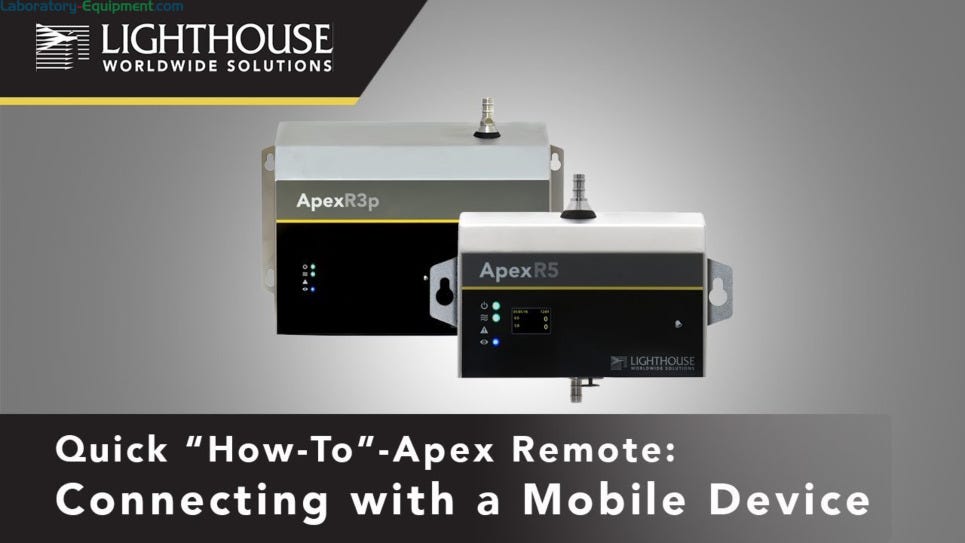

Lighthouse ApexRemote Series Connection to a Mobile Device by LWS
Instruction on how to connect ApexRemote environmental monitoring systems to a mobile device Lighthouse ApexRemote Series Mobile Device Connection by LWS Includes step-by-step router connection instruction
