TMC CleanBenchâ„¢ Vibration Isolation Tables support balanced loads up to 500 lbs. (shown with two optional sliding shelves) | 3435-16 displayed
Product Group:
3435-PP-01
3435-PP-01 72065

CleanBenchâ„¢ Vibration Isolation Tables

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • All-brass height control valves maintain height within ±1 mm
  • Gimbal Piston Isolators achieve both horizontal and vertical isolation down to very low input levels
  • Balanced load-carrying capacity of up to 500 lbs
  • Piston travel restraints protect against over-travel without the use of external bars
  • Stainless steel laminate top
Read more
ISO 5 Icon
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Type Certified ISO Gradeâ„¢ Design Load Capacity Top Material Top Design Width Depth Height Price Usually Ships in Stocked
Fixed Height ISO 5 500 lb Stainless Steel Laminate Solid 30" 30" 30" $5,147 25-35 Days
Fixed Height ISO 5 500 lb Stainless Steel Laminate Solid 60" 30" 30" $5,635 25-35 Days
Fixed Height ISO 5 500 lb Stainless Steel/Plastic Laminate Honeycomb 48" 30" 30" $6,868 25-35 Days
Fixed Height ISO 5 500 lb Stainless Steel/Plastic Laminate Honeycomb 36" 30" 30" $6,445 25-35 Days
Fixed Height ISO 5 500 lb Stainless Steel/Plastic Laminate Solid 60" 36" 30" $5,910 25-35 Days

Summary

  • Available Certified ISO Grade Designs: ISO 5, ISO 6, ISO 7, ISO 8
  • All-brass height control valves maintain height within ±1 mm
  • Gimbal Piston Isolators achieve both horizontal and vertical isolation down to very low input levels
  • Balanced load-carrying capacity of up to 500 lbs
  • Piston travel restraints protect against over-travel without the use of external bars
  • Stainless steel laminate top
  • High input natural frequency: Vertical = 1.0 Hz; Horizontal = 0.8 Hz
  • Low input natural frequency: Vertical = 1.2 - 1.7 Hz; Horizontal = 1.0 - 1.5 Hz
  • 70 - 85% vertical isolation efficiency at 5 Hz
  • 75 - 90% horizontal isolation efficiency at 5 Hz
  • 90 - 97% vertical and horizontal isolation efficiency at 10 Hz
  • Black powder coat frame with 4”-thick work surface
  • Tie-bar gussets increase table frame rigidity
  • Leveling feet with ½ of travel
  • 80 psi nitrogen or compressed air required

  • vibration isolation table Vibration Isolation Table
  • 7 minute video on how to properly install the table for all of its components CleanBench Setup
  • Installation of accessories for the CleanBench table CleanBench Accessories
  • Video showcases the options, accesorries, and functions of the vibration isolation table CleanBench with Gimbal Piston Vibration Isolation
vibration isolation table
These TMC high-performance vibration isolation table provide an excellent vibration-free working surface for balanced loads up to 500 lbs. (227 kg). Vibration Isolation Table These TMC high-performance vibration isolation table provide an excellent vibration-free working surface for balanced loads up to 500 lbs. (227 kg). Now with modular construction, these tables are recommended for use in such diverse applications as electrophysiology, cell injection, ultramicrotomy, photomicroscopy, scanning tunnel microscopy, and confocal laser scanning microscopy.
7 minute video on how to properly install the table for all of its components
7 minute video on how to properly install the table for all of its components CleanBench Setup Step by step guide on how to install the top of the table, to the casters, to different valves

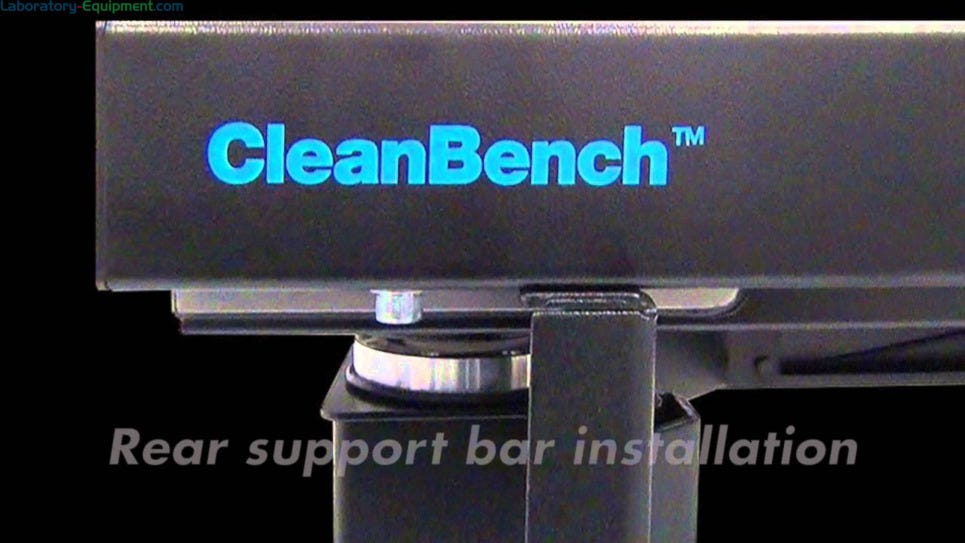

Installation of accessories for the CleanBench table
Installation of accessories for the CleanBench table CleanBench Accessories Demonstration of how each of the accessories benefit the table

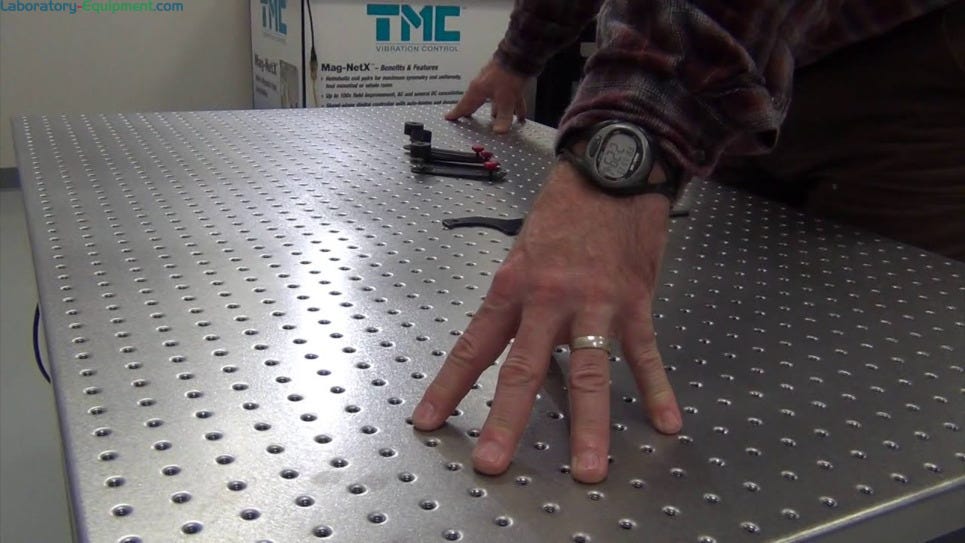

Video showcases the options, accesorries, and functions of the vibration isolation table
Video showcases the options, accessories, and functions of the vibration isolation table CleanBench with Gimbal Piston Vibration Isolation The TMC Gimbal Piston Vibration Isolation table has many available options such as leveling feet and casters to be customized to any personnel needs

Features and Benefits

Products Tailored to Your Cleanroom Environment

Provide Terra with your desired ISO Gradeâ„¢ design. We will tailor the product to meet your criteria and certify it with a report appended to your invoice. Certificate includes all the necessary information to streamline audits and facility compliance.

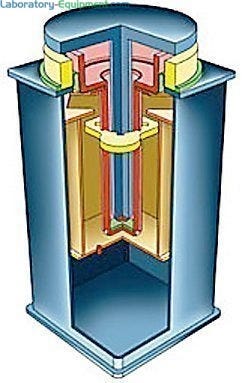

Gimbal Piston Isolators

TMC-patented Gimbal Piston Isolators provide vibration isolation in horizontal and vertical directions to very low input levels: 1.5 - 2.0 Hz (vertical), 1.2 - 1.7 Hz (horizontal).

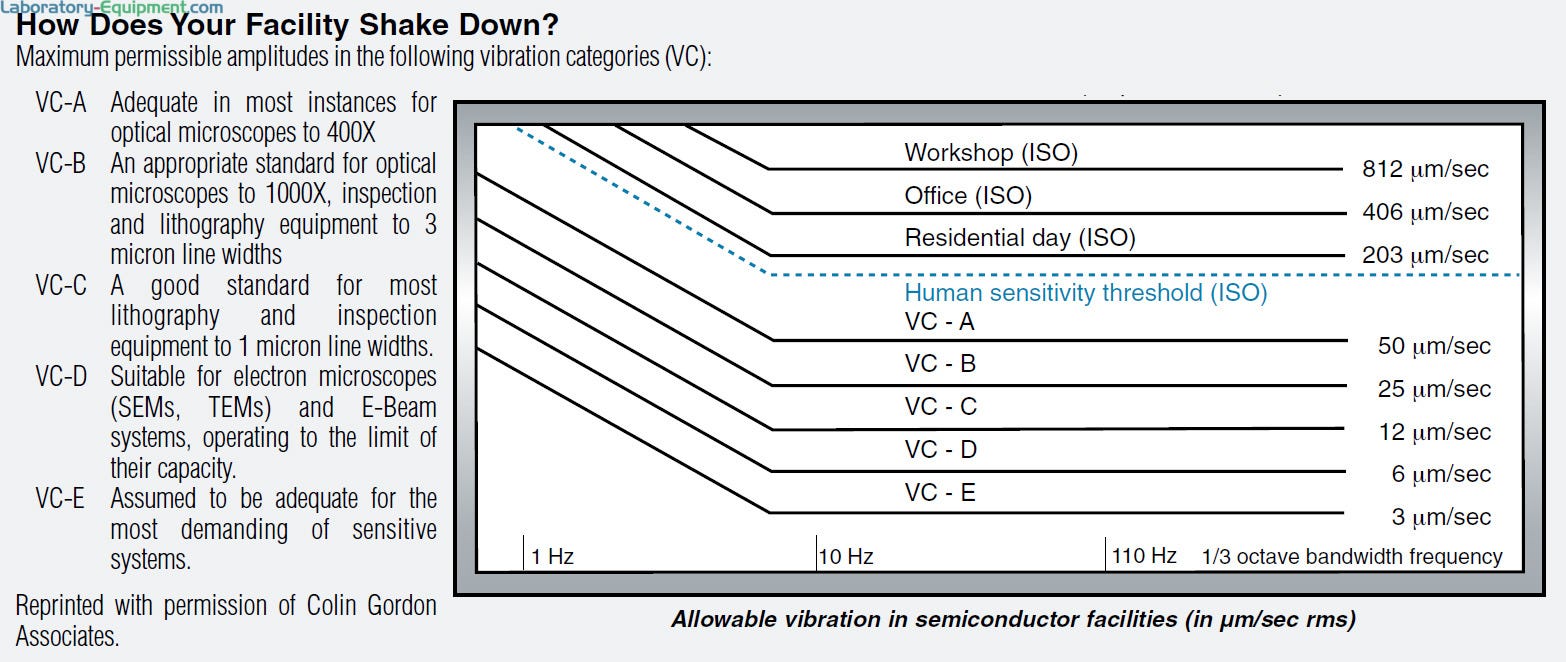

Human Vibration Sensitivity Threshold

Intrinsic levels of vibration in common workplace settings. Humans can sense vibration near 200 um/sec when performing microscopy work.

Vibration Isolation Performance Data

Vibration isolation performance data of TMC's ClassOne tables. Over 99% of low-amplitude vibration is isolated from the work surface, reducing operator nausea and fatigue.
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • CleanBenchâ„¢ Vibration Isolation Table Armrest

    Armrests and Sliding Shelves

    Armrests and/or sliding shelves mount to the CleanBenchâ„¢ frame to ensure vibration isolation (requires front and rear support bars fastened to the table legs).
  • CleanBenchâ„¢ Vibration Isolation Support Bars

    CleanBenchâ„¢ Vibration Isolation Table Support Bars

    Adjustable stainless steel support bars mounts on the front or rear legs of the CleanBenchâ„¢ Vibration Isolation Table, either centered or cantilevered, for positioning of shelves and/or arm rests.
  • CleanBenchâ„¢ Vibration Isolation Table Retractable Casters

    CleanBenchâ„¢ Vibration Isolation Table Casters

    CleanBenchâ„¢ vibration-isolation table retractable casters have a total weight capacity of 1,000 lbs. (450 kg); mount to base of table legs
