Patented rear baffle with zone perforation for horizontal laminar airflow; baffle slides downwards | 3644-56 displayed
Product Group:
3644-PP-08
3644-PP-08 71372

XPert Nano Enclosures by Labconco

Read more
Manufactured By: Labconco
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request

Select Product Options

Voltage

Sort Order:

 Frame Material

Sort Order:

 Model

Sort Order:

 Manufacturer SKU

Sort Order:

 Side Panels

Sort Order:

 Price Usually Ships in Stocked
115 V Epoxy Coated Steel XPert Nano 3887220 Tempered Glass $6,980 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887261 Tempered Glass $8,695 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887320 Tempered Glass $8,211 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887361 Tempered Glass $9,901 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887420 Tempered Glass $9,416 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887461 Tempered Glass $11,119 19-23 Days
115 V Epoxy Coated Steel XPert Nano 3887520 Tempered Glass $13,916 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3887561 Tempered Glass $16,841 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3887620 Tempered Glass $15,311 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3887661 Tempered Glass $18,234 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3888520 Tempered Glass $15,993 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3888561 Tempered Glass $18,902 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3888620 Tempered Glass $17,386 30-34 Days
115 V Epoxy Coated Steel XPert Nano 3888661 Tempered Glass $20,302 30-34 Days

Summary

  • XPert Nano Enclosures provide effective containment of hazardous or toxic powders and particulates during nanoparticle manipulation and dry powder chemical handling
  • Airflow is pulled into the hood, towards the baffle along the back wall and away from the operator; contaminated air then passes through an ULPA filter before recirculating back into the room
  • Built-in blower features a dynamically-balanced, vibration-isolated motorized impeller and speed control
  • Bag-in/bag-out ULPA filter disposal system allows for safe filter replacement (requires certified technician)
  • Built-in Guardian Airflow Monitor, installed right above the sash for comfortable viewing, immediately notifies users of unsafe airflow
  • Pressure gauge, mounted on the face of the hood, allows users to monitor filter loading and determine the need for replacement
  • Smooth, crevice-free stainless steel work surface with rounded corners offers easy clean-up
  • Negative pressure plenum (surrounding the positive pressure impeller) captures unfiltered air in the event of a leak
  • Aerodynamic foils around the sash opening reduce turbulence near the edges, providing additional protection for operators
  • Exhaust ULPA filters are 99.999% efficient on particles 0.12 micron
  • Ergonomic sash is made of ¼”-thick tempered safety glass and can pivot upwards for cleaning purposes.
  • ULPA filters can be easily scanned for leaks by opening the top of the upper housing
  • Rear interior baffle can be easily removed for cleaning
  • Fluorescent light fixture is mounted behind the sash to reduce glare
  • Deep interior can accommodate large analytical balances
  • Separate power switches for blower and fluorescent light are provided for convenience
  • Two utility ports are located in the back corners of the hood for equipment power cords
  • Quiet operation as low 48 decibels
  • Conformance: ANSI Z9.5-1993, CAN/CSA C22.2 No. 1010.1, ETL, Modified ASHRAE 110-1995, SEFA 1-2002, UL, NanoSafe, Inc. independent verification of particulate containment

  • Labconco Xpert Nano Ductless Exhaust Hood Labconco Xpert Nano Ductless Exhaust Hood

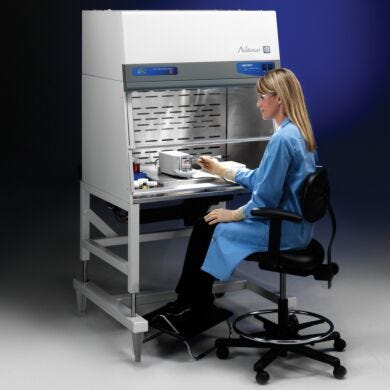

Labconco Xpert Nano Ductless Exhaust Hood
Labconco’s Xpert Nano Series of ductless exhaust hoods features an ULPA filtration system for the highest level of protection against nanoparticulates | 3644-57 displayed Labconco Xpert Nano Ductless Exhaust Hood Labconco’s Xpert Nano Series of ductless exhaust hoods features an ULPA filtration system for the highest level of protection against nanoparticulates.

Features and Benefits

Guardian 1000 Digital Airflow Monitor

The Guardian 1000 Airflow Monitor continuously monitors airflow, providing velocity readings and notifying personnel when airflow drops below the user-defined set-point.

Bag-In/Bag-Out HEPA Filter Replacement

The bag-in/bag-out HEPA filter replacement system allows trained personnel to safely remove the dirty filters without risking exposure to harmful contaminants.

Dedication to Business Ethics

Terra is committed to conducting business according to the highest standard of professional ethics and conduct. To review Terra’s ethics code, please visit: https://www.terrauniversal.com/ethics-policy/
Popular Accessories
For a full list of accessories, select a product then click Choose Accessories on that product page.
  • XPert Nano Enclosure Airflow

    XPert Nano Enclosure Airflow

    Labconco's Airflow Ionizer releases positive and negative ions into the hood that will neutralize static charges on the interior surfaces. Uncontrolled static allows powders and particles to cling to surfaces, creating a contamination hazard.
  • Standard Base Dual Door Cabinet for Hoods

    Standard Base Dual Door Cabinet

    Labconco's storage cabinets are constructed of epoxy-coated steel and have manual-closing, non-locking doors. Each cabinet can support up to 800 lbs. and includes an 8" filler panel to bridge any gap between cabinet and wall.
  • Labconco Telescoping Base Stands with Leveling Feet and Shelf

    Telescoping Base Stand with Fixed Feet

    Tubular, epoxy-coated steel frame base stands are adjustable to eight height positions in 1” increments from 27.5" to 34.5”; used with Labconco BSCs, hoods and enclosures
