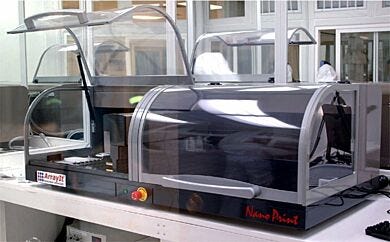

Microarray Printer, NanoPrint-2, LM210-2

Custom-configured product: Please request quote. Lab Equip will contact you for requirements.

Positional resolution: 500 nanometers using linear drive Warp1 control
Printing speed: 48 spots per second or 192 Spots second using "192" Series Pins and Printheads
Capacity: 384-well sample microplates and 210 standard glass slide substrate slides
Printing technology: Arrayit Pro, 946 or Stealth pins and printheads
Number of pins: Configurable 1 to 48 at 4.5 mm centers or 1 to 192 at 2.25mm

• Equipment Type: Printer

• Slide Capacity: 210 Slides

• Number of Printing Pins: 48 Pins

• Assay Type: Whole Cell

• Manufacturer SKU: LM210-2

• Unit of Measure: EA

Manufacturer SKU: LM210-2

Manufactured By: Arrayit

Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Email Chat

Want a quote quickly ?

Submit a QuickQuote request

Summary

Positional resolution: 500 nanometers using linear drive Warp1 control
Printing speed: 48 spots per second or 192 Spots second using "192" Series Pins and Printheads
Capacity: 384-well sample microplates and 210 standard glass slide substrate slides
Printing technology: Arrayit Pro, 946 or Stealth pins and printheads
Number of pins: Configurable 1 to 48 at 4.5 mm centers or 1 to 192 at 2.25mm

INCLUDES:

3 microplate and 210 slide capacity, anti-vibration table, accessory control module (ACM), environmental control, 48 microarray printing pins, professional series printhead, 10 x 25 (250) SuperEpoxy 3 microarray substrate slides, 2 x 50 ml Micro Spotting Solution Plus, 20 x MMP 384-well microplates, reagent carboys, tubing, connectors, fittings, tubing, high-speed computer, intuitive graphical user interface (GUI), 22" LED display, keyboard, mouse, and mouse pad

Destination: Microarray substrates, glass slides, microplates, custom

Spot diameter: 65 microns or larger to meet all applications

Minimum spot spacing: 50 microns

Pre-printing: User definable

Wash/Dry station: Ultrasonic with 2 wash positions and a dry station

Number of microplates: Three standard 384-well, customizable

Number of substrates: 210 Slides

Number of microplates: 45 96-well microplates

Microplate type: 96-well or 384-well microplates

Microplate cooling: Cool 1-3 microplates, for protein microarray applications, or use the refrigerated stacker for higher throughput and hands free automation.

Environmental control: Fully enclosed, HEPA filtration and user-defined humidity control

OPTIONS:

192 Pin Printhead (48 Pin Professional Printhead provided as standard)

Anti-vibration table

Peltier-driven microplate cooling

Microplate printing worktables

Custom worktables for proprietary printing cassettes, biochips and cartridges

Worktable conveyor

Microplate stackers, refrigerated with lid removal and barcode reader

Dehumidification

Specifications

• Equipment Type: Printer

• Slide Capacity: 210 Slides

• Number of Printing Pins: 48 Pins

• Assay Type: Whole Cell

• Manufacturer SKU: LM210-2

• Unit of Measure: EA

• Weight, Product: 441 Lbs

• Dimensions, Product: 64.6"W x 33.5"D x 22.1"H

• Weight, Shipping: 500 Lbs

• Package Type: Vendor
