6926-39A
Terra Part # 6926-39A
$36,506
Usually ships in 3-5 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA In stock
Accessories related to Terra Part # 6926-39A
75822

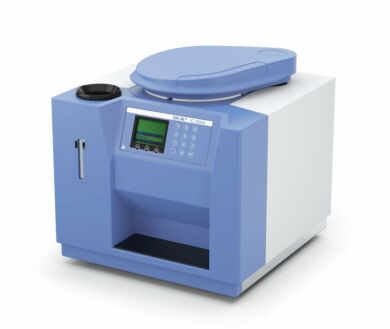

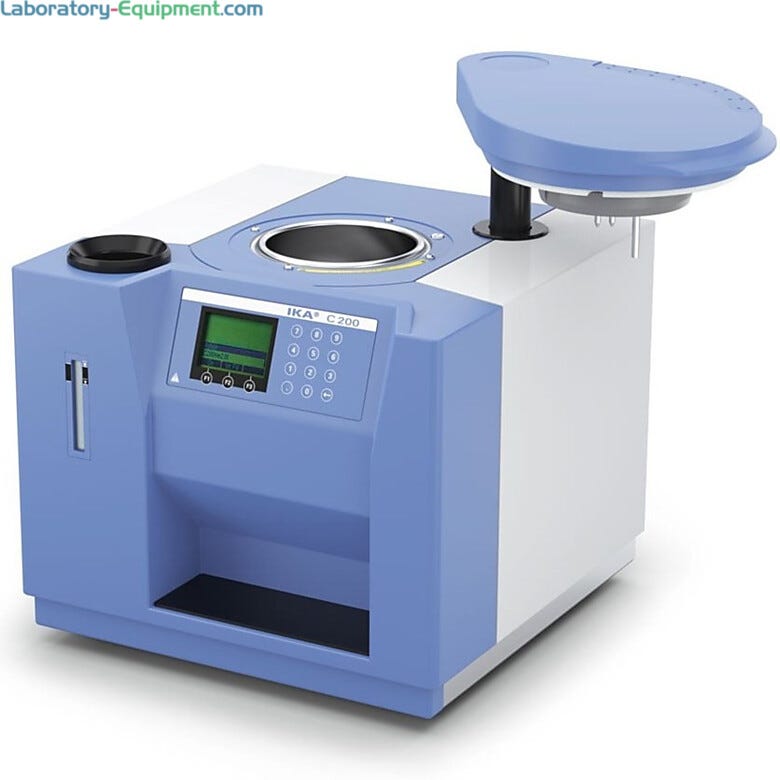

Calorimeter; C200 H, IKA, 120/240 V
Product Details
  • Four different operating modes:
  • Isoperibol approx: 17 min,
  • Dynamic: approv 8 min
  • Manual: approx. 17 min (depends on the operator)
  • Time Controlled: 14 min
  • System includes: C 200 calorimeter measuring cell, C5012 halogen resistant, catalytic activated ddecomposition vessel, C 200.2 coversion kit for C5012, C 248 Oxygen filling station, Comsumables for calibration and installation
  • Water and oxygen handling is conducted manually
  • Semi-automated combustion unit determines calorific value of liquid and solid samples
  • Ideal for teaching, training and in industrial labs
  • GOST- certified
  • User-friendly software C 6040 CalWin (sold separately
  • Automatic precise filling of inner vessel
  • Validation according to DIN 51900, ISO 1928, ASTM D240, ASTM D4809, ASTM D5865, ASTM D1989, ASTM D5468, ASTM E711.

Cooling Method: Water Flow

Halogen Resistant: Yes

Chiller: Yes

Modes: Isoperibol, Dynamic, Manual, Timed

Maximum Working Temperature: 25°C

Model: C200

Manufacturer SKU: 00088033701

Unit of Measure: EA

Electrical Specifications: 120/240 V

Weight, Product: 65.66 lb

Dimensions, Product: 15.75" W x 15.75" D x 15.75" H

Weight, Shipping: 70.66 lb

Dimensions, Shipping: 18.75" W x 18.75" D x 18.75" H

Buy Accessories
  1. Manual pellet press for powders; good combustible substances  |  6925-67 displayed
    C21 Pelleting Press Ships Free Free shipping in contiguous USA In stock
    $5,363
    Increase Down Increase Up
  2. To control the degassing process of the combustion gases after the decomposition  |  6926-43 displayed
    C5030 Venting Station Ships Free Free shipping in contiguous USA In stock
    $4,128
    Increase Down Increase Up
  3. Housing of sample during combustion  |  6926-40 displayed
    C5012 Decomposition Vessel, Halogen Resistant Ships Free Free shipping in contiguous USA In stock
    $11,078
    Increase Down Increase Up
  4. To reduce the oxygen pressure from the bottle to 30 bar  |  6926-44 displayed
    C29 Pressure Gauge, Oxygen Ships Free Free shipping in contiguous USA In stock
    $2,438
    Increase Down Increase Up
  5. Additional support for the combustion crucible  |  6926-42 displayed
    C5010.4 Attachment for Combustible Crucible C14, 100 qty. Ships Free Free shipping in contiguous USA In stock
    $400
    Increase Down Increase Up
  6. Fills in a higher amount of material with a low calorific value  |  6925-68 displayed
    C6 Quartz Crucible, Big Ships Free Free shipping in contiguous USA In stock
    $199
    Increase Down Increase Up
  7. Enables a quick and more efficient sample preparation process  |  6926-48 displayed
    C26 Prep Stand Ships Free Free shipping in contiguous USA In stock
    $1,682
    Increase Down Increase Up
  8. Capsules prevents splashing of the sample when igniting  |  6925-72 displayed
    C9 Gelatine Capsules Ships Free Free shipping in contiguous USA In stock
    $103
    Increase Down Increase Up
  9. Capsules prevents splashing of the sample when igniting  |  6925-73 displayed
    C10 Acetobutyrate Capsules Ships Free Free shipping in contiguous USA In stock
    $424
    Increase Down Increase Up
  10. To fill in samples with low calorific value, powdery, and with low specific gravity  |  6925-74 displayed
    C12 Combustion Bags 40 x 35 mm Ships Free Free shipping in contiguous USA In stock
    $128
    Increase Down Increase Up
  11. To fill in samples with low calorific value, powdery, and with low specific gravity  |  6925-75 displayed
    C12 A Combustion Bags 70 x 35 mm Ships Free Free shipping in contiguous USA In stock
    $137
    Increase Down Increase Up
  12. High pure Benzoic acid powder  |  6925-79 displayed
    C43 Benzoic Acid NBS 39i Ships Free Free shipping in contiguous USA In stock
    $1,628
    Increase Down Increase Up
  13. With IKA-certified gross calorific value for Standard-calibrations  |  6925-80 displayed
    C723 Benzoic Acid, Blister Package Ships Free Free shipping in contiguous USA In stock
    $83
    Increase Down Increase Up
  14. With IKA-certified gross calorific value for Standard-calibrations  |  6925-81 displayed
    C723 Benzoic Acid BIG Package Ships Free Free shipping in contiguous USA In stock
    $680
    Increase Down Increase Up
  15. Fills in a higher amount of material with a low calorific value  |  6925-68 displayed
    C4 Quartz Dish, Small Ships Free Free shipping in contiguous USA In stock
    $86
    Increase Down Increase Up
  16. A single crucible is allowed to be used for up to 25 combustions  |  6926-47 displayed
    C5010.3 Ignition Wire, Spare Ships Free Free shipping in contiguous USA In stock
    $424
    Increase Down Increase Up
  17. A single crucible is allowed to be used for up to 25 combustions  |  6925-71 displayed
    C710.2 Set of VA Combustion Crucibles Ships Free Free shipping in contiguous USA In stock
    $562
    Increase Down Increase Up
  18. A single crucible is allowed to be used for up to 25 combustions  |  6925-69 displayed
    C5 Set of VA Combustion Crucibles Ships Free Free shipping in contiguous USA In stock
    $562
    Increase Down Increase Up
  19. Cotton Threads for ignition of IKA Calorimeters  |  6926-45 displayed
    C710.4 Cotton Thread, Cut to Length Ships Free Free shipping in contiguous USA In stock
    $146
    Increase Down Increase Up
  20. Ignition wire for about 100 combustions each  |  6926-46 displayed
    C5010.3 Ignition Wire, Spare Ships Free Free shipping in contiguous USA In stock
    $107
    Increase Down Increase Up
  21. For hard flammable, water containing samples  |  6925-76 displayed
    C15 Paraffin Strips Ships Free Free shipping in contiguous USA In stock
    $145
    Increase Down Increase Up
  22. For closing the crucible combustion aid for liquids with volatile components,  |  6925-77 displayed
    C16 Parafilm Ships Free Free shipping in contiguous USA In stock
    $422
    Increase Down Increase Up
  23. Combustion aid for samples with high watercontent percentage  |  6925-78 displayed
    C17 Paraffin Ships Free Free shipping in contiguous USA In stock
    $696
    Increase Down Increase Up
  24. Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  25. Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  26. Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Calorimeters

  • C 200 Calorimeter by IKA C 200 Calorimeter for Low Throughput Labs
