120 V Wet Stainless Steel 2 ½” Disc Brush BSX800-DAF 5608-28 81164 $19,997 10-16 Days 2
120 V Wet Stainless Steel Vertical 3” Brush BSX800V 5608-27 81163 $25,333 10-16 Days 3
120 V Wet Stainless Steel Vertical 6” Brush BSX800V-DAF-6 5608-29 81165 $25,333 10-16 Days 4
120 V Wet Stainless Steel Vertical 9” Brush BSX800V-DAF-9 5608-30 81166 $26,803 10-16 Days 5
Voltage
Type
Material
Configuration
Manufacturer SKU
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Select a product line for product summary
Product Details
Product Details
  • BSX800 Series Compact Walk Through Dual Wet Boot Scrubbers for medium traffic applications
  • Solid stainless steel frame construction for secure walk throughs during wash downs
  • BSX800V models feature three vertical rotating side brushes ( 3”, 6” and 9” sizes) and one horizontal sole brush

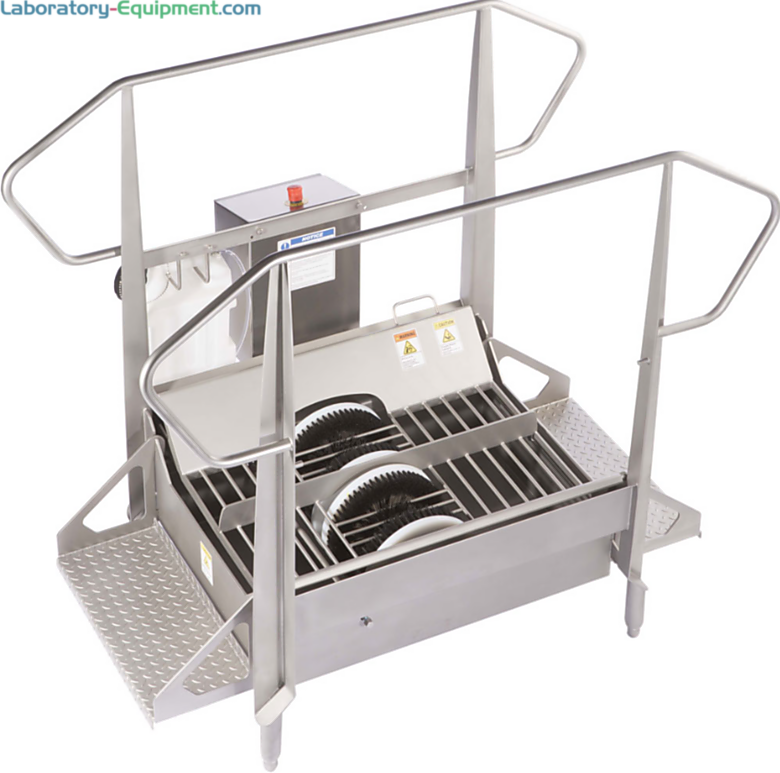

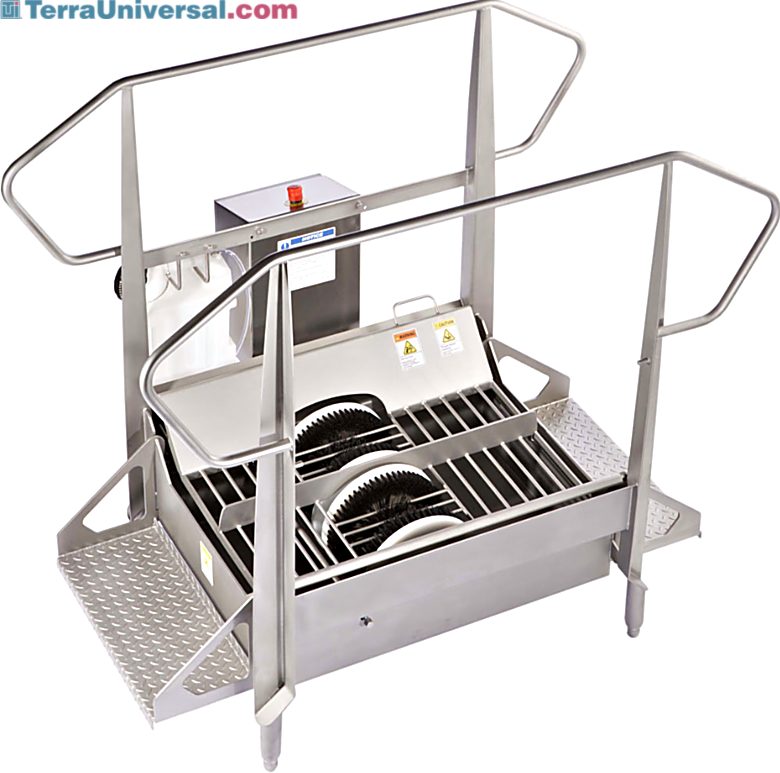

  • BSX800 standard model features two 2 ½” rotating disc brushes that clean the sides and soles of boots
  • Diluted cleaning solution delivered via stainless steel Venturi dilution valve and metering tip
  • Recommended:  Alpet® No-Rinse Quat Sanitizer
  • Use in plants with medium to high number of employees and in areas with medium amount of open space, access to water lines and accessible floor drains
  • Features:
  • Unit activation with proximity sensor and spring loaded grate
  • Solid stainless steel construction of frame, hinged access grade, two removable steel step, electrical enclosure, motor
  • Removable components and brushes
  • Sturdy handrail
  • Hinged steel access grate
  • Removable brushes for easy cleaning and  assembly
  • Self-draining tub for easy cleaning
  • Four adjustable dairy approved feet
  • Washdown motor rated at ½ hp and worm gear reducer
  • Solenoid activated brush spray system with Venturi injector for sanitizer with flow rated
  • at 1.5 Gpm
  • BSX800 Throughput: 1 user at a time; 15 to 25 users per minute
  • Connection Requirements
  • 110V ac, 15 amp electrical connection required
  • 3/8” Nptf cold water connection, 50psi recommended
  • 1.5” Tri-clamp drain connection
  • Replacement Brushes:
  • USP20110: Vertical Brush 8″ Diameter x 2.5″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20111: Side Disc Brush 12″ Diameter (for use with BSX800-DAF, BSX1000V-DAF)
  • USP20113: Horizontal Brush 8″ Diameter x 6″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20114: Combination Brush Assembly (for use with BSX800-DAF, BSX1000-DAF)
  • USP20118: Brush Vertical Cyl 8″ x 6″ (for use with BSX600-DAF-6, BSX800V-DAF-6, BSX1000V-DAF-6)

  • BSX800 Compact Walk Through Wet Boot Scrubber by Best Sanitizers BSX800 Compact Walk Through Dual Wet Boot Scrubber Video by Best Sanitizers
BSX800 Compact Walk Through Wet Boot Scrubber by Best Sanitizers
Features & Benefits

Features and Benefits

Solid Stainless Steel

BSX800 models feature a solid stainless steel frame construction ideal for use in medium traffic applications; also features stainless steel electrical enclosure, motor, worm gear reducer and hinged grade

Automatic Unit Activation

BSX800 models feature a proximity switch sensor that activates when a user steps on the spring loaded grate
