5608-24
Terra Part # 5608-24
$15,225
Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 5608-24
81154

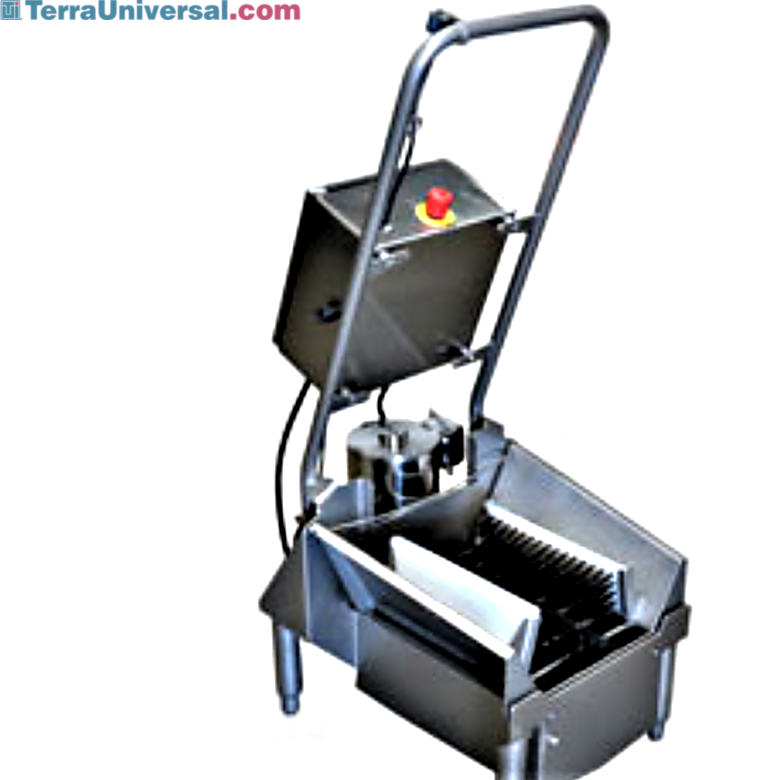

BSX400-DAF Single Boot Scrubber,Wet, Leveling Feet, Best Sanitizers
Product Details
  • Compact BSX400-DAF Wet Single Boot Scrubber with two stationary side brushes and one sole brush thoroughly cleans rubber footwear
  • Durable stainless steel construction and tool less removable components for easy clean-up
  • Unit activation with photo eye sensor mounted on handle
  • Includes Venturi dilution valve (dilutes cleaning solution) and metering tip
  • Self-draining tub with four adjustable Dairy Approved Feet
  • Additional replacement brushes available
  • Use in plants with limited to medium open spaces with access to water lines and accessible floor drains

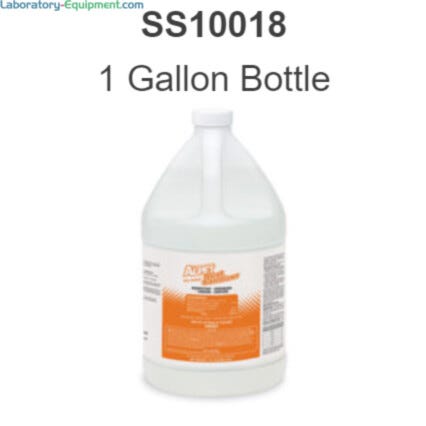

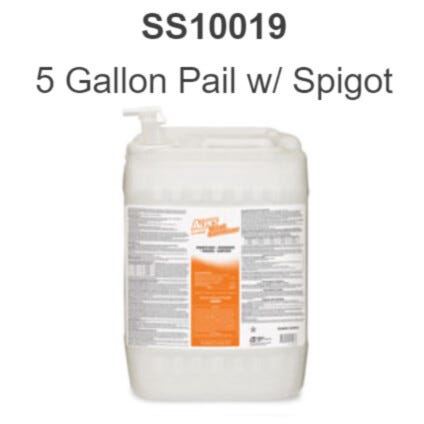

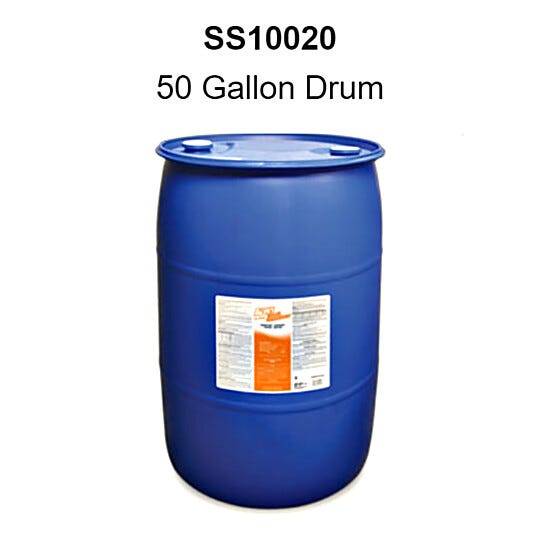

  • Recommended: Alpet® No-Rinse Quat Sanitizer (disinfects pre-cleaned rubber footwear)
  • BSX400-DAF Throughput:
  • 1 user at a time
  • Slow walk through: 2-3 users per minute
  • Fast walk through: 3-6 users per minute
  • Features of BSX400 Boot Scrubber:
  • Solenoid activated brush spray system with Venturi injector for sanitizer with flow rated at 1.5 Gpm
  • Two stationary side brushes and one sole brush for thorough wet cleaning of rubber footwear
  • Diluted cleaning/sanitizing solution sprayed through brushes and onto boot
  • Cleans one rubber boot at a time
  • 304 Stainless Steel Construction: frame, handrail, components, venture dilution valve, two right angle gearboxes (for vertical side brushes), electrical enclosure, ½ hp motor and worm gear reducer, access grate
  • Removable brushes and components enable easy and thorough cleaning of areas where pathogens can hide
  • Automated activation with photo eye sensor mounted on handrail
  • Variable speed drive, time and e-stop
  • Removable stainless-steel access grate for easy cleaning
  • Self-draining tub with four adjustable feet
  • Effective wash down with open sanitary design without cavities
  • Connection Requirements
  • 110V ac, 15 amp electrical connection required
  • 3/8” Nptf cold water connection, 50psi recommended
  • 1.5” Tri-clamp drain connection
  • Accessories:
  • USP20117: Brush Lower (for use with BSX400-DAF)
  • USP20115: Fixed Brush  10.5" x 3" (for use with BSX400-DAF)

Type: Wet

Manufactured by: Best Sanitizers

Manufacturer SKU: BSX400-DAF

Material: Stainless Steel

Unit of Measure: EA

Weight, Product: 200 lb

Dimensions, Product: 20.5" W x 26" D x 46" H

  • BSX400-DAF Single Wet Boot Scrubber Video by Best Sanitizer BSX400-DAF Single Wet Boot Scrubber Video by Best Sanitizers
BSX400-DAF Single Wet Boot Scrubber Video by Best Sanitizer

Features and Benefits

Stainless Steel Construction

Durable stainless steel construction and stainless steel wash down rated 1/2 hp motor and worm gear reducer are easy to clean and resist corrosion

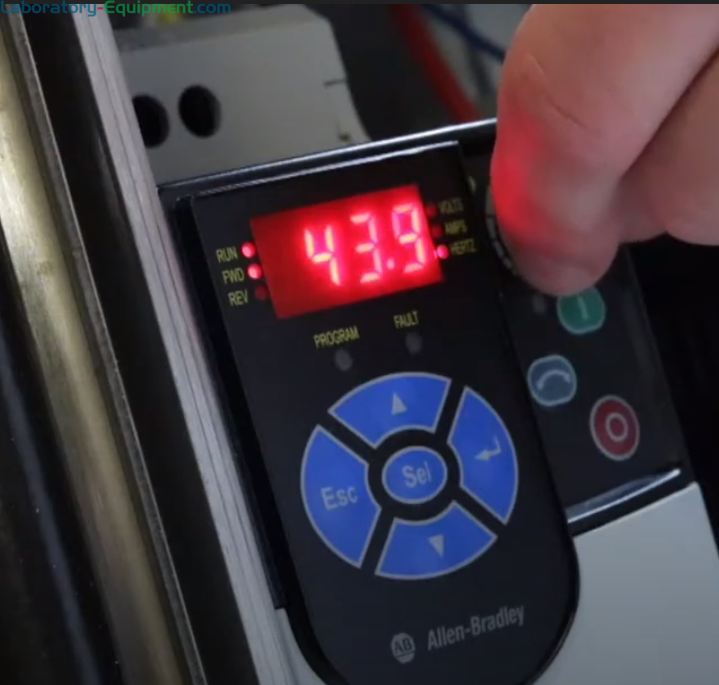

Controlled Brush Speed

Users can control brush speed and set wash down parameters with the variable speed drive, timer and e-stop on BSX400 models

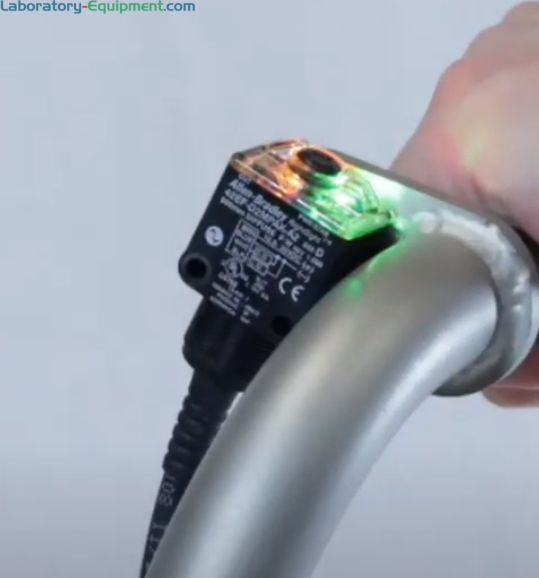

Optical Sensor

Automated activation with optical sensor mounted on the stainless steel handrail enables smooth start and stop of boot scrubber unit on BSX400 model

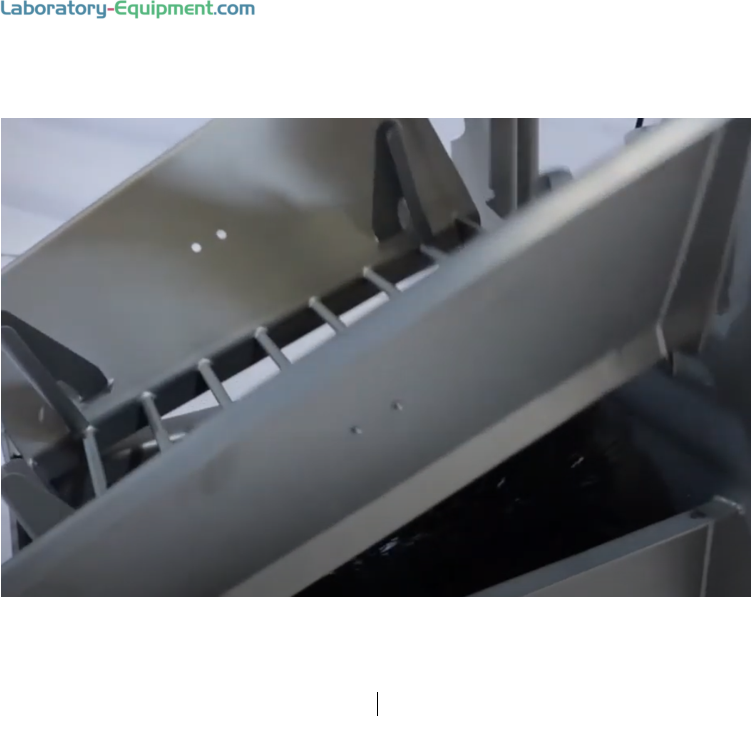

Removable Bottom Grate

Easy-to-clean removable bottom grate eliminates the need for tools and enables convenience when transitioning unit to sanitize rubber footwear with the use of a chemical disinfectant

Sanitary Design

Open sanitary design devoid of cavities enable thorough cleaning of unit and prevents harboring of bacteria and pathogens by allowing water to escape through the bottom drain
