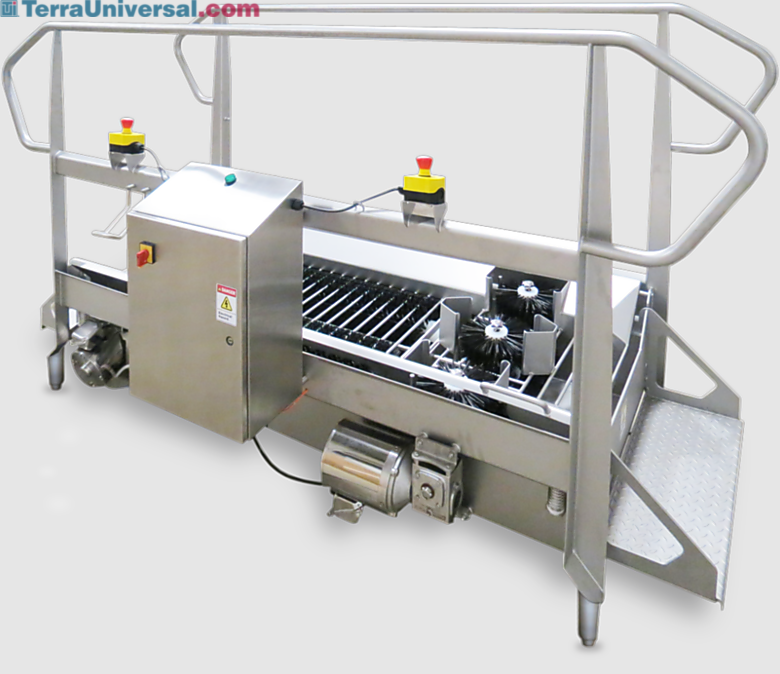

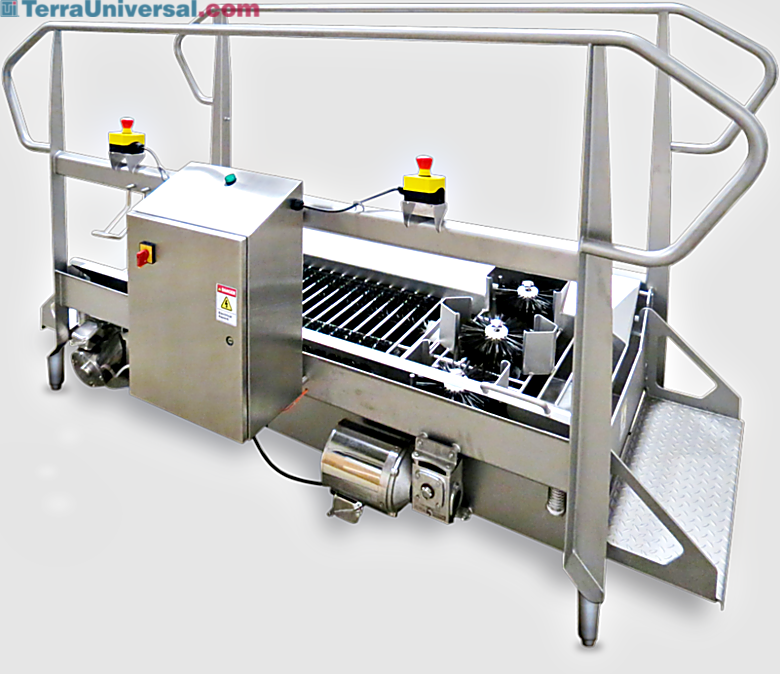

Solid Stainless Steel BSX1000 High-Capacity Walk Through Boot Scrubbers allow users to enter and exit on either side; removable components and brushes for easy | 5608-PP-07 displayed
Product Group:
5608-PP-07
5608-PP-07 81189

BSX1000 Series High-Capacity Wet Walk Through Boot Scrubbers by Best Sanitizers

  • High-Capacity BSX1000 Wet Walk Through Dual Boot Scrubber with combination side and sole brushes enable multiple points of contact between brushes and boots
  • Solid stainless steel models include two rotating 33” long horizontal sole brushes (vertical brushes on "V" models)
  • Bi-directional design with two E-stops enable users to enter and exit on either side of unit
  • Throughput: 3 users at a time; 15-25 users per minute ideal in high traffic application
  • Use in food processing plants with a high number of employees, ample open space with access to water lines, and floor drains
Read more
Warranty: One-Year Manufacturer Warranty
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
Select Product
Type

Sort Order:
Material

Sort Order:
Configuration

Sort Order:
Manufacturer SKU

Sort Order:

 Terra Part # Price Ships in
Wet Stainless Steel Three 3” Vertical Brushes BSX1000-DAF-3 5608-35 81192 $36,348 10-16 Days 2
Wet Stainless Steel Three 6” Vertical Brushes BSX1000V-DAF-6 5608-36 81193 $39,140 10-16 Days 3
Wet Stainless Steel Three 9” Vertical Brushes BSX1000V-DAF-9 5608-37 81194 $41,236 10-16 Days 4
Wet Stainless Steel Two 2.5” Side Disc Brushes BSX1000-DAF 5608-33 81190 $36,348 10-16 Days 5
Wet Stainless Steel Two 33” Sole Brushes BSX1000S-DAF 5608-34 81191 $36,348 10-16 Days 6
Type
Material
Configuration
Manufacturer SKU
ORDERED
Item ordered before. Click on bagde to see the order.

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Some ship in:
Usually Ships in:
Free shipping in contiguous USA
CHOOSE ACCESSORIES & BUY OR QUOTE
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
Custom-configured product. Contact Lab Equip by phone, chat or email for a project-specific quote.
See Product Details
Back to product group
Select a product line for product summary
Show more
Product Details
Product Details
Features & Benefits
Available Accessories
Products similar to this one
Buy Accessories
Manuals & Resources
Product Details
Product Details
  • High-Capacity BSX1000 Wet Walk Through Dual Boot Scrubber with combination side and sole brushes enable multiple points of contact between brushes and boots
  • Solid stainless steel models include two rotating 33” long horizontal sole brushes (vertical brushes on "V" models)
  • Bi-directional design with two E-stops enable users to enter and exit on either side of unit
  • •  Throughput: 3 users at a time; 15-25 users per minute ideal in high traffic application
  • Use in food processing plants with a high number of employees, ample open space with access to water lines, and floor drains
  • Recommended:  Alpet® No-Rinse Quat Sanitizer
  • Features:
  • BSX1000 models includes two rotating disc brushes
  • BSX1000V models included three vertical rotating brushes and two long horizontal sole brushes
  • Solid stainless steel frame construction: hinged access grate, two removable steps, electrical enclosure (with variable speed drive, timer and e-stop)
  • Solenoid activated brush spray system with Venturi injector for sanitizer with flow rated at 2.5 Gpm
  • Activation: user steps on platform and activates via a proximity sensor and spring loaded grate
  • Stainless steel Venturi dilution valve and metering tip provide desired PPM
  • Diluted cleaning solution sprayed onto rotating brushes
  • Three stainless steel washdown motors (rated ½ hp) and three worm gear reducers
  • Four adjustable dairy approved feet
  • Tool less removal of brushes and components
  • Self-draining tub for easy cleaning
  • Connection Requirements
  • 220V ac, single phase, 15 amp electrical connection required
  • 3/8” Nptf cold water connection, 50psi recommended
  • 1.5” Tri-clamp drain connection
  • Accessories:
  • USP20110: Vertical Brush 8″ Diameter x 2.5″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20111: Side Disc Brush 12″ Diameter (for use with BSX800-DAF, BSX1000V-DAF)
  • USP20112: Horizontal Brush for BSX-1000 (for use with BSX1000-DAF, BSX1000V-DAF)
  • USP20113: Horizontal Brush 8″ Diameter x 6″ Wide (for use with BSX600-DAF, BSX800V-DAF, BSX1000V-DAF)
  • USP20114: Combination Brush Assembly (for use with BSX800-DAF, BSX1000-DAF)
  • USP20118: Brush Vertical Cyl 8″ x 6″ (for use with BSX600-DAF-6, BSX800V-DAF-6, BSX1000V-DAF-6)
  • USP20337: Optional Side Shield
Show more

Show more

  • Video of BSX1000 Series High-Capacity Walk Through Boot Scrubbers by Best Sanitizers Video of BSX1000 Series High Capacity Walk Through Boot Scrubbers by Best Sanitizers
Video of BSX1000 Series High-Capacity Walk Through Boot Scrubbers by Best Sanitizers
BSX1000 video shows product operation and removable components Video of BSX1000 Series High Capacity Walk Through Boot Scrubbers by Best Sanitizers Video for BSX1000 High Capacity Walk Through Boot Scrubbers show product operation, and tool less removal of brushes and components
Features & Benefits

Features and Benefits

Learn More

High Traffic Boot Cleaning

BSX1000 models with a two-way walk through entry/exit design offer flexibility streamline walk throughs ideal for use in high traffic food processing plants

Washdown-Rated Tub Design

Washdown rated 1/2hp motor and self-draining tub design for quick and easy cleaning of dirt and debris
Learn More

33” Rotating Horizontal Sole Brushes

All High Capacity BSX1000 models include two 33” rotating sole brushes that are easily removable without tools

Two E-Stops

Two E-Stops located on both ends of the bi-directional walk- through design enable users to easily start and stop the unit upon entry and exit
