Biological Safety Cabinets

A biological safety cabinet (BSC), also referred to as a biosafety cabinet, is a hood or glove box suitable for safe handling and manipulation of biological samples, bacteria, infectious organisms, such as COVID-19, and some substances known to cause cancer (carcinogens) or birth defects (teratogens). Biological safety cabinet requirements are defined by Biological Safety Levels (BSL), which differentiate health and safety risks between Class 1, Class 2, Class 3, and Class 4 environments.

Class II Biological Safety Cabinet systems provide both HEPA filtered supply air and HEPA filtered exhaust air. Class-2 biosafety cabinets are required in the presence of moderately hazardous microbes, such as Staphylococcus aureus. Class-2 biosafety sub-types include A1, A2, B1, B2, and C1 configurations. Class II A2 biosafety cabinets recirculate 70% of the air back into the work area while exhausting the remaining 30%. Class II B2 biosafety cabinets immediately exhaust 100% of the air leaving the work area. Class II C1 biosafety cabinets are NSF/ANSI 49 approved and capable of toggling between A2 and B2 configurations.

Class I Biological Safety Cabinet systems are appropriate in the presence of microbes that do not consistently cause disease, such as E. coli. A negative-pressure hood draws air from the room into the enclosure and recirculates the air internally after UV-C and HEPA filtration. Ducted designs allow routing of noxious chemicals to an outside environment. BSC-1 biosafety cabinets do not have HEPA filtered supply air.

Shop our wide selection of biosafety cabinets from Terra, Labconco, and GERMFREE. Call or chat with a live product specialist for help with configurations or custom solutions.

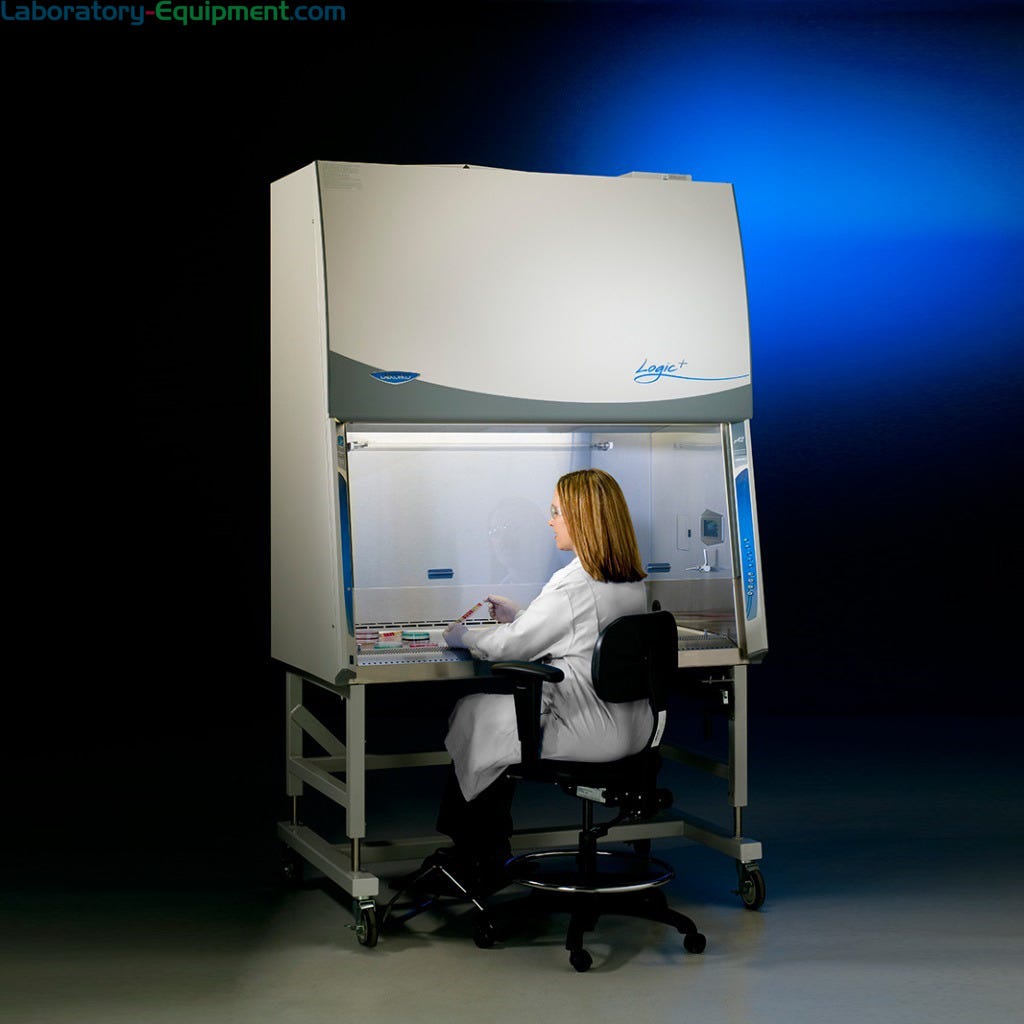

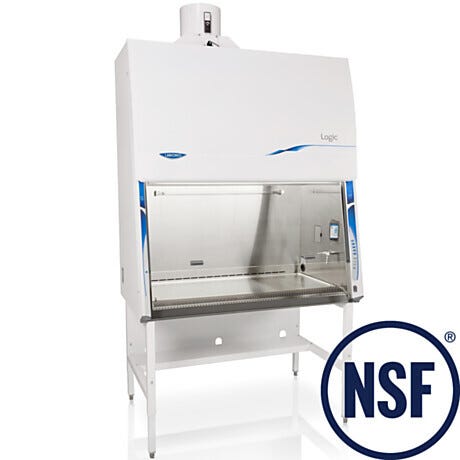

Purifier Logic+ Class II, B2 Biological Safety Cabinets by Labconco
Group of 16 products
3651-PP-01

From
As low as $15,837

Some ship in 25 - 29 days

ISO 5 Icon

2 Voltage2 Width2 Base Stand1 Sash Opening1 Model2 UV Lamp16 Manufacturer SKU

Save For Later

Voltage: 230 V, 115 V
Width: 48", 72"
Base Stand: Optional, Included
Sash Opening: 8"
Model: Purifier Logic+
UV Lamp: Optional, Included
Manufacturer SKU: 303480011, 303480001, 303480111, 303480101, 303481011, 303481001, 303481111, 303481101, 303680011, 303680001, 303680111, 303680101, 303681011, 303681001, 303681101, 303681111
Stocked

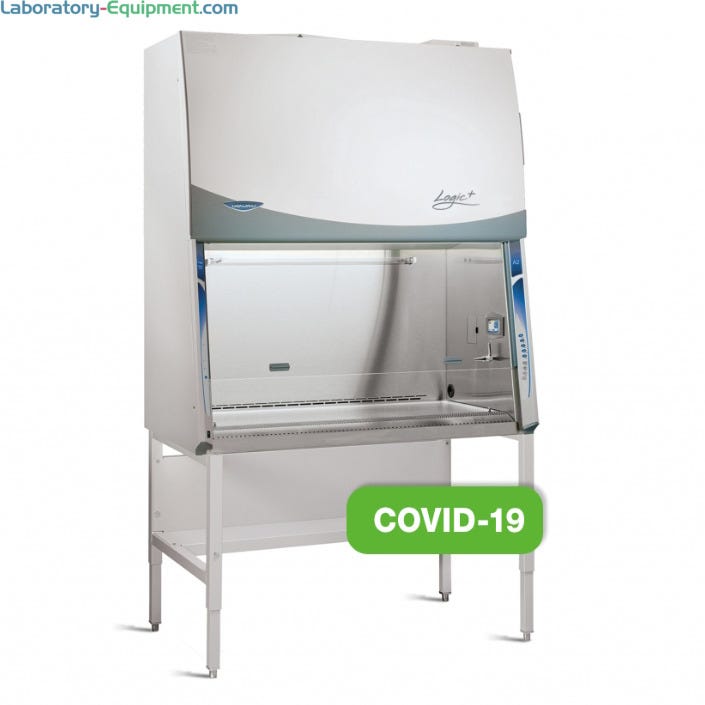

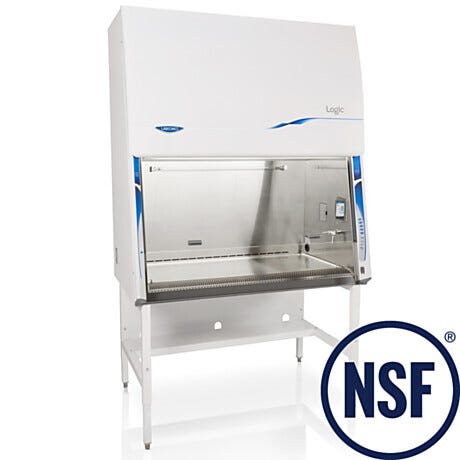

Purifier Logic+ Class II A2 Biological Safety Cabinets by Labconco
Group of 32 products
3642-PP-01

From
As low as $9,934

Some ship in 5 - 7 days

ISO 5 IconStocked

2 Voltage4 Width2 Base Stand2 Sash Opening1 Model1 UV Lamp32 Manufacturer SKU
Save For Later
NSF-Listed Class II Type A2 BSC ideal for COVID-19 handling
Ergonomic MyLogic OS Interface with line-on-sight screen displays cabinet information
ECM and CAP pairing achieves proper airflow even as HEPA filters load
Conformance: ADA, CAN/CSA C22.2, CE, ETL, NSF 49, UL
Select 3’, 4’, 5’ and 6’ models include base stand and built-in options
Voltage: 115 V, 230 V
Width: 48", 36", 60", 72"
Base Stand: Included, Optional
Sash Opening: 10", 8"
Model: Purifier Logic+
UV Lamp: Included
Manufacturer SKU: 302411101, 302411111, 302381011, 302381111, 302411001, 302411011, 302481101, 302481111, 302511001, 302511011, 302511101, 302511111, 302581011, 302311001, 302581101, 302581111, 302611001, 302611101, 302611011, 302311101, 302611111, 302681011, 302681101, 302311111, 302681111, 302381101, 302481011, 302581001, 302681001, 302311011, 302381001, 302481001

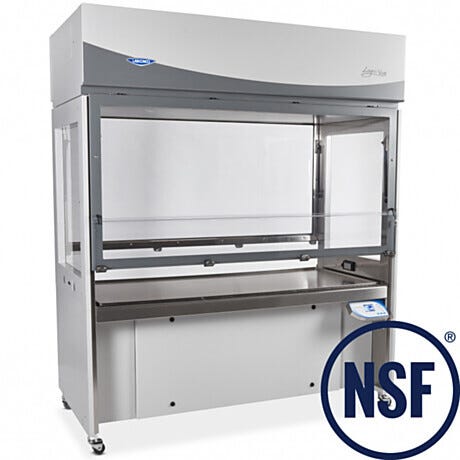

Logic Vue Class II Biosafety Cabinets by Labconco
Group of 2 products
3642-PP-06

From
As low as $25,147

Some ship in 20 - 24 days

ISO 5 Icon

1 Voltage2 Width1 Base Stand1 Sash Opening1 Model2 Manufacturer SKU
Save For Later
Logic Vue Class II Biosafety Cabinets designed to maximize protection and containment for large instruments
Feature dual full-open sash openings, HEPA filters, safety interlock, and stainless steel interior
Intuitive MyLogic Operating System shows clear status information on LCD display ( 8 languages)
Protection Type: Product and Personnel
Conformance: ADA, CAN/CSA C22.2,ETL, NSF 49, UL
Voltage: 115 V
Width: 72", 48"
Base Stand: Integral
Sash Opening: 8"
Model: Logic Vue
Manufacturer SKU: 3300600, 3300400

Biological Safety Cabinets

Features and Benefits

Print Copy Copied

Biosafety Cabinets (BSCs) and Biological Safety Levels (BSLs): Breaking Down the Differences

What is a BSL?

Biological Safety Level (BSL) is a biocontainment designation developed by the American Biological Safety Association (ABSA) to protect personnel from exposure to harmful, potentially pathogenic microbes in a research or manufacturing environment.

What differentiates BSL designations from one another?

In the United States, the Center for Disease Control specified four general Biosafety Levels, adopted from the ABSA designations. Each increasing BSL corresponds to greater risk, building upon the previous level to provide greater protection.

BSL-1: for work with well-characterized microbes that do not present a serious health risk, such as laboratory strains of E. coli. This designation does not require engineering controls (i.e. a biosafety cabinet) and can be carried out on the bench with minimal personal protective equipment.
BSL-2: for work with moderately hazardous microbes known to cause infectious diseases in humans. An example of this would be Staphylococcus aureus. This level requires the use of a biological safety cabinet with negative-pressure containment, and exhausted air must be filtered prior to release.
BSL-3: for work with potentially lethal microbes that are easily aerosolized, such Mycobacterium tuberculosis. This level requires restricted access to the work environment, immunization of personnel (where available), and the use of respirators. Work must be performed in a primary engineering control such as a biosafety cabinet, and air must be filtered before it can be exhausted.
BSL-4: for work with high-risk, airborne pathogens that frequently cause lethal infections, such as Ebola. Requires all work to be carried out in a Class III BSC. In addition, personnel must use full-body, positive-pressure cleanroom suits. All materials must be decontaminated prior to leaving the BSC.

Which BSC is appropriate to which BSL?

Biological safety cabinets were designed to provide localized protection from potentially biohazardous substances. In general, the BSL level corresponds to BSC class, indicating the BSC type most appropriate for each BSL application. The National Science Foundation designates three classes for BSCs:

Class I: a negative-pressure hood in which air is drawn from the room into the enclosure and subsequently exhausted after treatment with UV-C germicidal light and HEPA filtration. These enclosures protect personnel, but do not protect products within the hood.
Class II: protect both operator and product. These units provide a HEPA-filtered laminar flow of air to protect the product from contamination, much like a laminar flow hood. Air is then directed into negative pressure plenums where it can be re-filtered or exhausted into a ducting system. Four common types of Class II BSCs are distinguished by air velocity as well as the percentage of air that recycled versus exhausted.

Type A1 (formerly Type A): minimum inflow velocity of 75 ft/min. 70% of air is recirculated; 30% is ducted. The contaminated plenum is surrounded by the lab environment.
Type A2 (formerly Type A/B3): minimum inflow velocity of 100 ft/min., with a negative plenum surrounding the contaminated plenum. 70% of air is recirculated; 30% is ducted.
Types B1 and B2 have dedicated hard-ducted exhaust lines, with 70% air exhaust in Type B1 and 100% air exhaust in Type B2.

Class III: provide the highest level of protection when working with high-risk pathogens. These enclosures are gloveboxes with airtight seals. Operators use glove ports to manipulate materials within the enclosure, never coming into direct contact with any materials. Exhaust air is HEPA filtered and directed into a ducting system.

BSCs, BSLs, and ISO Classes

When it comes to working with hazardous or potentially infectious material, protecting personnel must be the primary concern. However, offering personnel protection does not have to come at the cost of risking product integrity. Class II BSCs provide protection to both personnel and product simultaneously. They provide an ISO class 5 clean environment for product manipulation, while ensuring that exhaust air is filtered and ducted out of the environment. Thus, a class II BSC is the ideal solution when working with moderately hazardous material and both personnel and product safety are required.

Critical Environment Solutions

Terra's mission is to help customers in highly regulated industries transform the world with critical environment solutions that improve health, safety, performance, and yields. These environments may comply with stringent UL, ISO, IEST, ASTM and OSHA standards and local requirements.

Purifier Logic+ Class II Type A2 Biosafety Cabinet by Labconco

Protects lab researchers working with hazardous airborne particulates requiring Biosafety Level 1,2 and 3 containment; discharges HEPA filtered exhaust air

Class II Type A2 Biosafety Cabinet

Class II Type A2 biological safety cabinets recirculate 70% of HEPA-filtered air and are appropriate for Biosafety level 1, 2 or 3 containment.

Class II Type B2 Biological Safety Cabinet

Protects both user and product. Discharges 100% of filtered exhaust air. Requires a dedicated exhaust system and remote blower. Suitable for BSL 1,2 and 3 environments.

Class II Type C1 Biosafety Cabinet

These ergonomic units toggle between Type A and Type B modes, for use in BSL 1,2 and 3 environments.
