AutoMATE 96 Microplate Pipetting Workstations by Accuris with a motorized head and 4-position platform include a touch-screen tablet, PCR and 384-well plate ada | 7906-PP-07 displayed
Liquid Handlers & Robotics

AutoMATE™ 96 Channel Pipetting Workstation; 1 ul - 1,000 ul, 230 V, Accuris, MP9604-E

  • 230 V AutoMATE 96 Pipetting Workstation simultaneously dispenses up to 96 channels in seconds
  • Four-position motorized sliding platform for precise alignment of tips (with use of appropriate microplate/reservoir)
  • Automated tip loading and ejection, and six pipetting modes
  • Three interchangeable pipetting heads 1-20µL, 5-200µL, 100-1000µL (sold separately)
  • Includes: 8" touchscreen tablet, PCR plate adapter and 384-well microplate adapter

• Type: Automated Liquid Handling

• Model: AutoMATE™ 96

• Manufactured by: Accuris

• Manufacturer SKU: MP9604-E

• Pipetting Range: 1 ul - 1,000 ul

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: MP9604-E
Manufactured By: Benchmark
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
7906-71
Terra Part # 7906-71
$15,011
Usually ships in 1-3 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 7906-71
81545
AutoMATE™ 96 Channel Pipetting Workstation; 1 ul - 1,000 ul, 230 V, Accuris, MP9604-E
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Manuals & Resources
Related Products
Buy Accessories
Product Details
  • 230 V AutoMATE 96 Pipetting Workstation simultaneously dispenses up to 96 channels in seconds
  • Four-position motorized sliding platform for precise alignment of tips (with use of appropriate microplate/reservoir)
  • Automated tip loading and ejection, and six pipetting modes
  • Three interchangeable pipetting heads 1-20µL, 5-200µL, 100-1000µL (sold separately)
  • Includes: 8" touchscreen tablet, PCR plate adapter and 384-well microplate adapter
  • Applications: PCR/qPCR setup in PCR plates, cell culture prep, media change, reagent addition, replication of microplates, 384-well plate set up, cell-based assays preparation, ELISA preparation (plate coating, washing, aspirating, master mix preparation)
  • High-throughput liquid handling equipment improves productivity when filling microplates
  • Automated pipetting station reduces processing time and errors compared to manual pipetting
  • Compact models fits on top of a lab bench or inside a biosafety cabinet
  • Compatible with all brands of microplates and reservoirs that meet SLAS/ANSI formats
  • Fully-automated tip loading and ejection enables hands-free operation and consistent tip loading throughout 96 wells
  • 8" color touchscreen display
  • Aspiration/dispensing capacity: 1-1000µL
  • Platform capacity: 4 tip racks/plates/reservoirs
  • Channels: 96 individual pistons
  • Air displacement pipetting technology
  • USB ports for importing/exporting
  • Pipetting modes:
  • Standard pipetting: automatic dispensing and aspiration of reagents ensure accurate transfer to and from microplates or reservoirs
  • Multi-dispensing (repeat pipetting): streamlines filling process and prevents hand strain or fatigue
  • Secondary-dispensing (plate filling): aspirates and dispenses multiple reagents into the same microplate and programmable to include a mixing step with each dispense
  • Serial dilutions: delivers automatic and error free serial dilutions
  • Mixing: easily mixes reagents using adjustable speeds ensuring consistency
  • Reverse pipetting: ideal for volume accuracy and precision with small volumes of biological fluids
  • Intuitive Software and Programming Modes:
  • Manual mode: provides real-time information of pipette tips
  • Functions: load/ eject tips; aspirate, dispense, mix and blow out reagents
  • Automated program mode: enables simple protocol creation made up of multiple steps in succession, and one-button run of complex protocols from tip-loading through completion
  • Programmable steps: load/eject tips, aspirate/dispense reagents, serial dilutions, rinse tips, cycle repeat, pause after a certain step
  • List of Accessories for AutoMATE 96 #MP9604-E:
  • Pipetting head for AutoMATE: 1-20ul #MP9600-20PH
  • Pipetting head for AutoMATE: 5-200ul #MP9600-200PH
  • Pipetting head for AutoMATE: 100-1000ul #MP9600-1000PH
  • AutoMATE Pipette tips, racked 96 well, 20ul Low Retention, 24/cs #MP96-T20-LR
  • AutoMATE STERILE Pipette tips, racked 96 well, 200ul Filtered, Low Retention, 24/cs #MP96-T200-LRFS
  • AutoMATE Pipette tips, racked 96 well, 200ul Low Retention, 24/cs #MP96-T200-LR
  • AutoMATE STERILE Pipette tips, racked 96 well, 200ul Filtered, Low Retention, 24/cs #MP96-T200-LRFS
  • AutoMATE Pipette tips, racked 96 well, 1000ul Low Retention, 16/cs #MP96-T1000-LR
  • STERILE Pipette tips, racked 96 well, 1000ul Filtered, Low Retention, 16/cs #MP96-T1000-LRFS
  • AutoMATE Reagent reservoir, 195mL, pack of 1 #MP96-RSV
Show more

• Type: Automated Liquid Handling

• Model: AutoMATE™ 96

• Manufactured by: Accuris

• Manufacturer SKU: MP9604-E

• Pipetting Range: 1 ul - 1,000 ul

• Unit of Measure: EA

• Electrical Specifications: 230 V, 100 W, 50/60 Hz

• Weight, Product: 71.8 lb

• Dimensions, Product: 69" W x 35" D x 67.3" H

• Weight, Shipping: 90 lb

• Dimensions, Shipping: 20" W x 30" D x 30" H

Show more
Other products you may find relevant

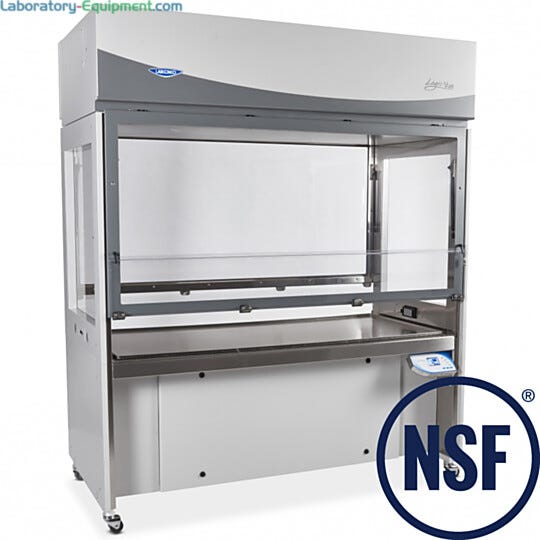

  1. Logic Vue Class II, Type A2, Biosafety Cabinets by Labconco
    Group of 2 products
    Logic Vue Class II Biosafety Cabinets by Labconco From
    As low as $25,147
    Some ship in 20 - 24 days
  2. Labconco Purifier Logic+ series hood exhausts fumes from the hood via ducted flange | 3651-60 displayed
    Group of 16 products
    Purifier Logic+ Class II, B2 Biological Safety Cabinets by Labconco From
    As low as $16,087
    Some ship in 25 - 29 days
  3. NSF-listed BSC ideal for use in COVID-19 applications research
    Group of 32 products
    Purifier Logic+ Class II A2 Biological Safety Cabinets by Labconco From
    As low as $10,184
    Some ship in 5 - 7 days

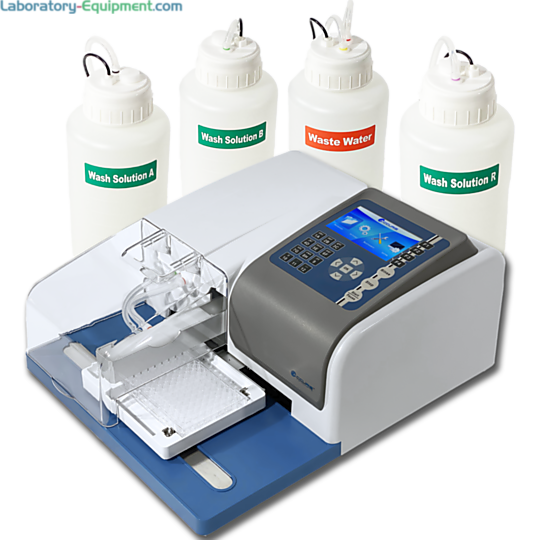

  4. SmartWasher™96 washes ELISA assays with flexible and easy programming
    Group of 2 products
    SmartWasher™96 Microplate Washers by Accuris Instruments From
    As low as $4,452
    Some ship in 3 - 5 days
  5. SmartReader 96 with a 7" touchscreen interface displays plate layout, measurement results and graphical layouts: easy-to-use and ideal for COVID-19 research | 2824-16-220 displayed
    Group of 2 products
    SmartReader 96 Microplate Absorbance Readers by Accuris From
    As low as $5,778
    Some ship in 5 - 7 days

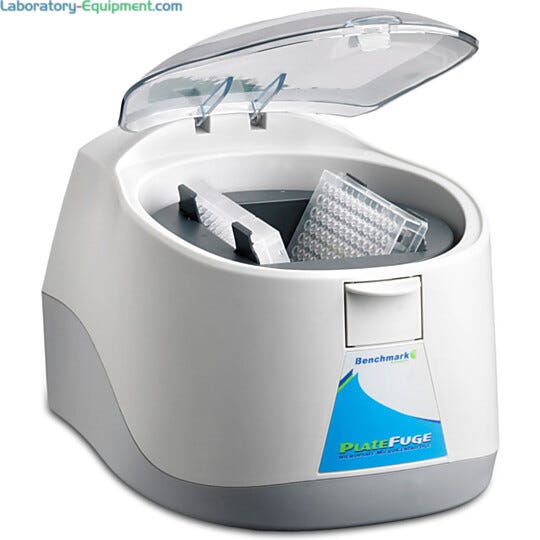

  6. Platefuge microplate micro centrifuge from Benchmark has a 75° swing-out rotor and lid-controlled start/stop for spinning microplates up to 2,550 rpm | 2814-00 displayed
    Group of 2 products
    PlateFuge Microplate Micro Centrifuges by Benchmark Scientific From
    As low as $760
    Some ship in 5 - 7 days

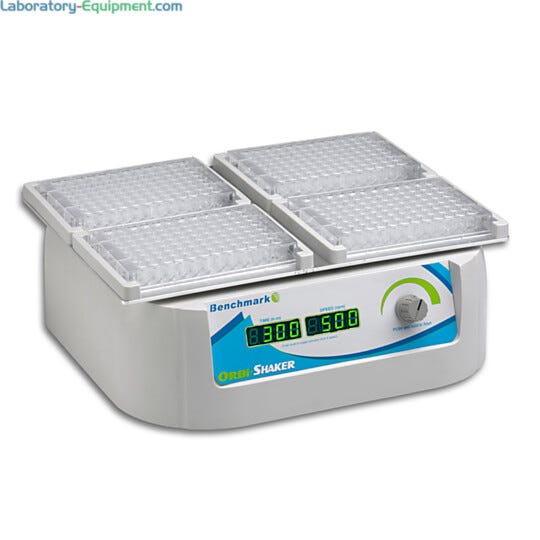

  7. Benchmark Scientific’s Orbi-Shaker™ MP provides thorough mixing for up to 4 microplates at a time; includes tool-less mounting platform | 2817-11 displayed
    Group of 2 products
    Orbi-Shaker™ MP Microplate Shaker by Benchmark Scientific From
    As low as $994
    Some ship in 5 - 7 days

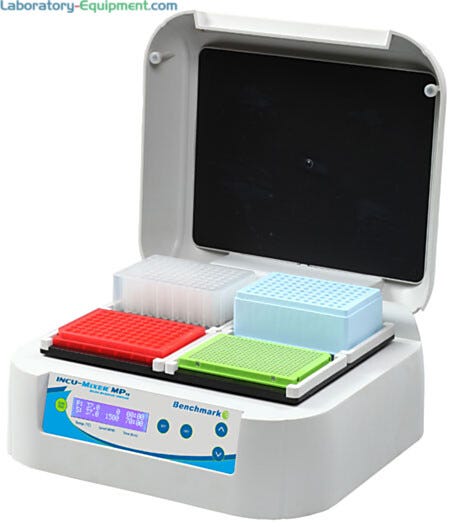

  8. Incu-Mixer MP Heated Microplate Vortexer with a 2 or 4-plate format that accepts up to 40mm high microplates; independently controlled time, temperature and spe | 2825-PP-03 displayed
    Group of 4 products
    Incu-Mixer MP Heated Microplate Vortexer by Benchmark Scientific From
    As low as $1,754
    Some ship in 5 - 7 days

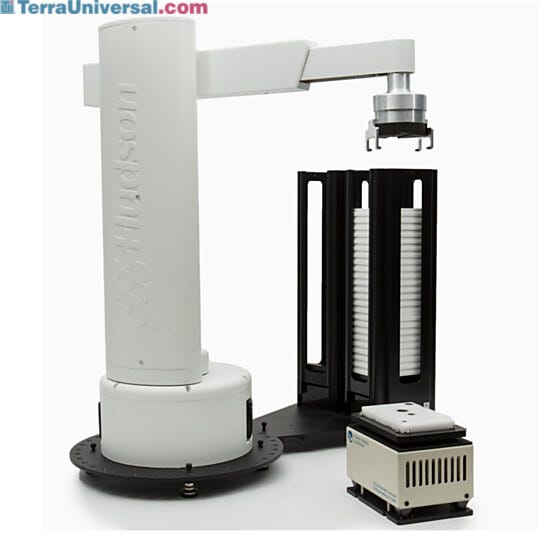

  9. PlateCrane SciClops Automated Microplate Robot by Hudson Robotics | 3030-50 displayed
    Group of 2 products
    PlateCrane SciClops, Automated Microplate Robot by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days

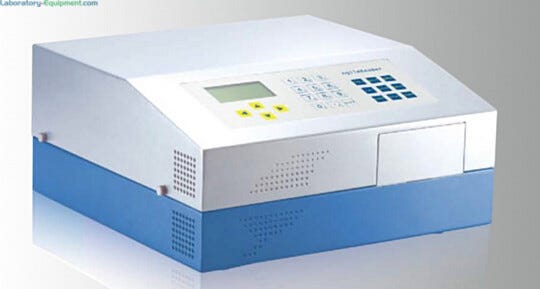

  10. AgileReader ELISA Plate Reader for 96-well types with a built-incubator and shaker | 8000-54 displayed
    Microplate Reader; AgileReader™, Absorbance, ACTGene, 120/240 V
    $10,260
    Usually Ships in 10 - 14 days

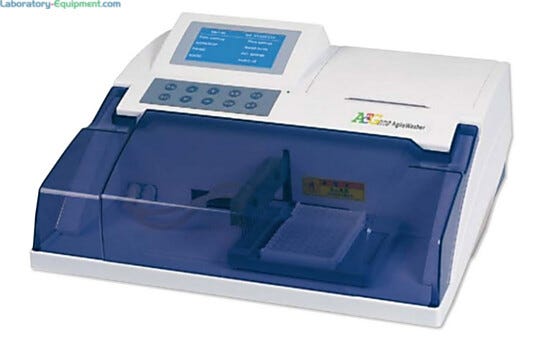

  11. AgileWasher ELISA Plate Washer by ACTGene for 96 or 48-well microplates and strip tubes and stores 99 wash protocols
    Microplate Washer; AgileWasher™, ACTGene, 110/220 V
    $7,236
    Usually Ships in 10 - 14 days
Buy Accessories
  1. AutoMate 96 models are compatible with easy-to-change Pipetting Heads (sold separately) available in 1-20µl (#MP9600-20PH), 5-200µl (#MP9600-200PH) and 100-1000
    Pipetting Head for AutoMATE™; 1-20ul, Accuris, MP9600-20PH Ships Free Free shipping in contiguous USA
    $7,267
    Increase Down Increase Up
  2. AutoMate 96 models are compatible with easy-to-change Pipetting Heads (sold separately) available in 1-20µl (#MP9600-20PH), 5-200µl (#MP9600-200PH) and 100-1000
    Pipetting Head for AutoMATE™; 5-200ul, Accuris, MP9600-200PH Ships Free Free shipping in contiguous USA
    $7,267
    Increase Down Increase Up
  3. AutoMate 96 models are compatible with easy-to-change Pipetting Heads (sold separately) available in 1-20µl (#MP9600-20PH), 5-200µl (#MP9600-200PH) and 100-1000
    Pipetting Head for AutoMATE™; 100-1000ul, Accuris, MP9600-1000PH Ships Free Free shipping in contiguous USA
    $8,170
    Increase Down Increase Up
  4. AutoMATE Pipette Tips; Racked 96 Well, 20ul Low Retention, 24/cs, Accuris, MP96-T20-LR
    AutoMATE Pipette Tips; Racked 96 Well, 20ul Low Retention, 24/cs, Accuris, MP96-T20-LR Ships Free Free shipping in contiguous USA
    $274
    Increase Down Increase Up
  5. AutoMATE Sterile Pipette Tips; Racked 96 Well, 20ul Filtered, Low Retention, 24/cs, Accuris, MP96-T20-LRFS
    AutoMATE Sterile Pipette Tips; Racked 96 Well, 20ul Filtered, Low Retention, 24/cs, Accuris, MP96-T20-LRFS Ships Free Free shipping in contiguous USA
    $385
    Increase Down Increase Up
  6. AutoMATE Pipette Tips; Racked 96 Well, 200ul Low Retention, 24/cs, Accuris
    AutoMATE Pipette Tips; Racked 96 Well, 200ul Low Retention, 24/cs, Accuris Ships Free Free shipping in contiguous USA
    $252
    Increase Down Increase Up
  7. AutoMATE Sterile Pipette Tips; Racked 96 Well, 200ul Filtered, Low Retention, 24/cs, Accuris, MP96-T200-LRFS
    AutoMATE Sterile Pipette Tips; Racked 96 Well, 200ul Filtered, Low Retention, 24/cs, Accuris, MP96-T200-LRFS Ships Free Free shipping in contiguous USA
    $385
    Increase Down Increase Up
  8. AutoMATE Pipette Tips; Racked 96 Well, 1000ul Low Retention, 16/cs, Accuris, MP96-T1000-LR
    AutoMATE Pipette Tips; Racked 96 Well, 1000ul Low Retention, 16/cs, Accuris, MP96-T1000-LR Ships Free Free shipping in contiguous USA
    $247
    Increase Down Increase Up
  9. AutoMATE Sterile Pipette Tips; Racked 96 Well, 1000ul Filtered, Low Retention, 16/cs; Accuris, MP96-T1000-LRFS
    AutoMATE Sterile Pipette Tips; Racked 96 Well, 1000ul Filtered, Low Retention, 16/cs; Accuris, MP96-T1000-LRFS Ships Free Free shipping in contiguous USA
    $274
    Increase Down Increase Up
  10. AutoMATE Reagent Reservoir; 195mL, Pack of 1, MP96-RSV
    AutoMATE Reagent Reservoir; 195mL, Pack of 1, MP96-RSV Ships Free Free shipping in contiguous USA
    $9
    Increase Down Increase Up

Liquid Handlers & Robotics

  • AutoMATE 96 Pipetting Workstation Key Features Fully automated AutoMATE 96 Pipetting Workstation with Intuitive Programming and Control by Accuris, 115V and 230V
  • Video of AutoMATE 96 Microplate Pipetting Workstation by Accuris Video of AutoMATE 96 Microplate Pipetting Workstation by Accuris
AutoMATE 96 Pipetting Workstation Key Features
AutoMATE 96 Microplate Pipetting Workstation with motorized head and 4-position platform for 96/384 well plates; includes tablet, and adapters for PCR and 384-w | 7906-PP-07 displayed Fully automated AutoMATE 96 Pipetting Workstation with Intuitive Programming and Control by Accuris, 115V and 230V
Video of AutoMATE 96 Microplate Pipetting Workstation by Accuris
Product overview video of AutoMATE 96 Microplate Pipetting Workstation by Accuris Video of AutoMATE 96 Microplate Pipetting Workstation by Accuris Video showcases features, benefits and functions of AutoMATE 96 Microplate Pipetting Workstation by Accuris

Features and Benefits

Easy-to-change Pipetting Heads

Interchangeable pipetting heads (sold separately) from 1.0µL to 1000µL help streamline the pipetting process

Automated Tip Loading and Ejection

Motorized tip loading, ejection and platform enable hands-free operation, consistent tip loading throughout all 96 wells, reduces processing time and errors

Included Tablet and Plate Adapters

AutoMate 96 Automated Pipetting Workstations include an 8" color touchscreen with software for programming and pipetting modes, and adapters (PCR and 384-well plates)
Products similar to this one
  1. ISOPure 96 Automated System with a 96-sample capacity for sample volumes from 50µl to 1000µl features a 7" color touch screen | 7906-PP-06 displayed
    Group of 4 products
    ISOPure 96 and ISOPure Mini Automated Systems by Accuris From
    As low as $9,497
    Some ship in 3 - 5 days
  2. Modular Microlab STAR Automated Liquid Handler with a 54-track deck capacity; optional modules and housing extensions for application flexibility | 1017-17 displayed
    Group of 2 products
    Microlab STAR Series Automated Liquid Handlers by Hamilton Robotics From
    Request Quote
  3. Microlab VANTAGE Automated Liquid Handlers available in 1.3 and 2.0 models with options for pipette channels, integrated cabinets, arms and transport devices | 1017-PP-05 displayed
    Group of 2 products
    Microlab VANTAGE Automated Liquid Handling Platform by Hamilton Robotics From
    Request Quote
  4. Affordable and configurable Microlab NIMBUS automated liquid handling robots available in three sizes with an open, enclosed or extended enclosed platform | 7906-PP-05 displayed
    Group of 3 products
    Microlab NIMBUS Automated Liquid Handling Systems by Hamilton Robotics From
    Request Quote
  5. Developed to cater to the growing needs of the research, pharmaceutical, and clinical communities | 3030-01 displayed
    Group of 4 products
    SOLO Automated Pipettor by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
Other products you may find relevant
  1. Logic Vue Class II, Type A2, Biosafety Cabinets by Labconco
    Group of 2 products
    Logic Vue Class II Biosafety Cabinets by Labconco From
    As low as $25,147
    Some ship in 20 - 24 days
  2. Labconco Purifier Logic+ series hood exhausts fumes from the hood via ducted flange | 3651-60 displayed
    Group of 16 products
    Purifier Logic+ Class II, B2 Biological Safety Cabinets by Labconco From
    As low as $16,087
    Some ship in 25 - 29 days
  3. NSF-listed BSC ideal for use in COVID-19 applications research
    Group of 32 products
    Purifier Logic+ Class II A2 Biological Safety Cabinets by Labconco From
    As low as $10,184
    Some ship in 5 - 7 days
  4. SmartWasher™96 washes ELISA assays with flexible and easy programming
    Group of 2 products
    SmartWasher™96 Microplate Washers by Accuris Instruments From
    As low as $4,452
    Some ship in 3 - 5 days
  5. SmartReader 96 with a 7" touchscreen interface displays plate layout, measurement results and graphical layouts: easy-to-use and ideal for COVID-19 research | 2824-16-220 displayed
    Group of 2 products
    SmartReader 96 Microplate Absorbance Readers by Accuris From
    As low as $5,778
    Some ship in 5 - 7 days
  6. Platefuge microplate micro centrifuge from Benchmark has a 75° swing-out rotor and lid-controlled start/stop for spinning microplates up to 2,550 rpm | 2814-00 displayed
    Group of 2 products
    PlateFuge Microplate Micro Centrifuges by Benchmark Scientific From
    As low as $760
    Some ship in 5 - 7 days
  7. Benchmark Scientific’s Orbi-Shaker™ MP provides thorough mixing for up to 4 microplates at a time; includes tool-less mounting platform | 2817-11 displayed
    Group of 2 products
    Orbi-Shaker™ MP Microplate Shaker by Benchmark Scientific From
    As low as $994
    Some ship in 5 - 7 days
  8. Incu-Mixer MP Heated Microplate Vortexer with a 2 or 4-plate format that accepts up to 40mm high microplates; independently controlled time, temperature and spe | 2825-PP-03 displayed
    Group of 4 products
    Incu-Mixer MP Heated Microplate Vortexer by Benchmark Scientific From
    As low as $1,754
    Some ship in 5 - 7 days
  9. PlateCrane SciClops Automated Microplate Robot by Hudson Robotics | 3030-50 displayed
    Group of 2 products
    PlateCrane SciClops, Automated Microplate Robot by Hudson Robotics From
    Request Quote
    Some ship in 20 - 24 days
  10. AgileReader ELISA Plate Reader for 96-well types with a built-incubator and shaker | 8000-54 displayed
    Microplate Reader; AgileReader™, Absorbance, ACTGene, 120/240 V
    $10,260
    Usually Ships in 10 - 14 days
  11. AgileWasher ELISA Plate Washer by ACTGene for 96 or 48-well microplates and strip tubes and stores 99 wash protocols
    Microplate Washer; AgileWasher™, ACTGene, 110/220 V
    $7,236
    Usually Ships in 10 - 14 days

On a tight schedule? Choose FasTrak 24/7 Priority Service to help meet your critical schedule for Terra-manufactured products, either before or after your order is placed.*

  • FasTrak 24/7 provides a 24/7 commitment to meet the shipping date YOU specify, regardless of quoted lead times.
  • FasTrak 24/7 assigns a dedicated production team plus a dedicated senior expeditor working three shifts to meet your delivery specification.
  • FasTrak 24/7 guarantees* to meet the agreed-to specified ship date.

Call for pricing. FasTrak service fees cover costs of additional services only, without additional profit.

 * Terra's FasTrak services limited guarantee: to ship on the ESD or date specified OR to refund up to 100% of FasTrak charges. This guarantee covers no direct, special, consequential or other damages and is strictly limited to up to 100% of the amount paid for FasTrak service. When a specified ship date is missed due to factors outside Terra's control (vendor performance, deliveries by shipping companies, etc.) and random factors such as accidents, the credit of up to 100% of the FasTrak 24/7 may not apply. FasTrak service requested after order placement will be quoted and accepted based on available time remaining before required ship date.
