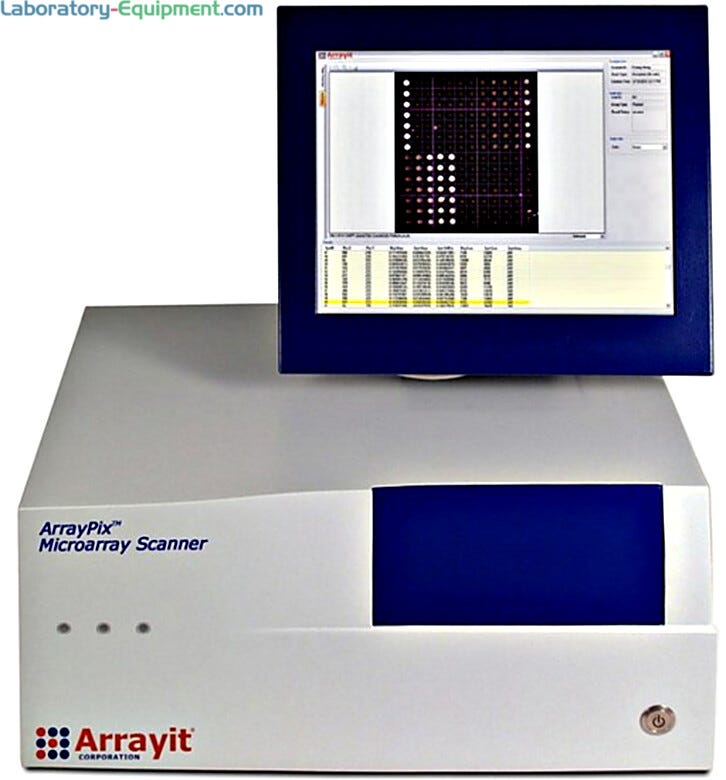

ArrayPix Fluorescence Microplate Microarray Scanner scans 96 microarrays in less than 3 minutes | 3031-31 displayed
Microarray Products

ArrayPix™ Fluorescence Microplate Microarray Scanner

• Equipment Type: Scanner

• Detection Modes: Fluorescent

• Detection Wavelength: 550/650 nm

• Detection Channels: 2

• Manufacturer SKU: APXF1

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: APXF1
Manufactured By: Arrayit
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3031-31
Terra Part # 3031-31
$48,022
Usually ships in 20-26 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3031-31
61278
ArrayPix™ Fluorescence Microplate Microarray Scanner
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Includes: Scanner with two-color 550 nm (cyanine 3) and 650 nm (cyanine 5) detection, 6 µm scanning resolution, cool two-color illumination, integrated flat panel display and touch screen, external computer with flat panel display, controller, quantification and reporting software, power supply with voltage-appropriate power cable, computer power cord with voltage-appropriate connector, keyboard, mouse, mouse pad, and test microarrays.
  • Number of Channels: 2-channel fluorescence
  • Standard Detection Wavelengths: 550 and 650 nm (Cy3 and Cy5)
  • Capacity: 4 standard 25 x 76 mm glass substrate slides or 1 microplate
  • Maximum Scan Area: 4.72" x 3.15" (120 x 80 mm)
  • Single Image Scan Size: 0.24" x 0.24" (6 x 6 mm)
  • Electrical: 120 or 240 Vac, 50-60Hz
  • Format: 1 microplate or 4 standard 25 x 76 mm slides
  • Resolution: 6 µm
  • Sensitivity: 0.1 fluors per µm2 and 1,000 fluors per spot
  • Standard Tiff Intensity Value Range: 0-65,536
  • Instrument Weight: 37.48 lbs.  (17 kg)
  • Ideal for use with Cy3 and Cy5 based microplate assays
  • Compatible with all standard SBS 96-well and 384-well microplates
  • Compatible with Arrayit AHC4x24, AHC4x16 and MMH96 hybridization cassettes
  • Scans 96 microarrays in less than 3 min
  • Scan microarrays on substrate slides, plates and slide based plate reaction tools
  • Compatible with all types of transparent microarray surface chemistries both plastic and glass
  • Built-in CPU and touch screen flat panel display
  • Controller, quantification and reporting software included
  • Low heat and energy consumption using cool excitation technology
  • DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])
Show more

• Equipment Type: Scanner

• Detection Modes: Fluorescent

• Detection Wavelength: 550/650 nm

• Detection Channels: 2

• Manufacturer SKU: APXF1

• Unit of Measure: EA

• Weight, Product: 37.5 Lbs

• Dimensions, Product: 30"W x 35"D x 38"H

• Weight, Shipping: 85 Lbs

• Dimensions, Shipping: 34"W x 40"D x 44"H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes | 1580-20 displayed
    Group of 4 products
    Granite Isolators From
    As low as $863
    Some ship in 5 - 7 days
Buy Accessories
  1. Product Training/In-Service
    Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  2. Planned Maintenance Service
    Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  3. Warranty; 1 Year, for ArrayPix™ Fluorescence Microplate Microarray Scanner
    Warranty; 1 Year, for ArrayPix™ Fluorescence Microplate Microarray Scanner
    $4,990
    Increase Down Increase Up

Features and Benefits

Learn More: Colorimetric and Fluorescence Models
Print Copy Copied

More Information

Parameter ArrayPix™ Colorimetric Scanner ArrayPix™ Fluorescence Scanner
Number of Channels Single channel colorimetric 2-channel fluorescence
Standard Detection Wavelengths White light 550 nm and 650 nm (Cy3 and Cy5)
Microarray detection wavelengths 6 µm CCD cyanine 3 (550 nm) and cyanine 5 (650 nm)
Capacity 4 standard 25 x 76 mm glass substrate slides or 1 microplate
Maximum Scan Area 4.72" x 3.15" (120 x 80 mm)
Single Image Scan Size 0.24" x 0.24" (6 x 6 mm)
Electrical 120 or 240 Vac, 50-60Hz
Format 1 microplate or 4 standard 25 x 76 mm slides
Resolution 6 µm
Sensitivity 0.1 fluors per µm2 and 1,000 fluors per spot
Standard Tiff Intensity Value Range 0 – 65, 536 counts
Display Built-in CPU and touch screen flat panel
External BioBlue Mini Computer and LED Flat panel display
Product Components
    • ArrayPix™ Plate Based Two-Color Fluorescence or Colorimetric Microarray Scanner
    • Power supply with Voltage Appropriate Power Cable
    • Controller, Quantification and Reporting Software Included
    • Built-in CPU with Touch Screen Display
    • External BioBlue Bioinformatics Computer and LED Flat Panel Display
    • Computer and Display DVI Cable and Power Cords
    • Computer Power Cord with Voltage-Appropriate Connector
    • Computer Keyboard
    • Computer Mouse
    • Computer Mouse Pad
    • Microarrays for Test Scanning
