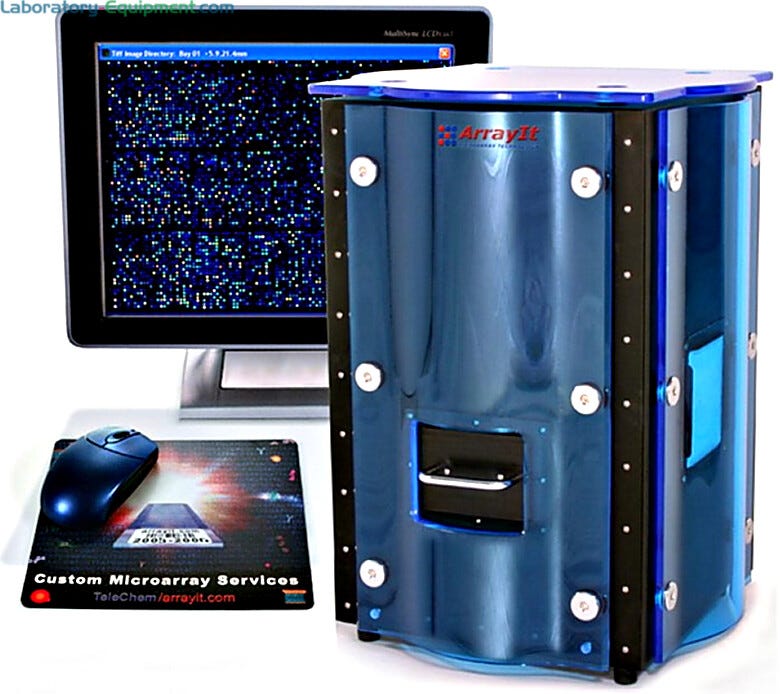

SpotLight 2 Fluorescence Microarray Scanner ideal for quantitative differential expression studies | 3031-38 displayed
Microarray Products

ArrayIt® SpotLight™ 2 Microarray Fluorescence Scanner, 2- color

• Equipment Type: Scanner

• Detection Modes: Fluorescent

• Slide Capacity: 1 Slide

• Detection Wavelength: 570/670 nm

• Detection Channels: 2

• Manufacturer SKU: SLMS2

• Unit of Measure: EA

Read more
Ships Free
Manufacturer SKU: SLMS2
Manufactured By: Arrayit
Print
Need Help?

(714) 578-6100

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Chat

Want a quote quickly ?
Submit a QuickQuote request
3031-38
Demo Available

Up to 30-day trial periods, free return shipping and on-site training available for qualified equipment.

Request demo from your product specialist or add note to your order or quote request.

Terra Part # 3031-38
$37,734
Usually ships in 15-21 business days

Want it faster ? Read about FasTrak

Ships Free Free shipping in contiguous USA
Accessories related to Terra Part # 3031-38
61338
ArrayIt® SpotLight™ 2 Microarray Fluorescence Scanner, 2- color
View Shopping Cart View Quote Cart
CHOOSE ACCESSORIES & BUY OR QUOTE
Details & Specs
Related Products
Buy Accessories
Product Details
  • Channels: 2-color
  • Resolution: 10 µm
  • Detection Wavelengths: Cy3 (570 nm) and Cy5 (670 nm)
  • Optional detection wavelengths: 455 nm, 470 nm, 488 nm, 505 nm, 590 nm, 617 nm, 625 nm and white light
  • Includes: SpotLight™ Microarray Scanner, test microarrays, BioBlue high-speed personal computer with controller software, scanner power supply, LED 22" flat panel display with DVI monitor cable and power cord, keyboard, mouse, mouse pad, ethernet cable, USB cable and voltage appropriate power cords, microarrays for text scanning
  • Format: Standard glass slide 1 x 25 x 76 mm
  • Sensitivity: <0.1 fluors per square micron and <1,000 fluors per spot
  • Standard Detection Label: Fluorescent
  • Optional detection label: chemilluminescent and colorimetric
  • Standard filter sets: Cy3 and Cy5
  • Optional Filter Sets: fluorescein and fluorescein analogs, TRITC (Rhodamine), APC, ethidium bromide, Alexa dyes, and several GFP variants
  • Scan Area: 25 x 76 mm
  • Single image scan size: 1392 x 1024 pixels
  • Single image file size: 2.7 MB
  • Max.  Scan area: 25 x 76 mm
  • Dynamic Range: >10,000-fold
  • Standard Tiff Intensity Value Range: 0-65,536
  • Operating System: Windows 7
  • Computer Hardware Requirements: P IV2.0 GHz, 256 megs RAM, 20 GB drive
  • File format output: Standard 16 bit TIFF (065,536)
  • Instrument Size: 14.25"W x 13.25"D x 19.4"H (360 x 340 x 490 mm)
  • Instrument Weight: 29 lbs.  (13kg)
  • Electrical: 120 or 240 Vac, 50-60Hz
  • Scans all types of slide based microarrays
  • Compatible with all types of surface chemistries including glass, plastic, hydrogels, nitrocellulose and nylon
  • Compatible with MAPIX(R) , GenePix(R)  and other software packages
  • Signal-to-background of up to 10X higher than some commercial scanners
  • Low heat emission and energy consumption
  • DEMO AVAILABLE – Schedule a demonstration unit at your facility for no or low cost excluding freight. Please contact Evan Messenger at 714-578-6124 ([email protected])
Show more

• Equipment Type: Scanner

• Detection Modes: Fluorescent

• Slide Capacity: 1 Slide

• Detection Wavelength: 570/670 nm

• Detection Channels: 2

• Manufacturer SKU: SLMS2

• Unit of Measure: EA

• Weight, Product: 29 Lbs

• Dimensions, Product: 15"W x 14"D x 20"H

• Weight, Shipping: 50 Lbs

• Dimensions, Shipping: 20"W x 20"D x 25"H

• Package Type: Vendor

Show more
Other products you may find relevant
  1. Granite vibration isolators are ideal for precision electronic weighing scales, and microscopes | 1580-20 displayed
    Group of 4 products
    Granite Isolators From
    As low as $863
    Some ship in 5 - 7 days
Buy Accessories
  1. Arrayit High-Performance Instrument Cleaner
    Arrayit High-Performance Instrument Cleaner
    $116
    Increase Down Increase Up
  2. Product Training/In-Service
    Product Training/In-Service
    Request Quote
    Increase Down Increase Up
  3. Planned Maintenance Service
    Planned Maintenance Service
    Request Quote
    Increase Down Increase Up
  4. Extended Product Warranty
    Extended Product Warranty
    Request Quote
    Increase Down Increase Up

Features and Benefits

Learn More: SpotLight 2 and Turbo Models
Print Copy Copied

More Information

Model SpotLight™ 2 Microarray Scanner
#SLMS2 and #SLMS2B (Blue Edition)		 SpotLight™ Turbo
Microarray Scanner #SLMST
Dimensions 14.25W x 13.25D x 19.4H in
(360 x 340 x 490 mm)		 14.25W x 17.5D x 19.4H in
(460 x 300 x 460 mm)
Number of Channels 2-color 6-color
Microarray Format standard glass slide 1 x 25 x 76 mm 25 x 76 mm
Software Requirements Windows 7 Win 2000, Win XP
Excitation Wavelength #SLMS2: 570 nm and 670 nm
#SLMS2B: FITC 488 nm		 FITC 488 nm, 532 nm, 635 nm and 3 additional channels
Product Components
  • SpotLight™ 2 Personal Two-Color Fluorescence Microarray Scanner
  • Power supply with Voltage Appropriate Power Cable
  • High-Speed Firewire Cable
  • High-Speed USB Cable
  • High-Speed Ethernet Cable
  • BioBlue High-Speed Personal Computer
  • SpotLight™ 2 Controller Software (Pre-Loaded on Computer)
  • SpotLight™ 2 LED Flat Panel Display with DVI Monitor Cable and Power Cord
  • Computer Power Cord with Voltage Appropriate Connector
  • Computer Keyboard, Mouse and Mouse Pad
  • Microarrays for Test Scanning
  • SpotLight™ Personal Two-Color Fluorescence Microarray Scanner
  • Power supply with Voltage Appropriate Power Cable
  • High-Speed Firewire Cable
  • High- Speed USB Cable
  • High- Speed Ethernet Cable
  • BioBlue High-Speed Personal Computer
  • SpotLight™ Controller Software (Pre-Loaded on Computer)
  • SpotLight™ Flat Panel Display with Monitor Cable and Power Cord
  • Computer Power Cord with Voltage Appropriate Connector
  • Computer Keyboard, Mouse and Mouse Pad
  • Microarray for Test Scanning
Software Compatibility MAPIX®, GenePix® and other software packages
Resolution 10 µm
Standard Detection Wavelengths Cy3 (532 nm) and Cy5 (635 nm)
Optional Detection Wavelengths 455 nm, 470 nm, 488 nm, 505 nm, 590 nm, 617 nm, 625 nm and white light
Standard Filter Sets Cy3 and Cy5
Optional Filter Sets fluorescein and fluorescein analogs, TRITC (Rhodamine), APC, ethidium bromide, Alexa dyes, and several GFP variants
Standard Detection Label Fluorescent
Optional Detection Labels chemiluminescent and colorimetric
Sensitivity <0.1 fluors per square micron and <1,000 fluors per spot
Signal to Background up to 10X higher than some commercial scanners
Dynamic Range >10,000 fold
Single Image Scan Size 1392 x 1024 pixels
Single Image File Size 2.7 MB
Max. Scan Area 25 x 76 mm
Computer Hardware Requirements P IV-2.0 GHz, 256 megs RAM, 20 GB drive
Image File Format Standard 16-bit TIFF (0-65, 536)
Electrical requirements 100 or 240 Vac and 50-60 Hz
