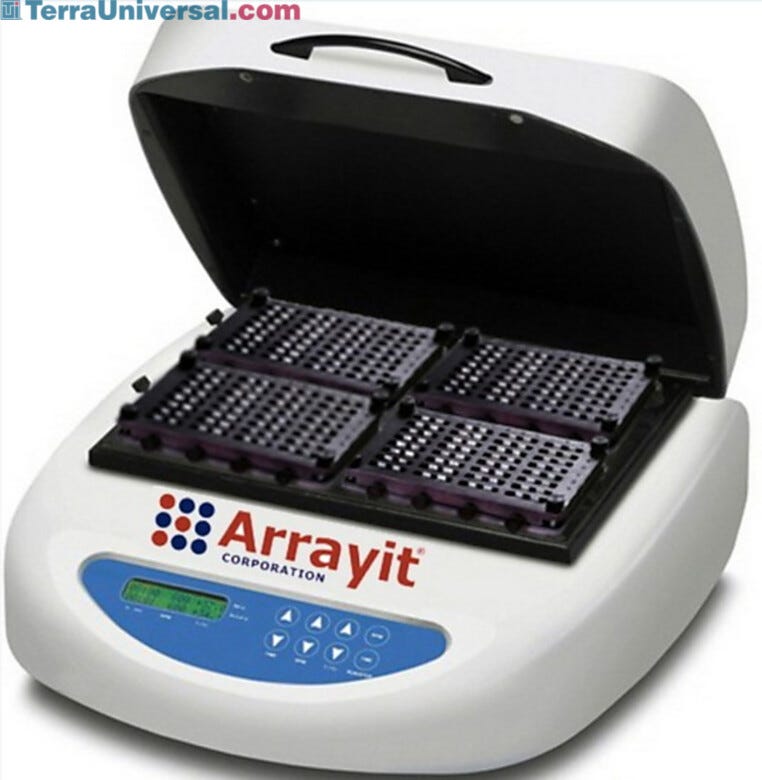

Four-Plate Array Plate Multi-Well Microarray Hybridization Station for microplate cassettes and well configurations | 3031-42-4 displayed

Microarray Products

Array Plate Multi-Well Microarray Hybridization Station, 4 Plate System

• Equipment Type: Hybridization Station

• Slide Capacity: 384 Slides

• Complete Hybridization Station: Yes

• Chiller Bath: No

• Manufacturer SKU: MMHS4

• Unit of Measure: EA

Read more

Ships Free

Manufacturer SKU: MMHS4

Manufactured By: Arrayit

Need Help?

Hours Mon - Fri, 07:00 AM - 06:00 PM (Pacific Time)

Want a quote quickly ?

Submit a QuickQuote request

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Top
Select Product Buy
Details Details
Photos & Videos Gallery
Features & Benefits Features
Accessories Accessories
Similar Similar
Manuals & Resources Resources

Terra Part # 3031-42-4

$9,000*

Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Terra Part #

$9,000*

Usually ships in 10-16 business days

Want it faster ? Read about FasTrak

Details & Specs

Related Products

Details & Specs

Product Details

Includes:
Array Plate Multi-Well
Hybridization Station, 110V or 220V
Alloy block instrument cover
Voltage appropriate power cord
Replacement fuses (2 each)
Replacement instrument feet (4 each)
Allen wrench for block removal
Temperature range: ambient to 60°C
Timer range: 1 min to 100 hours
Mixing speed: 300-1200 RPM
Mixing amplitude of microwell samples: 3 mm
Temperature control accuracy ±0.5°C
Display accuracy ±0.5°C
Temperature uniformity ±0.5°C
Heating time from 25°C to 37°C: 10 min
Cooling time from 37°C to 25°C: 5 min
Dimensions: 15"W x 15"D x 6"H ((381 x 381 x 140 mm)
Net weight: 19.4 lbs. (8.8 kg)
Power requirements: 110-240V AC at 50/60Hz and 50W

Compatible with microarray microplate hardware AHC4X8S, AHC4X8L AHC4X16 and AHC4X24

Model runs up to 4 microplate formatted hybridization cassettes

Fitted with heated cover

Unit works under any voltage

Microcomputer controls timer, heating and cooling and mixing

3-color digital display

Versatile alloy block accommodates microplates and single tubes

Applications: Hybridizes/incubates DNA, protein, carbohydrate and peptide microarrays; also used for cell studies, transcription, immunoprecipitation, enzyme kinetics, and more

• Equipment Type: Hybridization Station

• Slide Capacity: 384 Slides

• Complete Hybridization Station: Yes

• Chiller Bath: No

• Manufacturer SKU: MMHS4

• Unit of Measure: EA

• Weight, Product: 20 Lbs

• Dimensions, Product: 15"W x 15"D x 6"H

• Weight, Shipping: 35 Lbs

• Dimensions, Shipping: 20"W x 20"D x 10"H

• Package Type: Box

Related Products

Other products you may find relevant

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Print Copy Copied

More Information

Model	#MMHS110V	#MMHS2	#MMHS4
Capacity	Single-Plate Capacity	2-Plate Capacity	4-Plate Capacity
Simultaneous reactions	up to 96 microarrays	up to 192 microarrays	up to 384 microarrays
Mixing speed	300 to 1,500 rpm	300 to 1,200 rpm
Temperature range	ambient to 100°C heating	ambient to 60°C heating
Timer range	1 minute to 100 hours
Mixing amplitude of micro-well samples	3 mm
Temperature control accuracy	±0.5°C
Display accuracy	±0.5°C
Temperature uniformity	±0.5°C
Heating time	20°C to 100°C: 10 minutes	25°C to 37°C: 10 minutes
Cooling time	100° to 20°C: 10 minutes	37°C to 25°C: 5 minutes
Dimensions (W x D x H)	10 x 13 x 7 in. (270 x 330 x 170 mm)	10 x 11 x 5 in. (260 x 270 x 130 mm)	15 x 15 x 6 in. (381 x 381 x 140 mm)
Net weight	18.7 lbs. (8.5 kg)	13.4 lbs. (6.1 kg)	19.4 lbs. (8.8 kg)
Compatible well configurations	AHC4x8L and AHC4x24 well configurations
Power requirements	110 – 240V AC at 50/60Hz and 150W	110-240V AC at 50/60Hz and 40W	110-240V AC at 50/60Hz and 50W
Includes	Array Plate Multi-Well Hybridization Station, 110V Alloy block instrument cover Voltage appropriate power cord Replacement fuses (2 each) Replacement instrument feet (4 each) Allen wrench for block removal

Accelerates Hybridization Rates by Approximately 10-Fold

Figure 1-A. Hybridized for 30 minutes at 42° in 30 µl under a glass cover slip

Figure 1-B. Hybridized for 30 minutes in 200 µl at 500 rpm using an Array Plate Hybridization Station. Figure 1-B shows a 10-fold increase in signal compared to figure 1-A. Even with a 6.7-fold greater probe dilution, the Array Plate produced a stronger signal compared to static cover slip hybridization reactions. Note: Microarrays were spun dry for 3 seconds using the Microarray High-Speed Centrifuge and scanned on an Arrayit InnoScan® 710AL Two-Color High-Speed Fluorescence Scanner

Figure 2. The Plate Hybridization Station accommodates various cassettes for fast and effective microarray hybridization reactions. Gaskets can be modified to various formats. Cassettes are sealed with a microplate foil seal to eliminate sample evaporation during hybridization process.

Figure 3. Multi-Well Hybridization Stations accept various interchangeable block tubes for holding tubes, plates, chambers and cassettes.

Figure 4. This display diagram shows the various features of Microarray Multi-Well Microarray Hybridization Stations.
