3652-02A
Terra Part # 3652-02A
$14,357
Usually ships in 17-23 business days

Want it faster ? Read about FasTrak

Accessories related to Terra Part # 3652-02A
78555

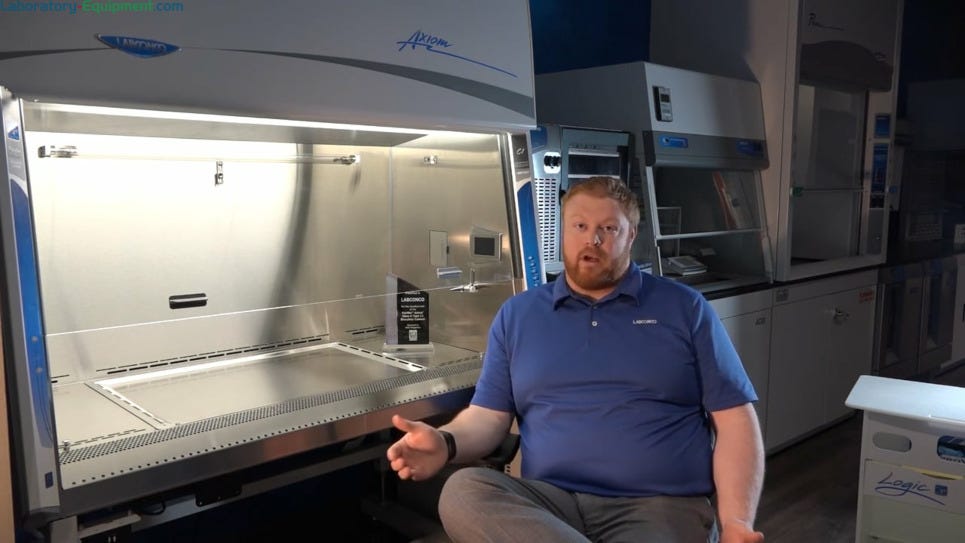

Biosafety Cabinet; Purifier Axiom, Class II C1, 48" W, UV Lamp, Sash Opening: 8", Labconco, 110/115 V
Product Details
  • ADA compliant 4’ Purifier Axiom C1 BSC with OmniFlex Type A2 and B2 modes
  • For Biosafety Level (BSL) 1, 2, and 3 containment or BSL 4 with PPE
  • Intuitive MyLogic Operating System shows clear status information on LCD display
  • Chem-Zone work surface provides operator safety when working with hazardous vapors
  • •  Included built-in options: UV light, Vacu-Pass portal and service fixtures
  • Exhaust Volume for 8" sash height: 387 CFM @ 0.15" w.g
  • Nominal inflow velocity of 105 feet per minute (fpm) (0.53 m/sec)
  • Nominal downflow velocity: 65 fpm (0.33 m/sec) for 4' models; 55 fpm (0.28 m/sec) for 6' models
  • Maximum sash opening height: 22.6" (58 cm)
  • Viewing height: 27.0" (69 cm)
  • Conformance: NSF/ANSI Standard 49 Listed; ADA-compliant operation UL Standard 61010-1; ISO 5 conditions per ISO 14644-1 and 2; CAN/CSA 22.2 No. 61010-1; CE Conformity Marking (230V models)
  • Type A mode for routine microbiological applications and cell culture work
  • Type B mode for handling hazardous chemicals
  • Filters hazardous aerosols and particulates for personnel, product and environmental protection
  • Included connection discharges HEPA filtered exhaust air directly back to the lab
  • Sash design: 10° angled fully-closing, 1/4" tempered safety glass sash with counterbalanced, anti-racking and easy-to-lift mechanism
  • Material: 304 stainless steel work surface, leak-tight  stainless steel interior, powder-coated steel exterior, safety glass sash, NSF-Approved, powder-coated steel non-welded (base stand)
  • Exclusive Labconco features of Purifier Axiom C1 BSC:
  • Omni-Flex™ two mode design for Type A and Type B modes
  • MyLogic™ Operating System
  • LCD information system: Smart-Start™, Night-Smart™, Filter Life Remaining" bar graph for each HEPA filter, status line alarm and alerts when filter life diminishes to 20% and 0%
  • Chem-Zone™ work surface with a dedicated direct exhaust for use with hazardous vapors or radionuclides
  • Fully scannable 99.99+% supply and exhaust HEPA filters (99.999% ULPA filters option available)
  • Dual Electronically Commutated Motors (ECM)
  • Constant Airflow Profile™ (CAP) Technology airflow monitoring system
  • Active Protection Protocol prevents flow of air into the lab by operating exhaust blowers for up to five minutes, in the event of exhaust system failure
  • Enhanced containment with Air-Wave™ Entry System and Contain-Air™ Negative Pressure Channel
  • Two electrical duplex receptacles and touchpad positioned on right side
  • Reserve-Air™ Secondary Airflow Slots* on curved waterfall design stainless steel inlet grille
  • Removable 3-piece work surface (304 stainless steel)
  • Additional benefits: Low static pressure and volumetric rate exhaust requirements in Type B mode (no need for dedicated exhaust system), safe negative pressure design, glare-free LED lighting (located outside contaminated work area), bright 0-150 footcandle, Interval/elapsed timer for experiment monitoring, electronic security lock with access code(optional activation),
  • Options:
  • NSF-Approved, powder-coated steel non-welded telescoping base stand with feet (unassembled)
  • Accessory Package: UV lamp (254 nm), service fixture(s) with ball-type valve(s) and Vacu-Pass™ Cord & Cable Portal
  • Type B mode: 10" diameter stainless steel manual damper
  • Bag-In/Bag-Out Package: Exhaust Filter for use with radionuclides or harmful chemicals

Model: Purifier Axiom

Width: 48"

Biosafety Class: Class II C1

UV Lamp: Included

Base Stand: Optional

Manufactured by: Labconco

Sash Opening: 8"

Manufacturer SKU: 304481001

Unit of Measure: EA

Marks & Listings: UL, NSF 49

Electrical Specifications: 110/115 V, 16 A, 343 W, 50/60 Hz

Weight, Product: 636 lb

Dimensions, Product: 54.3" W x 32.7" D x 64.2" H

Weight, Shipping: 750 lb

Dimensions, Shipping: 72" W x 44" D x 79.2" H

Package Type: Skeletal Crating
